Product information

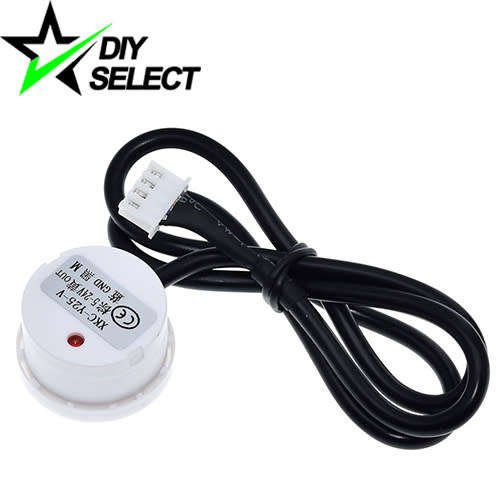

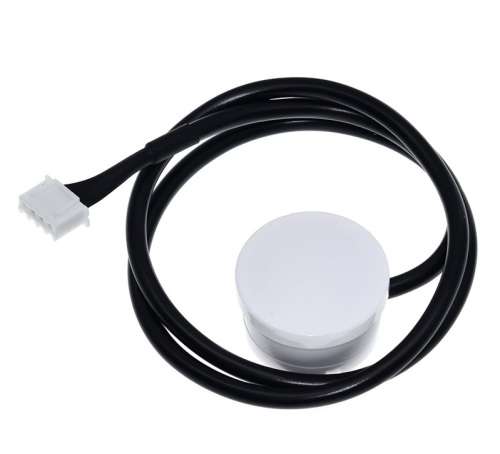

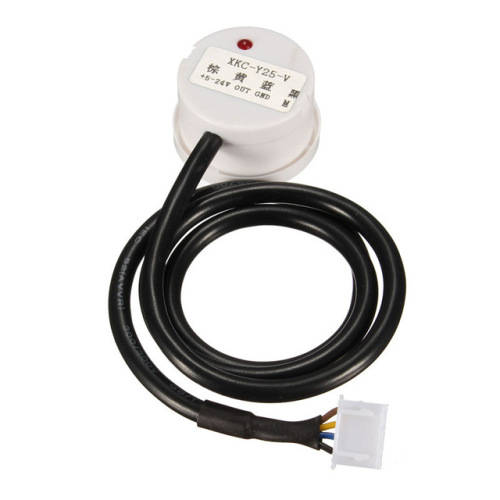

Sensor Water Liquid Level Switch Non Contact for Aquarium 5-24V:
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Input Voltage: 5-24V DCOutput Current: 1-100mA
Response Time: 500ms
Operating Temperature: 0-100 Deg
Induction Range: 0-10mm
Material Containers: Plastic, Ceramic, Glass etc
Size: 29mm Diameter x 17 mm
Cable Length: 450 mm
Color: White
Features:

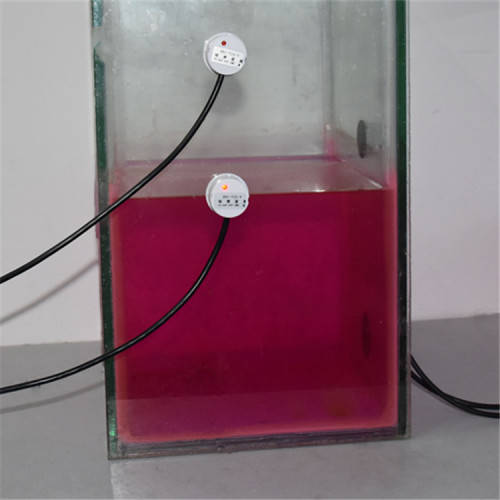

Strong compatibility, penetrate various non-metallic containers,such as plastic, glass, ceramic and other containers up to thickness more than 10mm; liquid, powder, Particulate can be detected.

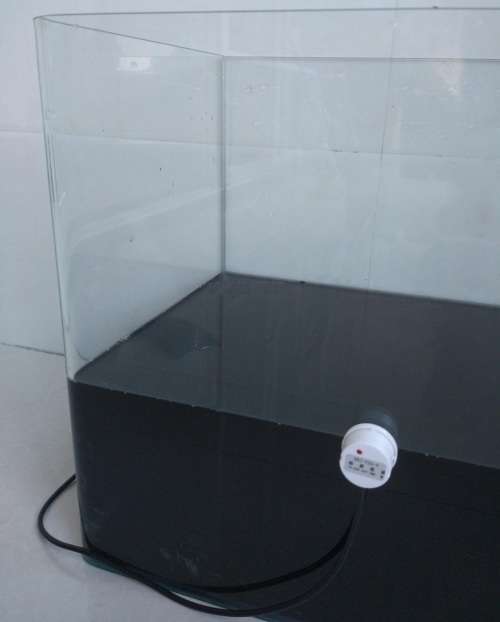

Non-contact liquid level sensors for non-metallic wall of the container without direct contact with the liquid, They are not subject to corrosion acids and alkalis and other corrosive liquids, or other debris from the scale effect.
Brown: Positive +
Yellow: Out
Blue: Negative -
Black: (Leave Disconnected)

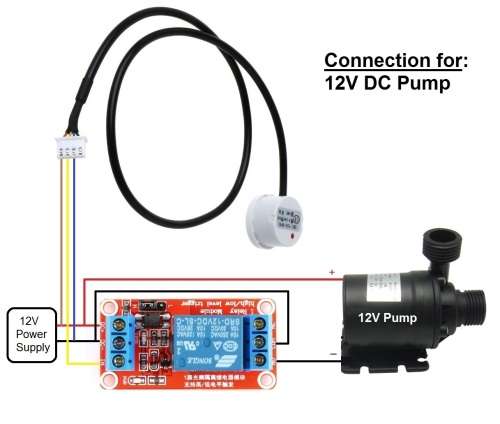

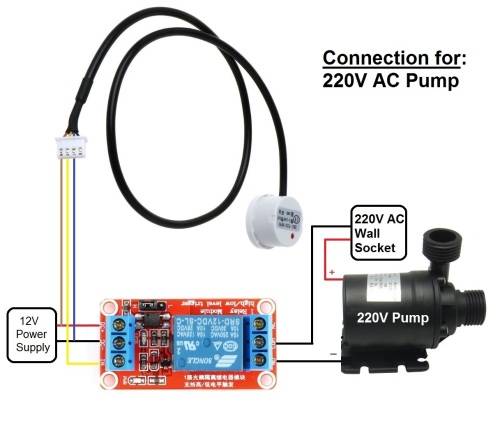

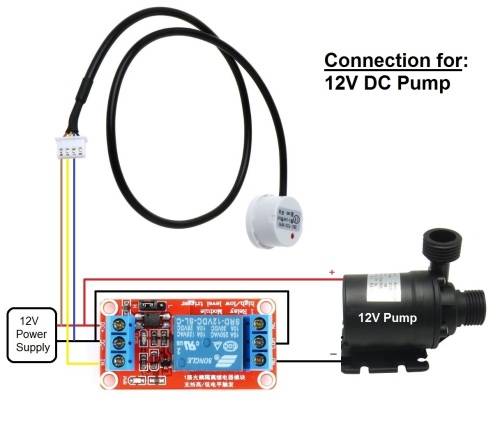

* When used to control 220V AC or 6V DC, 12V DC, 24V DC Pumps, a relay switch must be used. Please search "Relay" in our store
