Water Tank Float Valve

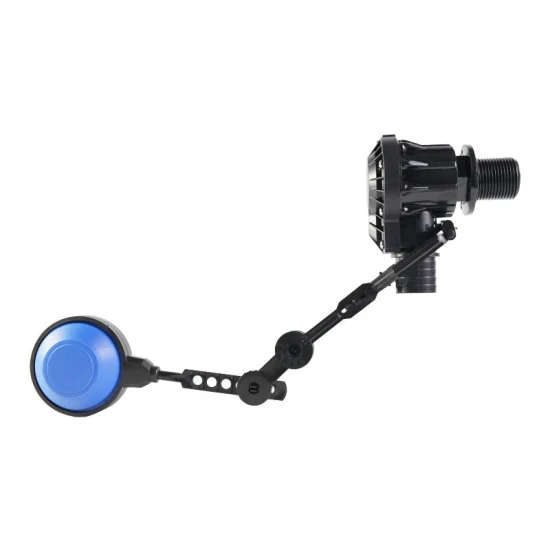

Biomek FPS-5 Advance Float Valves are hydraulic water level regulators with a hydraulically operated closure. No electrical cables, plug & play, 1 inch connector which includes a filter screen and easy adjustable arm.

Designed as a replacement to conventional ballcock valves in water tanks to protect booster pumps, the FPS-5 goes instantly from fully open to fully closed, preventing repeated stop/start cycling of pumps when filling tanks or cisterns. This makes the pump more efficient, saves energy and wear and tear on the pump.

FPS-5 has a very high flow rate allowing rapid filling with minimal pressure loss.

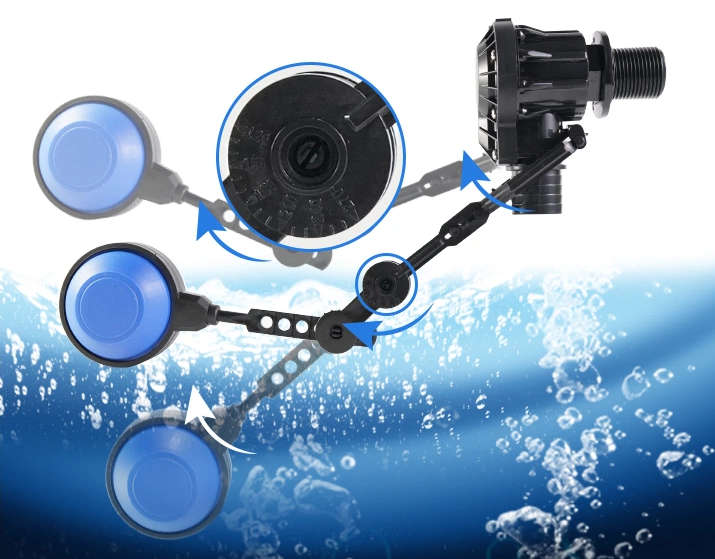

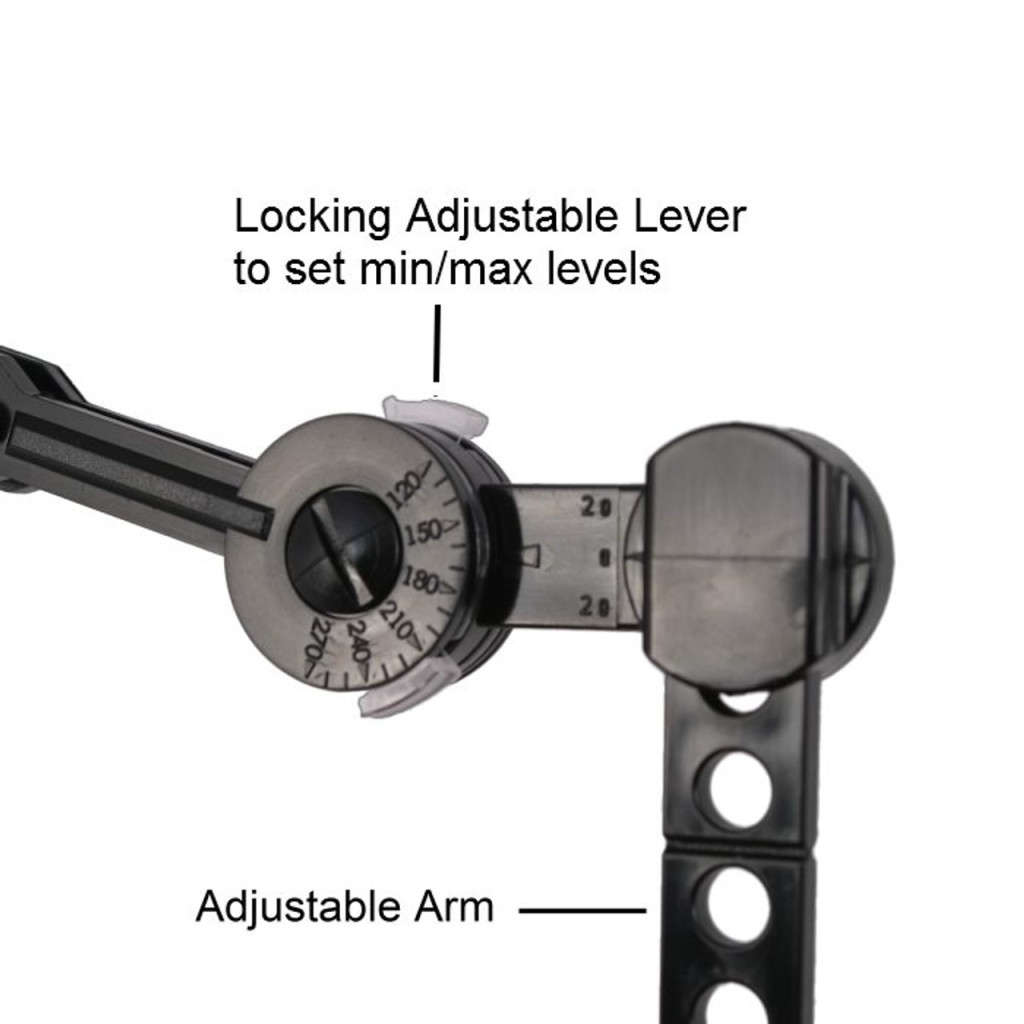

The Locking lever (at the centre hinge) easily sets the minimum and maximum tank liquid levels and the length of the float arm can be simply adjusted to giving you great flexibility from 0 to 180o. The adjustable arm has 6 different settings enabling you to lengthen the arm up to 60mm.

A versatile ballcock and float valve alternative which is adaptable to many different types of installation including water tanks, toilet cisterns, roof tanks and header tanks.

When water is drawn from the tank, the FPS-5 has a delayed re-start level of approximately 3cm, which further reduces the stop/start frequency of the pump.

Specifications:

Service Continuous: Yes

Max Pressure: 7bar

Operating Pressure Range: 0.2 - 6bar

Operating temperature: 0°C - 40°C

Storage Temperature: - 10°C - 60°C

Connector: 1

Whats in the box

* Biomek FPS-5 Float Valve

* Mesh Filter

* Washers & Nut

* Installation Instructions
