SELECTED OPTION:

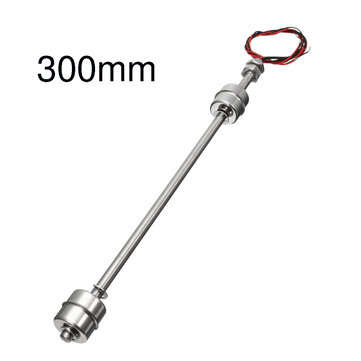

SIZE: 300MM

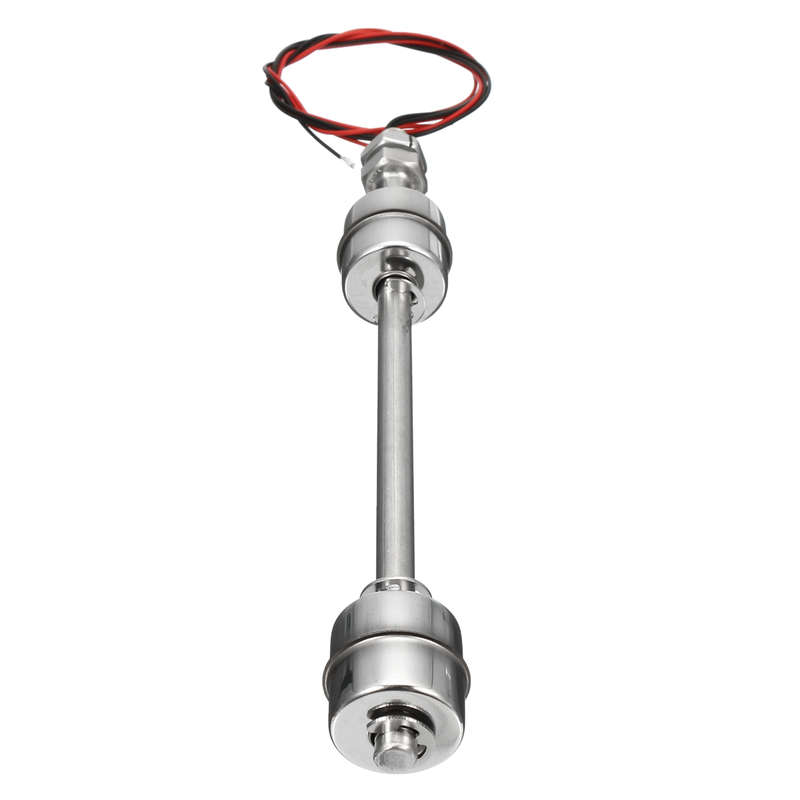

Specifications: Material: Stainless Steel Max. Contact Rating: 10W / 50W Max. Switching Voltage: 240V AC Max. Breakdown Voltage: 220V DC Max. Switching Current: 0.5A Max. Carry Current: 1A Max. Contact Resistance: 100m?? Operating Pressure: 10kg/cm Max. Pressure: 0.2 Mpa

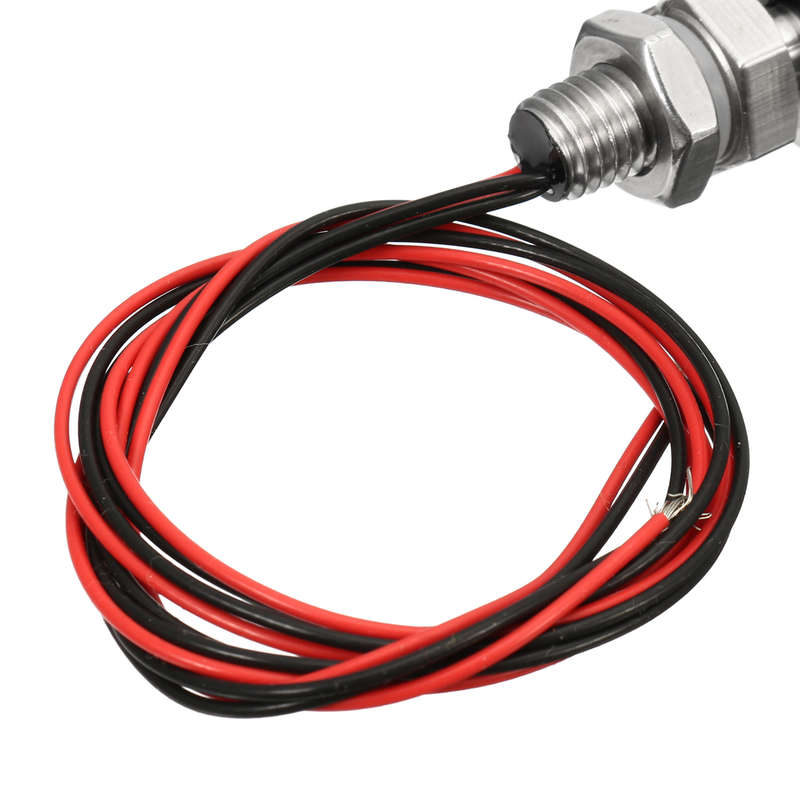

? Applicable Proportion: 0.75 Operating Temperature: -10 ~ +120a?? Switch Operation: Reversible Wire: Teflon PTFE High Temperature Line Installation Method: Vertical Mounting Thread Diameter: 10mm / 0.39 inch
?

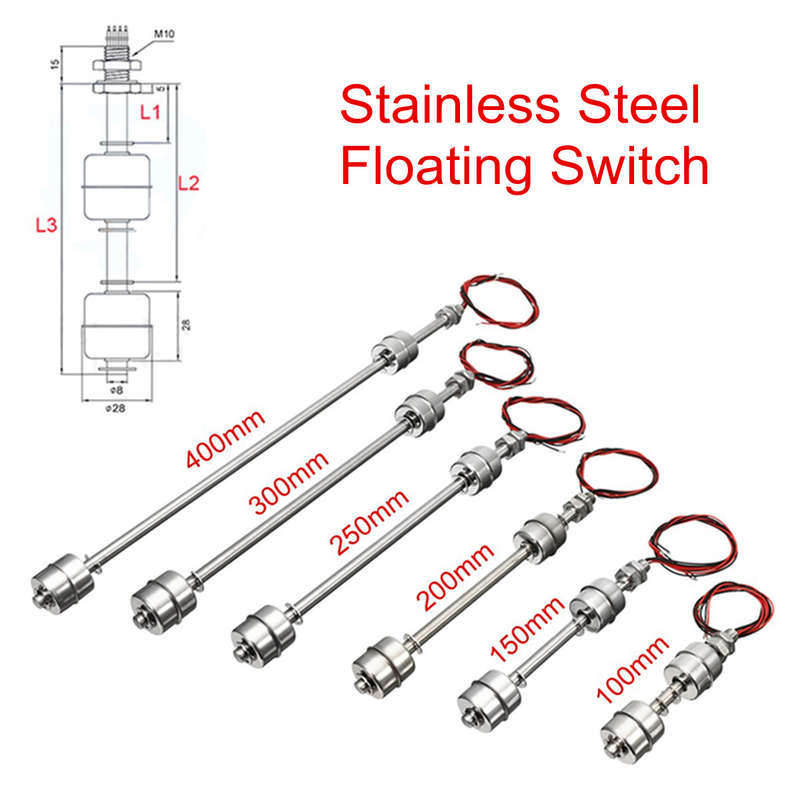

6 Size Optional:? 100mm / 3.94 inch 150mm / 5.91 inch 200mm / 7.87 inch 250mm / 9.84 inch 300mm / 11.81 inch
?

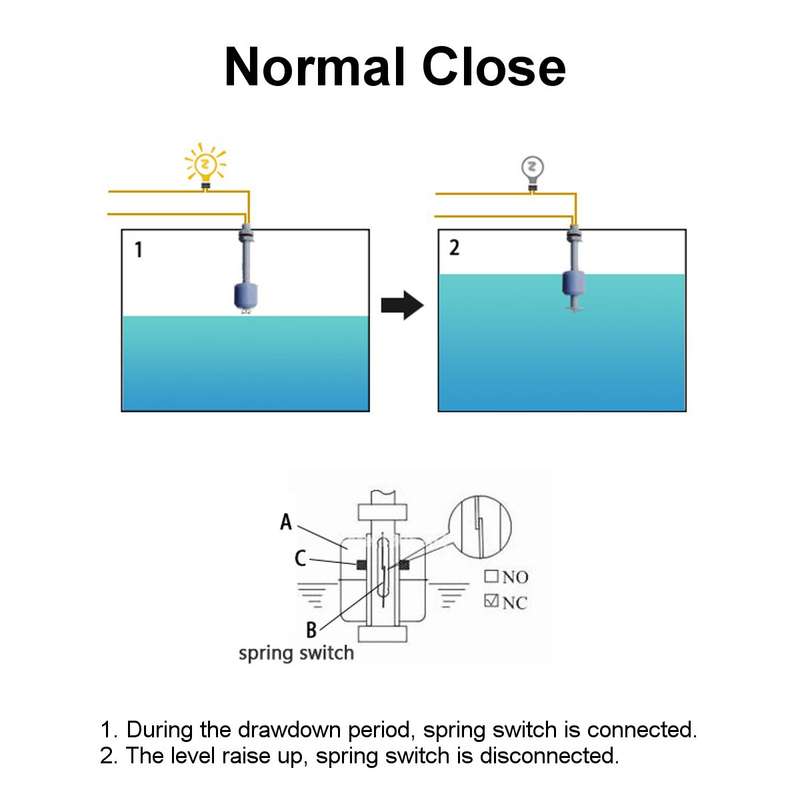

Features: a?ᄀ← Used to sense the level of liquid within a tank. a?ᄀ← Light weight and simple working principle, high reliability. a?ᄀ← The switch may activate a pump, an indicator, an alarm, or other device. a?ᄀ← This float switch is a simple structure, easy installation liquid level controller. a?ᄀ← Widely used in electronic, electrical, chemical, water treatment, drainage and other fields. a?ᄀ← The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,
? depending on whether you for wish to detect the water's rise or fall. ?
Package Included: 1 Pc x Floating Switch
More Details:
