Description :
Waterproof 720P Outdoor IP Network Security IR-Cut Onvif CCTV P2P Camera
Features :1. Max resolution can reach 1.0M (
1280 x 720), real-time image
2. Low illumination, 0.01Lux @ (F1.2,AGC ON), 0 LUX with
IR.3. Support IR-CUT filter switch to achieve day and night monitoring.
4. H.264 main profile compression, achieve low bit-rate, high definition image quality.
5. Support
dual stream.
6. Support mobile monitor, iPhone, Windows Mobile, BlackBerry, Symbian, Android, need download APP"
XMEye " / ".
VMEye "on your phone.
7. Support Auto-iris and electronic shutter, adjust for different surveillance environment.
8. Provide web, CMS, center manage software (MYEYE), and SDK for development.
9. Support connection with HVR / NVR / NVD.
10. Accord with
IP66 waterproof design.
11.
Onvif 2.0 protocal compliance.
Specifications :1. Parameter :
1/4" CMOS sensor2. Min illumination Color:0.01Lux @ (F1.2,AGC ON), 0 LUX with IR,B/W:0.01Lux @ (F1.2,AGC ON), 0 LUX with IR
3. Electronic shutter : 1/50(1/60)s - 1/100,000 s
Camera1. Image Sensor : 1/4" CMOS sensor
2. Effective Pixel : 1280 x 720
Lens1. 3. 6 mm with ICR
2. Lens Mount : CS
3. Day & Night : Support
IR-CUTCompression1. Video compression : H.264 Main Profile, JPEG capture
2. Video Bite Rate : 100Kbps~6Mbps
3. Audio : NO
Image1. Max Resolution : 1280 x 720
2. Frame Rate : 1-30fps
3. Image settings : Saturation, Brightness, Contrast adjustable through Client software or web server
Network Function1. Storage : NVR / HVR
2. Intelligent Alarm : Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error
3. Protocol : TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP
4. Basic : Anti-flicker, dual stream, heartbeat, password protection

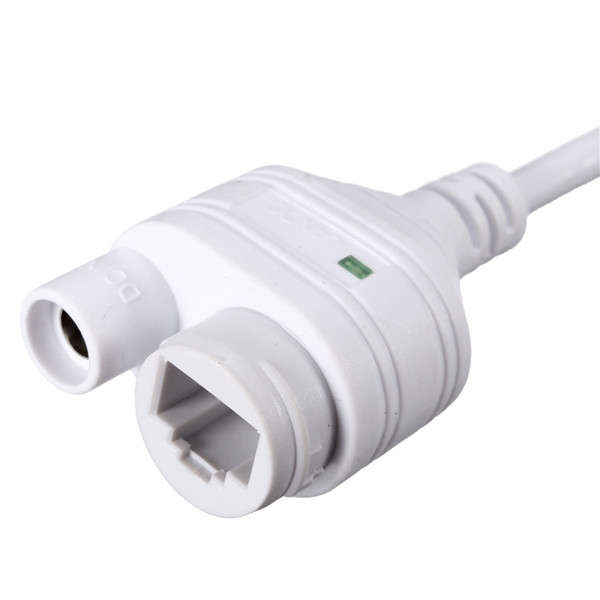

Interface1. Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet interface
2. Video output
General1. Power supply :
DC12V (Power Adapter is not included)
2. Power consumption : 6W MAX
3. Protection Range : IP66
4. IR distance :
30 M5. POE : NO
6. Material : Metal

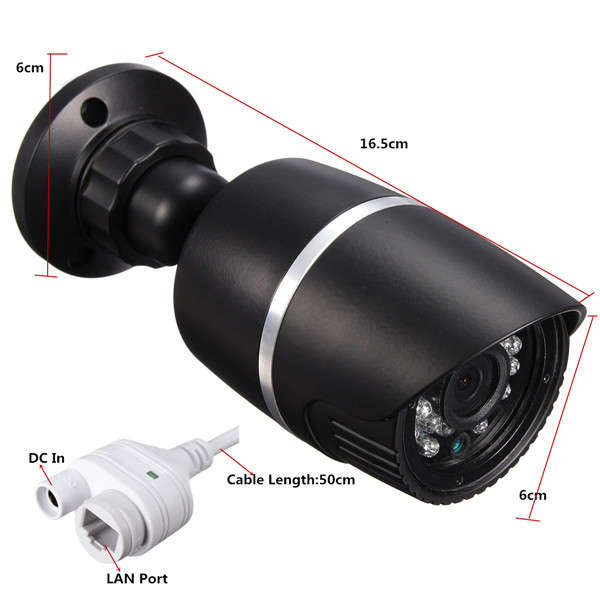

7. Size: 6(Dia.) x 16.5cm

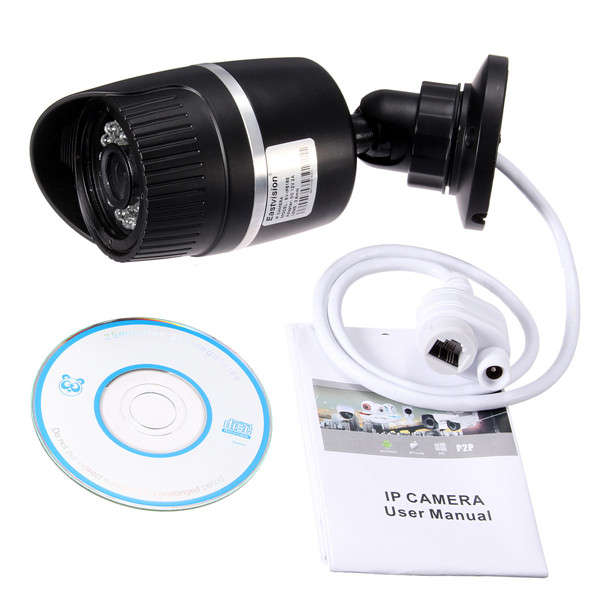

Package includes :1 x IP Camera (Power Adapter is
not included)
1 x User Manual
1 x CD

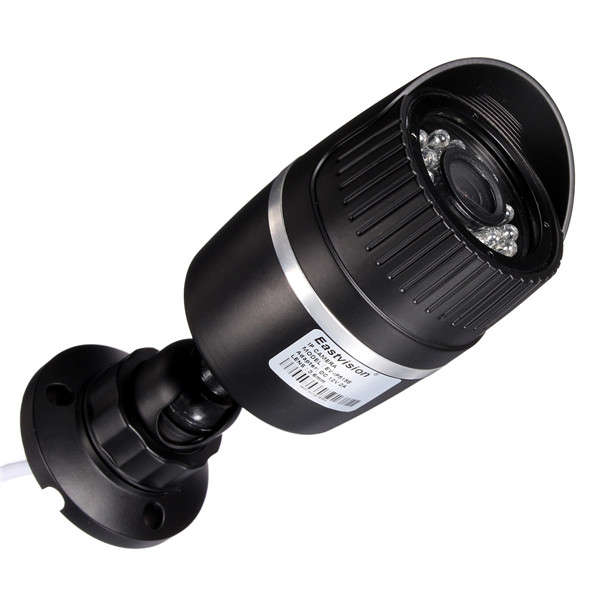

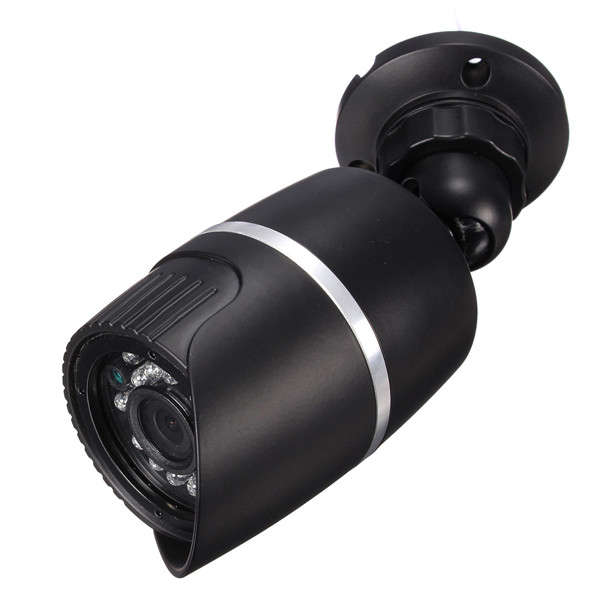

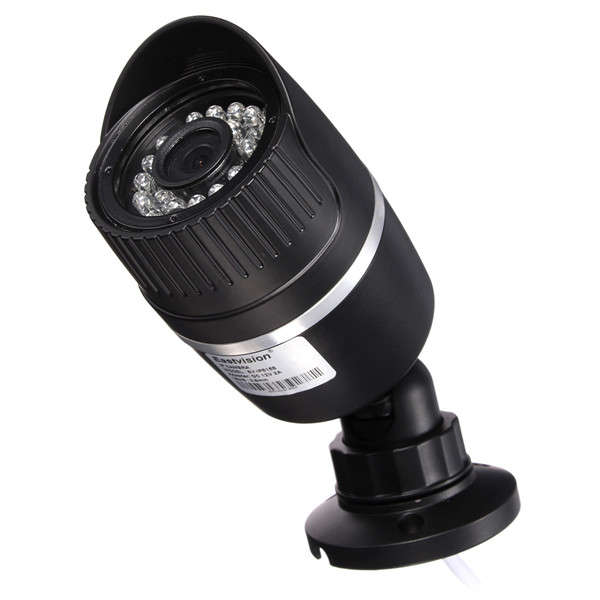

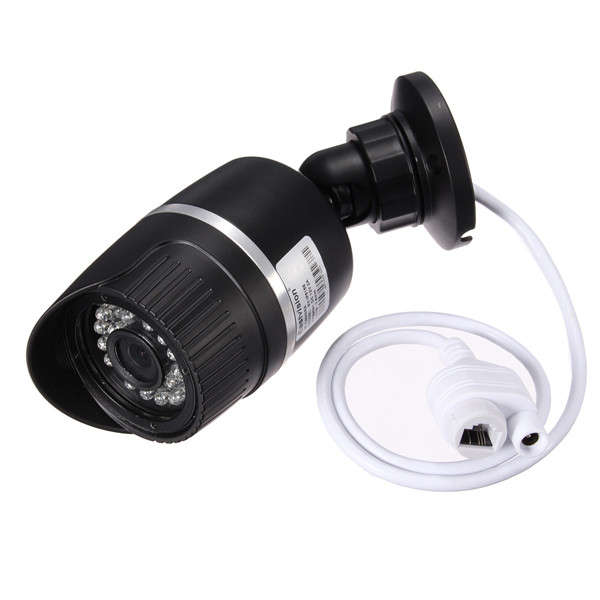

Details pictures :
