Waterproof HD Rear View Camera 170-degree Wide Viewing Angle

Features:

Anti-fog glass

RCA connector

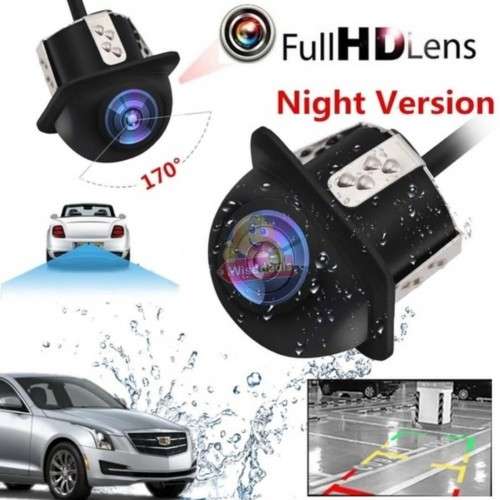

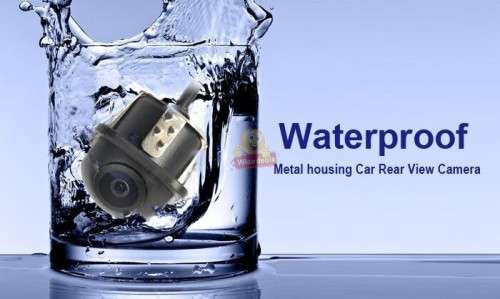

High grade of waterproofing: IP68.

High-definition and 170-degree wide viewing angle.

Applicable to variety of vehicles: car, truck, RV, etc.

Snap-in design, it is easy to install.

Its simple and modest design and small size won't drawany attention.

It helps to avoid incidents and accidents abrasion well.

TV system: PAL

Horizontal Resolution: 420 TV lines

Effective Pixels: NTSC:510(H) * 492(V)

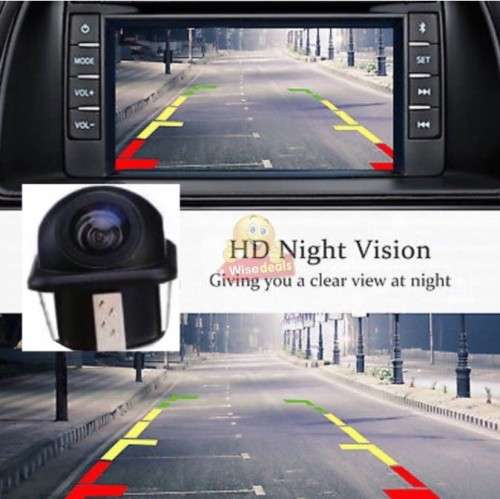

Minimum Illumination: 0.5 Lux

Lens: 13.5mm

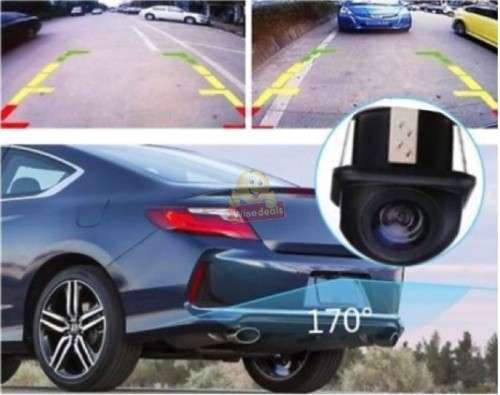

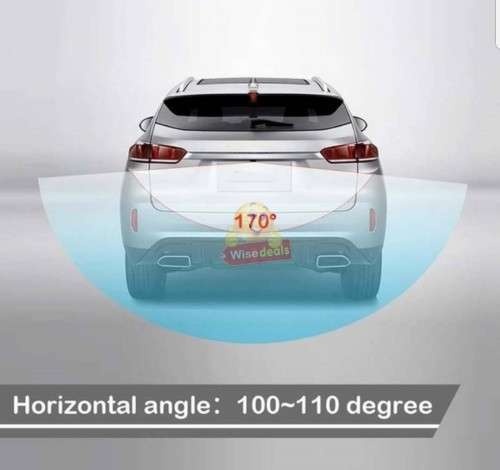

View Angle: 170 degrees

Sync. System: internal

S/N Ratio: >48dB

Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to1/100,000 seconds

Video Output: 1.0Vpp, 75Ohm

White Balance: Auto

Power: DC 12V

Current Consumption: 90mA

Operating Temperature: -20 to + 70°C, 95% RH maximum

Storage Temperature: -40 to + 100°C, 95% RH maximum

Water-proof: IP66

Image Reverse: Left-right mirror

Specifications:

Colour: Black

Video Cable Length: 6m

Power Supply Cable Length: 1.2m

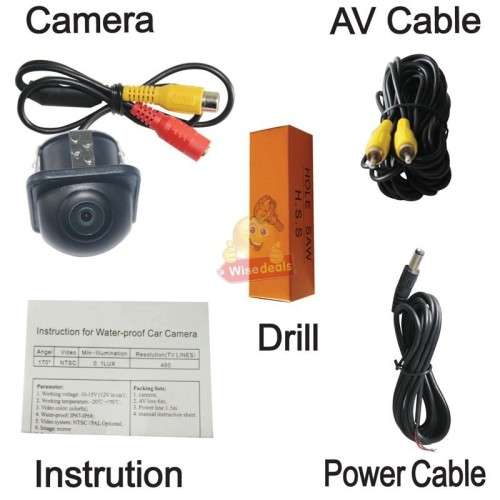

Packet content:

1* Car Rear View Camera

1 * 6m Video Cable

1 * 1.2m Power Cable

1 * Hole Saw(20mm)

1 * User manual (Instructions for the unified version, thespecific please see the page product description)
