Waterproof Outdoor Surface Mounted 1-in-1-out 600V IP65 Solar PV Surge Lightning Protection DC Combiner Box (10005941)

The Waterproof Outdoor Surface Mounted Solar PV Combiner Box is a durable and reliable solution for combining and protecting multiple solar PV strings. This combiner box is designed to withstand harsh outdoor environments, with its waterproof and weather-resistant construction. It provides a safe and efficient way to connect and manage solar panels, ensuring maximum power output and system performance. The combiner box features a compact and surface-mounted design, making it easy to install and maintain. It is equipped with high-quality components and built-in surge protection, offering a secure and long-lasting solution for solar PV installations. With its advanced features and rugged design, this combiner box is an essential component in any outdoor solar power system.

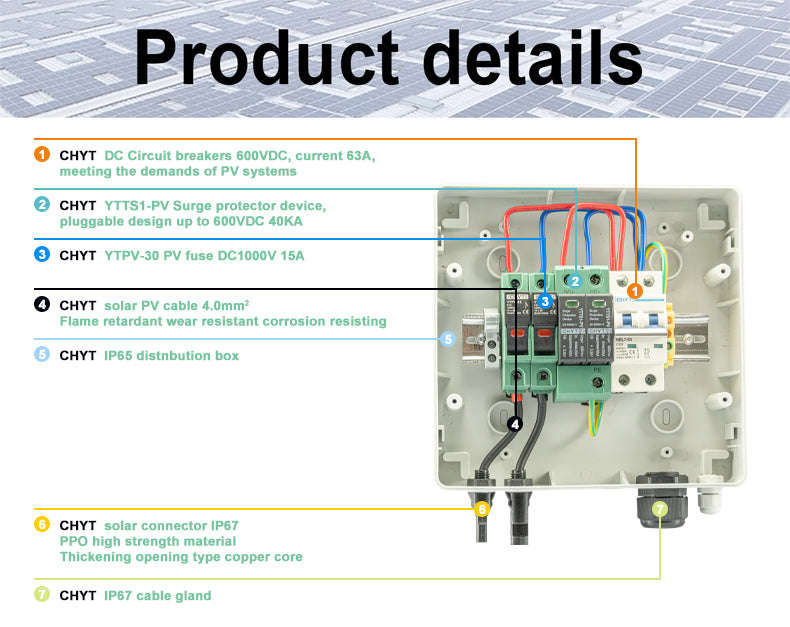

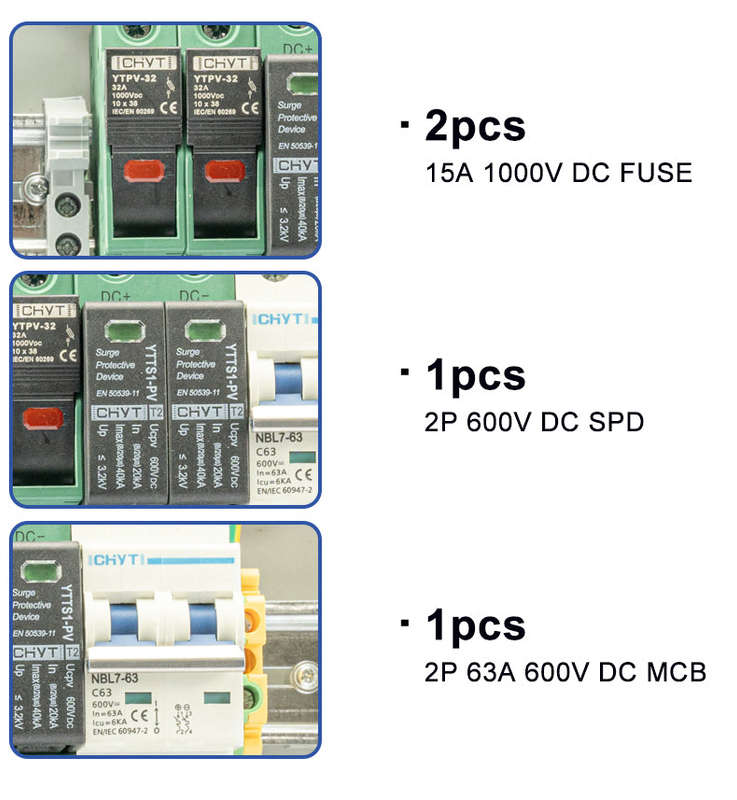

1 strings DC600V use DC600V circuit breaker 2 pole 1pcs, DC600V surge protector 2 pole 1 pcs, DC1000V fuse 15A 2 pcs, solar connector 1 pair.

Product introduction

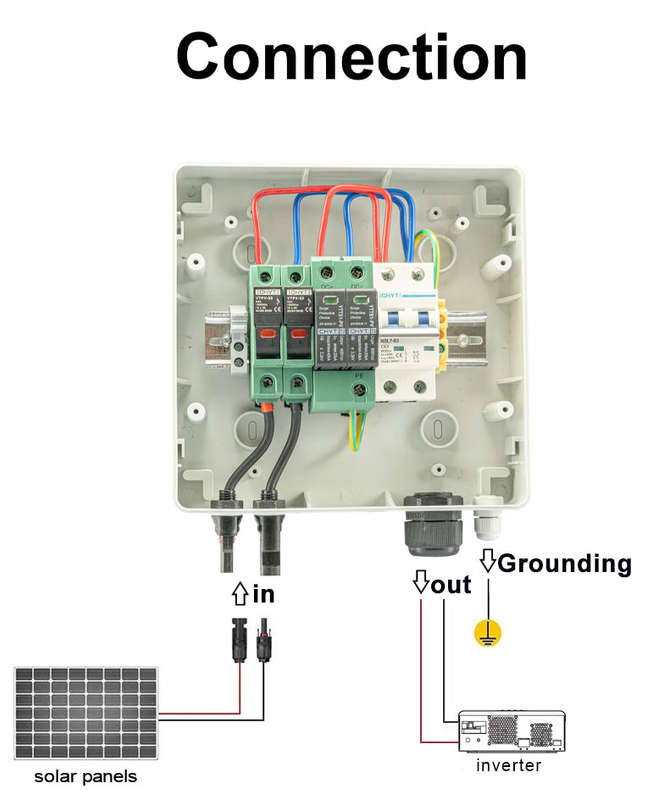

PV String DC Combiner Boxes are key components in the solar power systems, which are placed between solar modules and the inverters.

Product functions

• Simplify the physical between solar panel and inverter
• Fault current protection for each String
• Fault alarm
• Easy installation and maintenance

Product features

• Very high impact resistance
• Easy machining with normal tools
• IP65
• Wide operation temperature range
• Fire Resistance
• Non-conductive
• Good resistance to chemical corrosion
• Light weight
• Excellent insulating properties
• Cost-effective material for harsh environments

Product specifications

Solar PV DC 1 in 1 out Combiner Box
Rated voltage of photovoltaic system	DC 600V
Max input amp for each string	15A

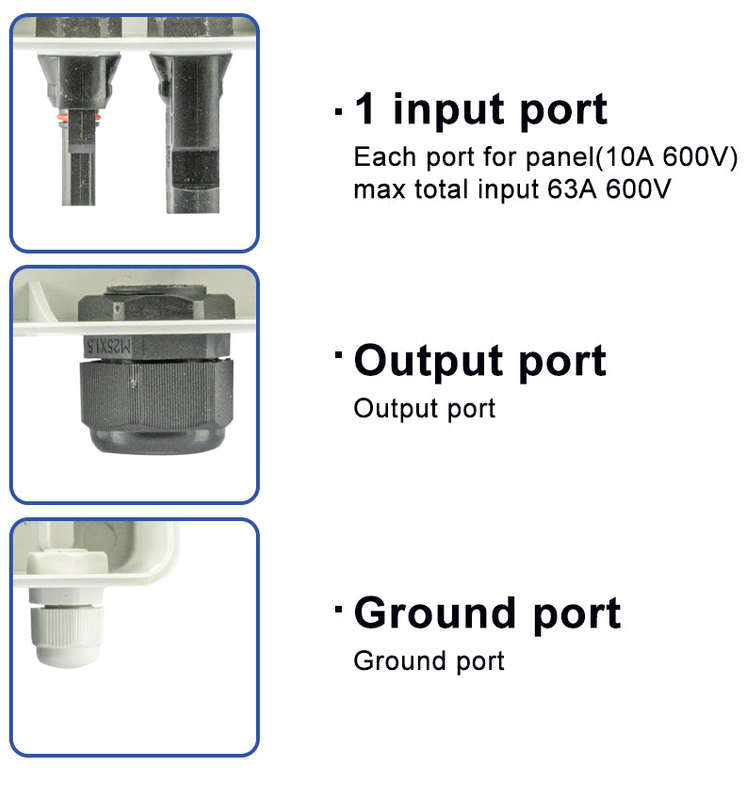

Input strings	1
Number of output strings	1
Waterproof grade ip65/ Lighting protection
Category of test	II grade protection
Nominal discharge amp	20KA
Max discharge amp	40KA
Volt protection level	3.2KV
SPD Max operation voltage	DC 600V
Poles	2P
Structure characteristic	Plug push module
System
Protection grade	IP65
Output switch	DC circuit breaker
Solar connector	Standard
Box material	PVC
Installation method	Wall mounting type
Operating temperature	-25-+60
Installation: indoors/outdoors	Yes
Mechanical parameter

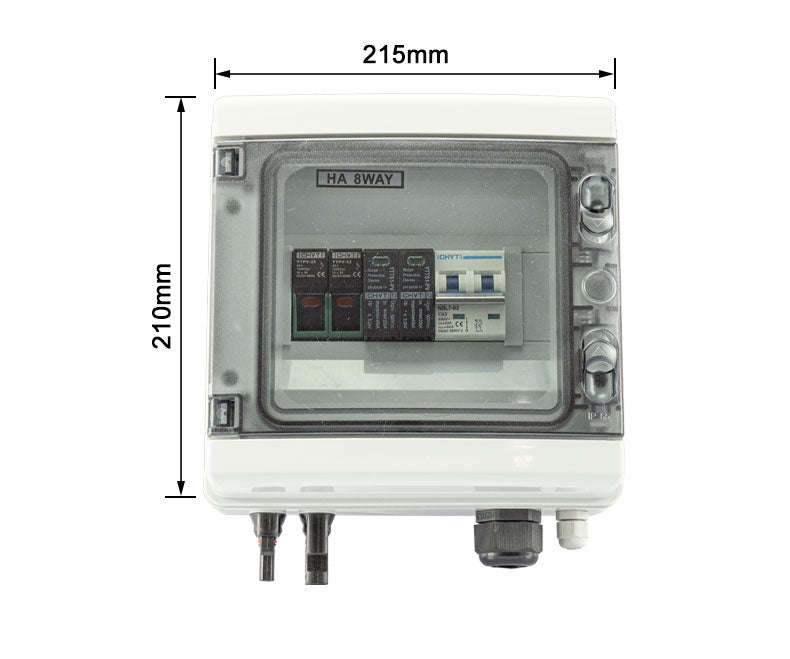

Width*hight*Depth (mm)	215*210*100
