Waterproof Sewer, Drain - Pipe Inspection Camera / Endoscope, 20, 30 or 40m - 3188D

Model No.: W3-CMP3188D
Key Features:
- Pipe Drain Sewer Inspection
- 5.2mm Push Rod wheel
- 7”LCD Monitor DVR Controller
- Power Supply Unit with Rechargeable Battery

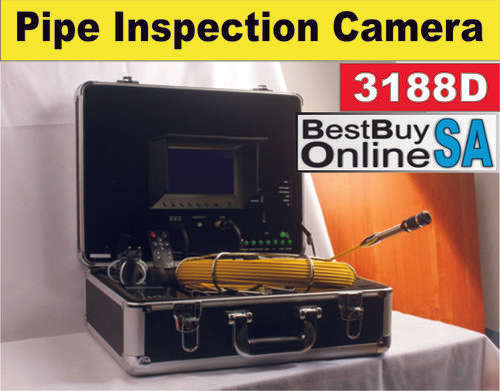

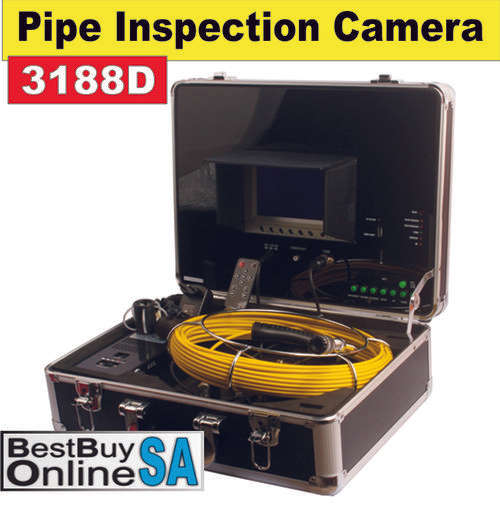

The whole system includes:

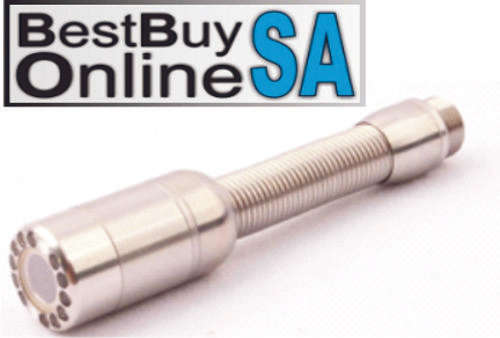

1. 22mm Inspection camera with 12 LEDs
2. Dual Mode DVR Controller supporting USB Stick & SD-Card
3. 20, 30 or 40M Push Rod Fiberglass cable and handheld wheel
4. Power Supply Box with built-in 13.5V Rechargeable battery
5. 7" digital TFT LCD Monitor
6. All items & accessories in one Alluminum Box
Specifications:
Camera Head:
Sensor:High Resolution Image Sensor
Resolution: 600 TV Lines
Head Dimension:22mm (diameter) ×13.50mm (length)
Camera Material: Alloy / Brass
View Angle: 60° wide angle
Lens Cover:Sapphire glass
Leds:12 High Bright White LEDs
Water Proof:IP68
Push Rod Cable Reel
Material:Fiberglass Rod cable
Cable diameter:5.2mm
Wheel diameter:33cm
Wheel:Stainless steel wheel
Cable Length:
20m = R14100.00
30m = R14850.00
40m = R15650.00
Connector: Chromium touch-point connector
LCD Display and DVR
LCD Resolution: 800*480 pixels
Video Compress:MPEG-4
Recording: Video & Audio Recording
Snapshot: Yes
LCD Size: 7 inch
Operation Control: Remote Controller
Dual Mode Storage: USB Drive and SD-Card (Max 32G)
Optional Extras:
- Yellow Durable ABS Plastic Waterproof case in leu of Aluminium Case - R1850-00

- 512Hz Sonde with CMP3188D unit for pipe location - R1750-00

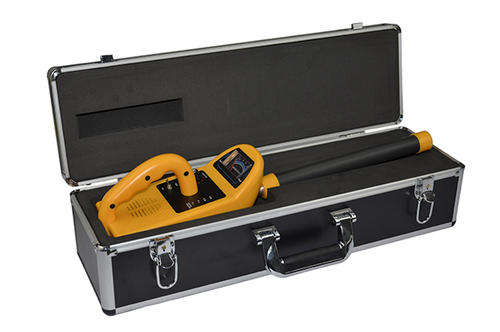

- 512Hz Scanner LTR1201 with CMP3188D unit for pipe location - R13100-00

- Counter/meter installed on Stainless steel real measuring cable - R850-00
- 10inch monitor in leu of 7"monitor - R1050-00
