Waterproof Solar Panel Cable Connectors - 10 Pairs
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Made out of an insulating PPO material shell with an IP67 Waterproof rubber ring.
The thickened copper core helps with faster transmission.

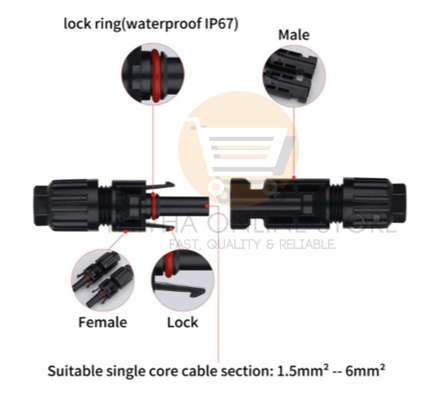

With a self-locking mechanism, the connection is made through compression and is not easily disconnected.
Compatible with PV cables with different insulation diameters (2.5m?-- 6m?/14AWG -- 10AWG).
Color: Black
Housing material: PPO insulating material
Core material: silver-plated copper, open type
Insertion resistance: 1mm?
Insertion force:? 60N
Extraction force: ?89N
Waterproof Grade: IP67
Wiring specification: 2.5/4/6mm
Working voltage:?DC1000V
Temperature range: -40 C - 125 C
Size: 10.7cm x 1.8cm
Weight: 0.2kg
Note:
This product contains only the 10 pairs connector set, no other items are included.
What's in the box

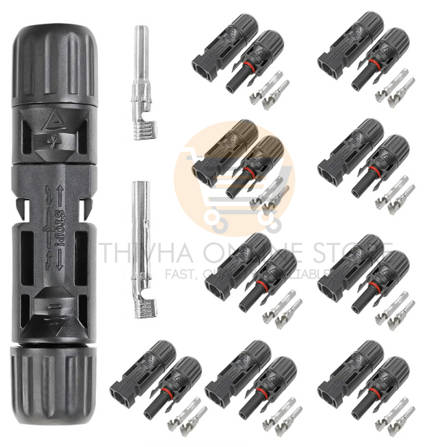

10 x Pairs of solar panel connectors (male & female)
10 x Pairs of solar connectors pins (male & female)
