Waterproof Temperature Sensor (DS18B20) - 1 METER

Waterproof Temperature Sensor (DS18B20) - 1 METER

38 available / new
R68.77
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SEN-00085
Bob Shop ID
633481744

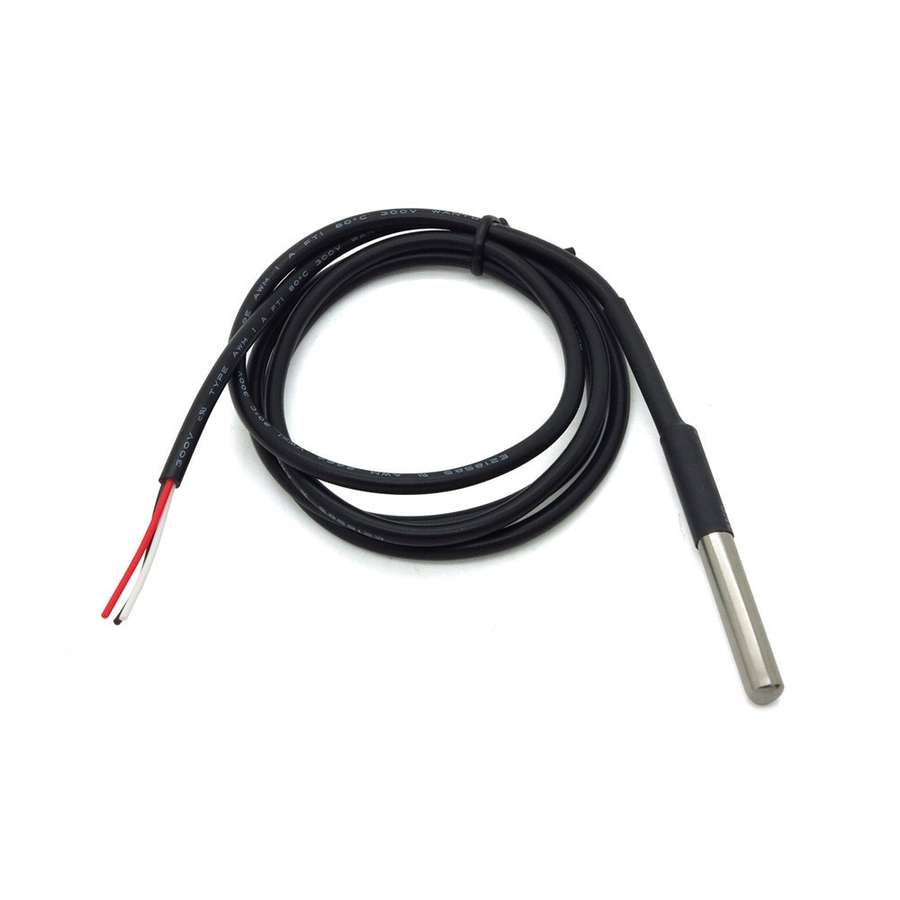

This sealed anti-rust digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings, so that only one wire (and ground) needs to be connected from a central microprocessor.
Features:
  • 1m Cable Lenght
  • Stainless Steel Housing - 6*50mm
  • 3.0-5.5V input voltage
  • 9 to 12 Adjustable Resolution
  • Waterproof
  • -55C to +125C Temperature Range (Maximum operational temperature of the cable is +85oC)
  • Output Leads
    • Red (VCC)
    • Yellow (DATA)
    • Black (GND)
  • 0.5C accuracy from -10C to +85C
  • 1 Wire interface
Documents:
  • Datasheet (DS18B20)
  • mbed Example
  • Bildr Tutorial

* Please note that even though this sensor is compatible with the Sonoff TH16. The sensor requires a 2.5mm Audio Jack to be connected to the end in order to interface with the Sonoff Devices
