Waterproof Wired Punch DVD Rear View Camera With Scaleplate**LOCAL STOCK***

Waterproof Wired Punch DVD Rear View Camera With Scaleplate , Support Installed in Car DVD Navigator or Car Monitor , Wide Viewing Angle: 170 degree

Overview

1) Waterproof camera, and the rear of the car be in harmony is an organic whole

2) Cable length: 6m

3) Image reduction is clear, the reverse astern backsight system automatically open.

4) Arrangement is convenient, simple

5) Support infrared night vision function

6) 170 degrees of large Angle

7) Support installed in Car DVD navigator (Optional DVD after the line of sight)

8) Receiving and transmitting distance: 15m

9) Dimensions: 22.02x21.76x21.76mm

10) Weight: 31g

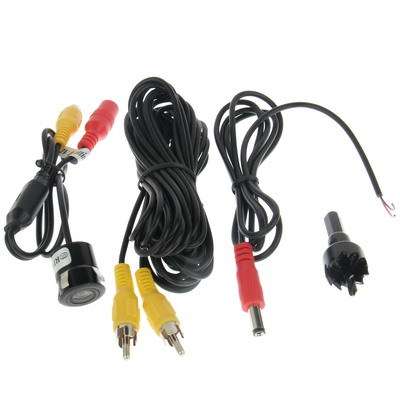

11) Package Included

1 x Wireless Punch DVD Rear View Camera1 x Power Cable

1 x Video Cable, Approx Length: 6m

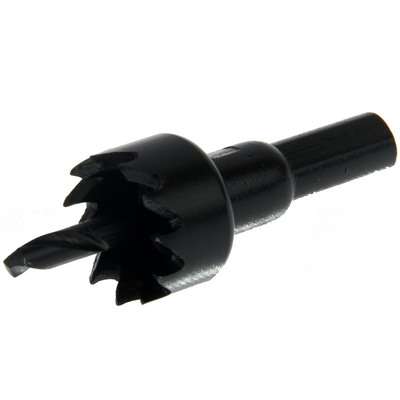

1 x Hole Saw

Specifications:

Image sensor:Color CMOS ov 7950

TV system:NTSC

Effective pixels:510 x 492 Pixels

Sensing area:4.08x 3.102mm

horizontal resolution420TVL

Shutter speed1/60-20us

Minimum illumination:0.1-0.5Lux/ F=1.2 (0 Lux with IR on)

Lens Angle:135°

White balanceAuto

ColorBlack

Waterproof:IP67

Video output:RCA connector, 1.0Vp-p, 75ohm

Current Consumption:60mA

Power supply:DC 12V

Operating Temperature:-20°C~ 90°C, RH95% Max.

Storage temperature:-40°C ~ 80°C, RH90% Max.

Video cable length:Approx. 6m

Power supply cable length:1.2m

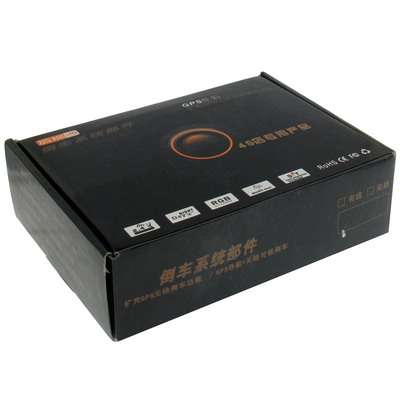

Type of Packing: Color Box
