Waveshare 1.3 inch 128x64 Pixels SPI/I2C Interface OLED Display HAT for Raspberry Pi

10 available / new
R315.30
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY14257455
Bob Shop ID
636104953
Overview

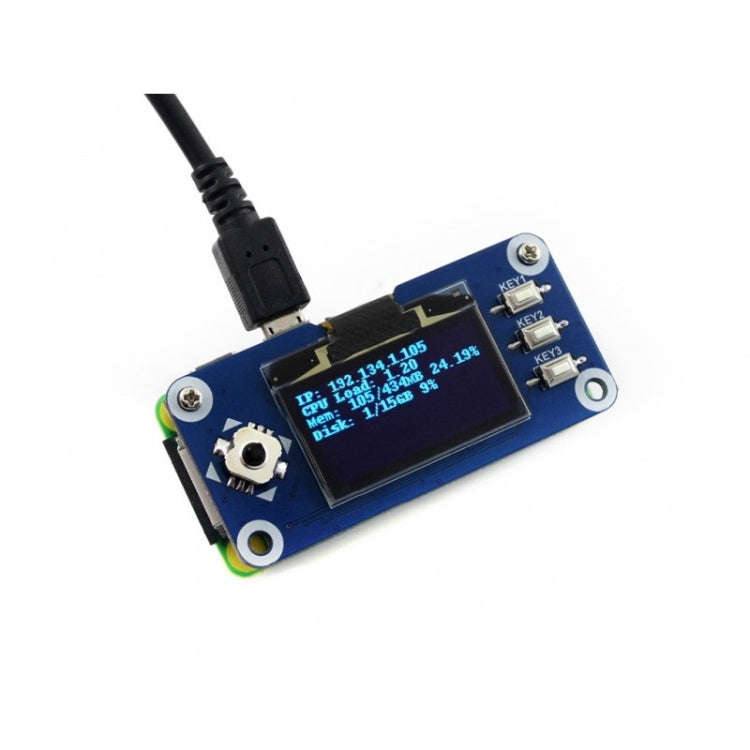

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

Features

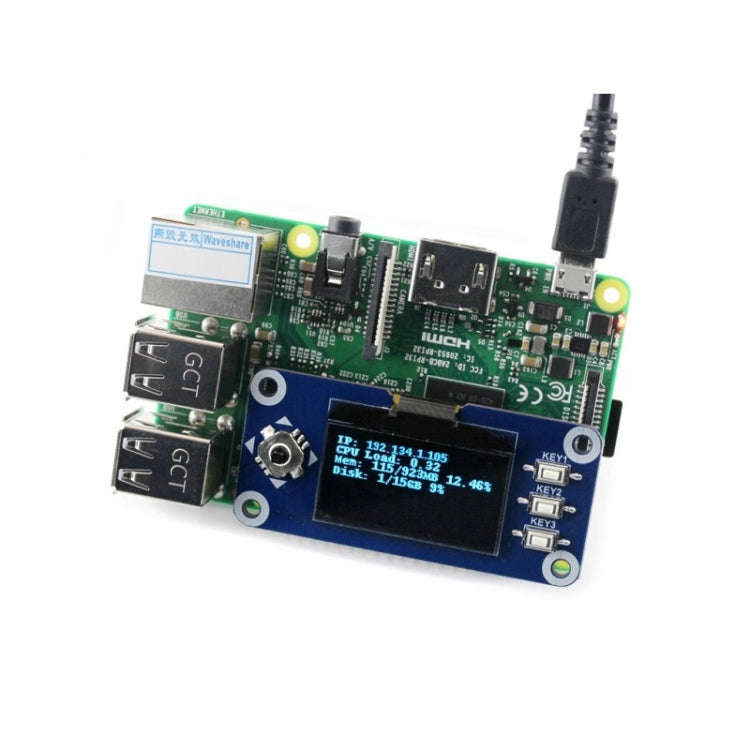

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W

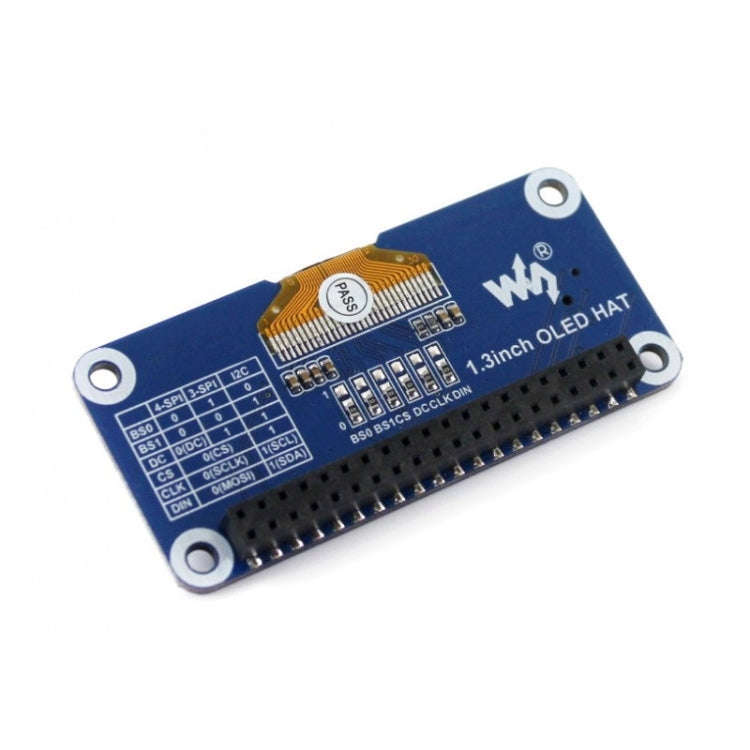

2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor

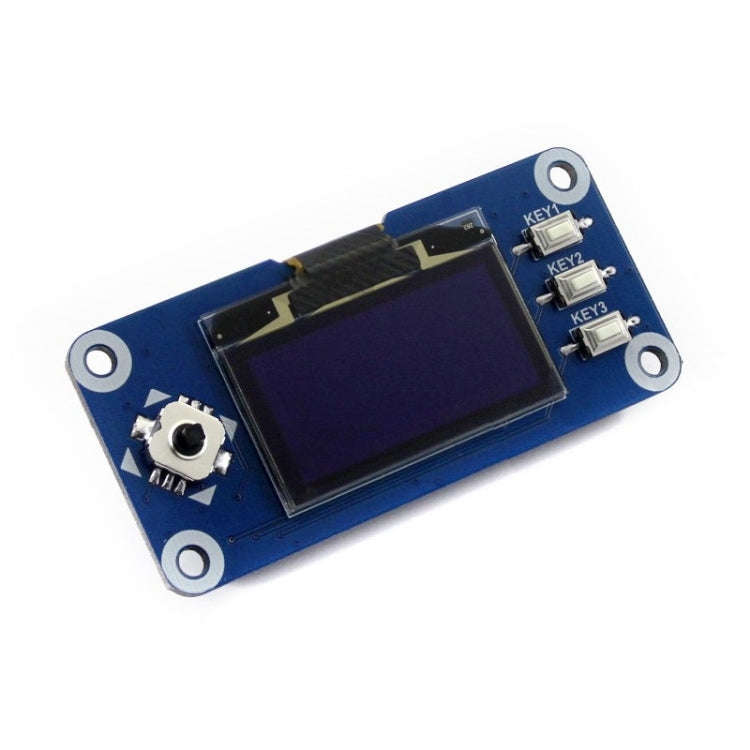

3. 1x joystick (5-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications
1. Driver: SH1106
2. Interface: 4-wire SPI, 3-wire SPI, I2C
3. Display color: blue
4. Resolution: 128x64
5. Operating voltage: 3.3V
