WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface
WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface

WAVESHARE 1.47 inch LCD Display Module, Rounded Corners, 172 x 320 Resolution, SPI Interface

10 available / new
R384.32
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0276
Bob Shop ID
636104330

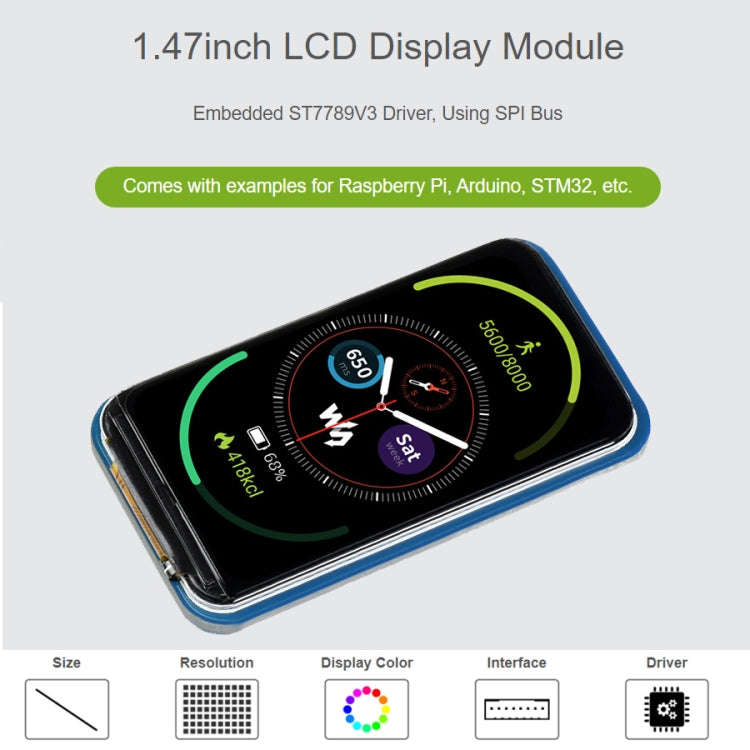

1. 172 x 320 resolution, 262K RGB colors, clear and colorful displaying effect

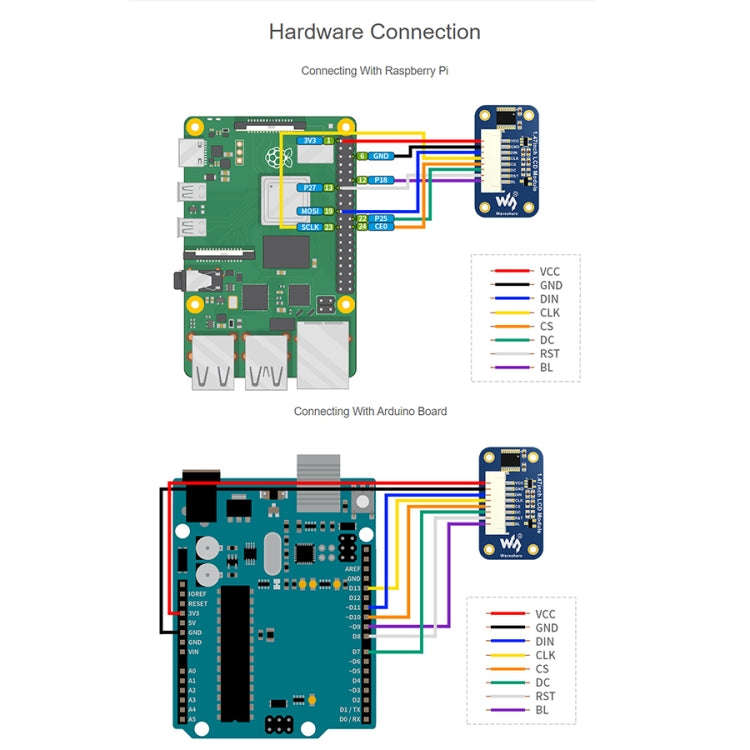

2. SPI interface, mini mizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

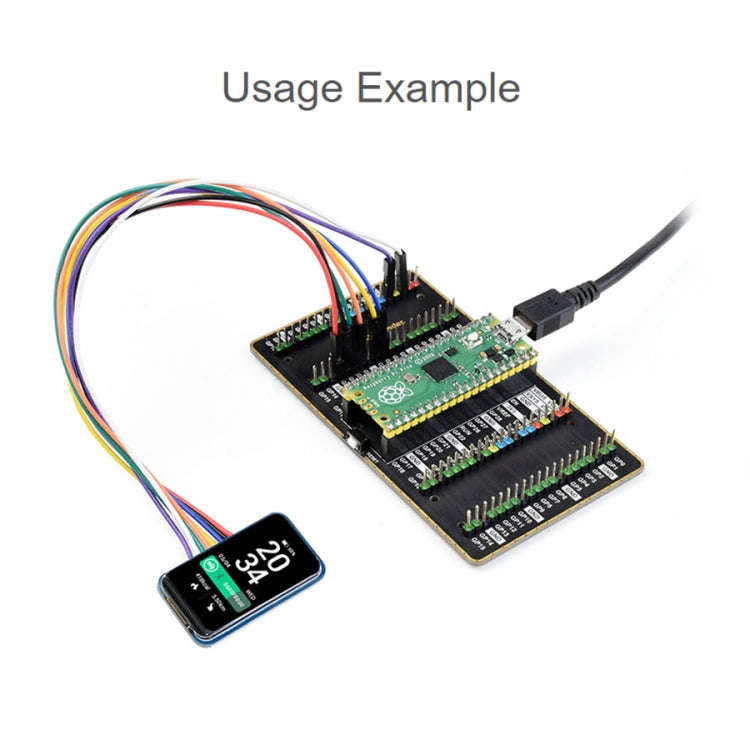

3. Come with development resources (examples for Raspberry Pi/Arduino/STM32)
4. Working voltage: 3.3V/5V
5. Resolution: 172 x 320 pixels
6. Communication interface: 4-wire SPI
7. Display size: 17.39 x 32.35mm
8. Display panel: IPS
9. Pixel pitch: 0.0337 x 0.1011mm
10. Driver: ST7789V3

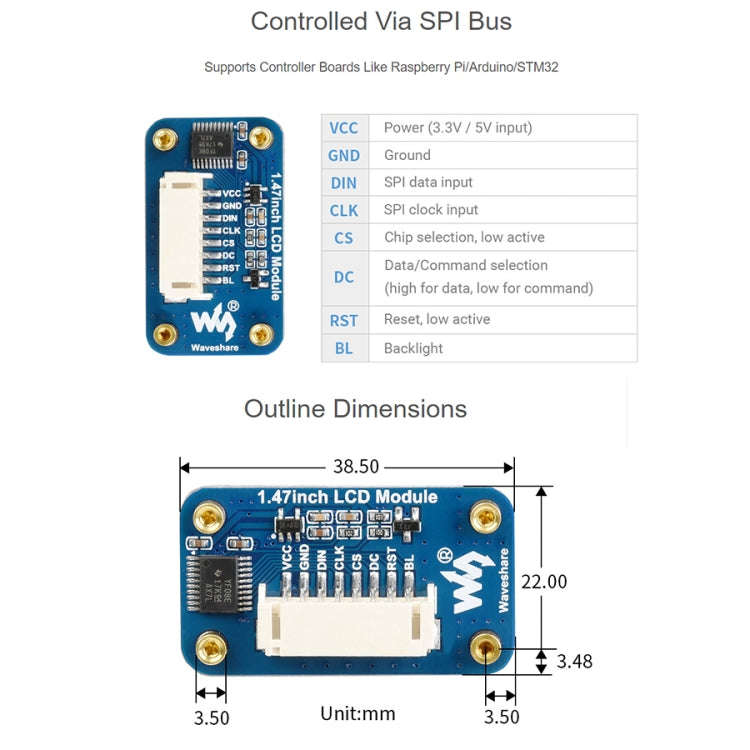

11. Dimensions: 22.0 x 38.5mm
