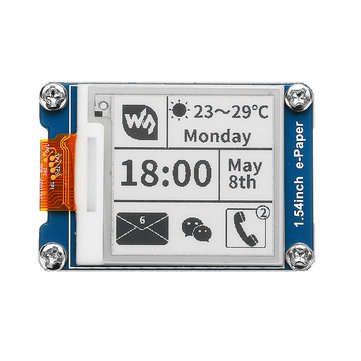

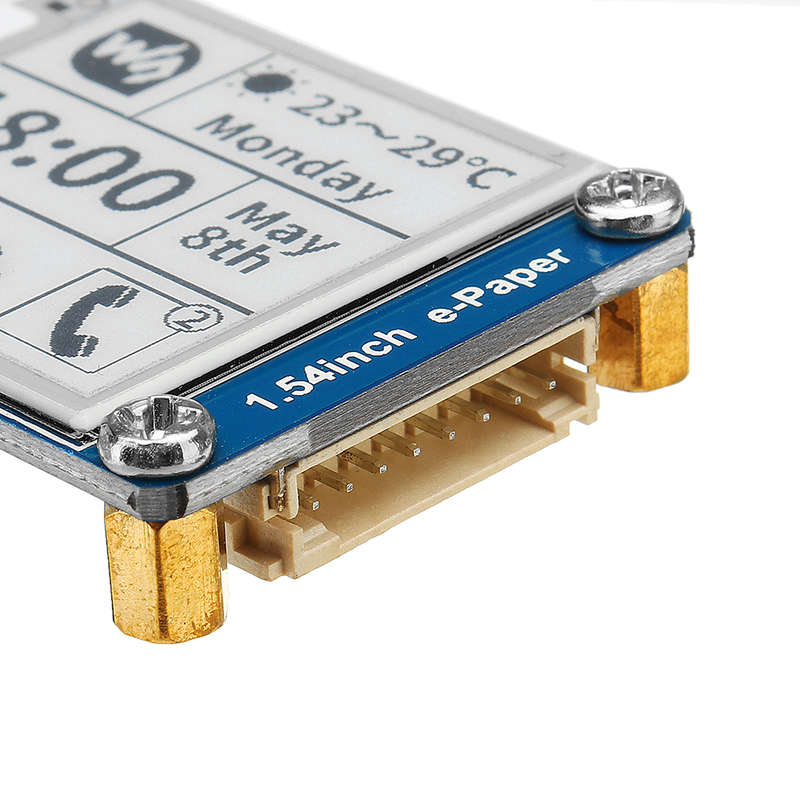

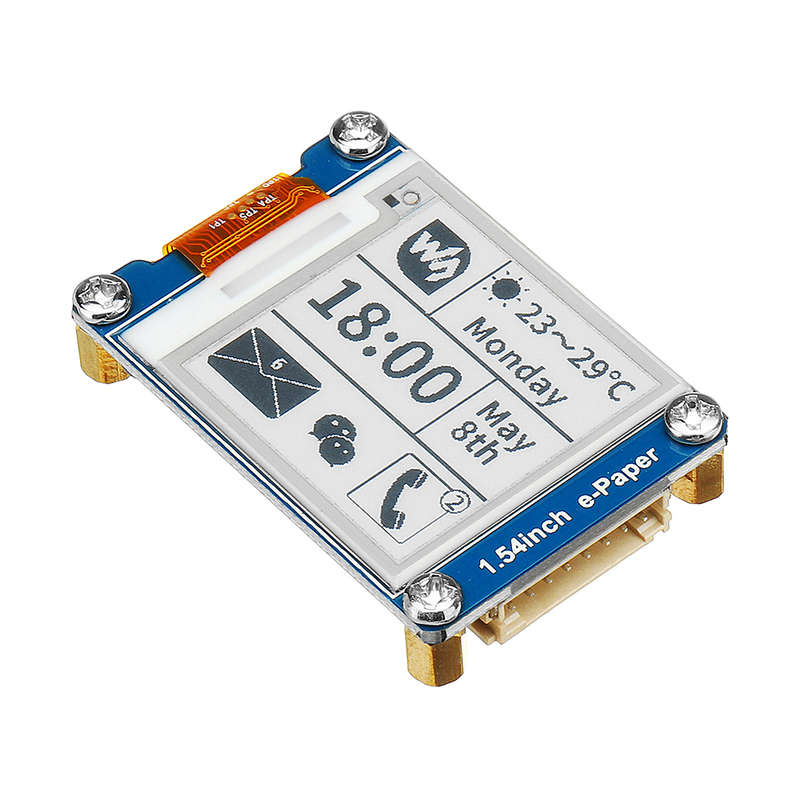

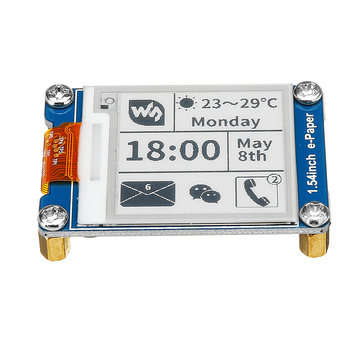

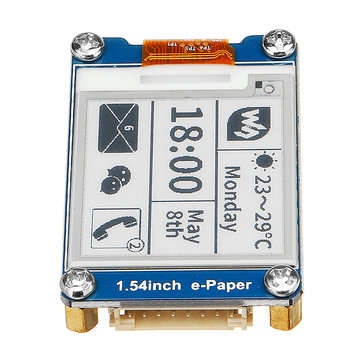

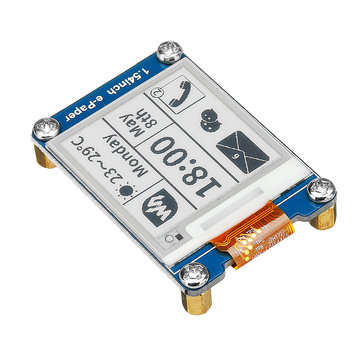

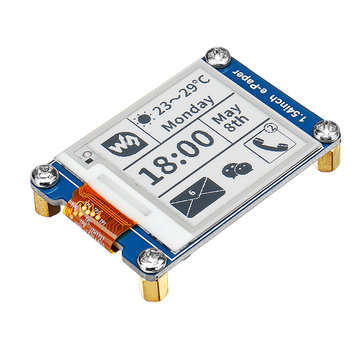

Waveshare 1.54 Inch E-ink Screen Display e-Paper Module Black/White SPI Support Partial Refresh For

Features: ? No backlight required, power off can keep the last screen display for a long time Very low power consumption, basically only consumes power when refreshing SPI control interface, can access Raspberry / / Nucleo and other main control boards Provide a complete supporting information manual (sample programs such as Raspberry//STM32)

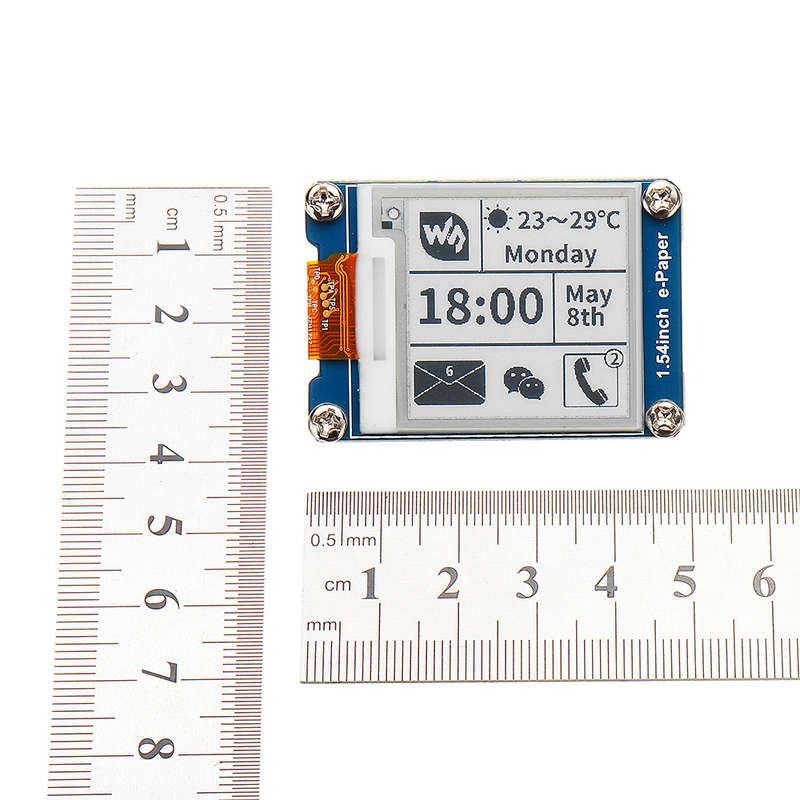

Parameter: ? Working voltage: 3.3V Communication interface: 3-wire SPI, 4-wire SPI Dimensions: 48mm x 33mm x 1.05mm Display size: 27.6mm x 27.6mm Dot distance: 0.138 x 0.138 Resolution: 200 x 200 Display color: black, white Gray level: 2 Refresh power consumption: 26.4mW (typ.) Standby power consumption: <0.017mW Viewing angle: >170?ﾣ

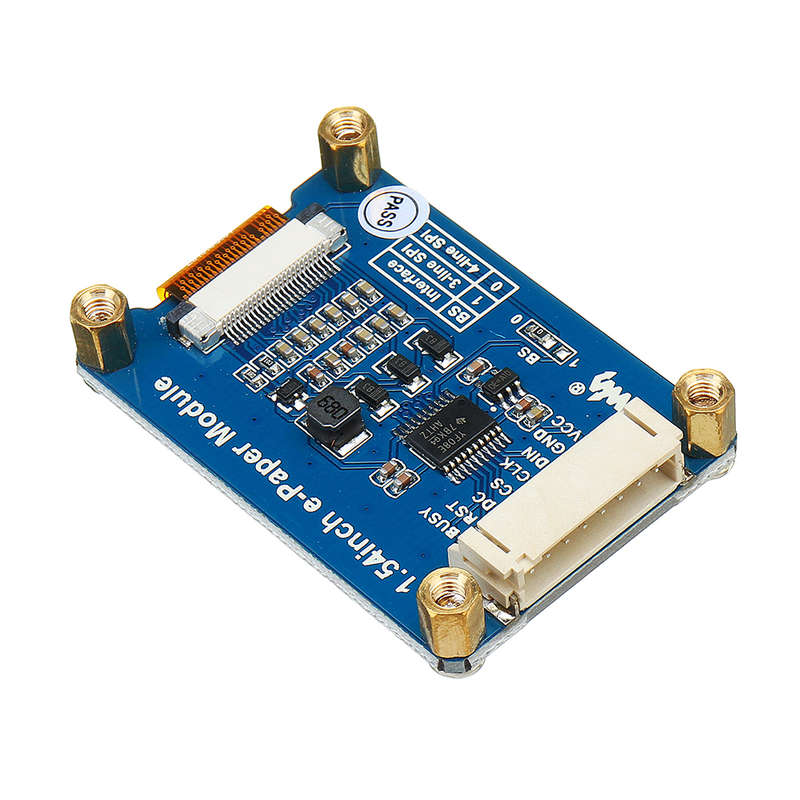

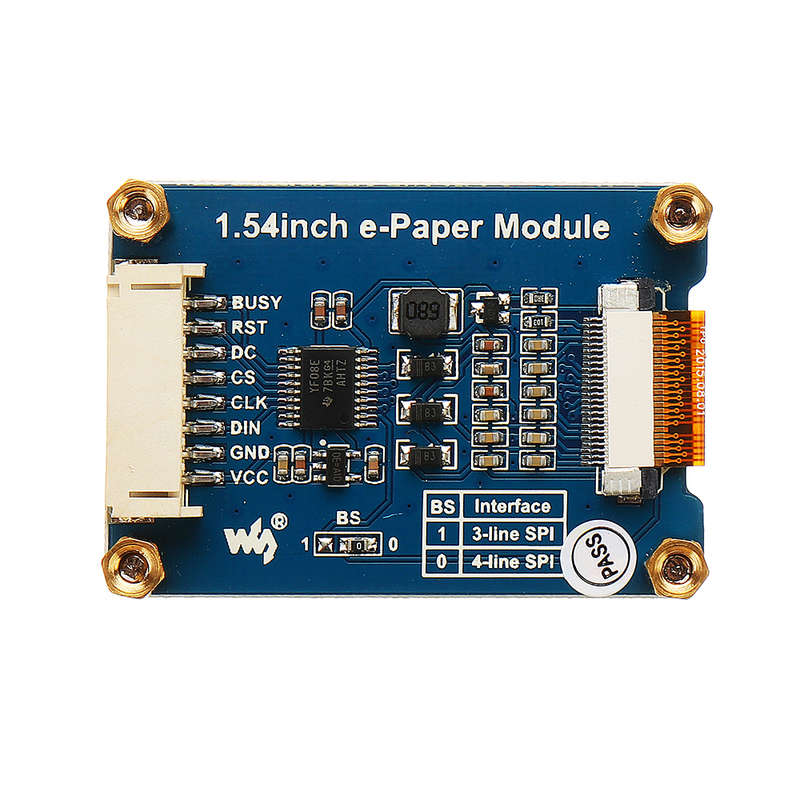

Interface Description: ? VCC: 3.3V GND: GND DIN: SPI communication MOSI pin CLK: SPI communication SCK pin CS: SPI Chip Select Pin (Active Low) DC: Data/command control pin (high level means data, low level means command) RST: External reset pin (low level reset) BUSY: Busy status output pin (low level means busy)

Description: ? 1. Refresh time: This refers to the global refresh time, that is, the time taken to refresh each frame of image; if the ink screen itself supports partial refresh, the partial refresh time is about 0.3 seconds.

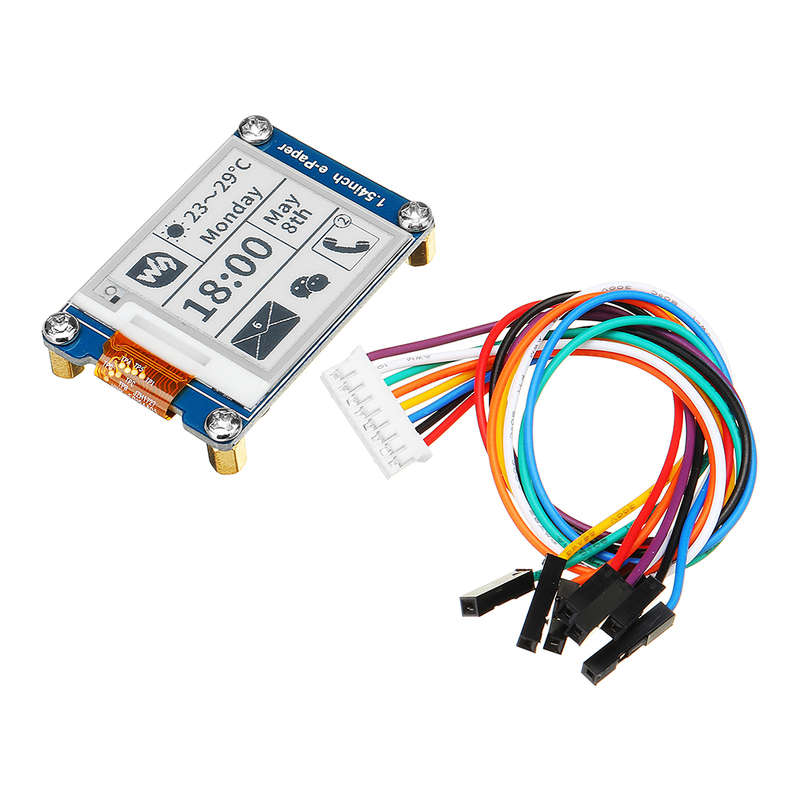

Package includes:

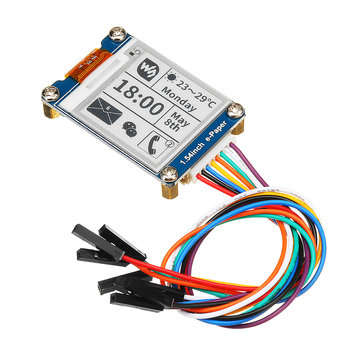

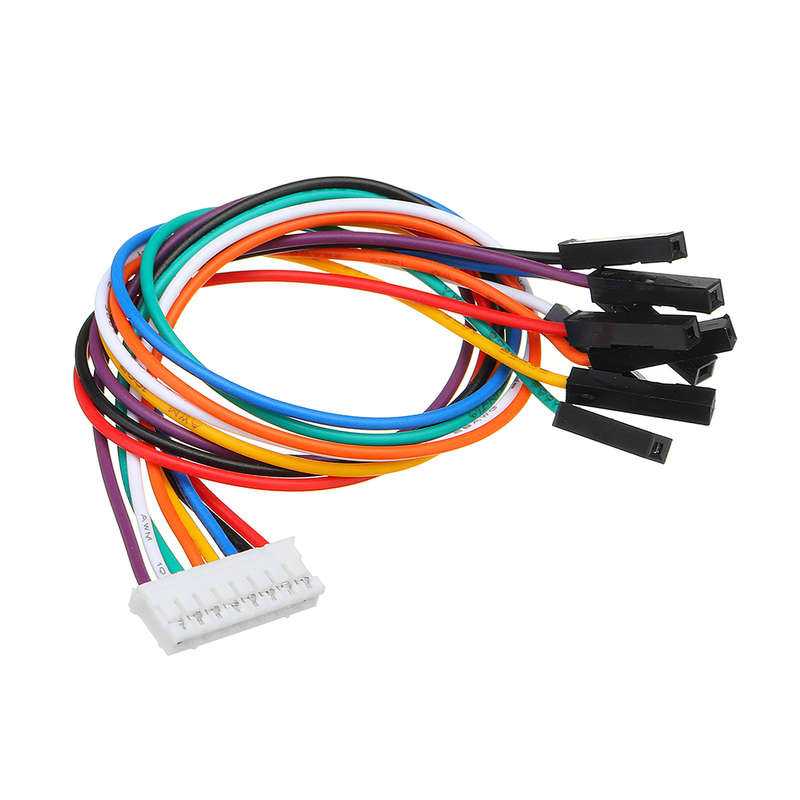

1 x 1.54 inch e-Paper Module 1 x Cable ?
