Waveshare 10.3 inch 1872x1404 Flexible E-Ink Display HAT for Raspberry Pi
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY23045193
Bob Shop ID
603965362
Overview

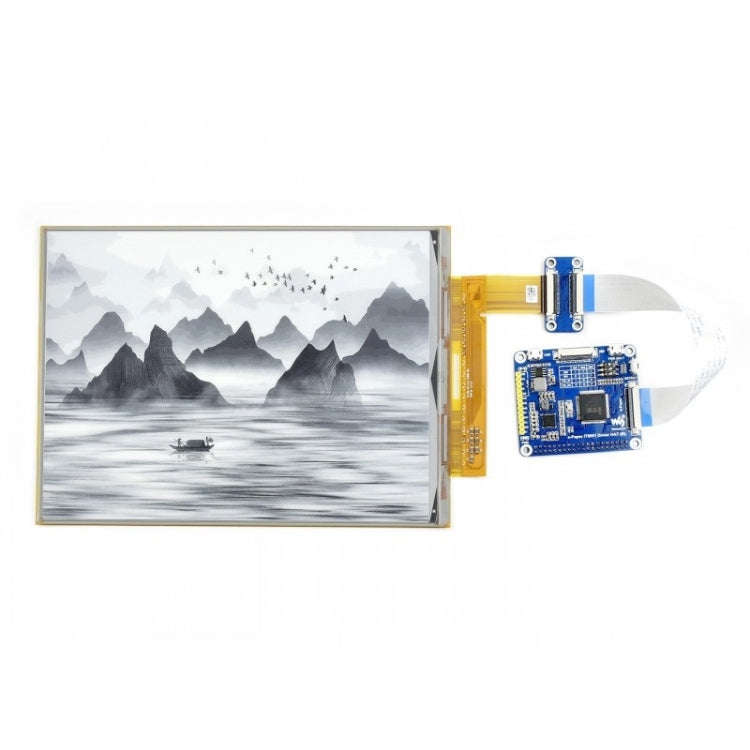

1. This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 18721404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
3. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.
Features
1. Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Low power consumption, basically power is only required for refreshing
4.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
5. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
6. Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
1. Operating voltage: 5V
2. Interface: USB/SPI/I80/I2C
3. Outline dimension: 227.7mm x 165.8mm x 0.647mm
4. Display size: 209.664mm x 157.248mm
5. Dot pitch: 0.112mm x 0.112mm
6. Resolution: 1872 x 1404
7. Display color: Black, white
8. Gray scale: 2-16 (1-4 bit)
9. Full refresh time: 450ms
10. Total refresh power: 1.2W(typ.)
11. Total standby power: 0.1W(typ.)
12. Viewing angle: >170 degree
13. Weight: 77g
Packing List

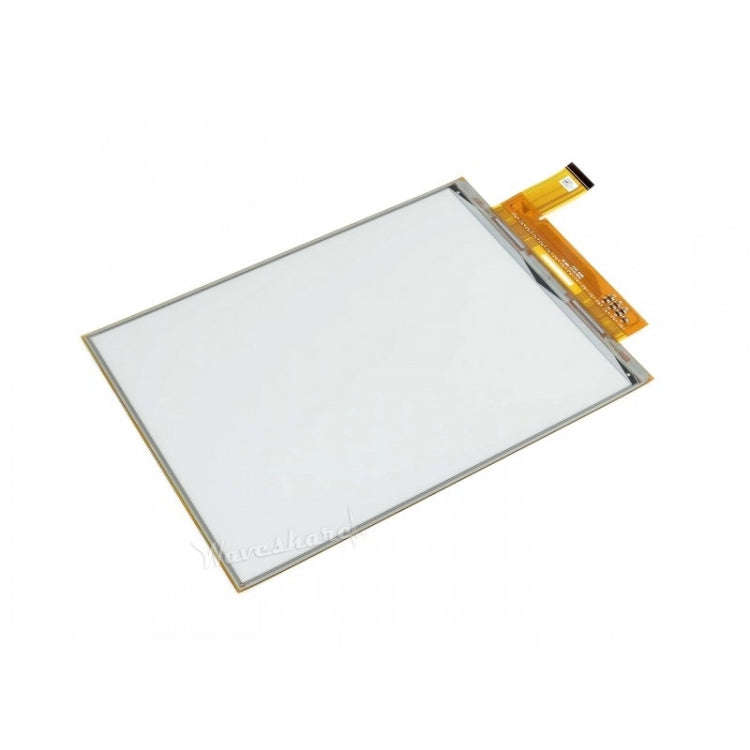

1. 10.3inch e-Paper (D) x1

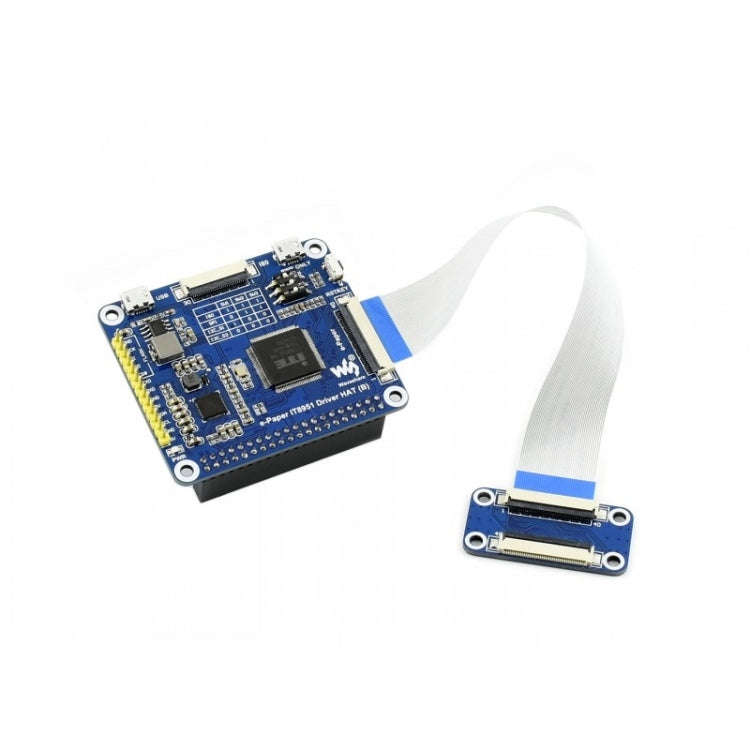

2. e-Paper IT8951 Driver HAT (B) x1
3. 10.3inch e-Paper Adapter x1
4. 33PIN FFC (same side contact) x1
5. USB type A plug to micro B plug cable x2

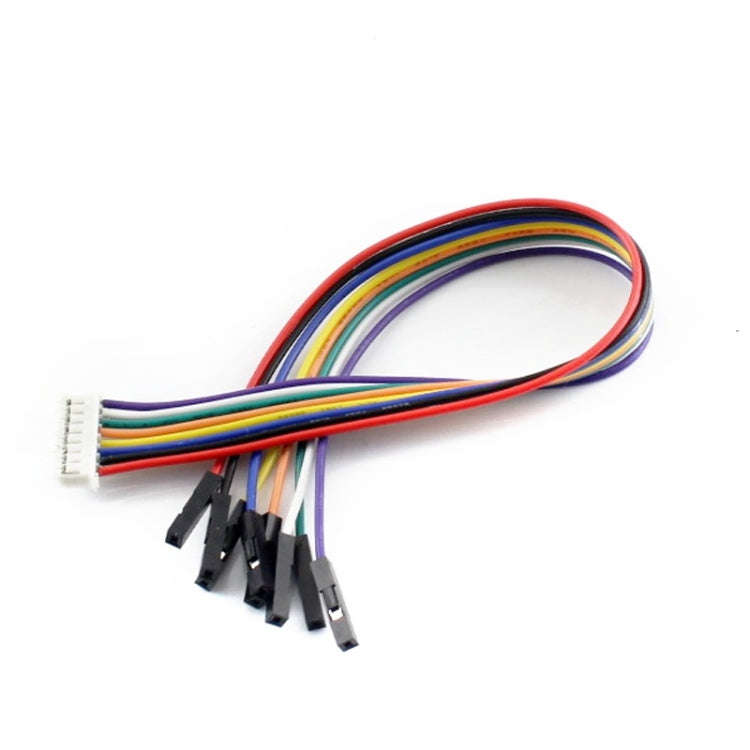

6. PH2.0 20cm 8Pin x1

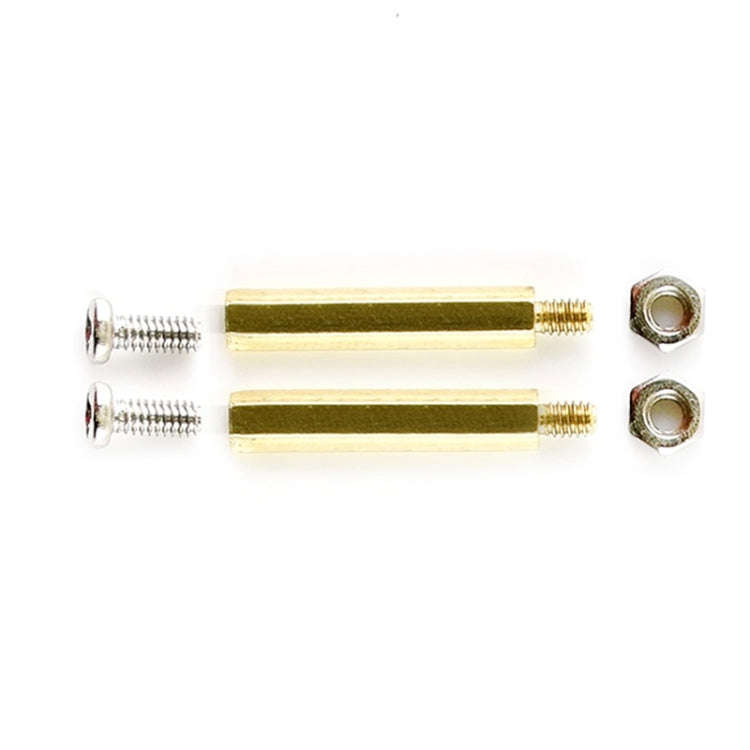

7. RPi screws pack (2pcs) x1
1. This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 18721404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
3. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.
Features
1. Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Low power consumption, basically power is only required for refreshing
4.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
5. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
6. Comes with development resources and manual (examples for Raspberry Pi/STM32)
Specifications
1. Operating voltage: 5V
2. Interface: USB/SPI/I80/I2C
3. Outline dimension: 227.7mm x 165.8mm x 0.647mm
4. Display size: 209.664mm x 157.248mm
5. Dot pitch: 0.112mm x 0.112mm
6. Resolution: 1872 x 1404
7. Display color: Black, white
8. Gray scale: 2-16 (1-4 bit)
9. Full refresh time: 450ms
10. Total refresh power: 1.2W(typ.)
11. Total standby power: 0.1W(typ.)
12. Viewing angle: >170 degree
13. Weight: 77g
Packing List
1. 10.3inch e-Paper (D) x1
2. e-Paper IT8951 Driver HAT (B) x1
3. 10.3inch e-Paper Adapter x1
4. 33PIN FFC (same side contact) x1
5. USB type A plug to micro B plug cable x2
6. PH2.0 20cm 8Pin x1
7. RPi screws pack (2pcs) x1
