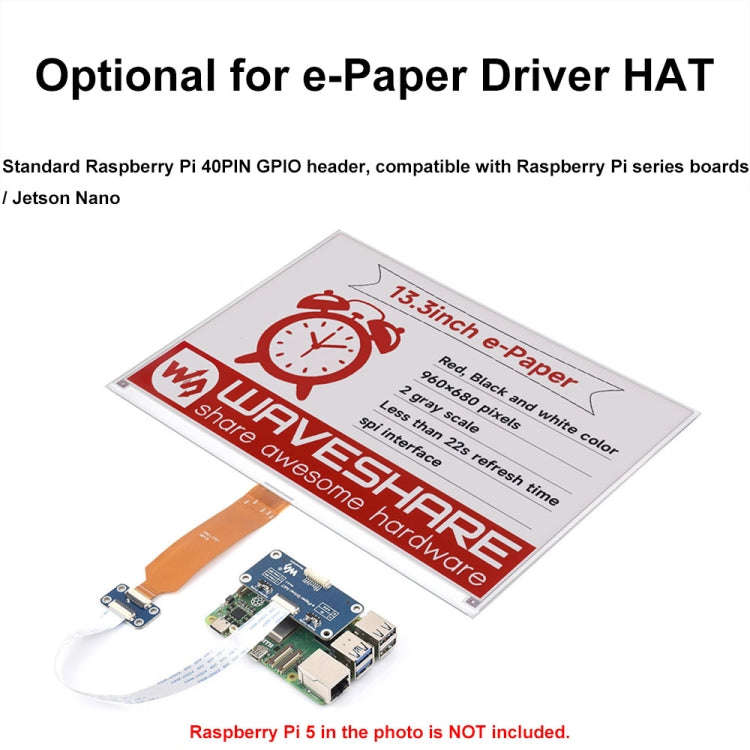

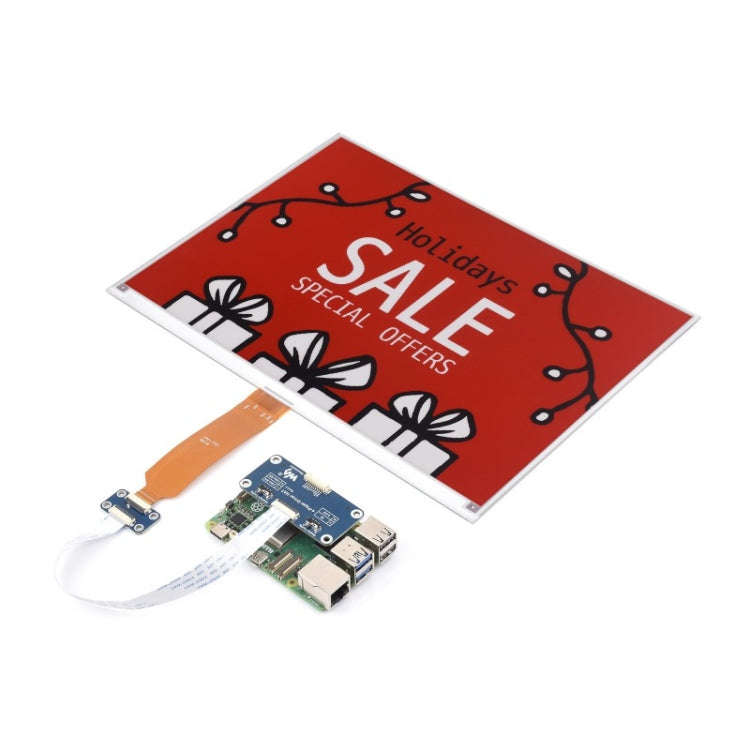

1. Based on Raspberry Pi4 OPIN GPIO interface design, suitable for Raspberry Pi series motherboards, Jetson Nano, RDKX3

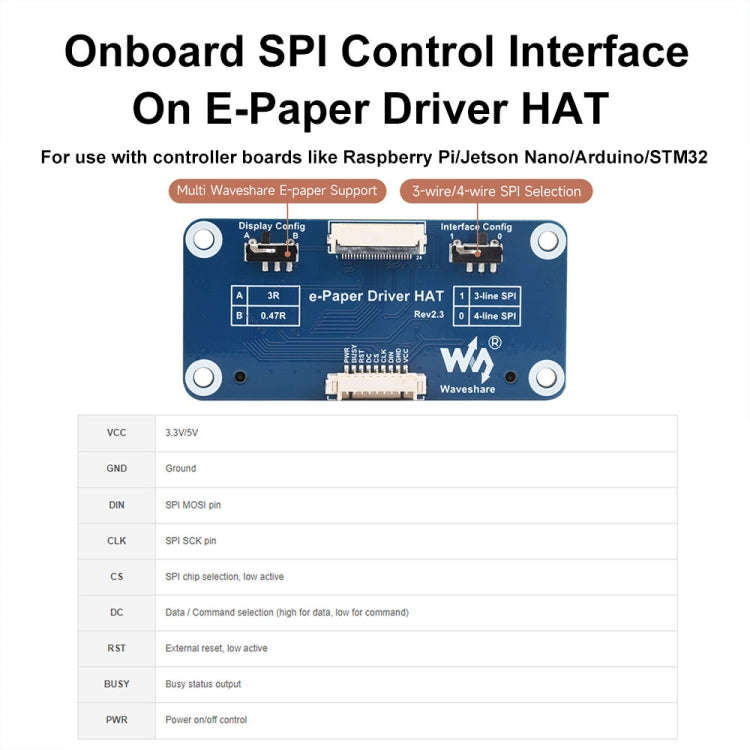

2. Reserved SPI control interface, can be connected to Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32 and other main control boards
3. Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
4. Module version working voltage: 3.3V/5V
5. Communication interface: 3-vire SPI, 4-wire SPI

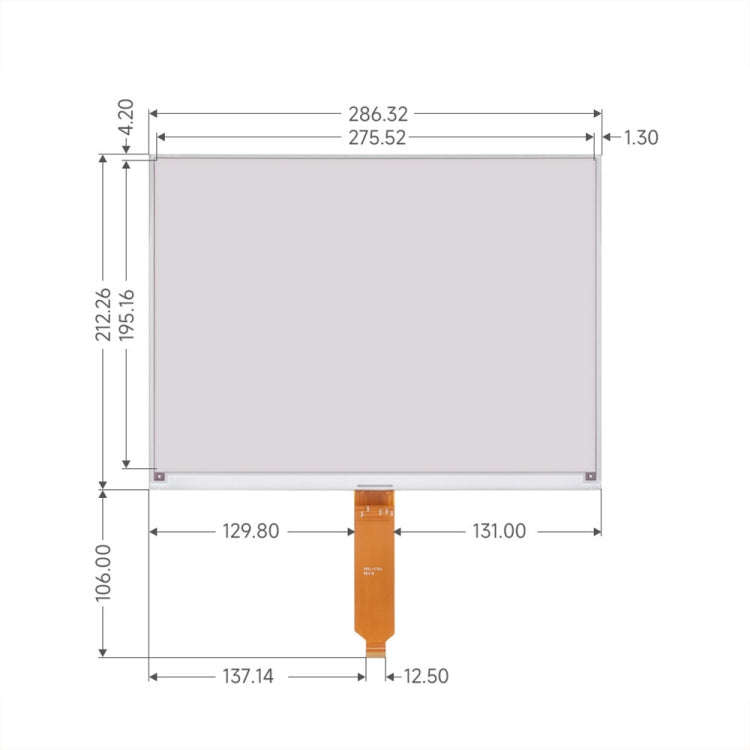

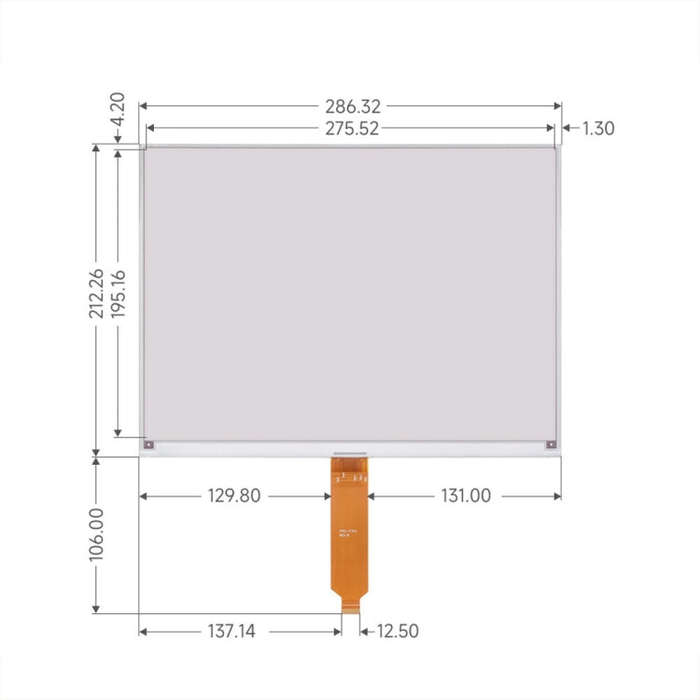

6. Screen size: 286.32 x 212.26 x 1.20mm
7. Display size: 275.52 x 195.16mm
8. Dot pitch: 0.287 x 0.287mm
9. Resolution: 960 x 680 pixels
10. Display color: red, black, white
11. Grayscale level: 2
12. Partial refresh: 2.9s
13. Global refresh: 22s
14. Refresh power consumption: 75mW
15. Sleep current: less than 0.01uA (close to 0)
16. Viewing angle: greater than 170 degrees
17. Application areas: for display applications such as shelf labels and industrial instruments
18. Weight: 164 grams

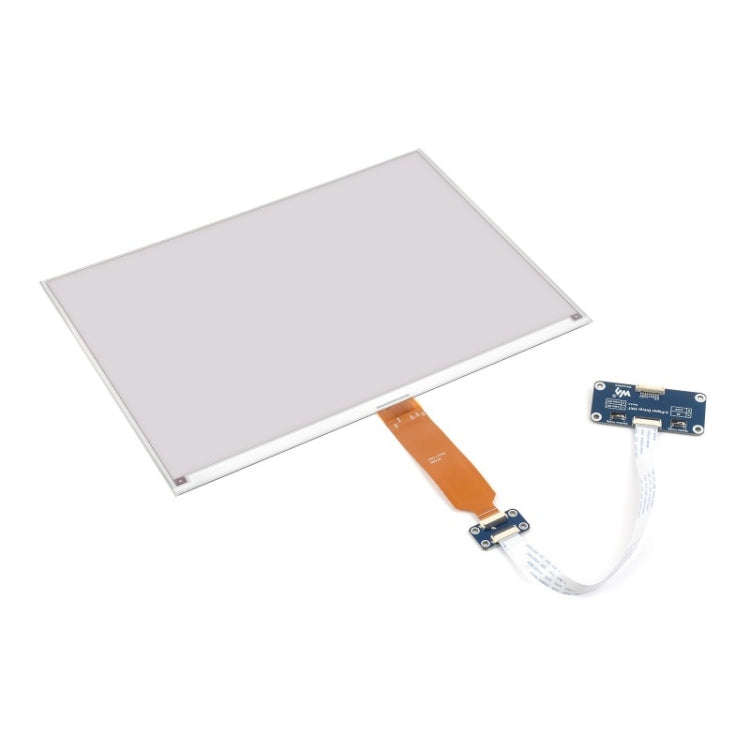

Packing list:
-Display x 1
-Driver board x 1
-Connecting wire x 1
-Copper column package x 1
