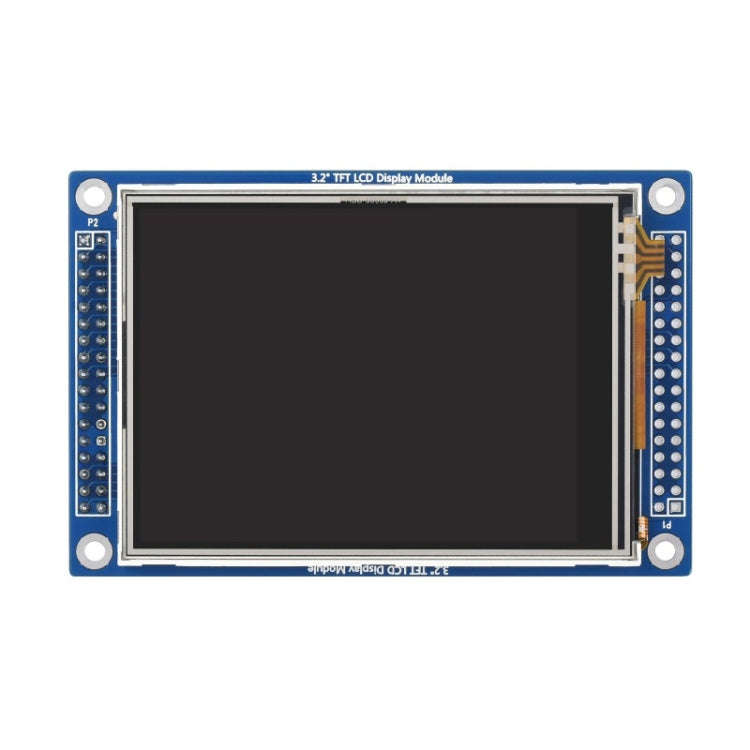

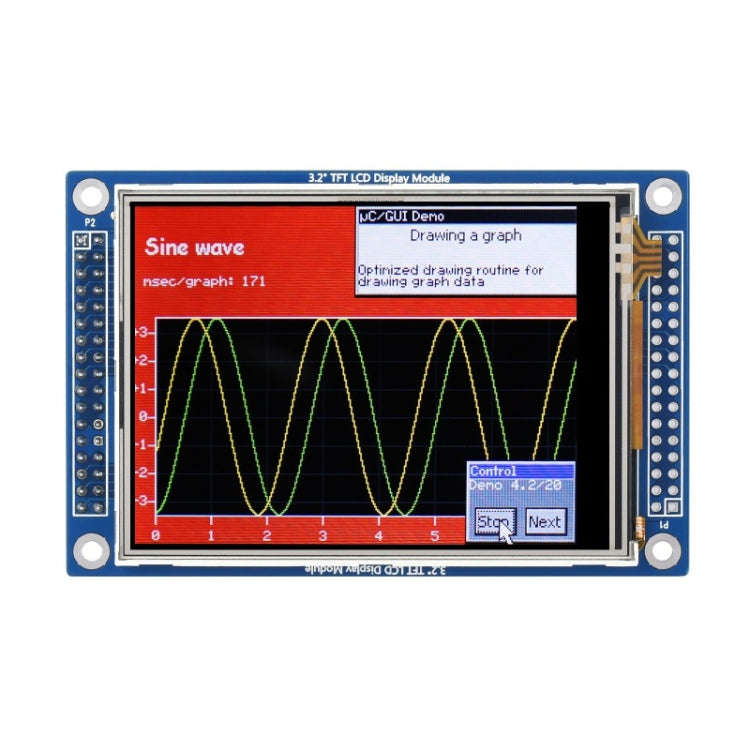

Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers
Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers

Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers

10 available / new
R536.14
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0550011
Bob Shop ID
636100898

1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels

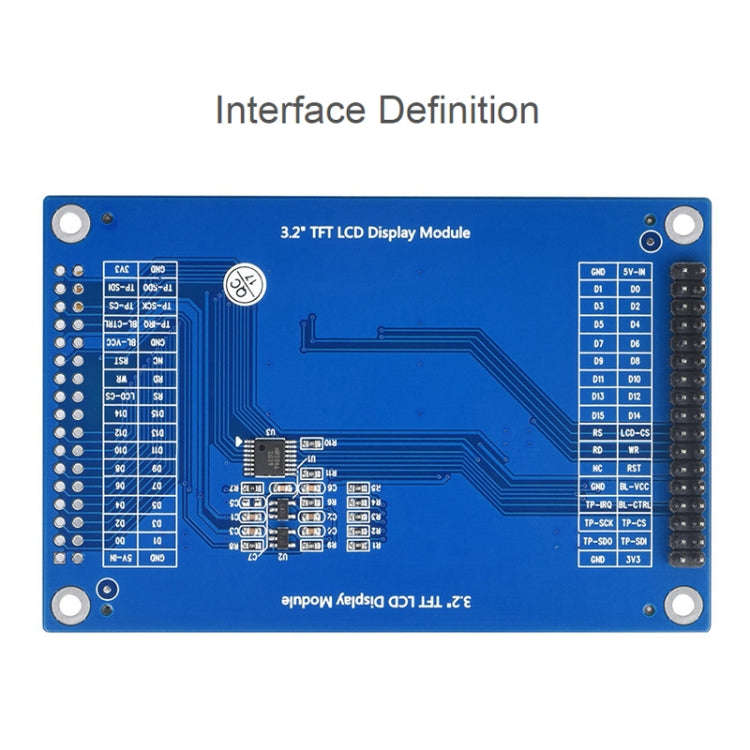

3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341

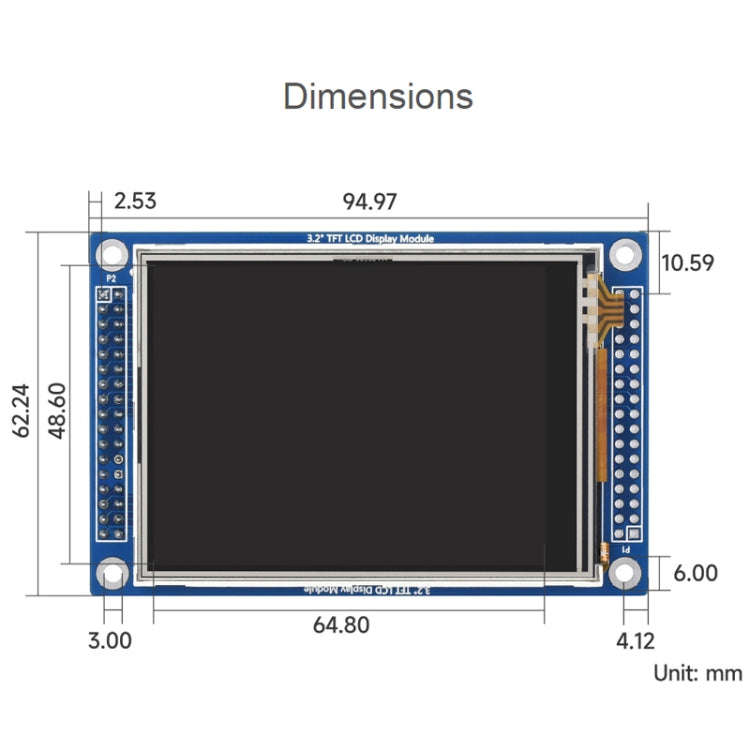

6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm
8. Module size 94.97 × 62.24mm
9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)

Add to cart
