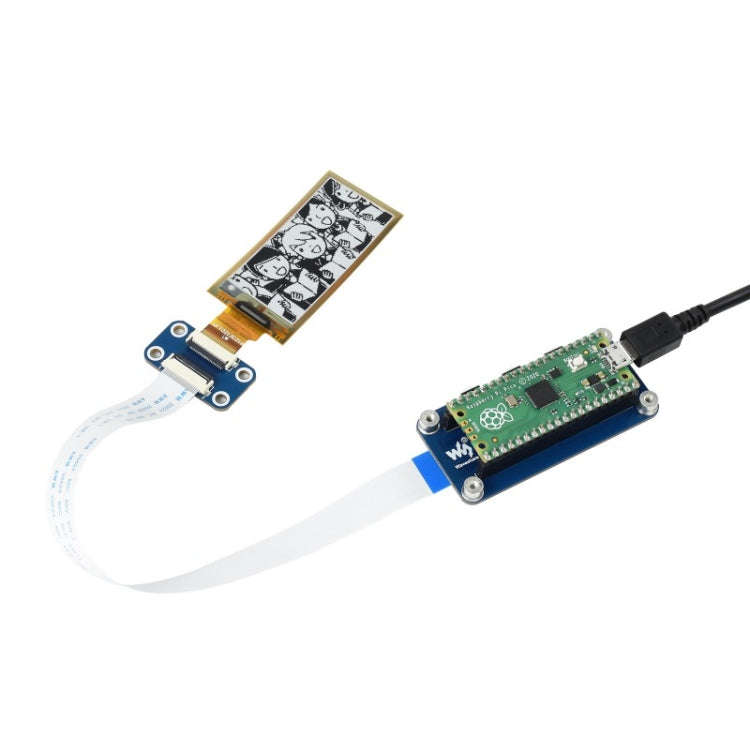

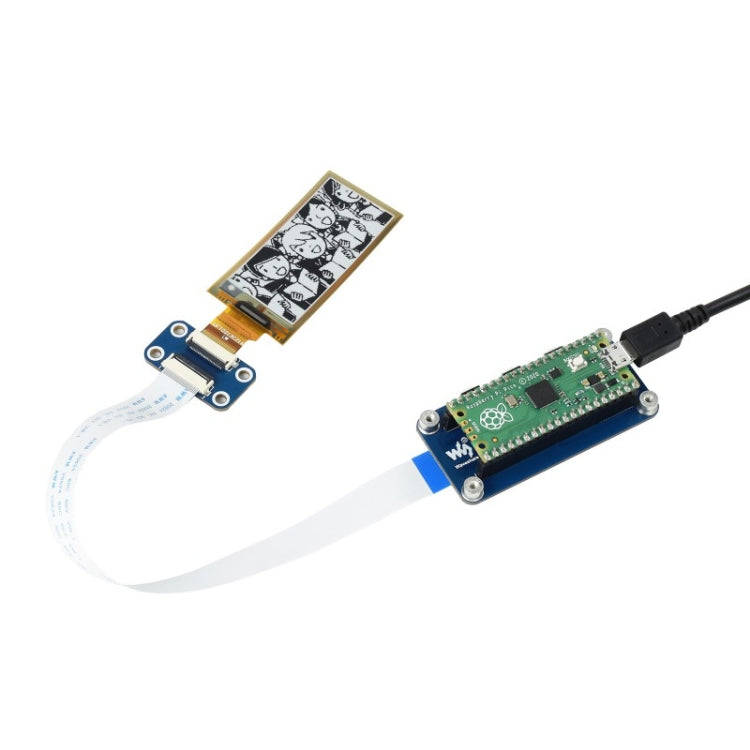

Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb...
Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb... Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb...
Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb...
+5

Waveshare 2.13 inch 212 x 104 Pixel Black / White Flexible E-Paper E-Ink Display Module for Raspb...

New 10 available
R619.26
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0164
Bob Shop ID
636105032
Features

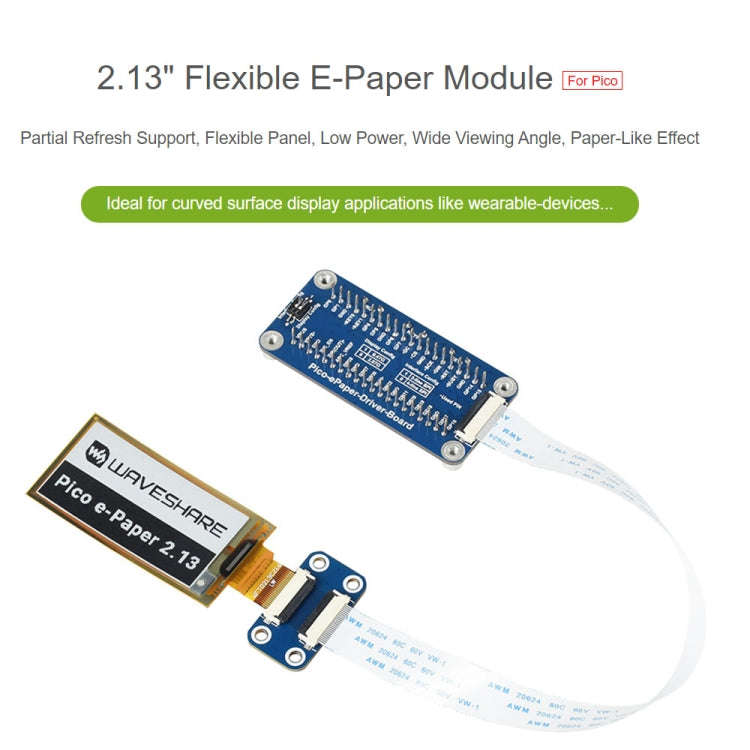

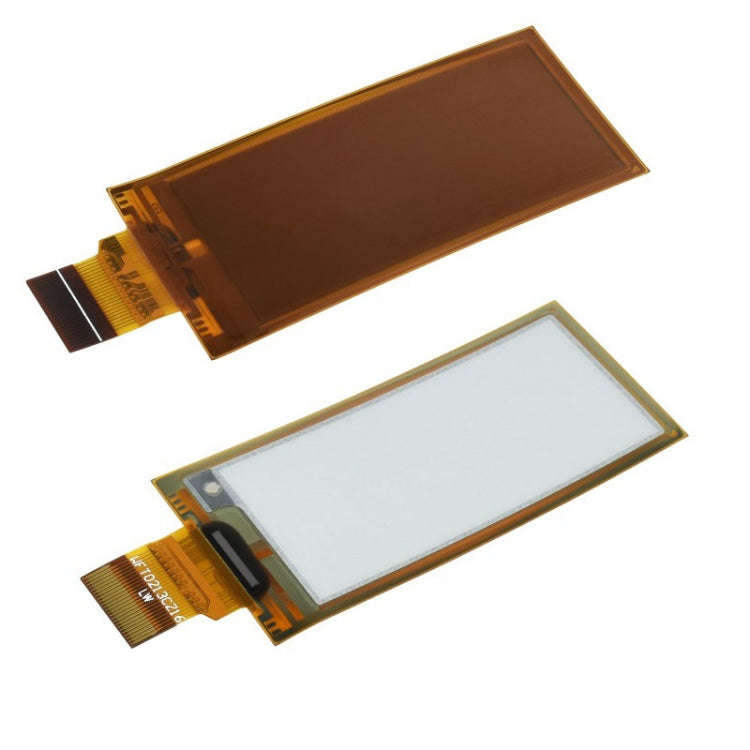

1. Flexible e-Paper panel, the display section is bendable (DONOT bend the FPC section)
2. No backlight, keeps displaying last content for a long time even when power down
3. Ultra low power consumption, basically power is only required for refreshing
4. SPI interface, requires minimal IO pins

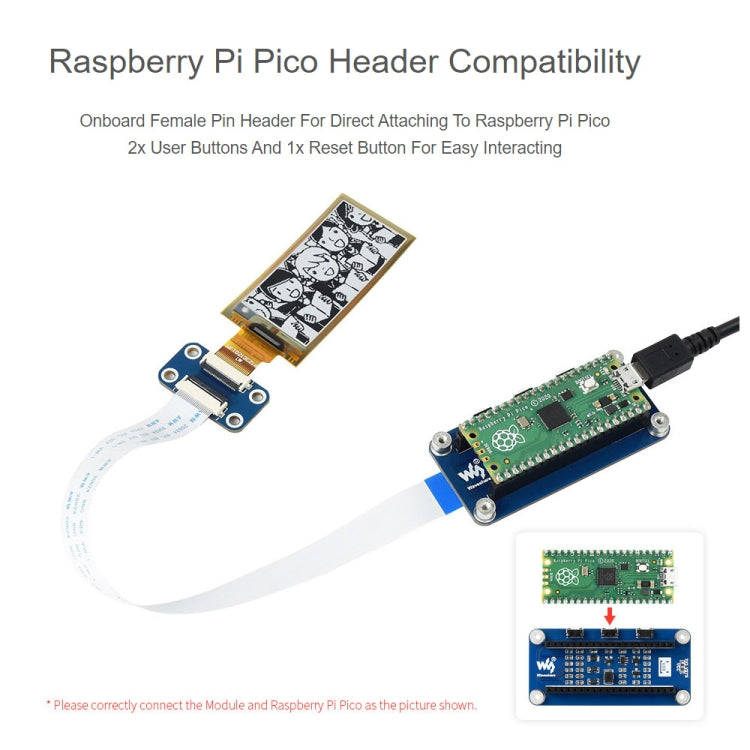

5. 2x user buttons and 1x reset button for easy interacting
6. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 212 x 104 pixels
4. Grey scale: 2

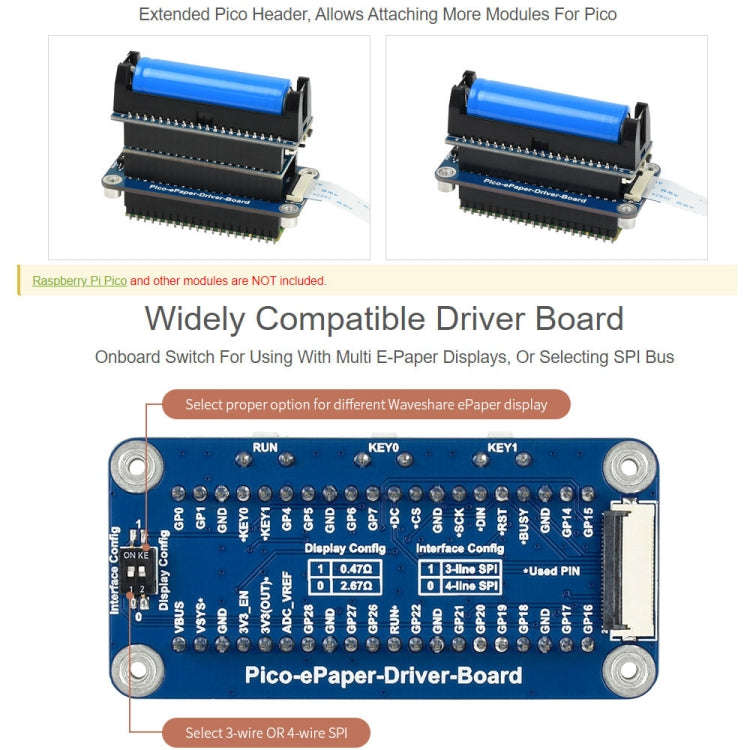

5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: N/A
8. Full refresh time: 5s

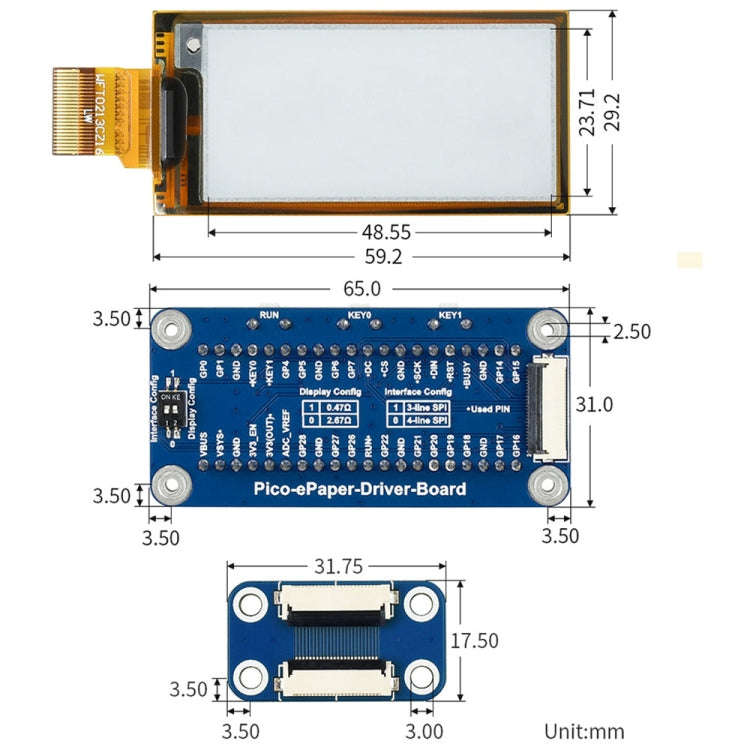

9. Dimensions: 59.2 x 29.2mm
10. Display size: 48.55 x 23.71mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.229 x 0.228mm

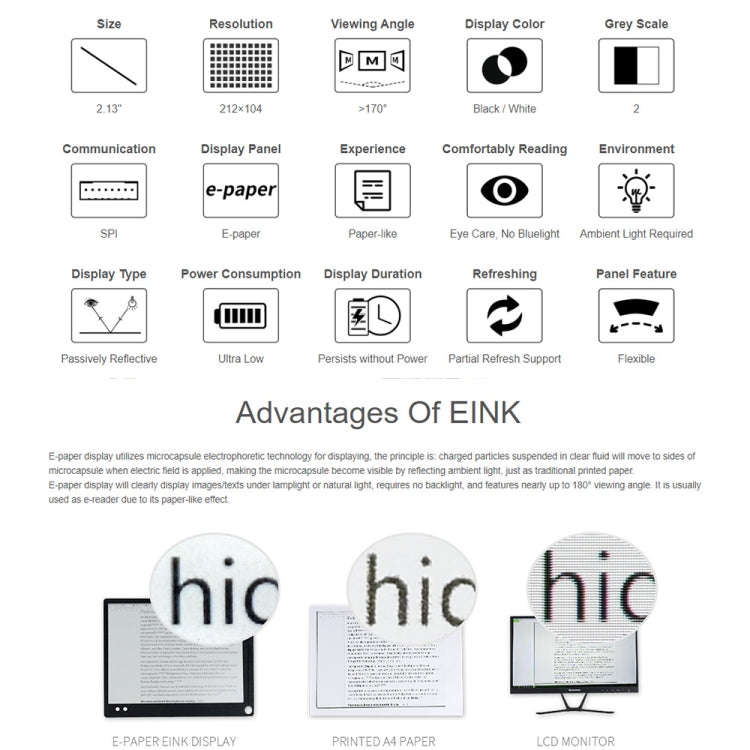

Advantages Of EINK
1. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
2. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 degree viewing angle. It is usually used as e-reader due to its paper-like effect.

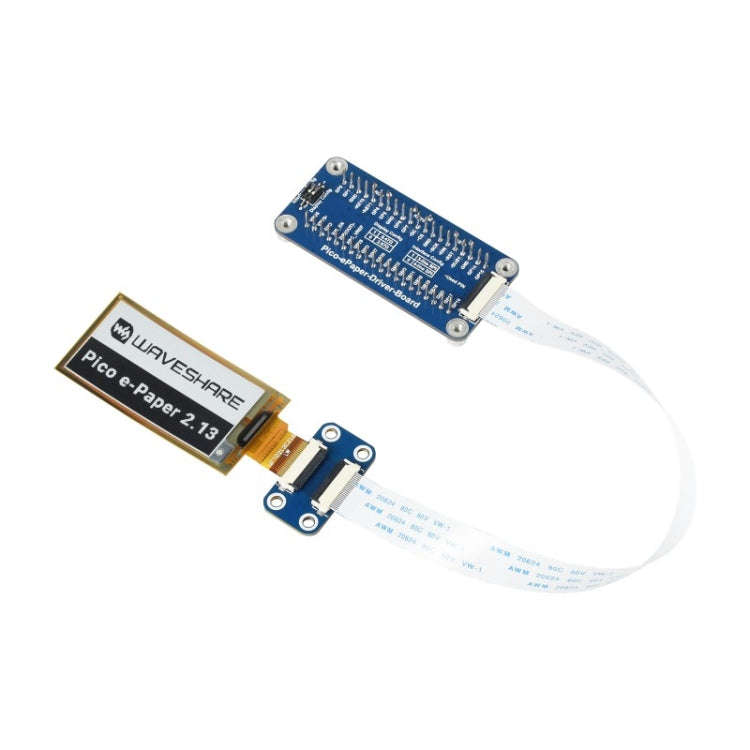

Package List
1. 2.13 inch e-Paper (D) x1
2. Pico-ePaper-Driver-Board x1
3. Standoff pack x1
