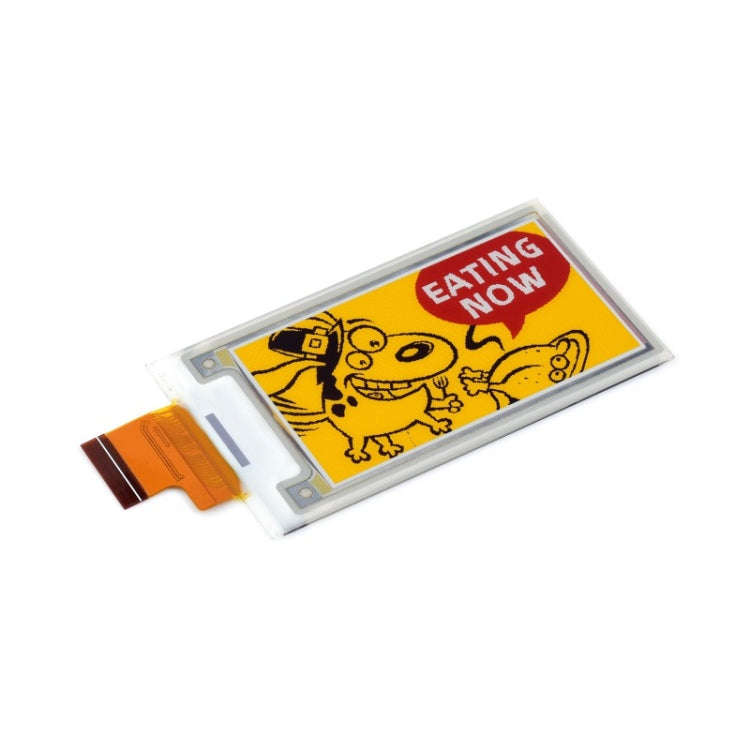

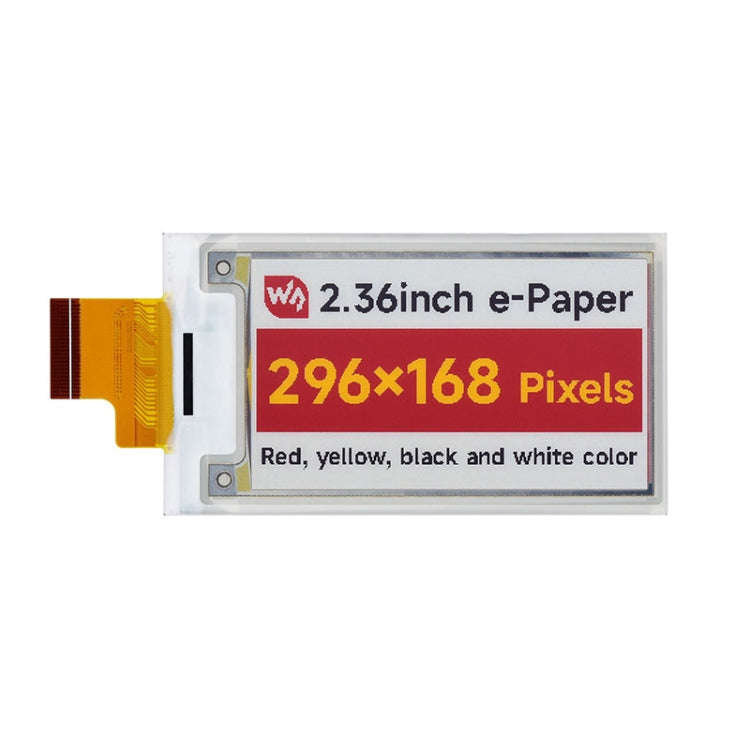

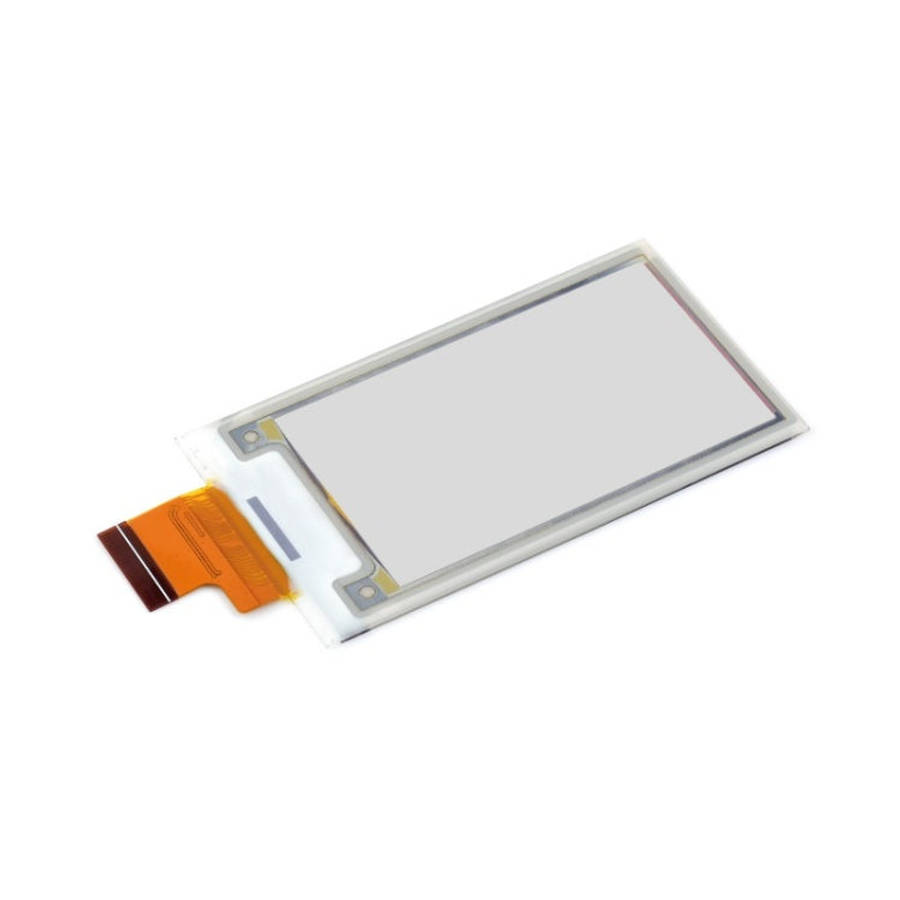

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
+2

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel

10 available / new
R391.88
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0579
Bob Shop ID
636104341
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Come with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications:
1. Operating voltage: 3.3V
2. Interface: 3-wire SPI, 4-wire SPI

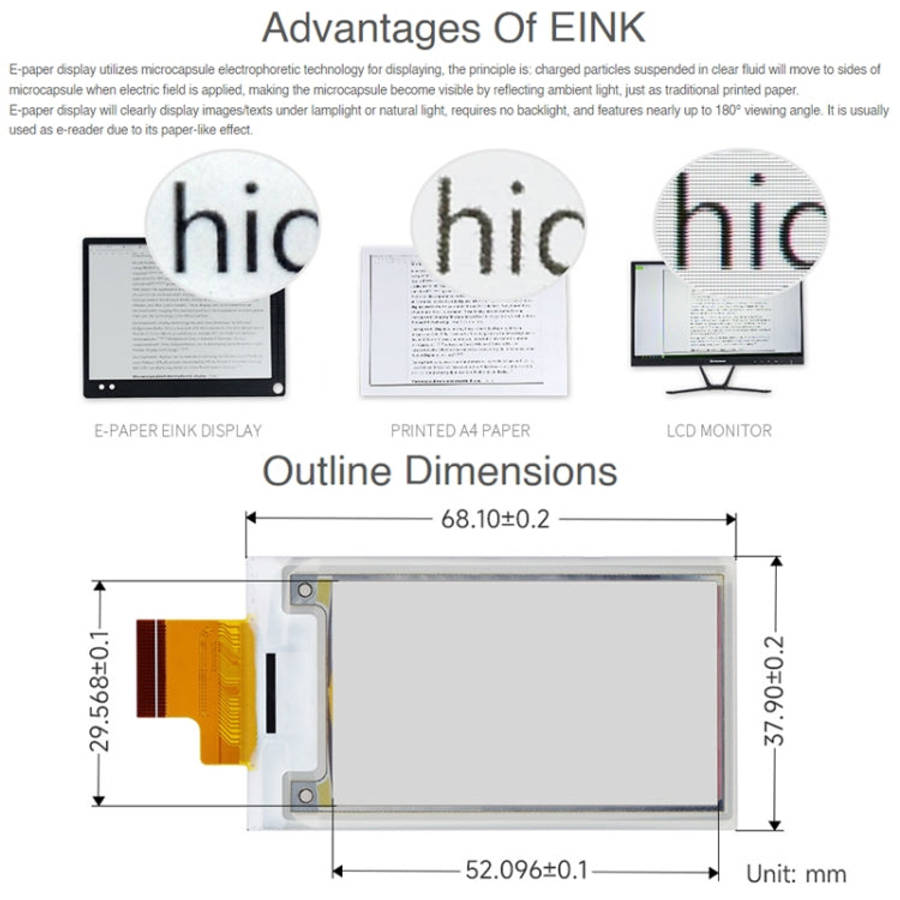

3. Outline dimension: 68.1 x 37.9 x 0.85mm
4. Display size: 52.096 x 29.568mm
5. Dot pitch: 0.176 x 0.176mm
6. Resolution: 296 x 168 pixels
7. Display color: Red/Yellow/Black/White
8. Grey level: 2
9. Full refresh time: 12s
10. Refresh power: Less than 57mW (typ.)
11. Standby power: Less than 0.01uA (almost none)
12. Viewing angle: Greater than 170 degree
