Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V

10 available / new
R255.92
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD05797557
Bob Shop ID
636104258

1. VCC: 3.3V - 5V power input
2. GND: ground wire
3. SCL: I2C clock pin
4. SDA: I2C data pin
5. Communication interface: I2C
6. LCD controller: AiP31068
7. Working voltage: 3.3-5V
8. Working temperature: minus 20-70 degrees Celsius
9. Display panel: Character LCD

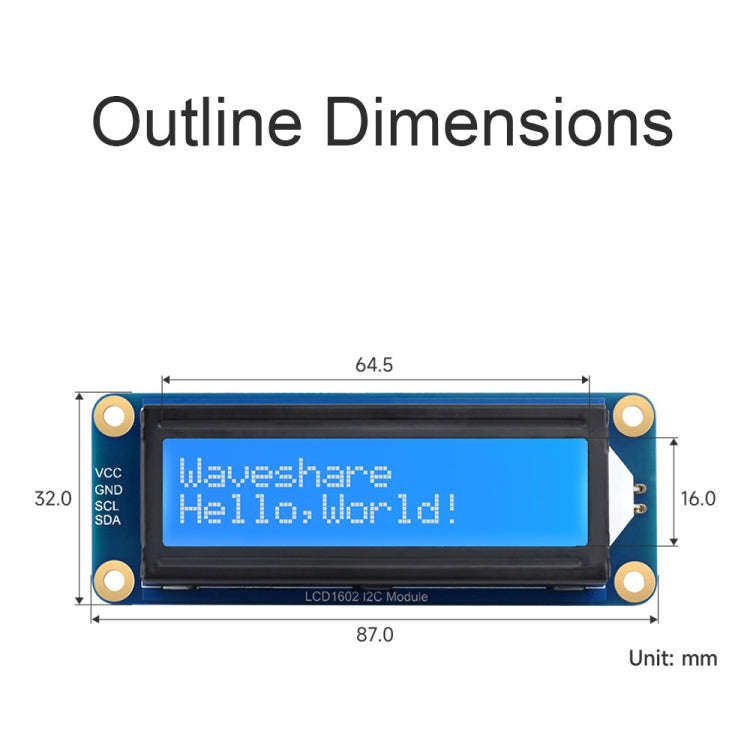

10. Display size: 64.5 x 16.0mm
11. Characters: 16 x 2
12. Product size: 87.0 x 32.0 x 13.0mm
13. Built-in character LCD panel LCD1602
14. I2C control interface, only need two signal pins, saving IO resources
15. Compatible with 3.3V/5V working voltage

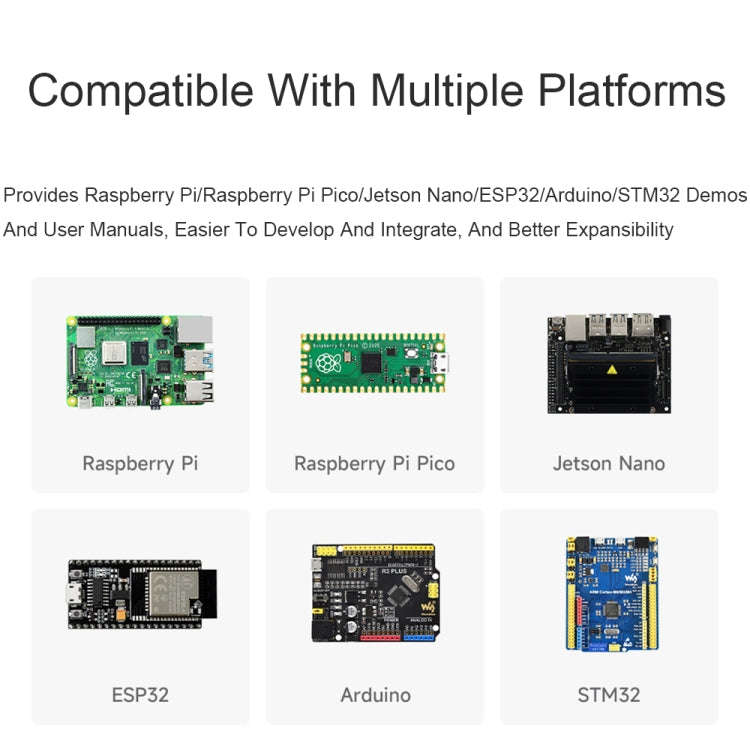

16. Comes with online development resources and manuals (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
