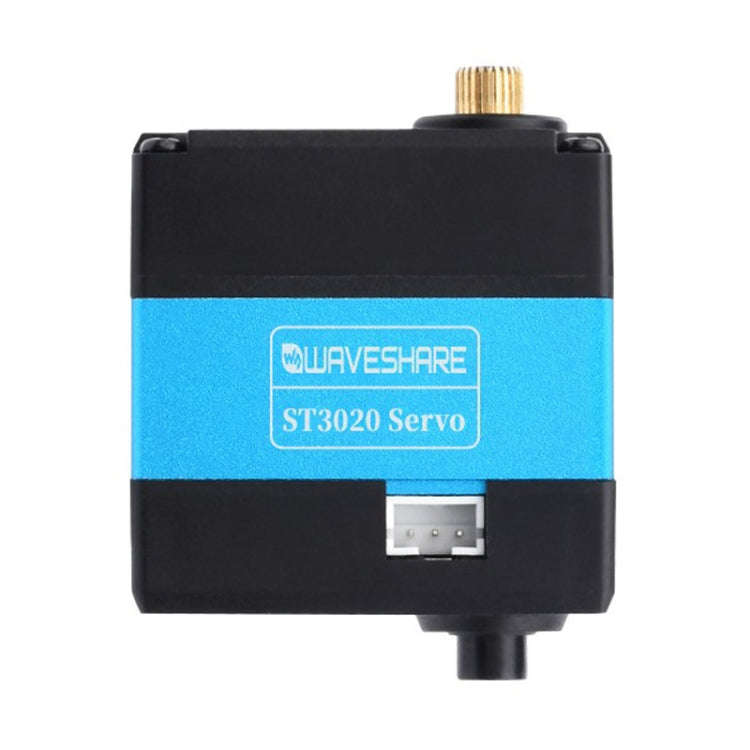

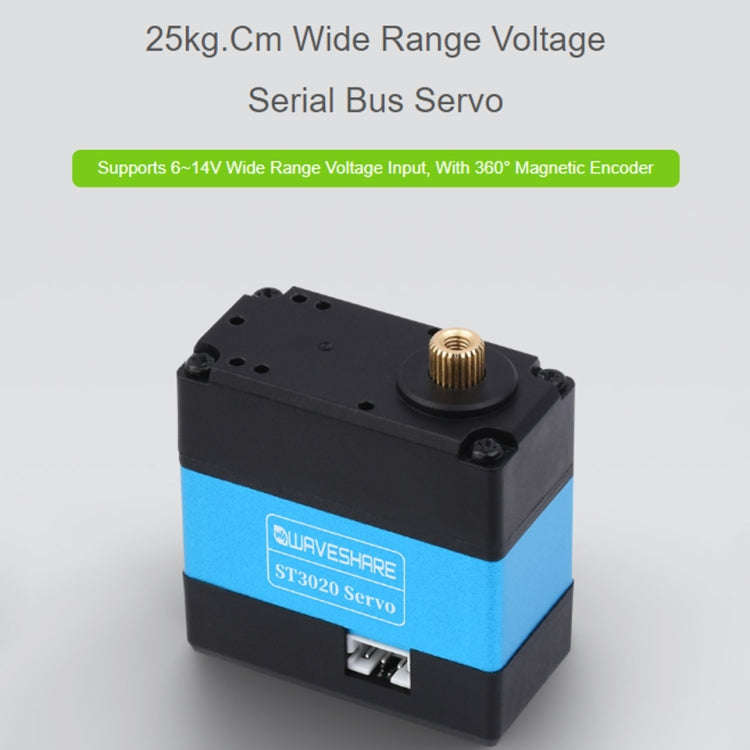

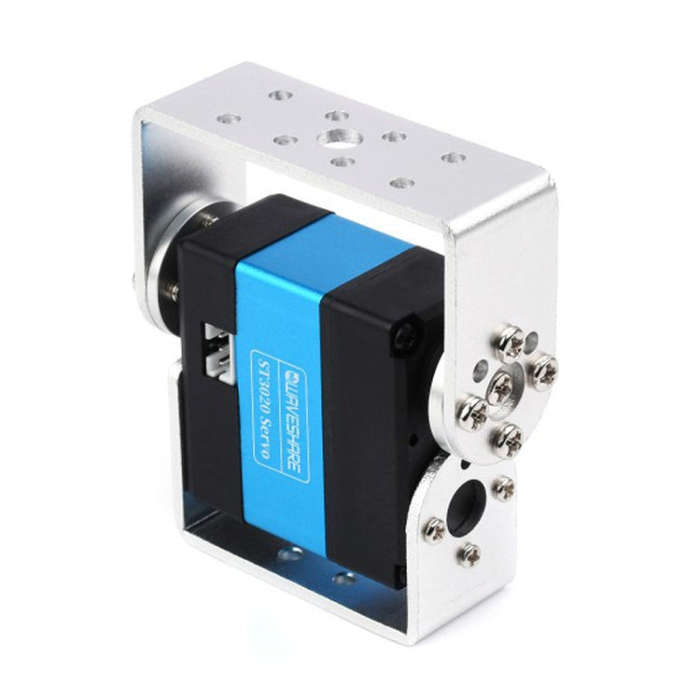

Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD06006694
Bob Shop ID
607118243

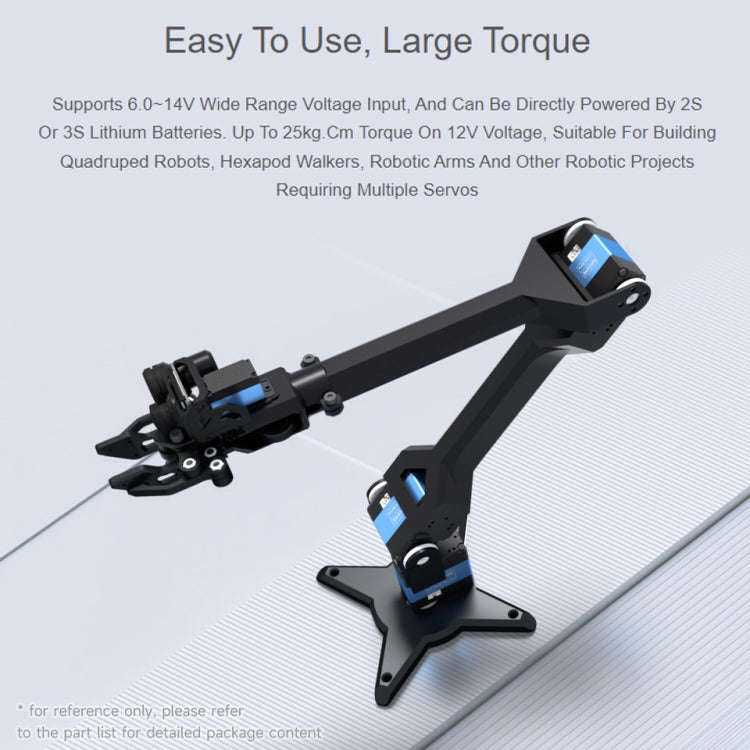

1. Torque: 25kg.cm@12V

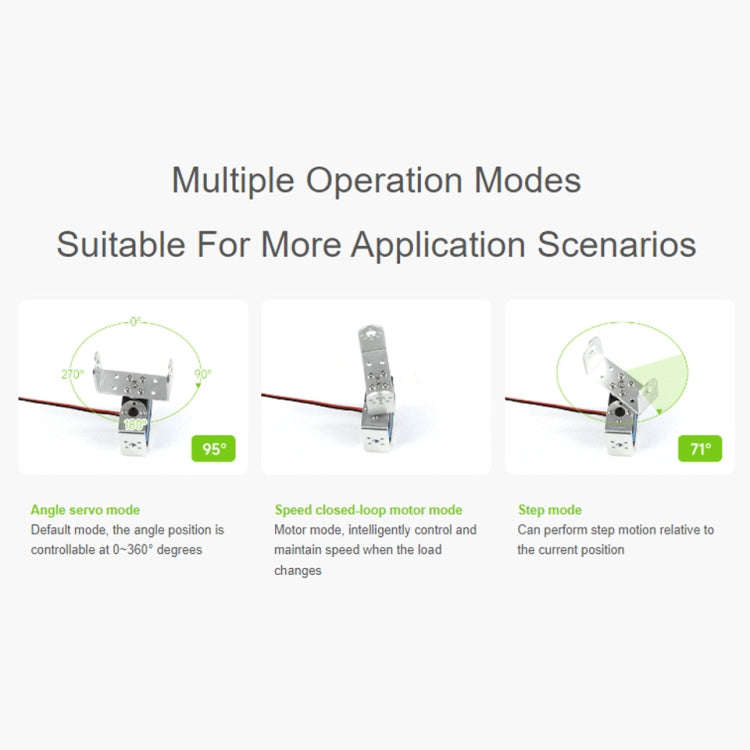

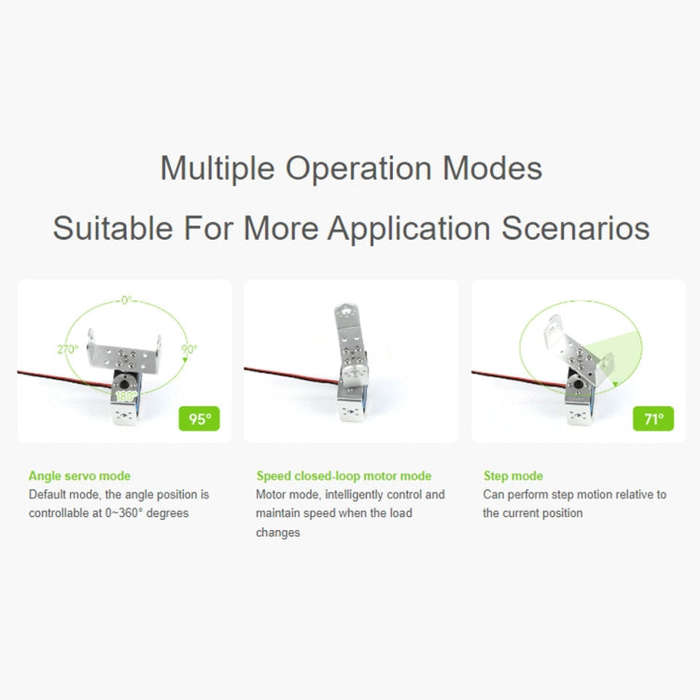

2. Rotation angle: 360 degrees (0-4095)
3. Position sensor resolution: 0.088 degrees (360 degrees/4096)
4. Institutional restriction angle: no restriction
5. Working voltage: 6-14 V (typ. 12V)

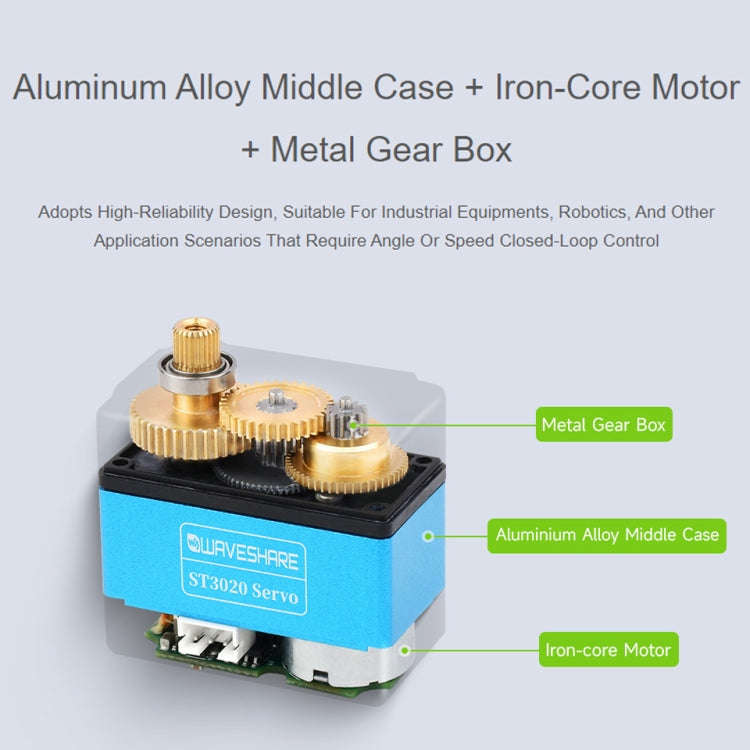

6. Gear: high-precision metal gear
7. No-load speed: 0.167 seconds/60 degrees (60RPM)@12V

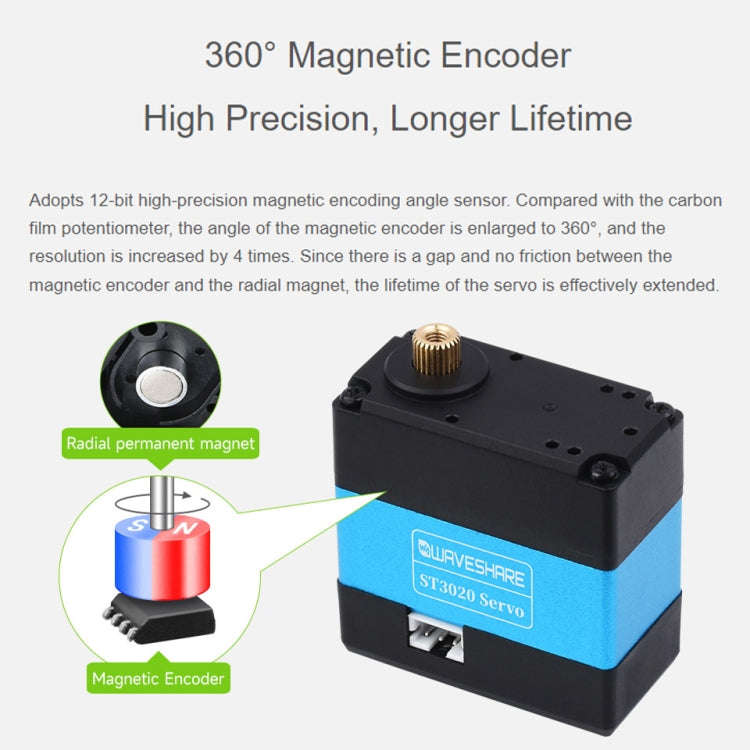

8. Encoder type: 12-bit magnetic encoder

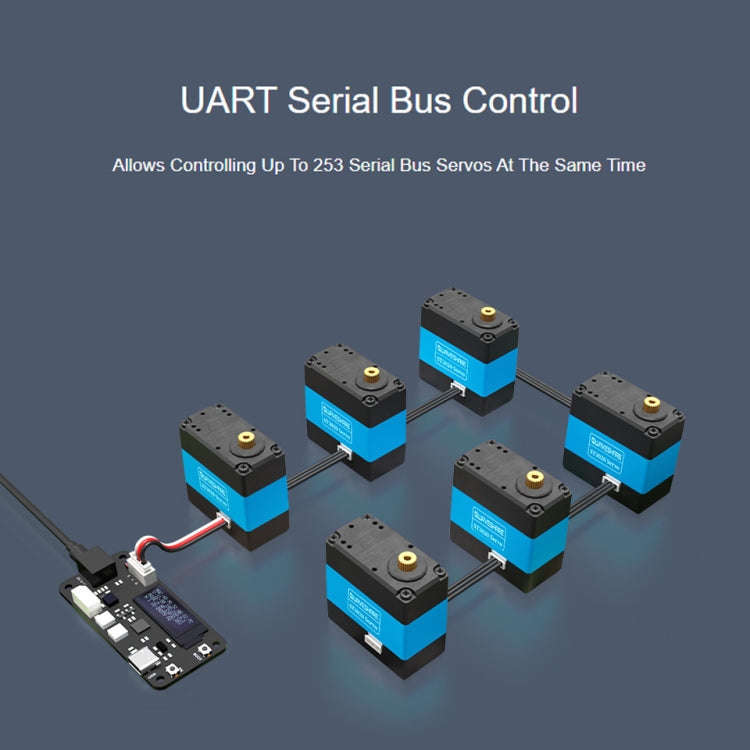

9. ID range: 1-253
10. Baud rate: 38400bps-1Mbps (default 1Mbps)

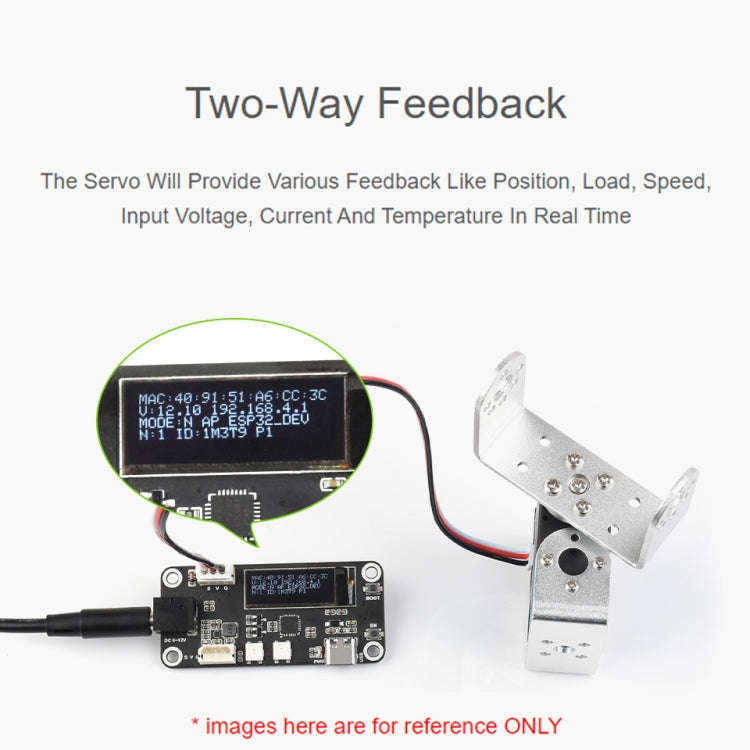

11. Feedback: position, load, speed, input voltage, current, temperature
12. No-load current: 200mA@12V
13. Stalled rotor current: 2.7A@12V
14. KT: 9.26kg.cm/A
15. Weight: 97 grams
