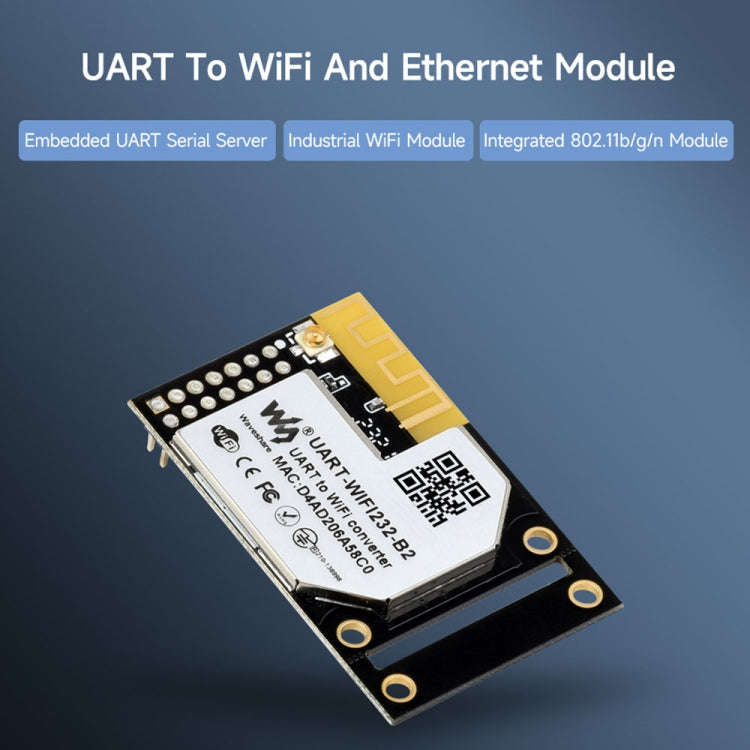

Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD05765315
Bob Shop ID
607118366
Features:

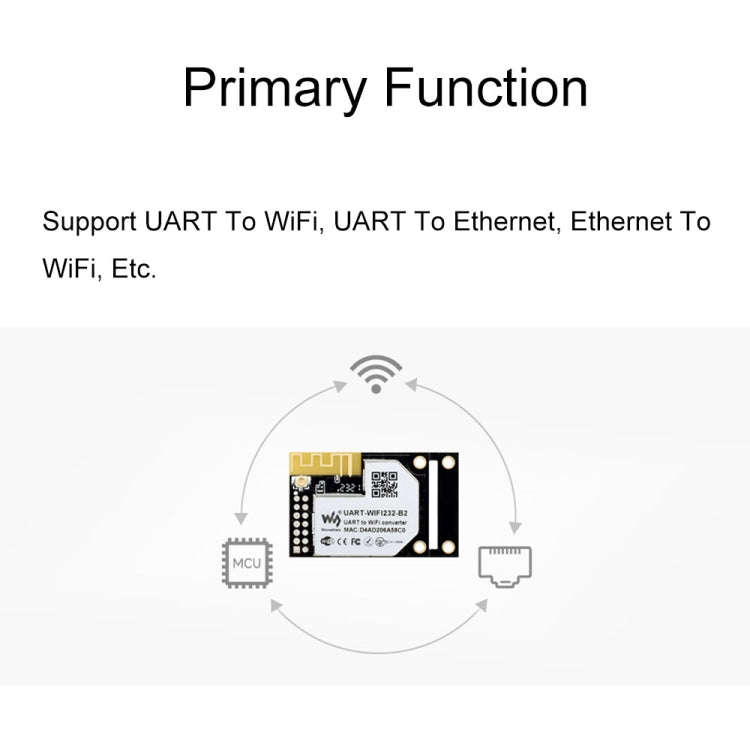

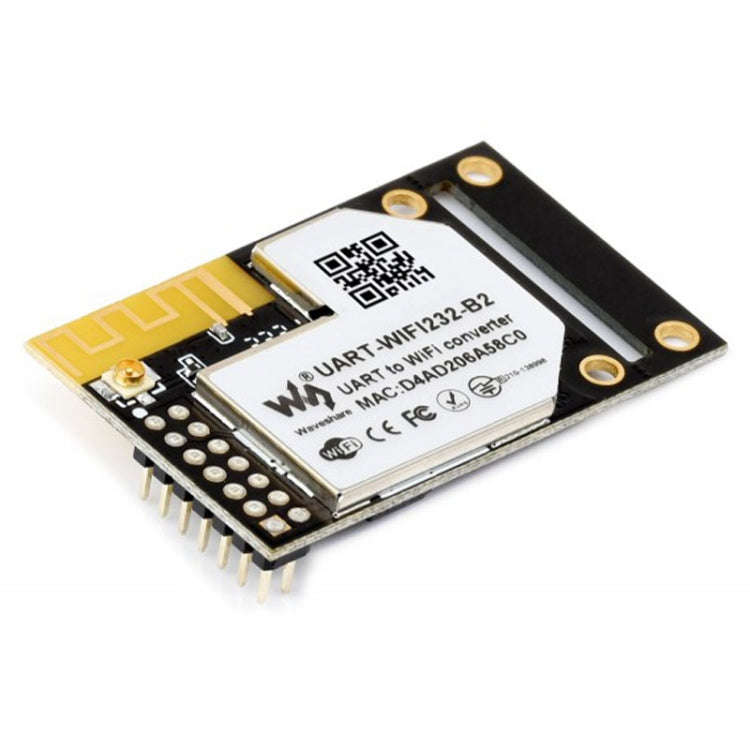

1. This is an industrial-grade integrated 802.11b/g/n module that can realize two-way transparent transmission of TTL serial port, WiFi, and network port.
2. It integrates multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, UART to HTTPD client, etc.
3. Traditional serial port devices or MCU control devices can quickly access WiFi wireless networks through this WiFi module.
4. Small size and easy to install.
5. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications
Product parameters:
1. Power supply: DC 3.3V
2. Power supply method: pin header

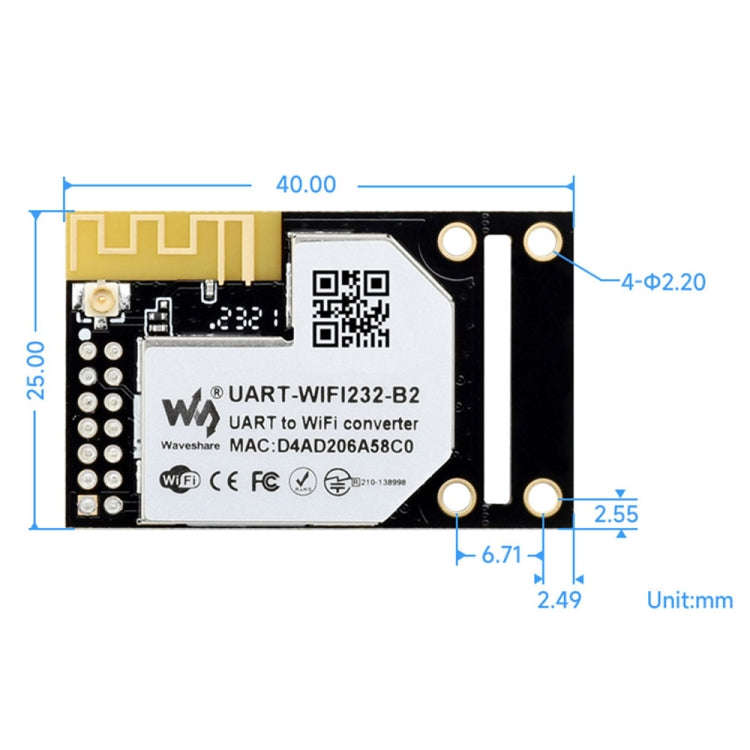

3. Dimensions: 25 x 40 x 8mm
4. Ethernet: 10/100M auto-negotiation (connected through pin header)
5. WIFI: Complies with 802.11b/g/n
6. Serial port: UART
7. Frequency band: 2.412-2.484 GHz
8. Wireless network: Station / AP / AP+Station mode
9. Security mechanism: WPA-PSK / WPA2-PSK
10. Encryption type: TKIP/AES
11. Transmission power:
802.11b: +19dBm (max @11Mbps)
802.11g: +18dBm (max @54Mbps)
802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
12. Receiving sensitivity:
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
13. Baud rate: 300-460800 bps
14. Check digit: none, odd, even, mark, space
15. Data bits: 5-9 bits
16. Flow control: RTS/CTS
17. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

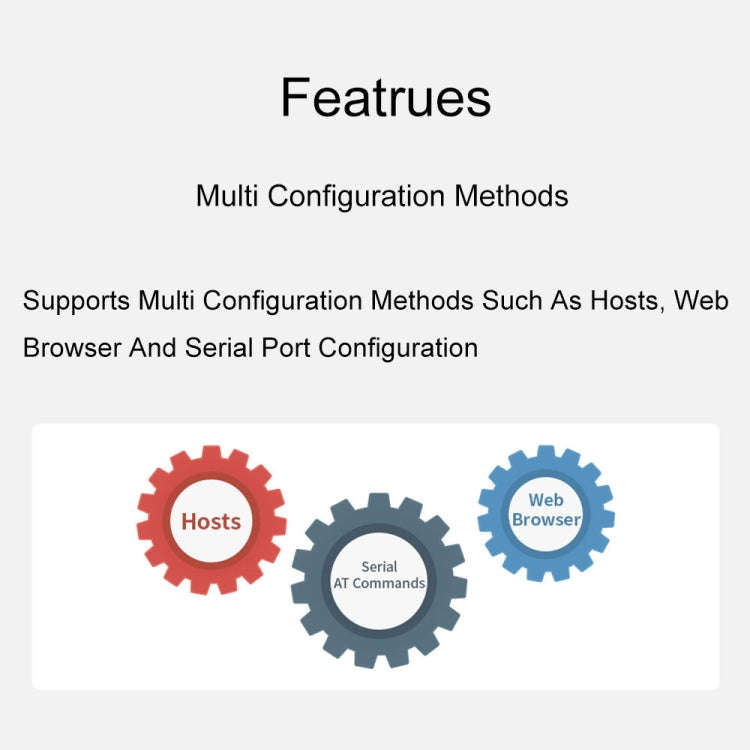

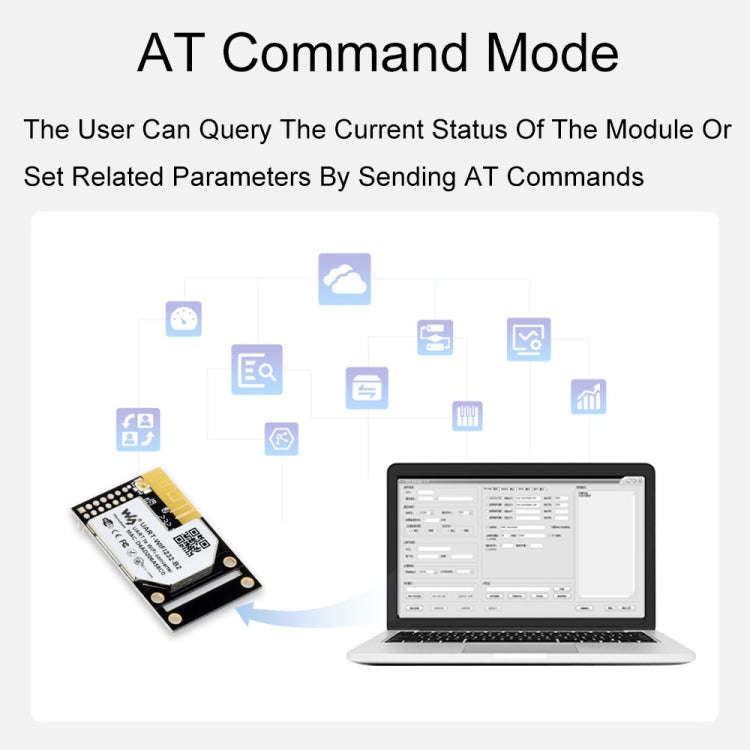

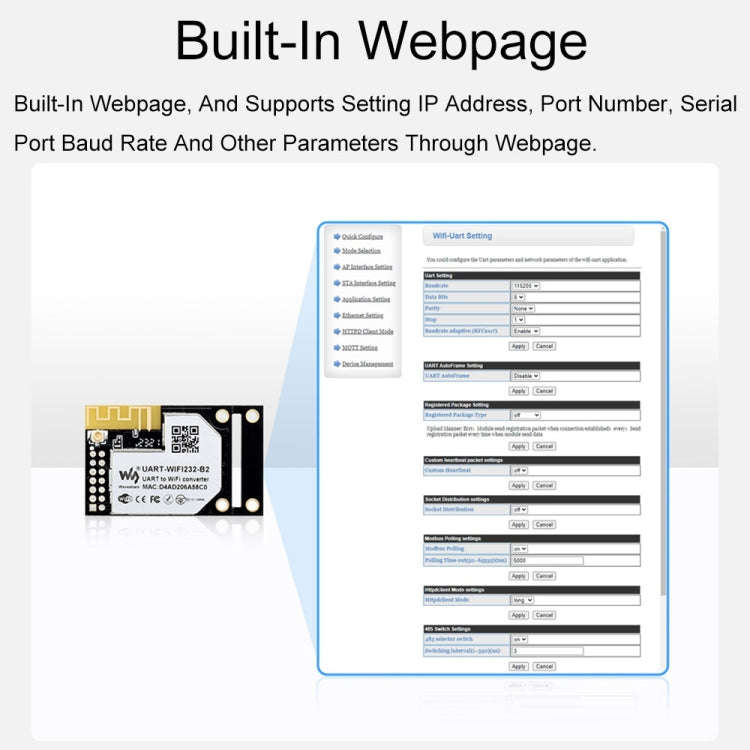

18. Configuration: host, browser, serial AT command
19. Communication method: TCP/IP direct communication, VCOM

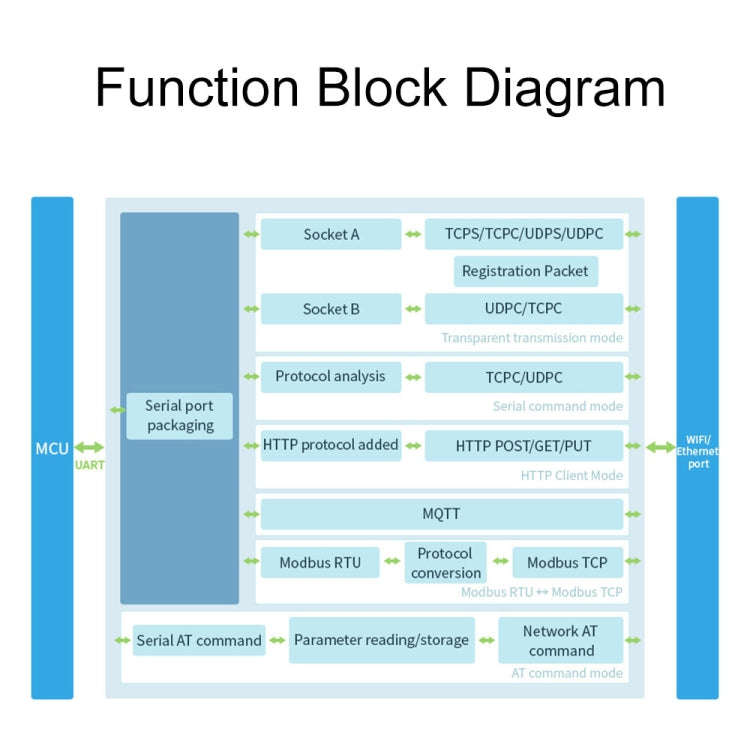

20. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
21. Operating temperature: -40 to 85 degrees Celsius
22. Humidity range: 5% to 95%
