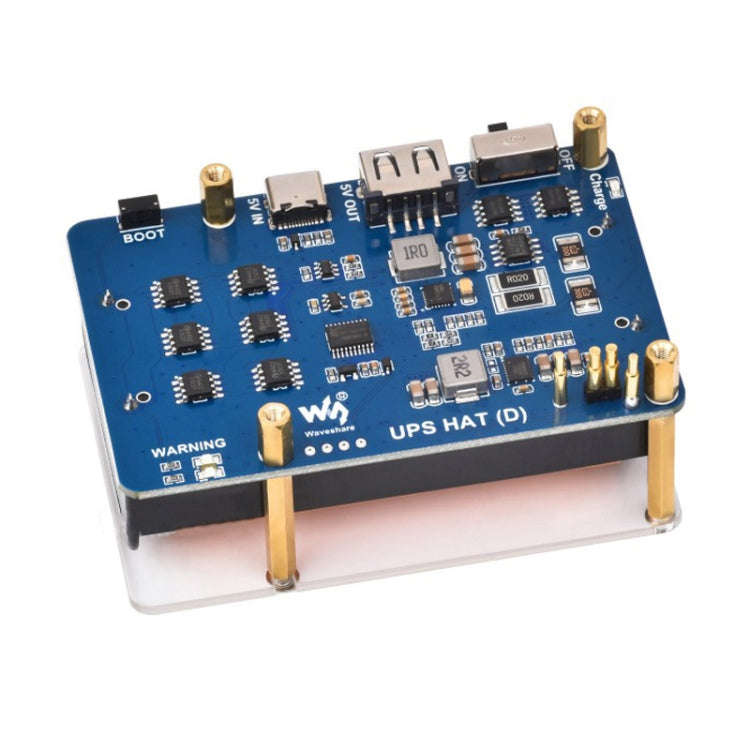

Waveshare 25567 For Raspberry Pi UPS HAT (D), Pogo Pins Connector , Without Battery
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD06006859
Bob Shop ID
607118276
Features:

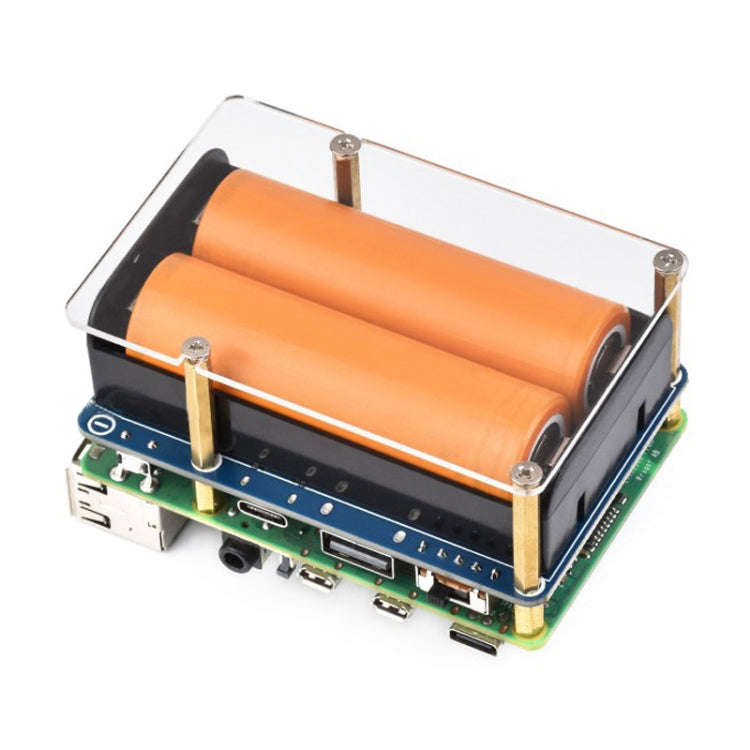

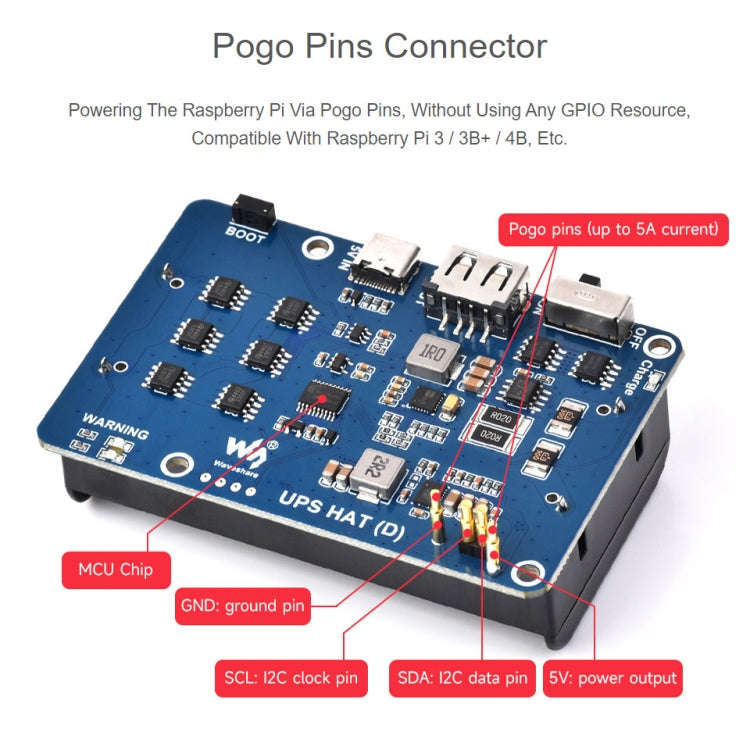

1. Adopt pogo pin connector design, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.

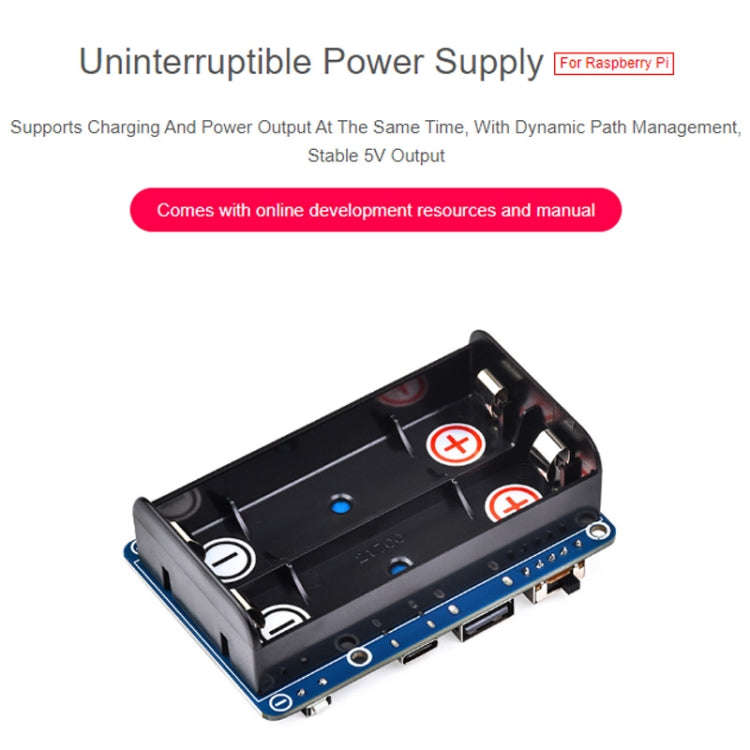

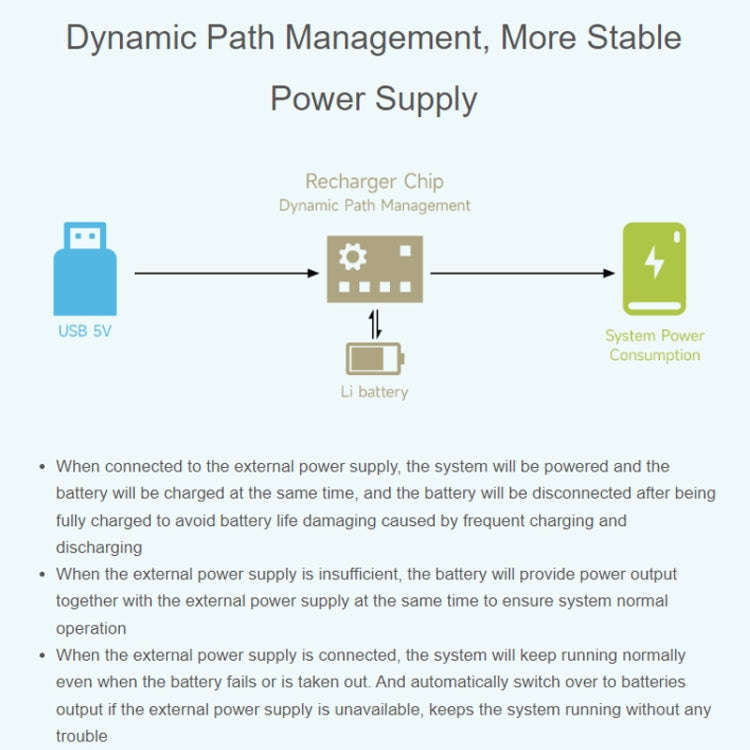

2. Onboard lithium battery charging chip, with dynamic path management, more stable power supply
3. Onboard boost converter chip provides stable 5V power output

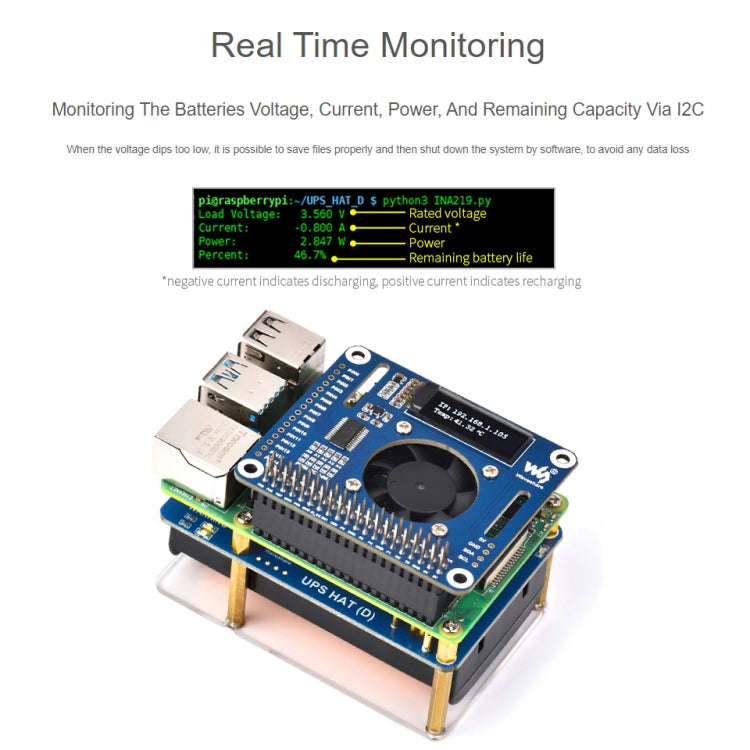

4. I2C bus communication, real-time monitoring of battery voltage, current, power, and remaining power
5. Multiple battery protection circuits: overcharge/discharge protection, overcurrent protection, short circuit protection, safer and more stable
6. Onboard MCU management, supports detecting power connection and starting Raspberry Pi

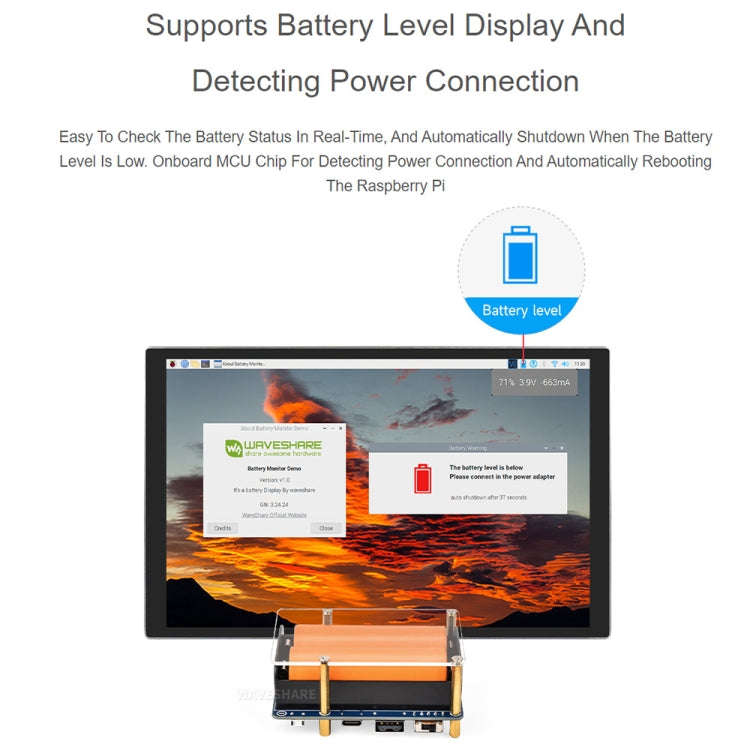

7. Supports displaying battery power on the system to facilitate checking the remaining battery power.
8. Onboard LED indicator for monitoring battery working status
Product parameters:
1. Output voltage: 5V
2. Control bus: I2C

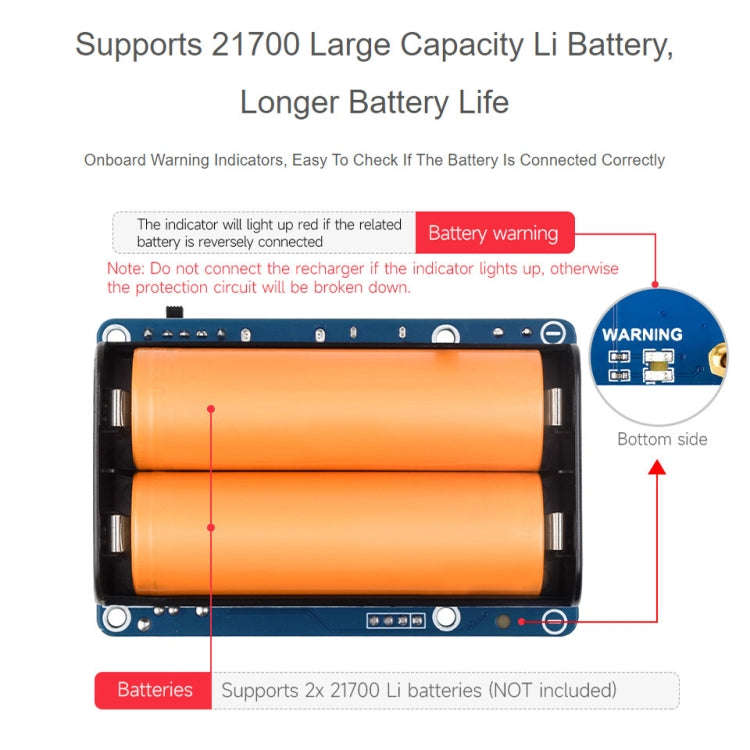

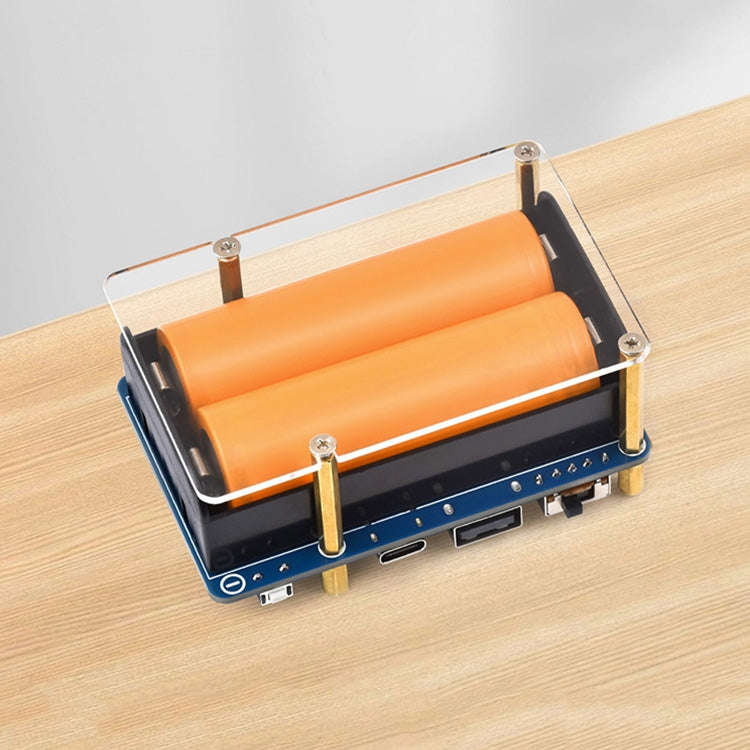

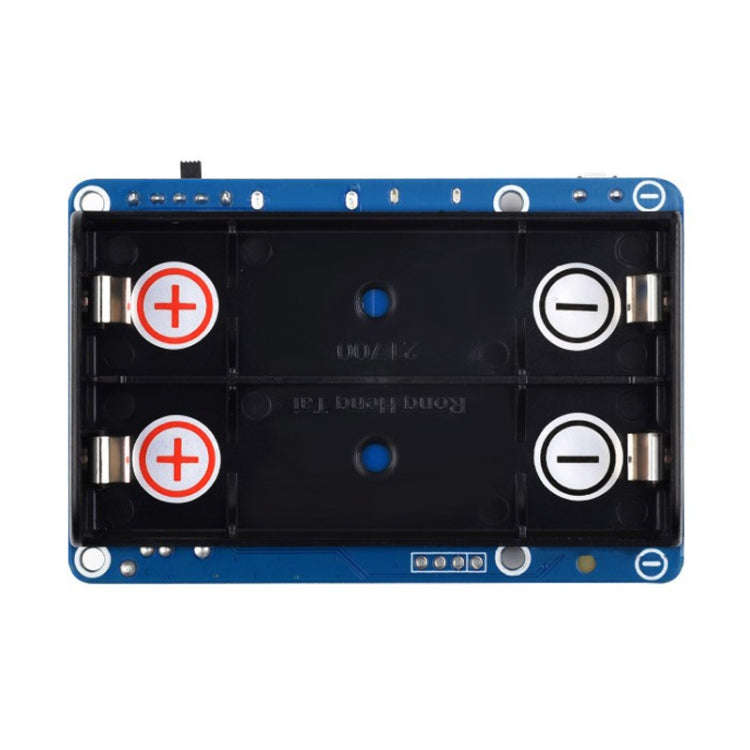

3. Battery: 21700 lithium battery 2 (connected in parallel, batteries are not included in delivery)

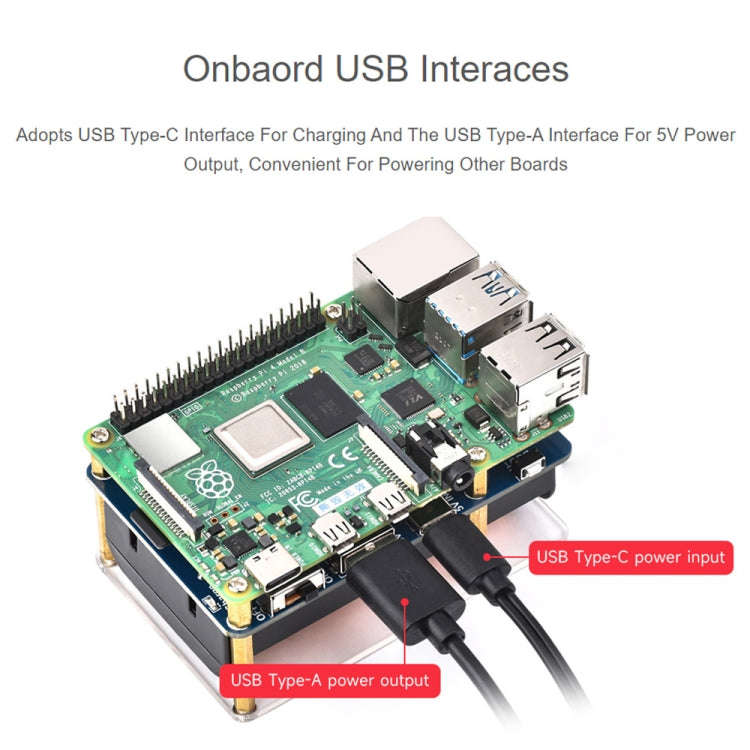

4. Charger support: 5V (Type-C port)

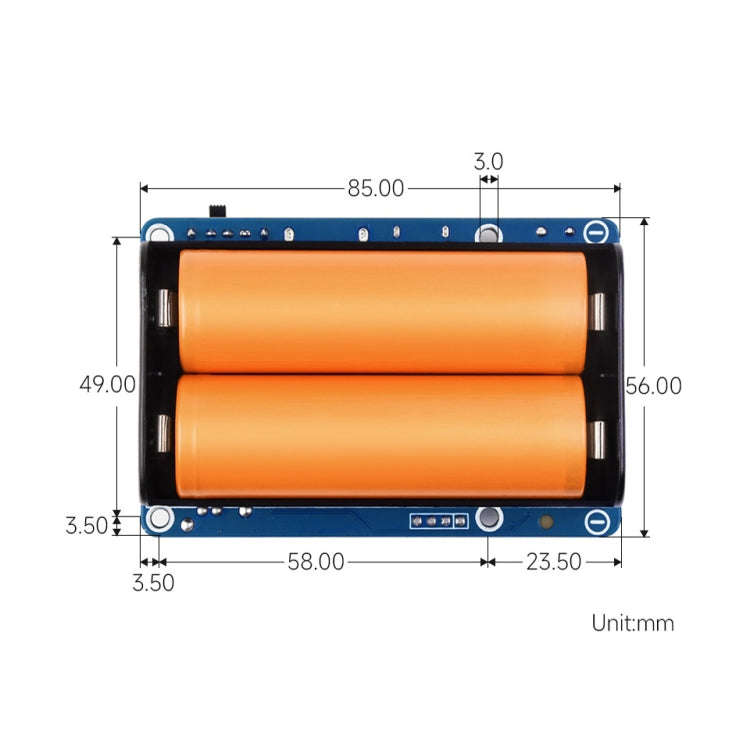

5. Product size: 56 x 85mm
6. Mounting hole size: 3.0mm

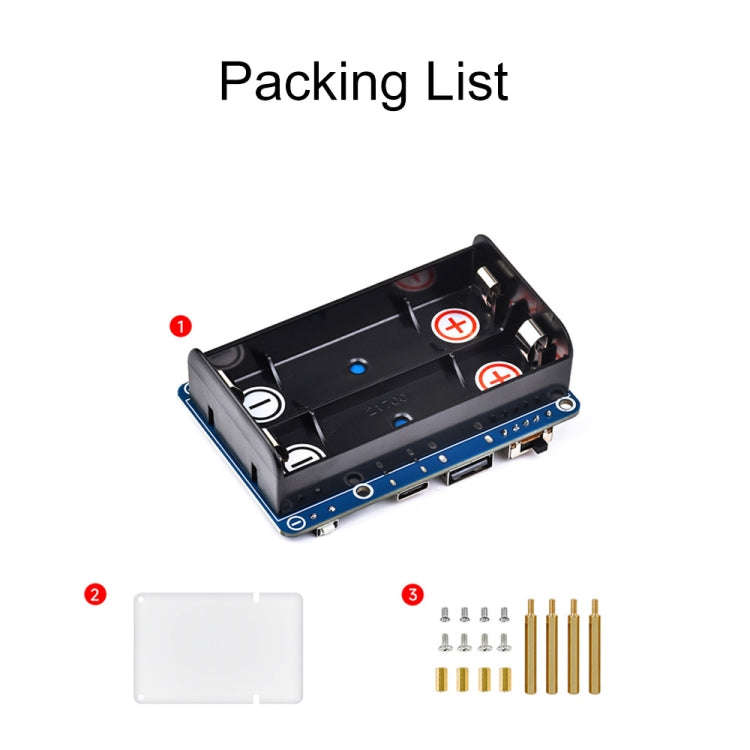

Packing list:
-UPS Hat (D) x 1
-Acrylic protective board x 1
-Screw pack x 1
