Product details

Condition
New
Location
International
Product code
DIY0167
Bob Shop ID
636105003
Features

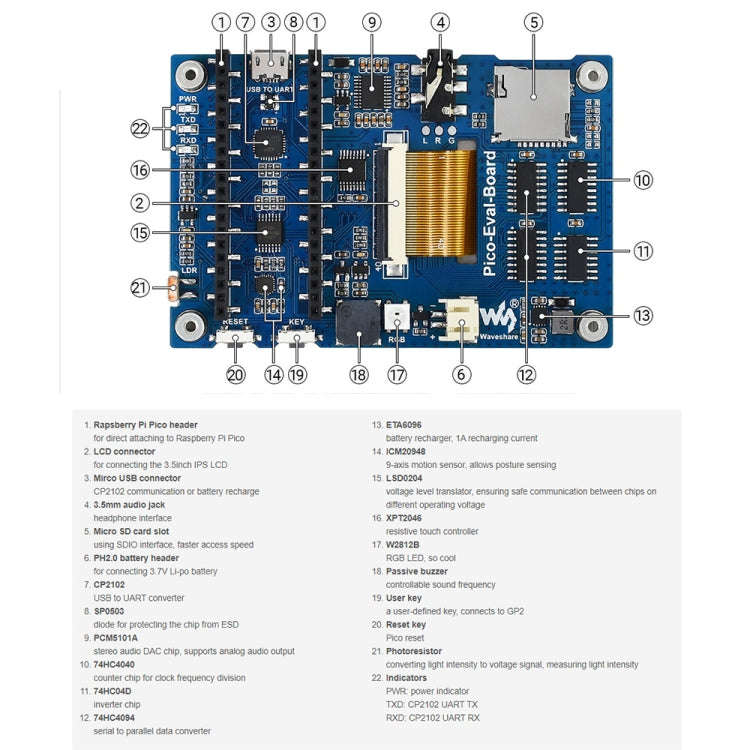

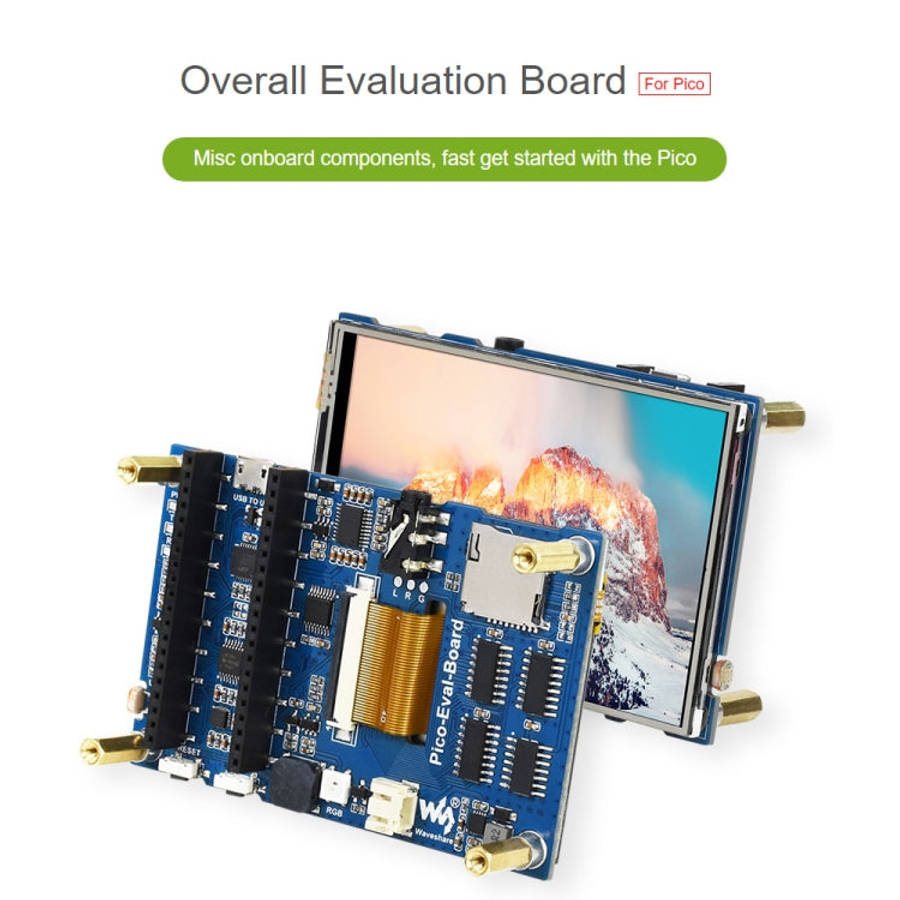

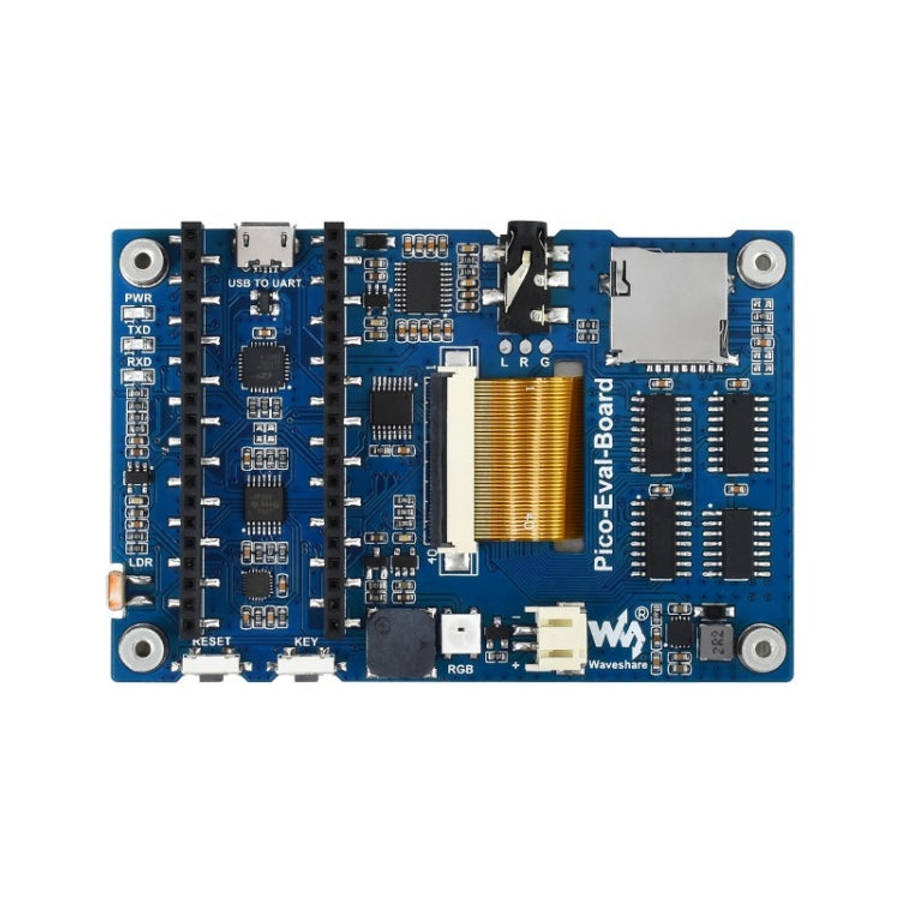

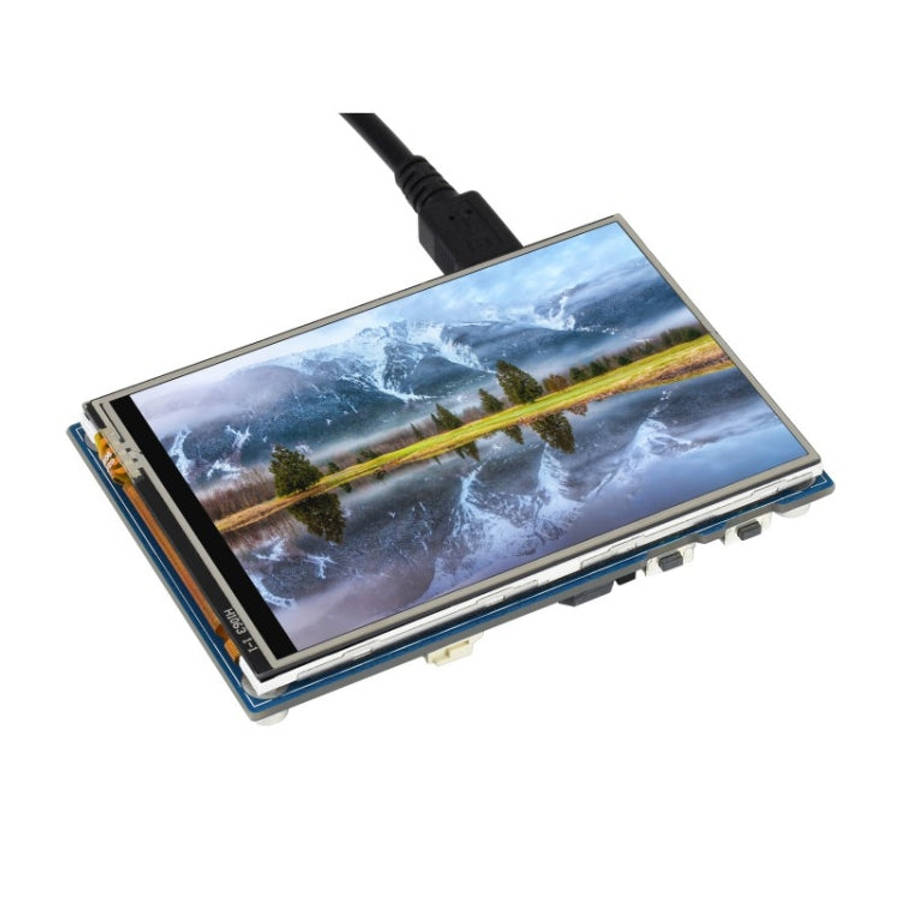

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.

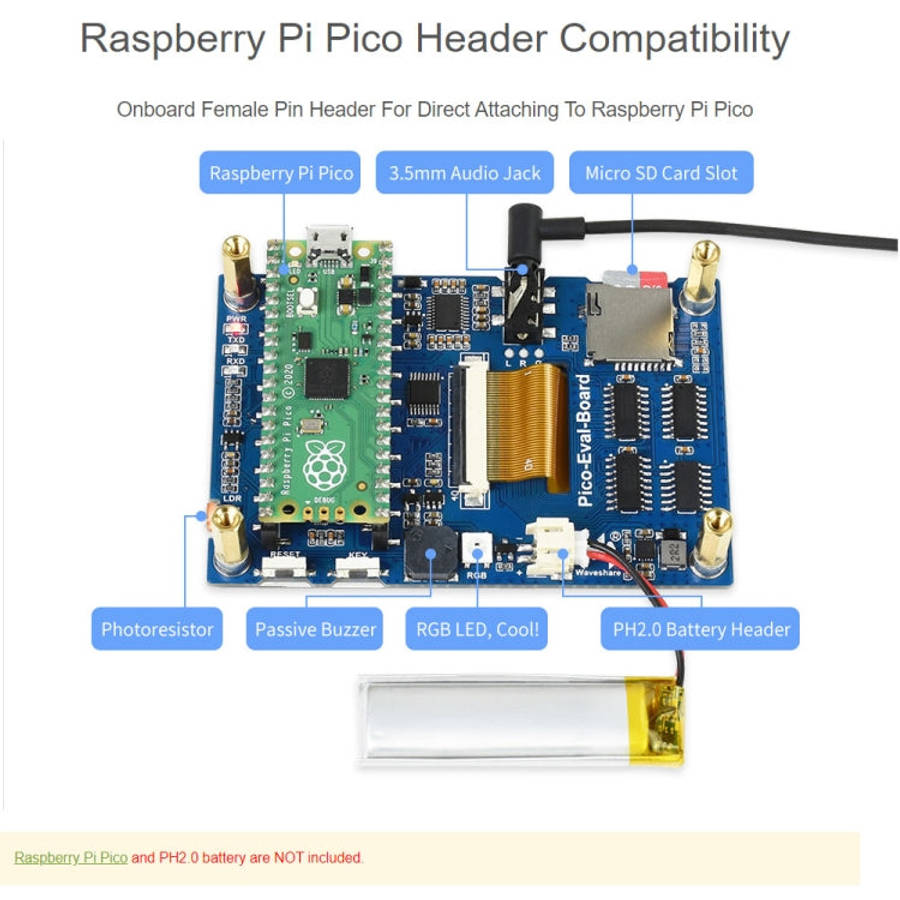

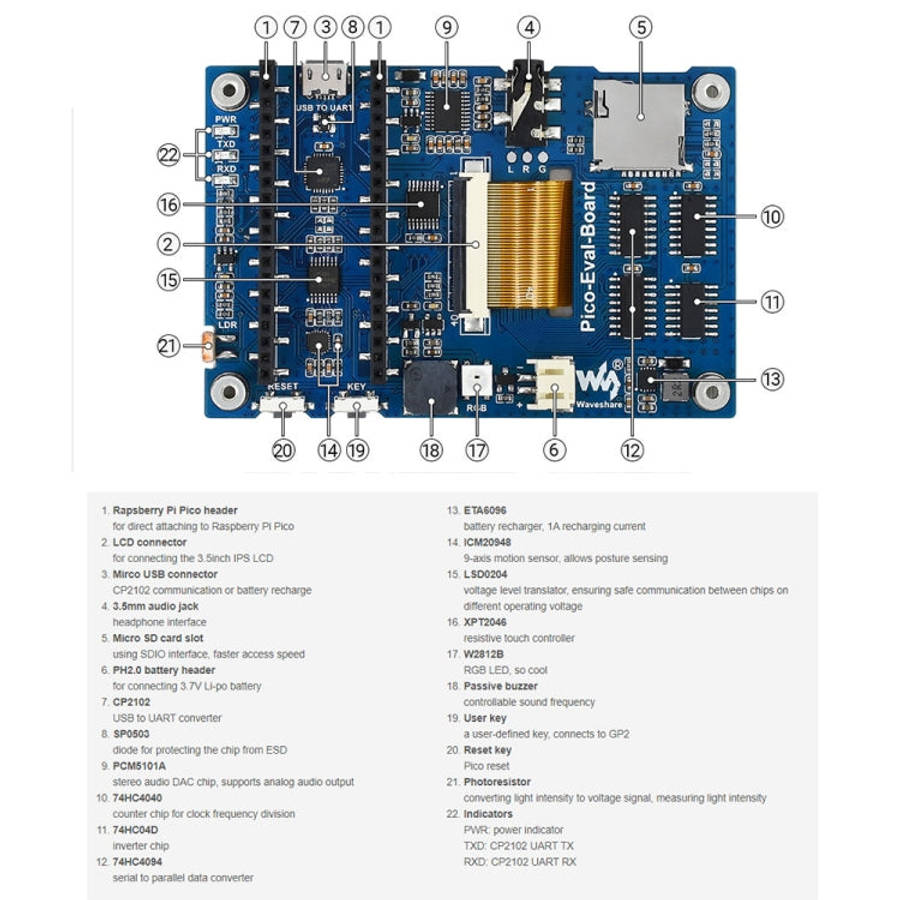

1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

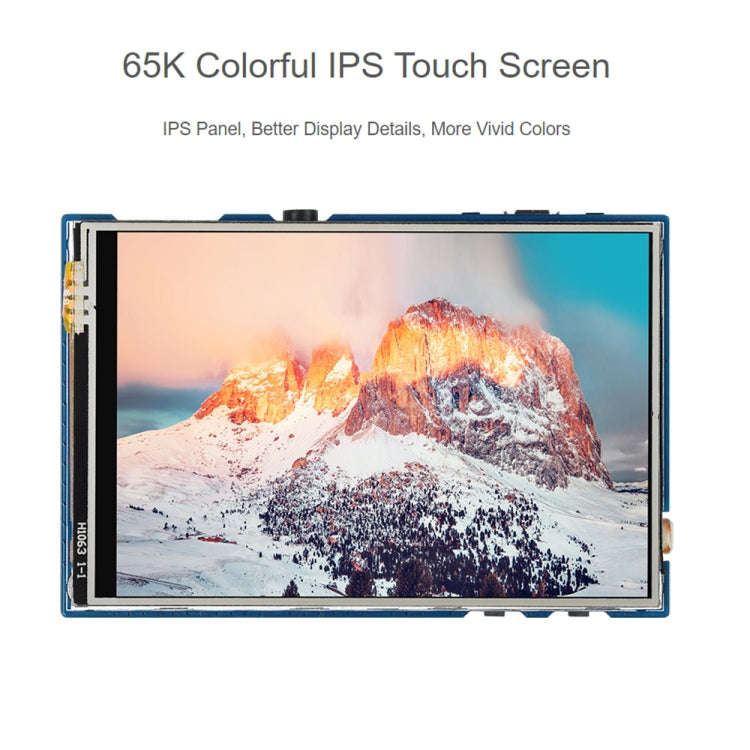

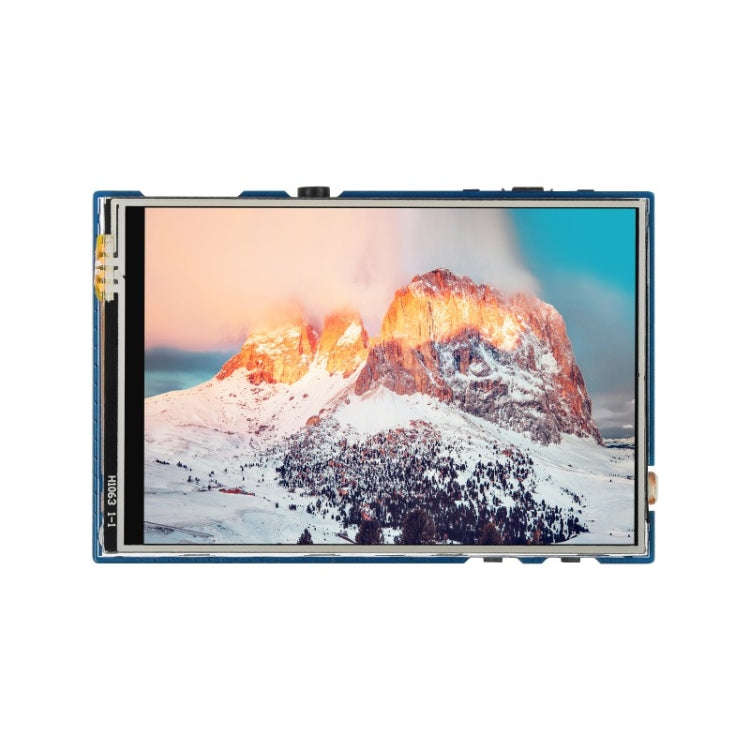

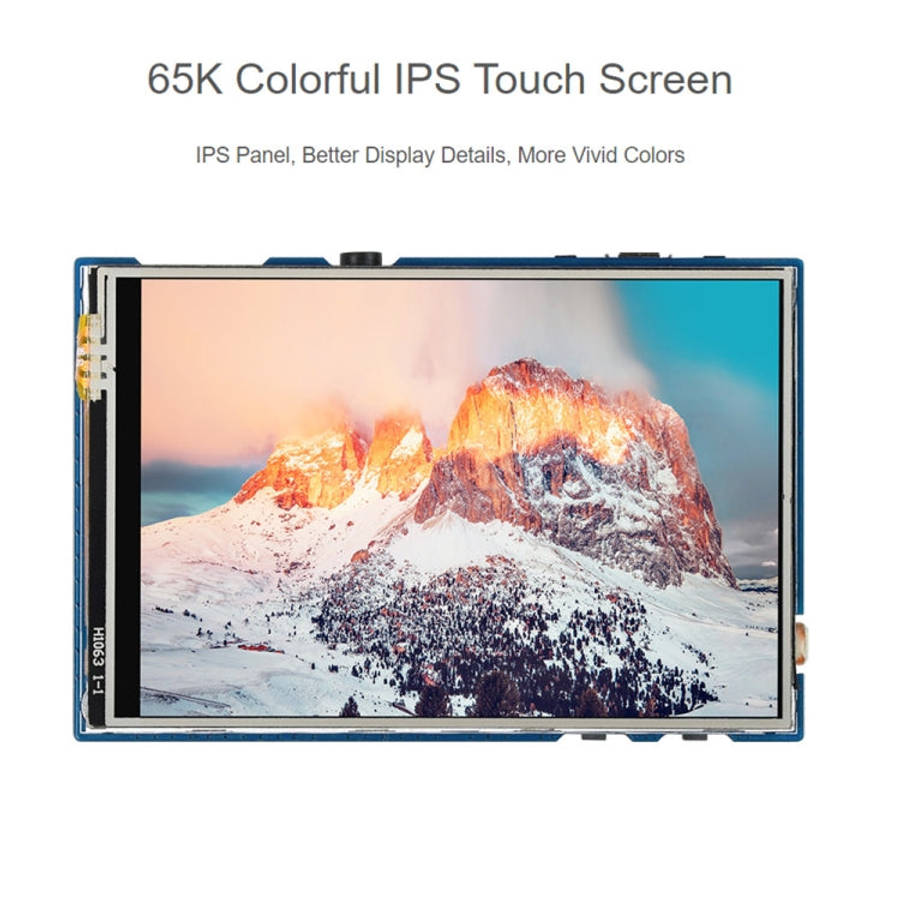

2. 3.5 inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
3. Standard 3.5mm audio jack, for headphone or other audio peripherals
4. Micro SD card slot through the SDIO interface, faster access speed than SPI interface
5. Integrates battery header and recharge circuit, allows it keep running without wired power supply
6. Other rich resources like buzzer, photoresistor, and RGB LED...
7. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification
1. Operating voltage: 5V
2. Touch Type: Resistive
3. Resolution:480x320 pixels
4. Display color: 65K colorful
5. Communication BUS: SPI
6. Display panel: IPS
7. Display size: 73.44 x 48.96 mm
8. Pixel size: 0.153 x 0.153 mm
9. Controller: ILI9488/XPT2046
10. Size: 86.00 x 57.20 mm

Package List
1. Pico-Eval-Board x 1
2. Standoff pack x 1
