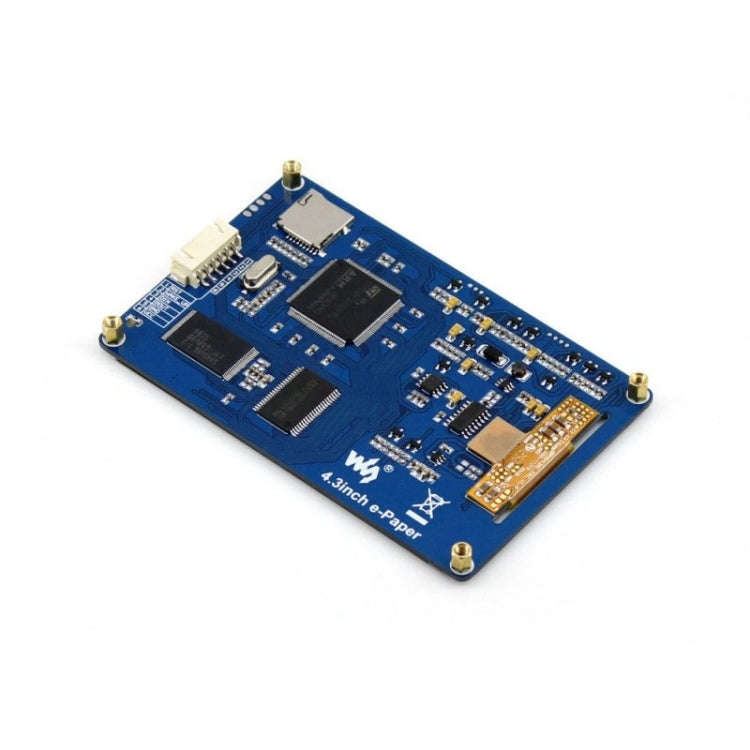

Waveshare 4.3 inch 800x600 Pixel Serial Interface Electronic Paper Display UART Module
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY17629230
Bob Shop ID
603965346
Overview

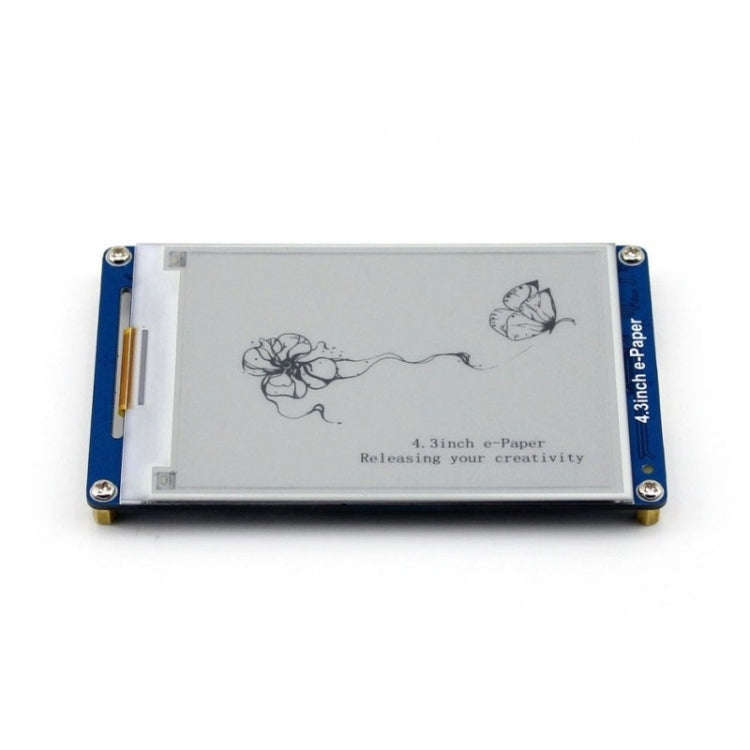

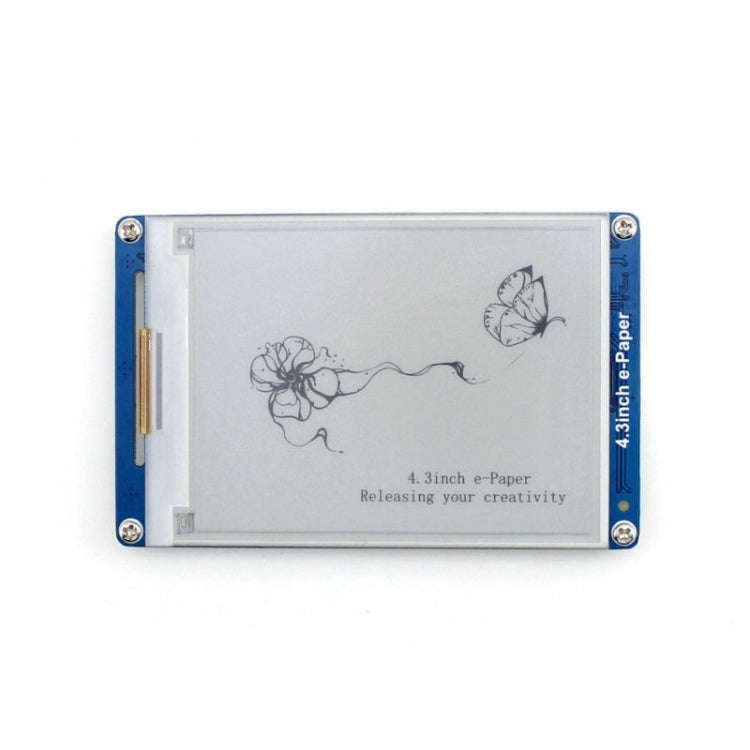

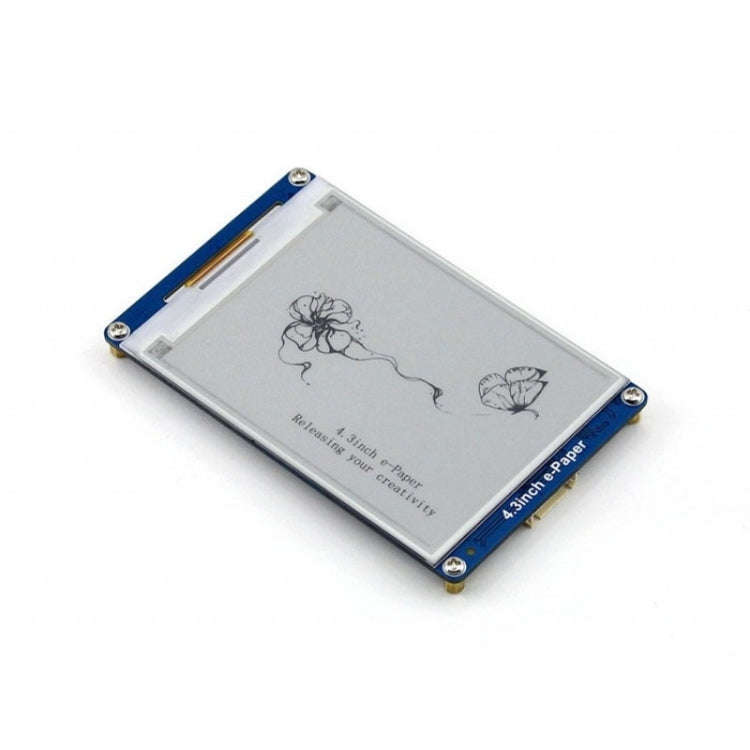

1. This is a serial interface E-Ink display module, 4.3 inch, 800600 resolution, with embedded font libraries, ultra low power consumption.
2. You do not have to know anything about the complex underlying details of e-Paper, nor the specific algorithms of displaying graphics, texts, and images. All it needs is the serial interface, and all it matters is your creativity.
Features
1. Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
2. Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
3. Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
4. 4 grey level displaying, 800600 resolution
5. Adjustable serial interface baud rate, 115200 by default when power up
6. Powered from 3.3V to 5V, compatible with logic level
7. Ultra low power consumption, sleeping current lower than 5mA
8. Comes with host computer software, control it directly on your computer
Applications
1. e book
2. Shopping mall POS
3. Price label
4. Industry instrument

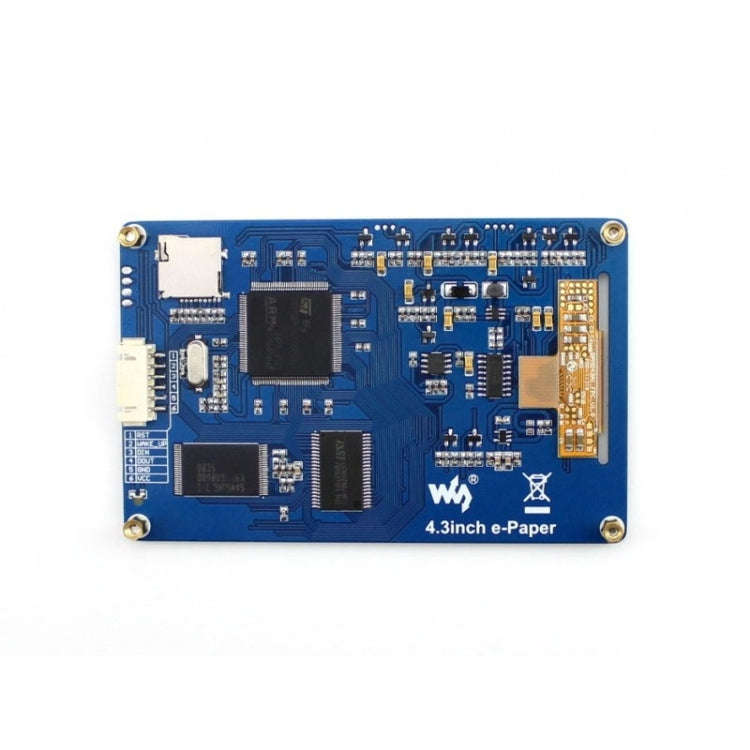

Pin Definitions
1. VCC: 3.3V~5.5V
2. GND: GND
3. DOU : Serial data out
4. DIN: Serial data in
5. WAKE_UP: External wake up
6. RST: External reset
Package Contents
1.4.3inch e-Paper UART Module x1
1. XH2.54 6-pin cable 1
