Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug
Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug

Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug

10 available / new
R4,892.34
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0238
Bob Shop ID
628966029
Features
Raspberry Pi 4B main features:
1. BCM2711B0 64 bit 1.5GHz quad core processor with 4GB memory
2. It supports 4K 60fps high-resolution dual screen display by dual micro HDMI interface
3. Gigabit Ethernet port, Bluetooth 5.0 BLE, 2.4G / 5G dual-band WIFI
4. Dual USB2.0 interface, also with dual USB3.0 interface, faster transmission speed

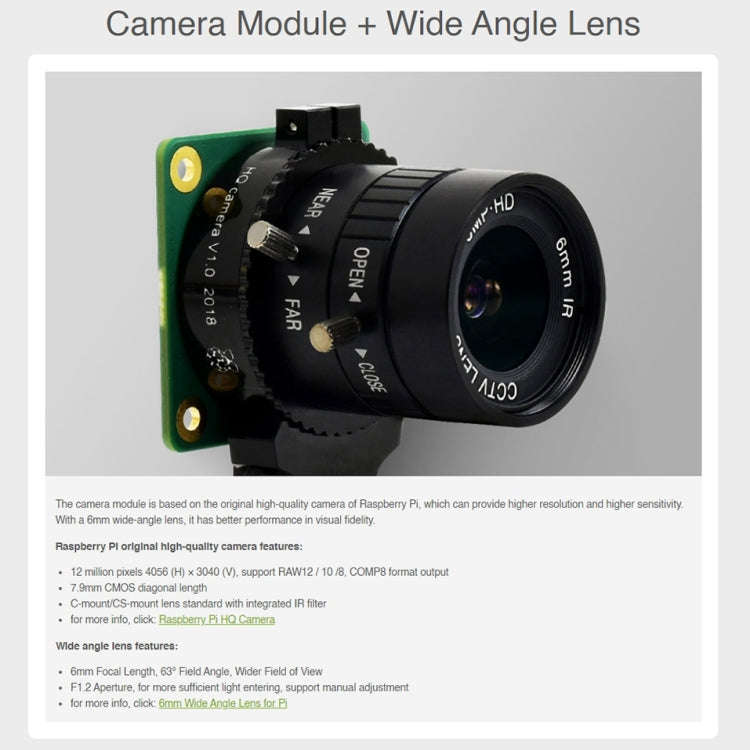

Camera Module + Wide Angle Lens:

The camera module is based on the original high-quality camera of Raspberry Pi, which can provide higher resolution and higher sensitivity. With a 6mm wide-angle lens, it has better performance in visual fidelity.

Raspberry Pi original high-quality camera features:
1. 12 million pixels 4056 (H) x 3040 (V), support RAW12 / 10 /8, COMP8 format output
2. 7.9mm CMOS diagonal length
3. C-mount/CS-mount lens standard with integrated IR filter

Wide angle lens features:
1. 6mm Focal Length, 63 degree field angle, wider field of view
2. F1.2 Aperture, for more sufficient light entering, support manual adjustment

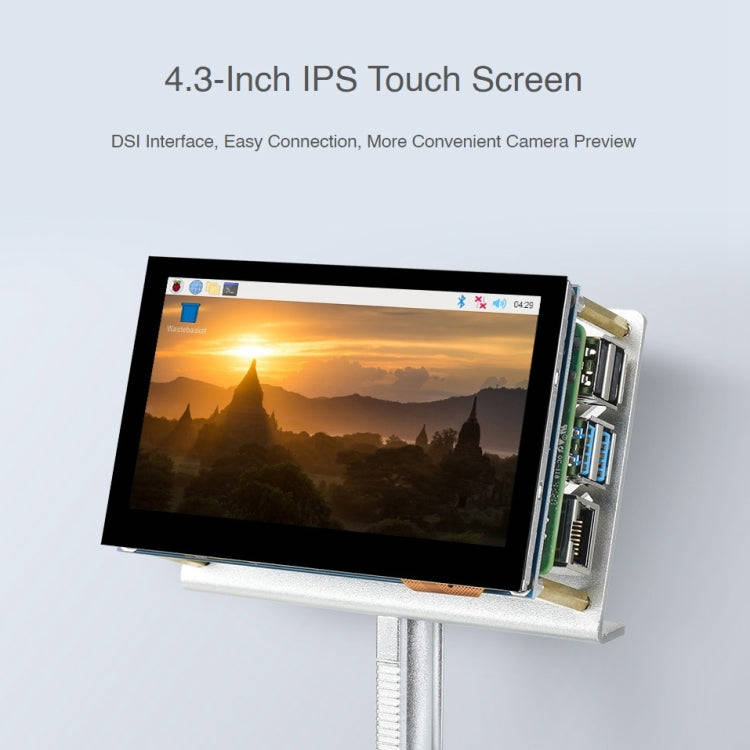

The 4.3-inch IPS screen has the advantages of true color and large viewing angle. At the same time, the DSI display has a high frame rate and does not occupy the Raspberry Pi 40pin GPIO interface. The Raspberry Pi system has good compatibility and is an ideal match for this kit.

4.3-inch capacitive touch screen features:
1. 800 x 480 pixels IPS screen, combined with tempered glass panel, supports 5-points touch, and the visual angle can up to 160??°
2. Support DSI display interface, high frame rate, good compatibility with Raspberry Pi system

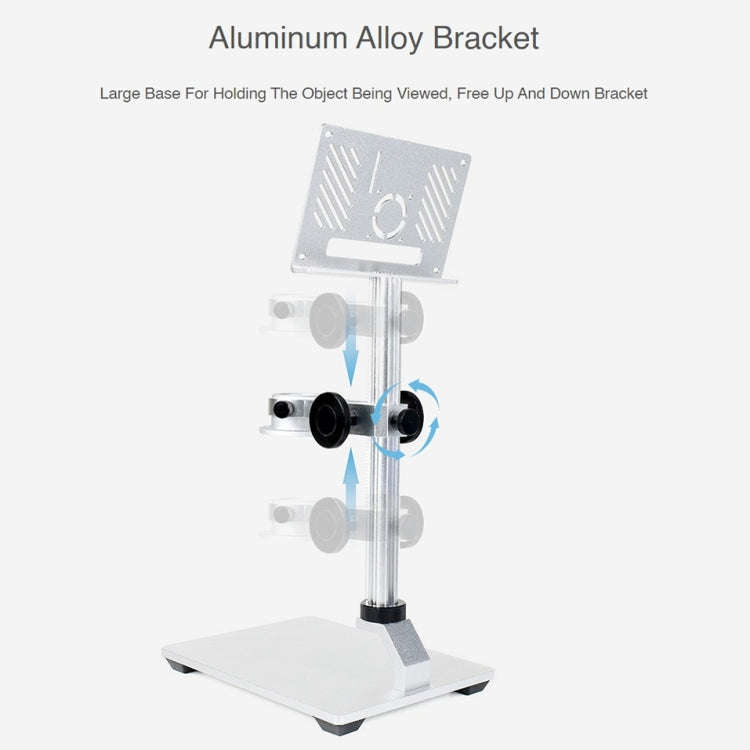

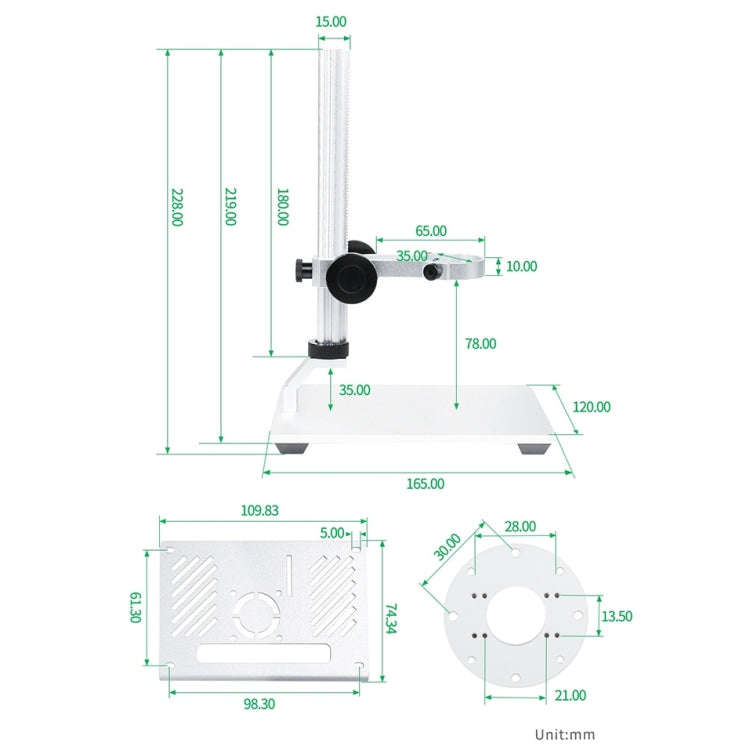

Aluminum Alloy Bracket
Large base for holding the object being viewed, free up and sown bracket

Package List
1. PI4B-4GB x 1
2. Micro SD Card 16GB x 1
3. 4.3-inch DSI LCD x 1
4. 6mm Wide Angle Lens x 1
5. Microscope Bracket Kit x 1
6. Raspberry Pi HQ Camera x 1
7. Camera holder x 1
8. 5V 4A Type C US plug power supply x 1
9. 15Pin FFC ~30cm x 1
10. Screws pack x 1
11. Card reader x 1
12. Cooling fan x 1
