Waveshare 5.83 inch 600x448 Pixel Red Black White Three-color E-Ink Display HAT (B) for Raspberry...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY17430775
Bob Shop ID
603965341
Overview

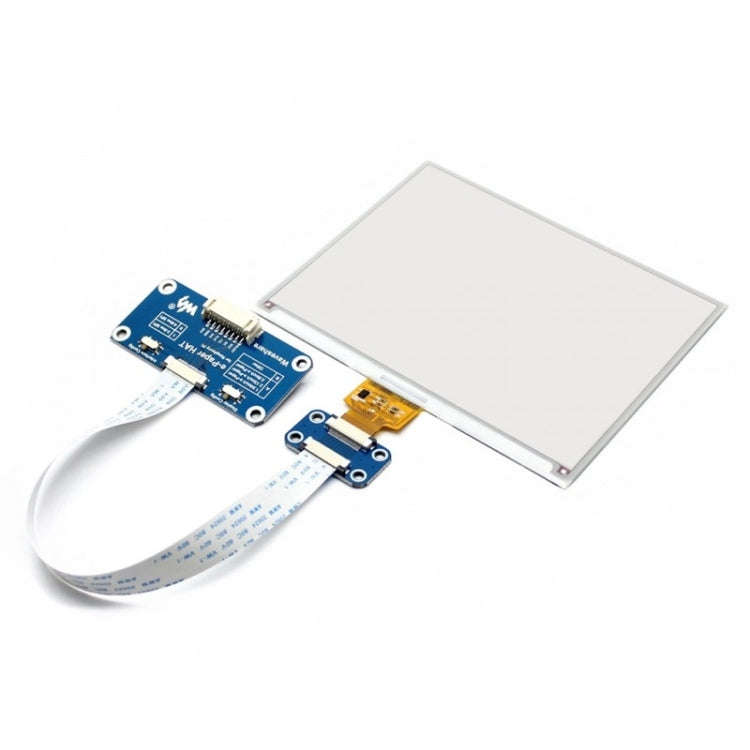

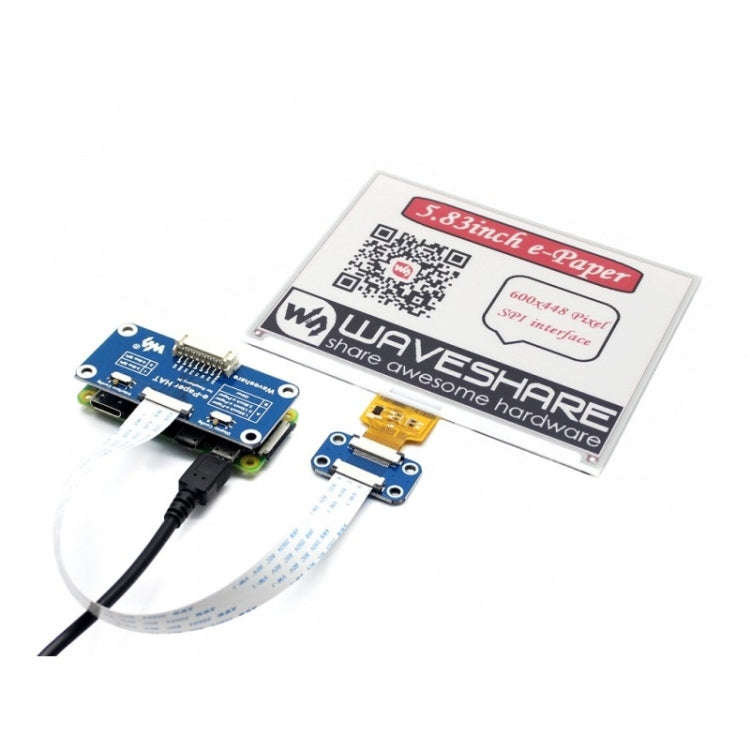

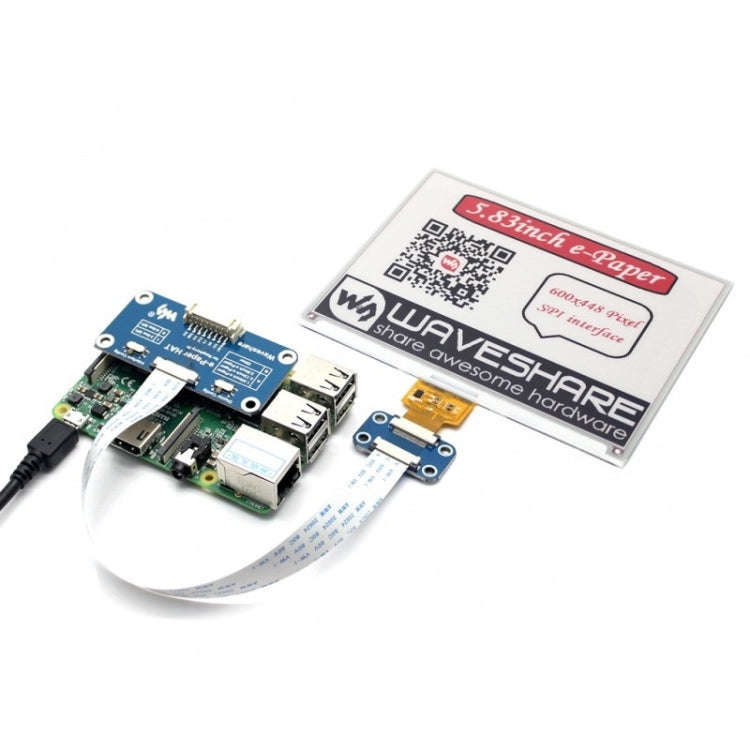

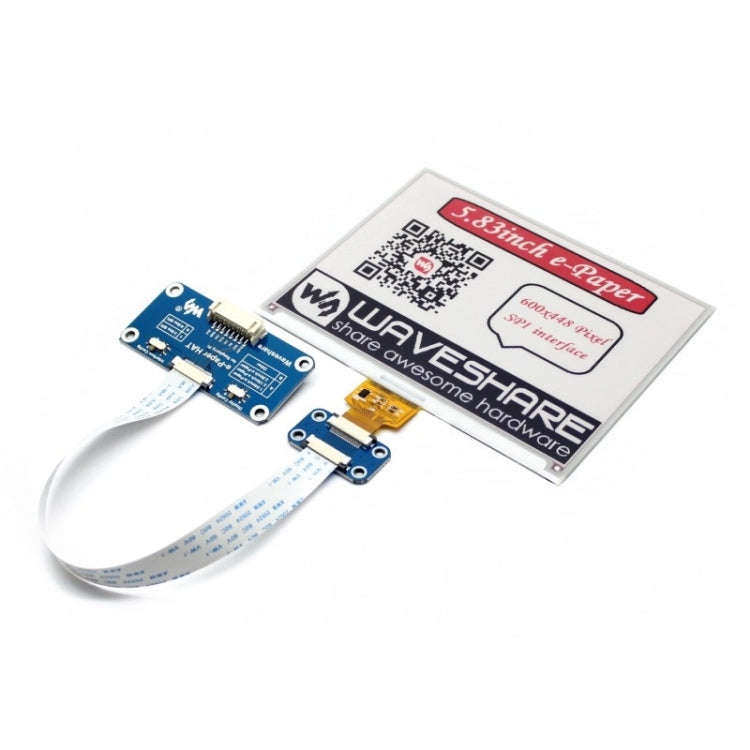

1. This is an E-Ink display HAT for Raspberry Pi, 5.83 inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI
3. Outline dimension: 125.40mm x 99.50mm
4. Display size: 118.80mm x 88.26mm
5. Dot pitch: 0.198 x 0.197
6. Resolution: 600 x 448
7. Display color: Red, black, white
8. Grey level: 2
9. Full refresh time: 14s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
Package Contents
1.5.83 inch e-Paper (B) x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1
1. This is an E-Ink display HAT for Raspberry Pi, 5.83 inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI
3. Outline dimension: 125.40mm x 99.50mm
4. Display size: 118.80mm x 88.26mm
5. Dot pitch: 0.198 x 0.197
6. Resolution: 600 x 448
7. Display color: Red, black, white
8. Grey level: 2
9. Full refresh time: 14s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
Package Contents
1.5.83 inch e-Paper (B) x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1
