Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi
Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi Waveshare 8-ch Relay Expansion Board for Raspberry Pi

Waveshare 8-ch Relay Expansion Board for Raspberry Pi

100 available / new
R592.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Mega Cart1516
84.30 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY14279971
Bob Shop ID
621642106
Overview

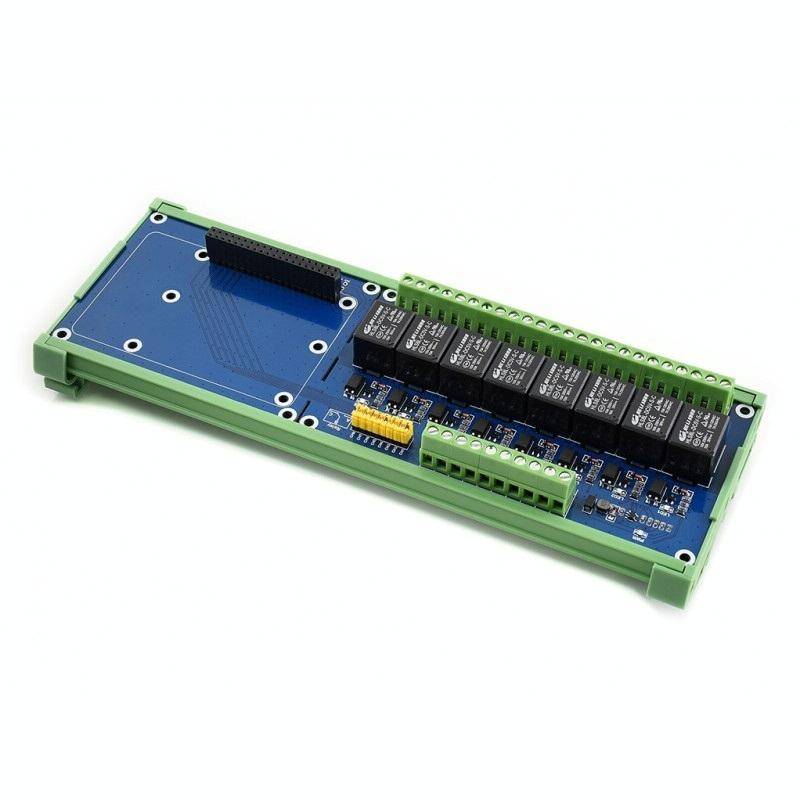

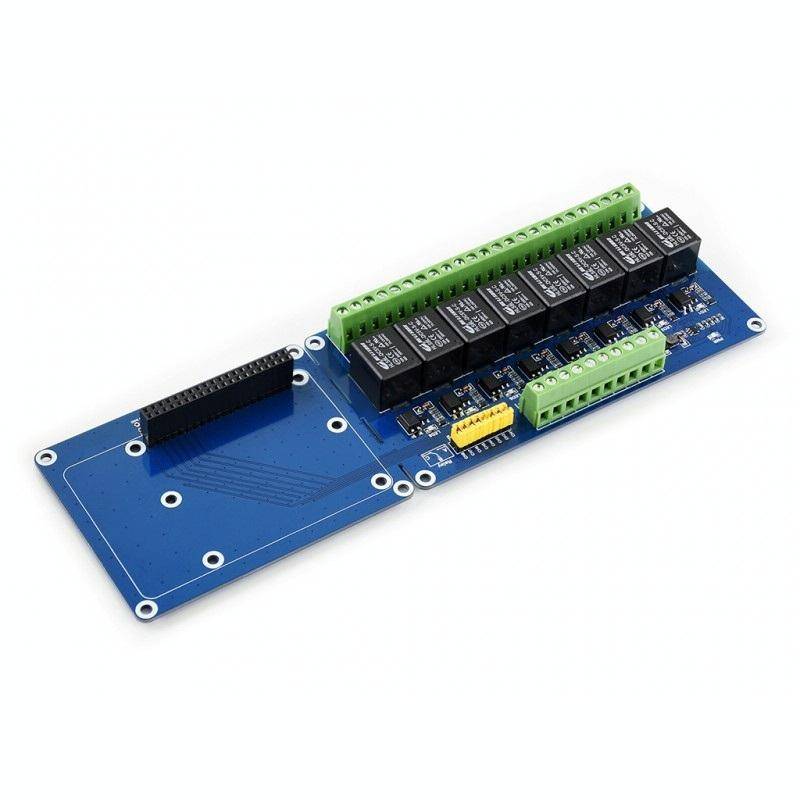

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features
1. Supports Raspberry Pi A+/B+/2B/3B/3B+
2. High quality relays, loads up to 5A 250V AC or 5A 30V DC
3. Photo coupling isolation, prevent interference from high voltage circuit
4. Standard rail mount bottom case
5. Onboard LEDs for indicating relays status
6. Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
7. Reserved control Interface, allows to work with controllers like PLC
8. Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications
1. Power supply voltage: 5V
2. Trigger signal: 3.3V/5V
3. Relay channels: 8-ch
4. Contact form: SPDT-NO,NC
5. Closed current: 6mA (per channel)
6. Connector: screw terminal block
7. Dimension: 232 72 (mm)
8. Mounting hole size: 3.0mm
