Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB
Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB

Waveshare 9.7 inch 1200x825 E-Ink Raw Display, Parallel Port, without PCB

New 10 available
R4,057.80
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Visit Maverick Store on Bob Shop
Maverick20599
94.05 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY15802795
Bob Shop ID
628965881
Overview

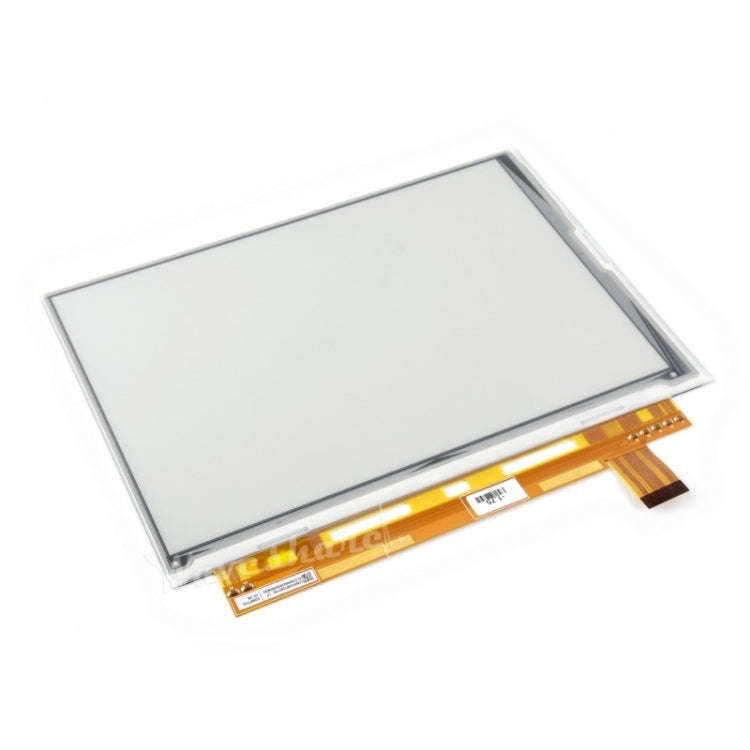

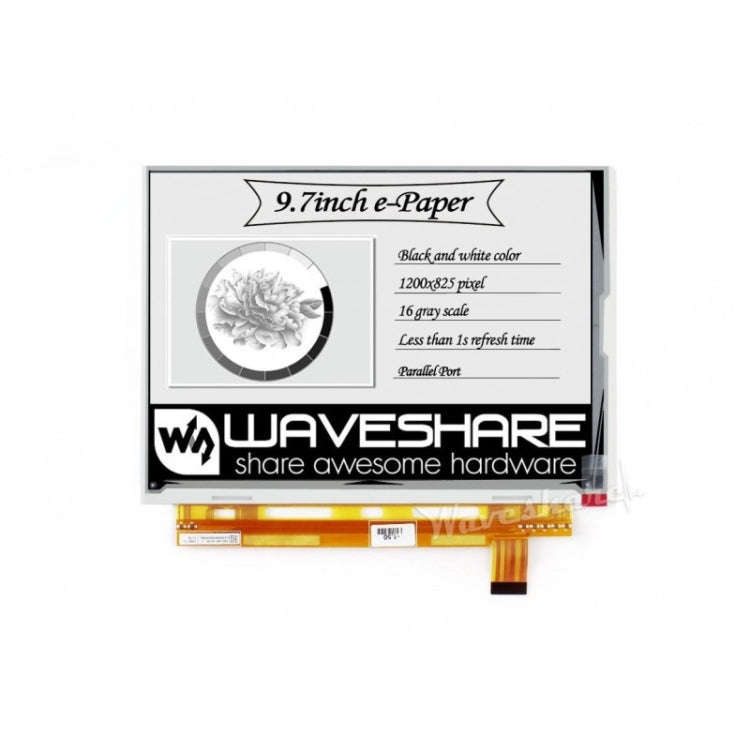

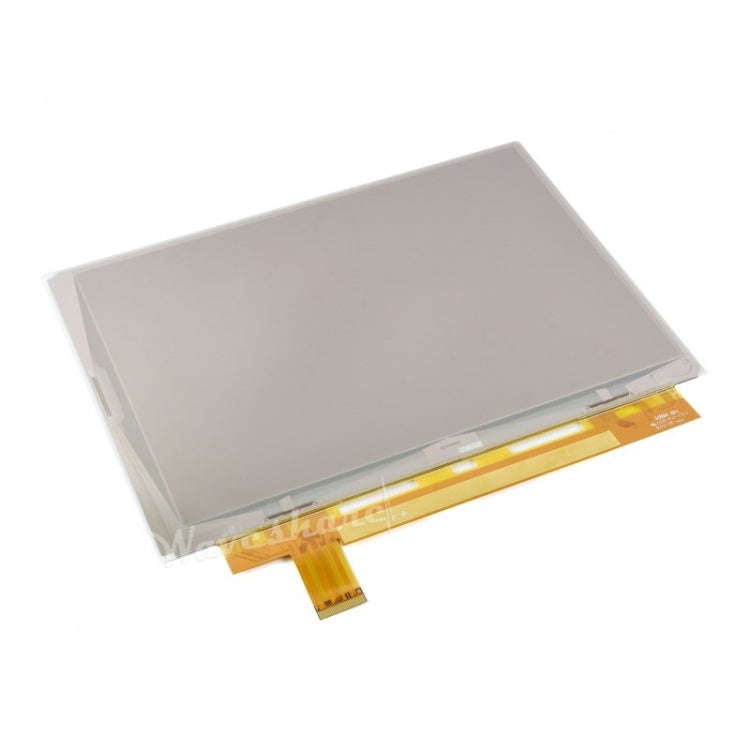

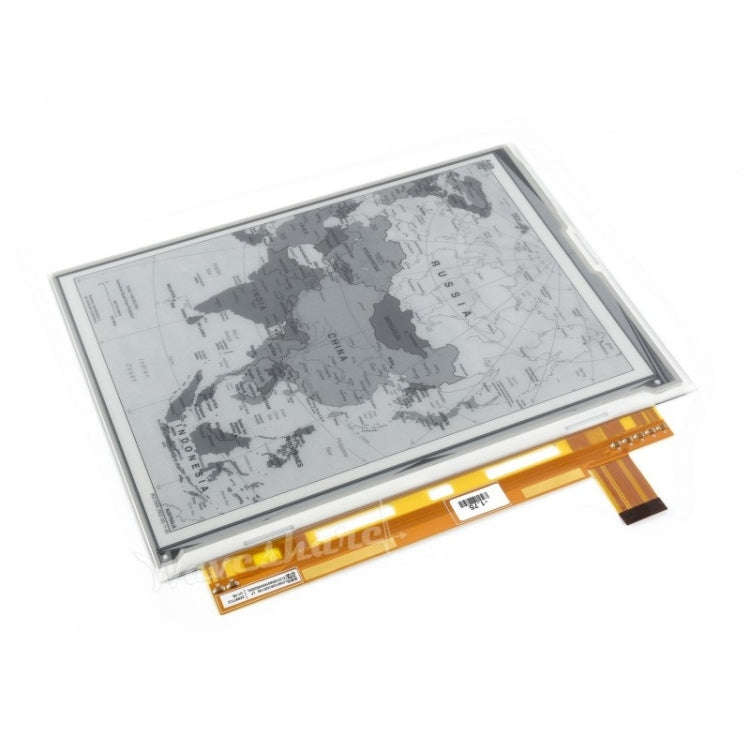

1. This is an E-Ink raw display, 9.7inch, 1200x825 resolution, communicating via parallel port.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)

Specifications
1. Operating voltage: 5V
2. Interface: parallel port
3. Outline dimension: 218.8mm x 156.425mm x 1.15mm
4. Display size: 202.8mm x 139.425mm
5. Dot pitch: 0.169 x 0.169
6. Resolution: 1200 x 825
7. Display color: black, white
8. Gray scale: 2-16 (1-4 bit)
9. Full refresh time: <1s
10. Viewing angle: >170 degree
11. Weight: 0.09 kg
12. Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 9.7inch e-Paper HAT
