Waveshare Aluminum Case Type F for Jetson Nano Development Kit

Selected model / variant: Waveshare Aluminum Case Type F for Jetson Nano Development Kit

About The Product
1. The case is currently only compatible with the old version of the Jetson Nano Developer Kit B01, which is made from Waveshare. Other third-party kits or the new version of the Jetson Nano Developer Kit B01 are not currently supported.
2. The difference between the new version of the Jetson Nano Developer Kit B01 and the old version of the Developer Kit B01:
- Please pay attention to checking the HDMI and DP sockets of the kit. If the HDMI/DP socket covered with a metal outer layer is a new version. But this case is not currently supported. If there is no metal cladding on the sockets--the old version of the B01 kit, the case can be supported.
- If you are using the A02 version of the Jetson Nano developer kit, note that the positions of the button interfaces are different.
Features
1. High-quality aluminum Case Designed for the Jetson Nano

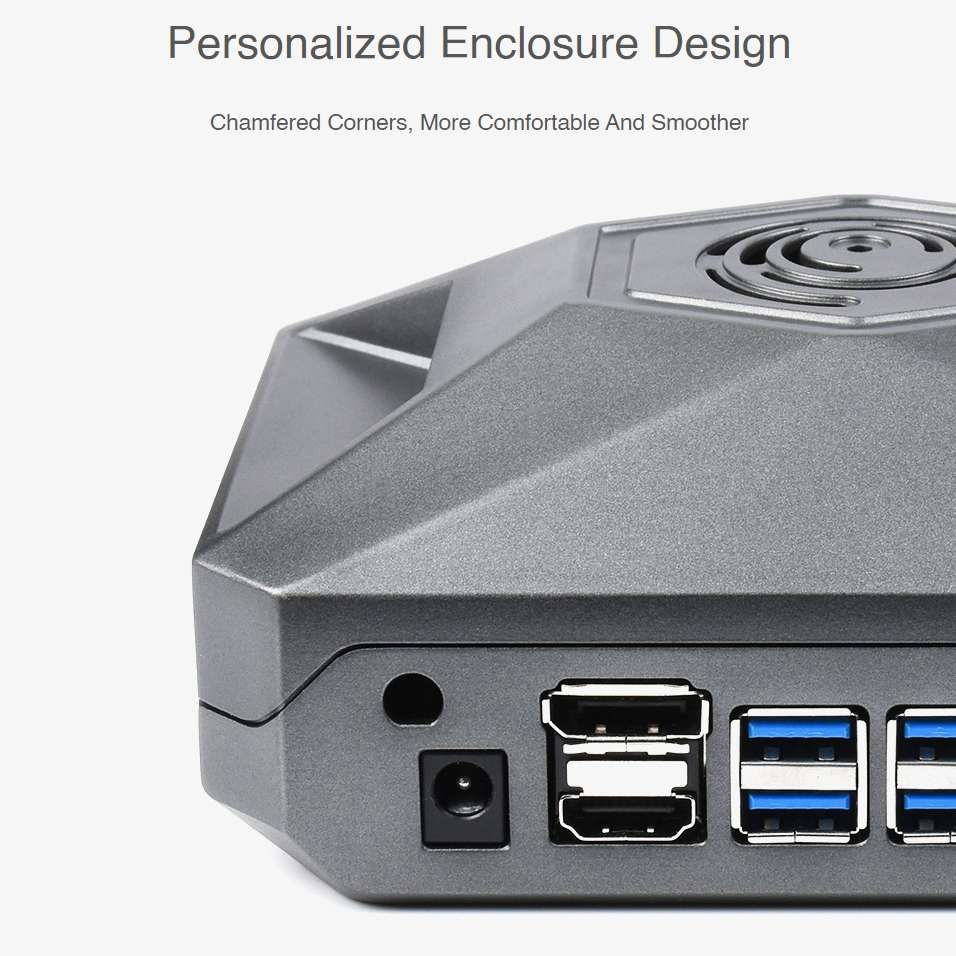

2. Chamfered corners, more comfortable and smoother

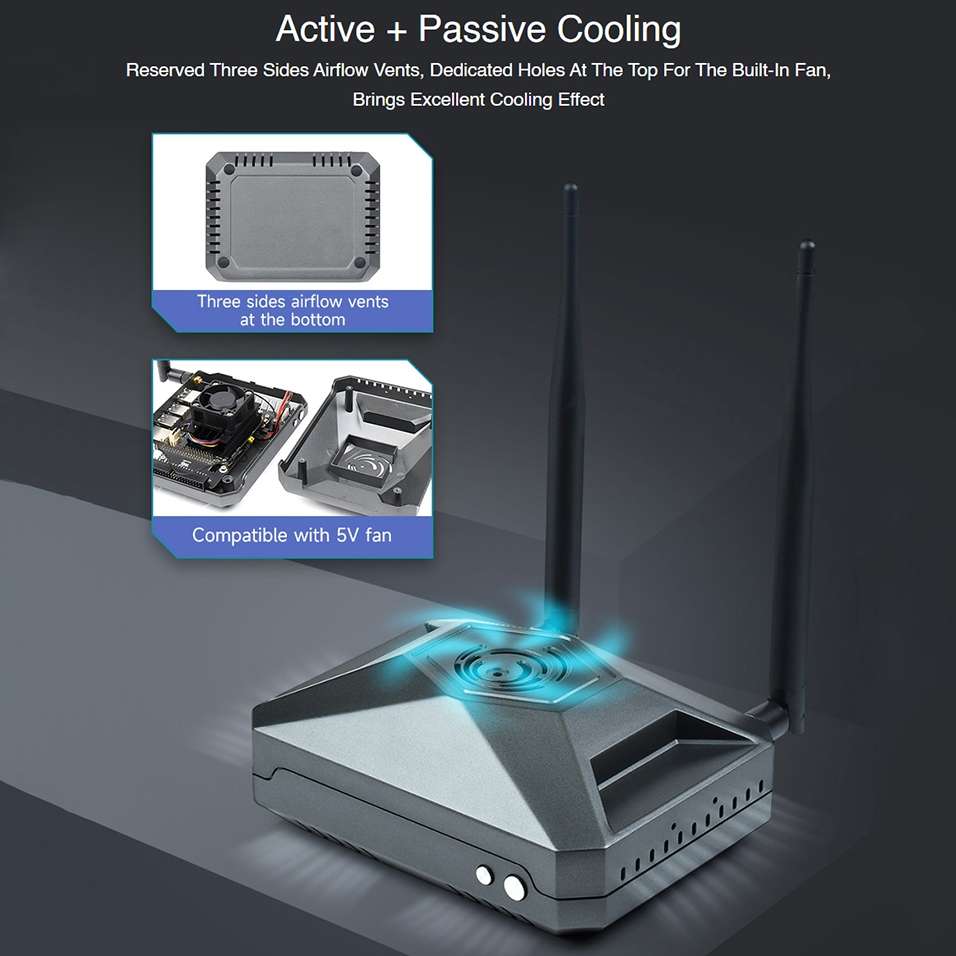

3. Reserved airflow outlets on three sides, and built-in fan is opened on the top for excellent heat dissipation
4. Exquisite workmanship, beautiful fit

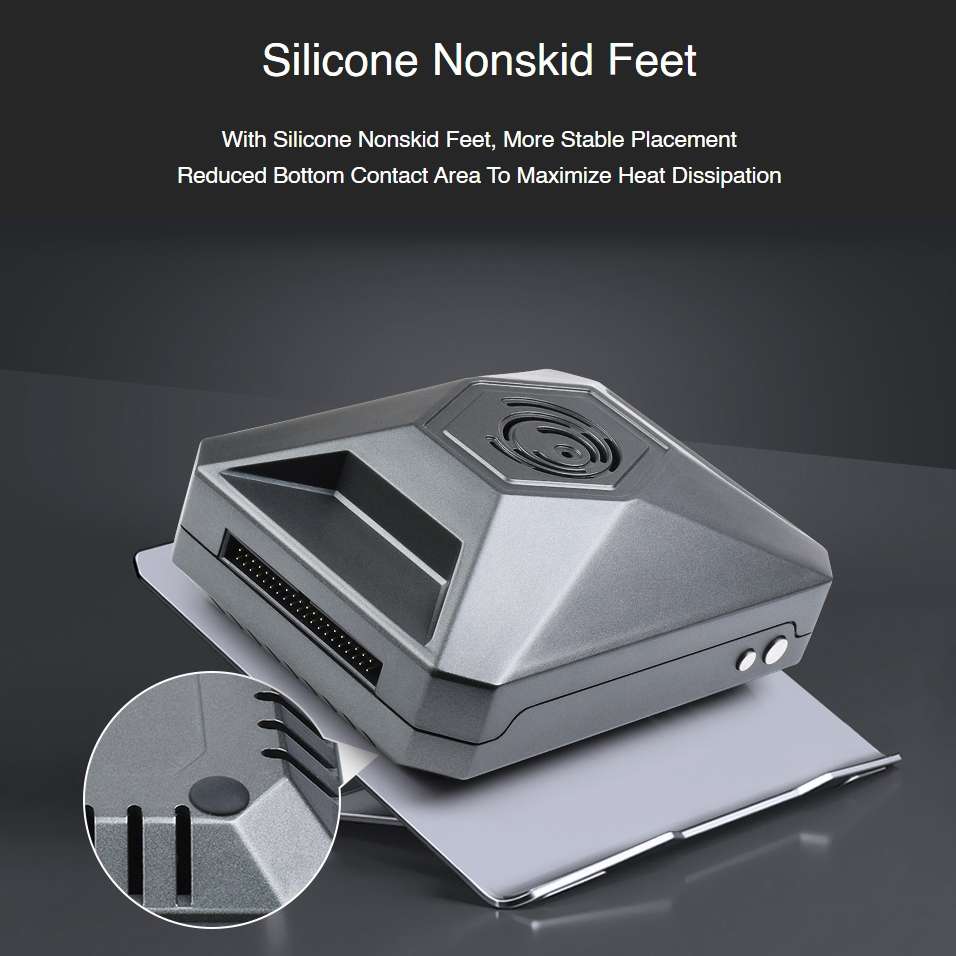

5. Equipped with silicone non-slip feet, more stable placement: Reduce the heat dissipation of the bottom contact area
Package List
1. Aluminum body case(top and bottom) x 1
2. GPIO adapter x 1
3. Button cable x 1
4. Nonskid feet 4pcs x 1
5. Button 2pcs x 1
6. Button board x 1
7. Allen spanner x 1
8. Allen screws pack x 1
