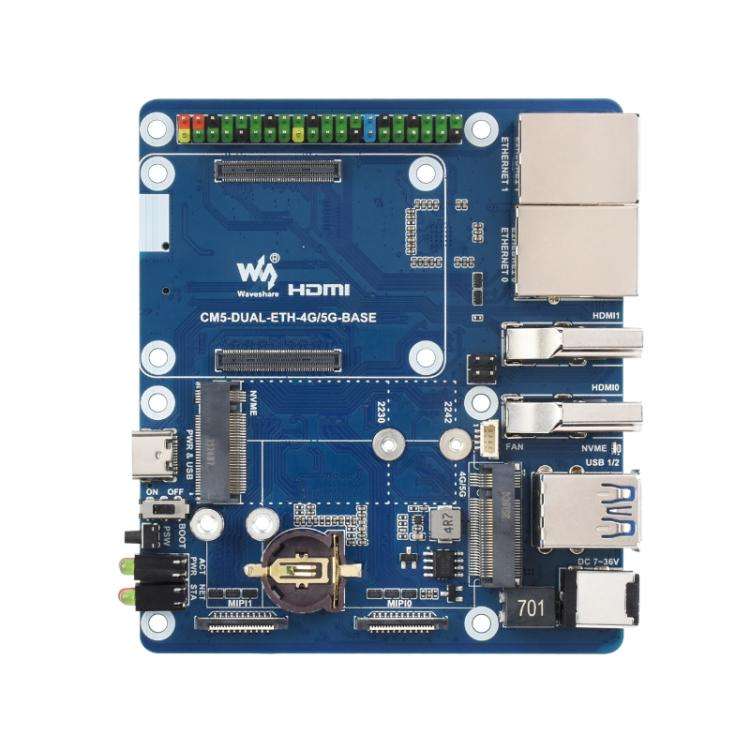

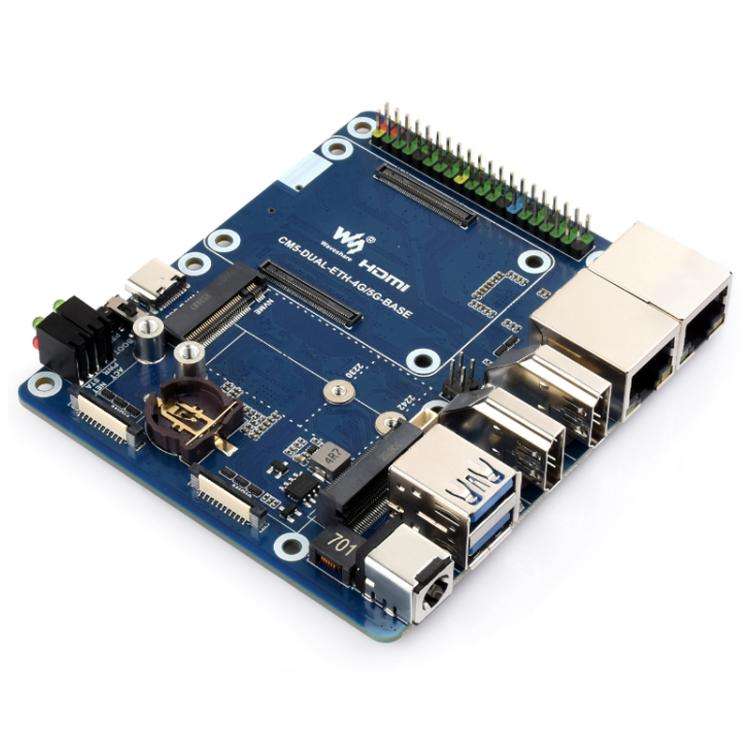

WAVESHARE CM5 Dual Network Port Expansion Board Onboard USB 3.2 Gen1 X 2, Supports PoE Module Con...

New 10 available
R2,946.80
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0606629001A
Bob Shop ID
669341559

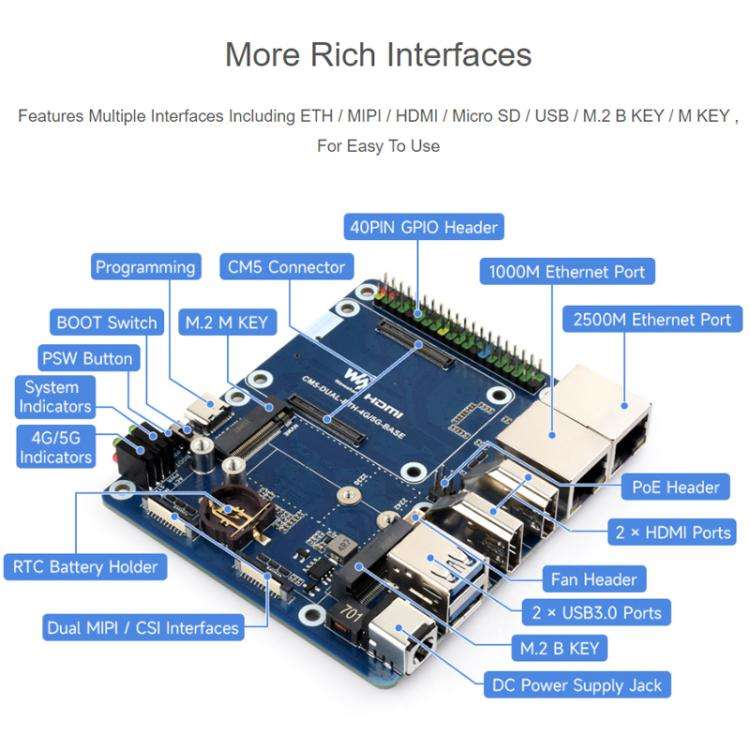

1. Networking: 1000M Ethernet RJ45 interface; 2500M Ethernet RJ45 interface

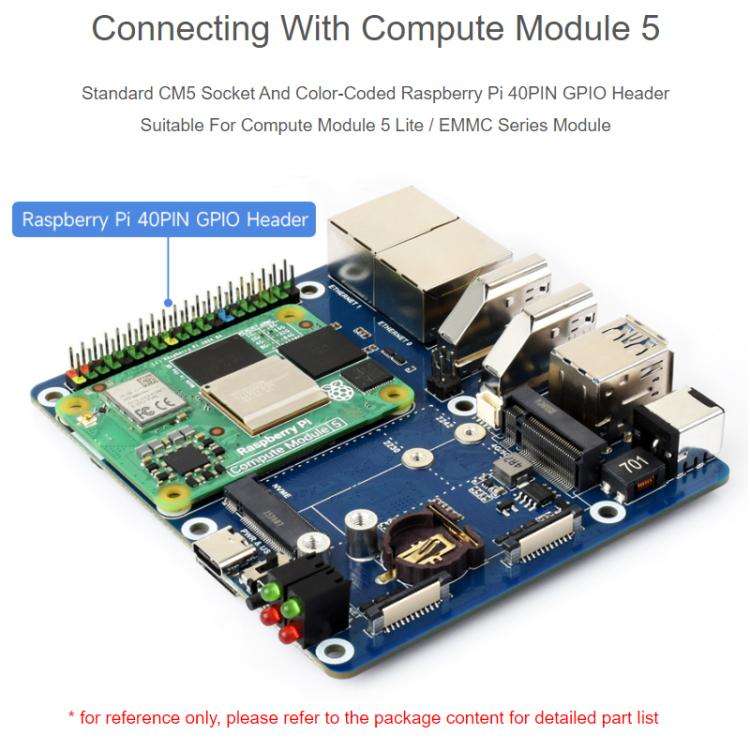

2. Connector: Raspberry Pi 40PIN GPIO interface
3. USB: USB 3.2 Gen1 x 2
4. MIPI: 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
5. Video: HDMI interface x 2, supports dual 4K output

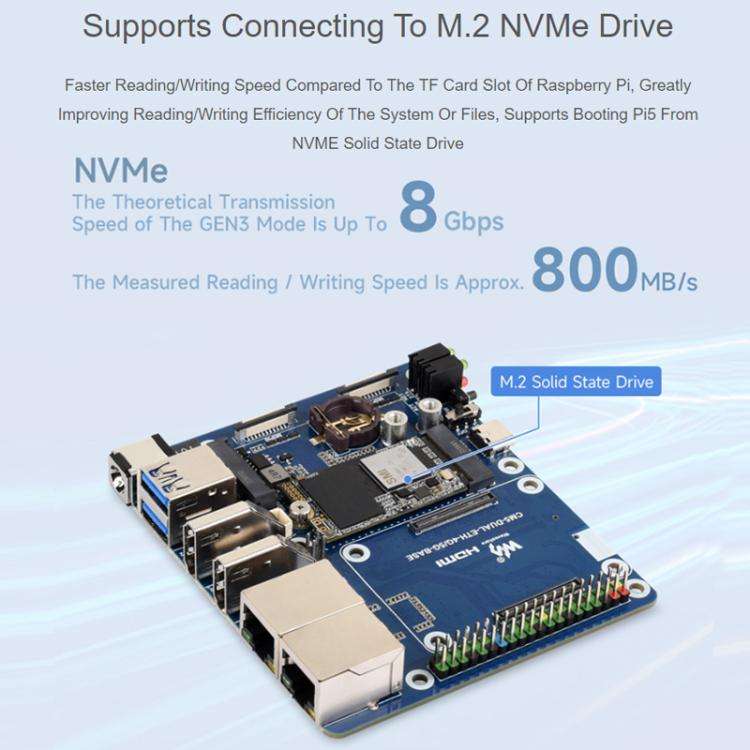

6. M.2: M.2 M KEY (PCIe Gen2/3 x1)
7. M.2 (4G/5G): B KEY, supports 4G/5G communication module

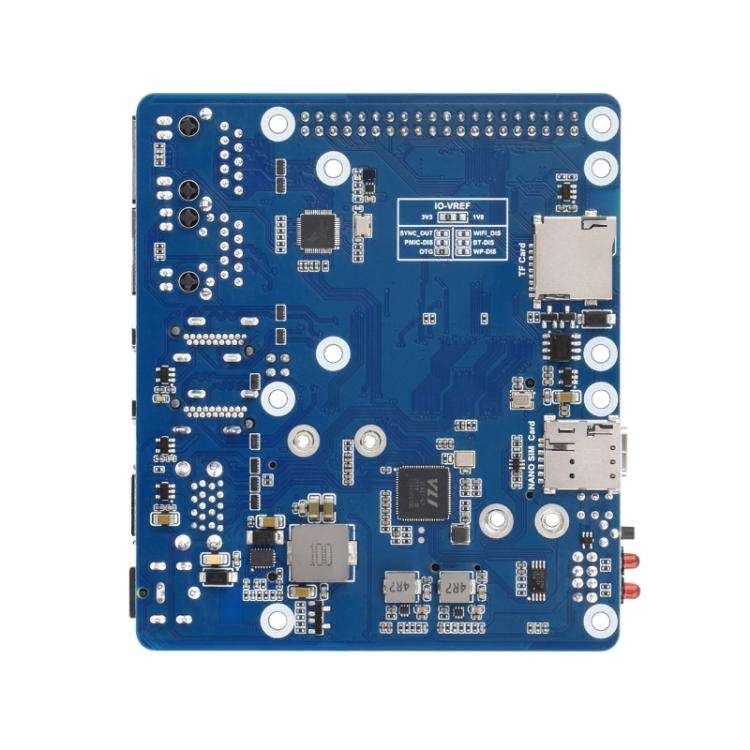

8. Storage: Onboard Micro SD card slot (for CM5 versions without eMMC)
9. Fan Interface: 5V, 4PIN JST-SH PWM fan connector
10. Power Input: 7V ~36V wide voltage (round terminal), 5V 5A (Type-C)
11. Supports 4-screen display, with added MIPI DSI driver; the system will default to connecting to the screens regardless of whether they are connected, and the screens will display in split-screen mode (this depends on the system version).
12. Dimensions: 99.60 x 87.00 mm
