Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(EU Plug)
+6

Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(EU Plug)

10 available / new
R1,962.26
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0278EU
Bob Shop ID
636104166

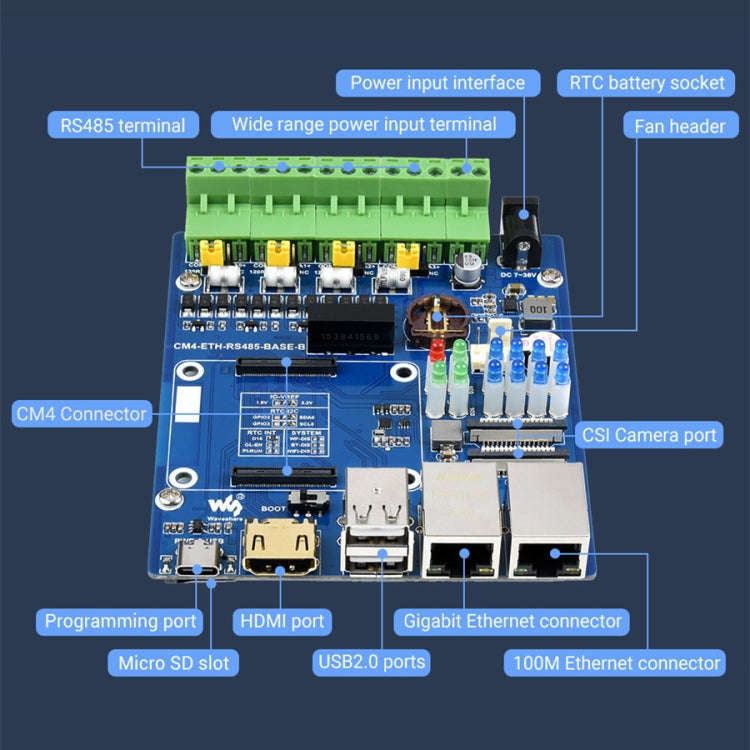

Specifications

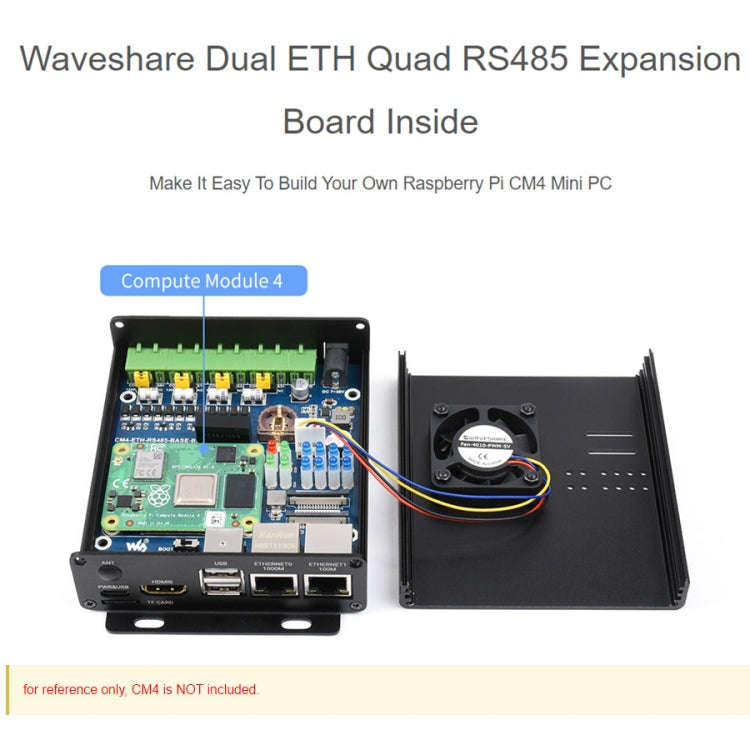

1. CM4 Socket: Available on all variants of Compute Module 4

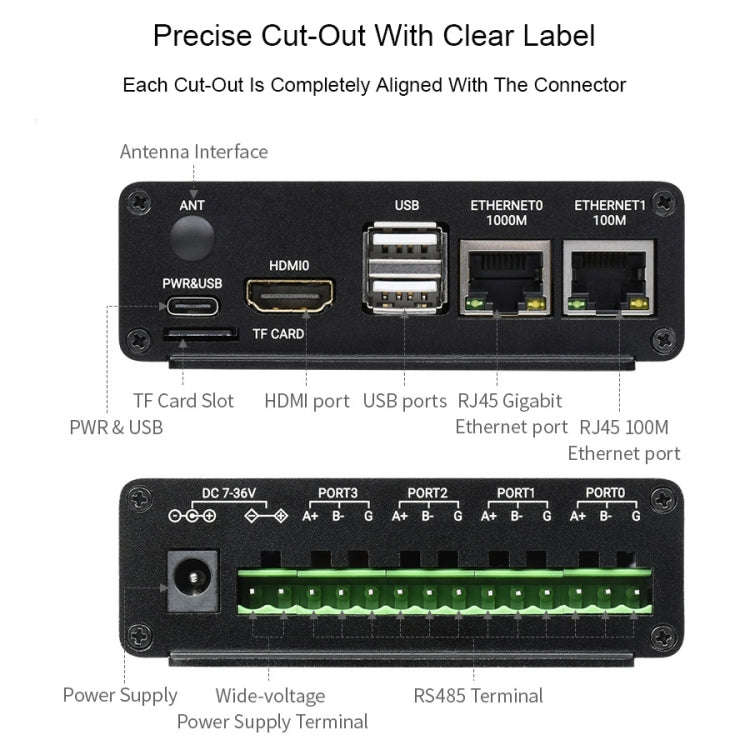

2. Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. USB: USB 2.0 Type A x 2
4. Connector: Isolated RS485 x 4, power screw terminal x 1
5. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
6. Video: HD-MI interface x 1, support 4K 30fps output
7. RTC: Real Time Clock with Battery Socket and Ability to Wake Compute Module 4
8. Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC) variant

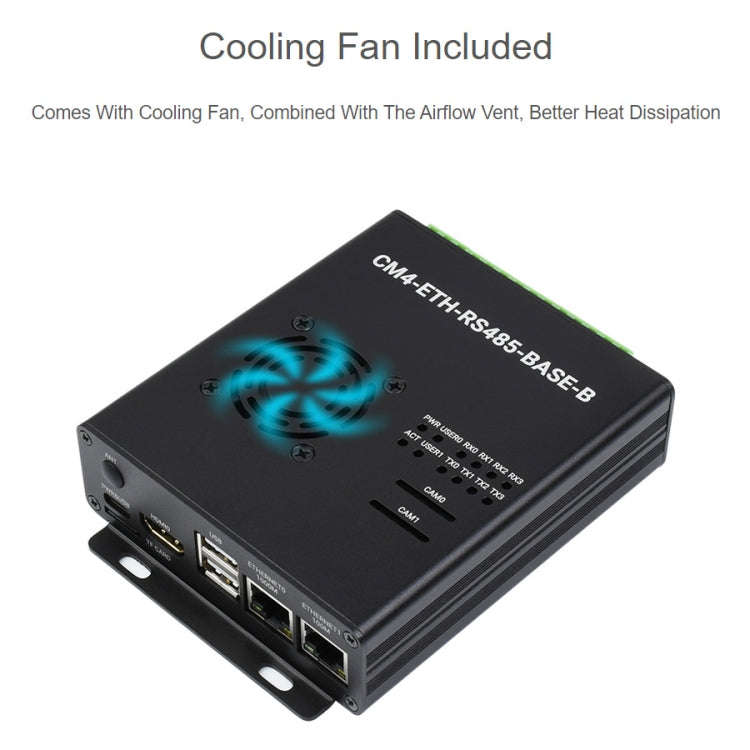

9. Fan head: allow speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1,
User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V

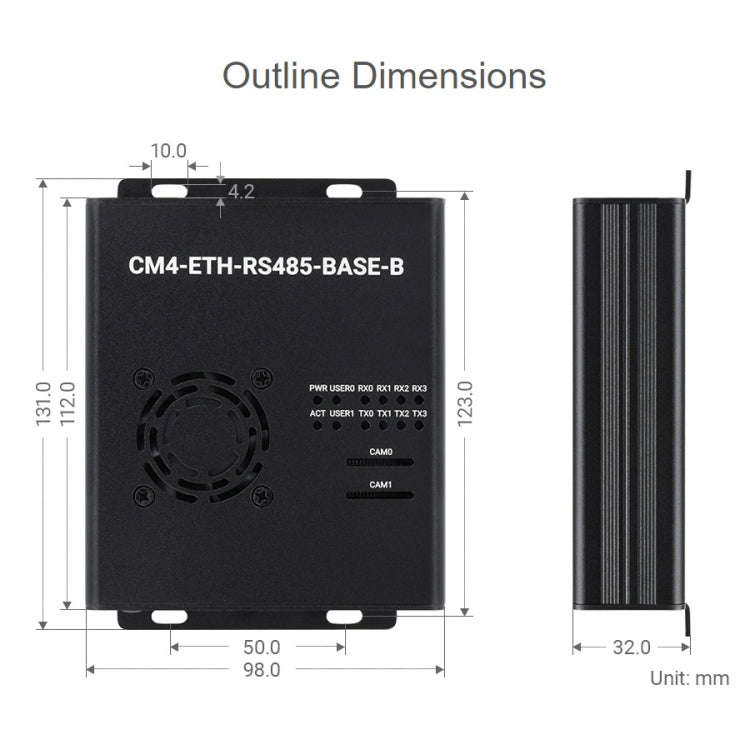

12. Dimensions: 123 x 98 x 32mm

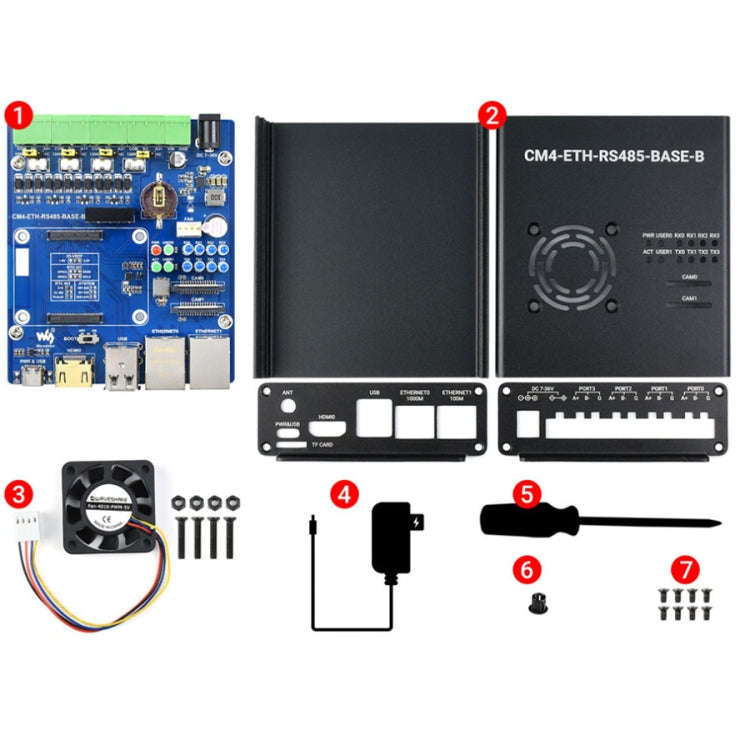

Package List
1. CM4-ETH-RS485-BASE-B x 1
2. Metal case (top and bottom) x 1
3. Fan x 1
4. 12V 2A Power Supply x 1
5. Screwdriver x 1
6. Antenna connector rubber plug x 1
7. Screws pack x 1
