Waveshare Dual ETH Quad RS485 Base Board B for Raspberry Pi CM4, Gigabit Ethernet

10 available / new
R1,433.04
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0249
Bob Shop ID
636100901

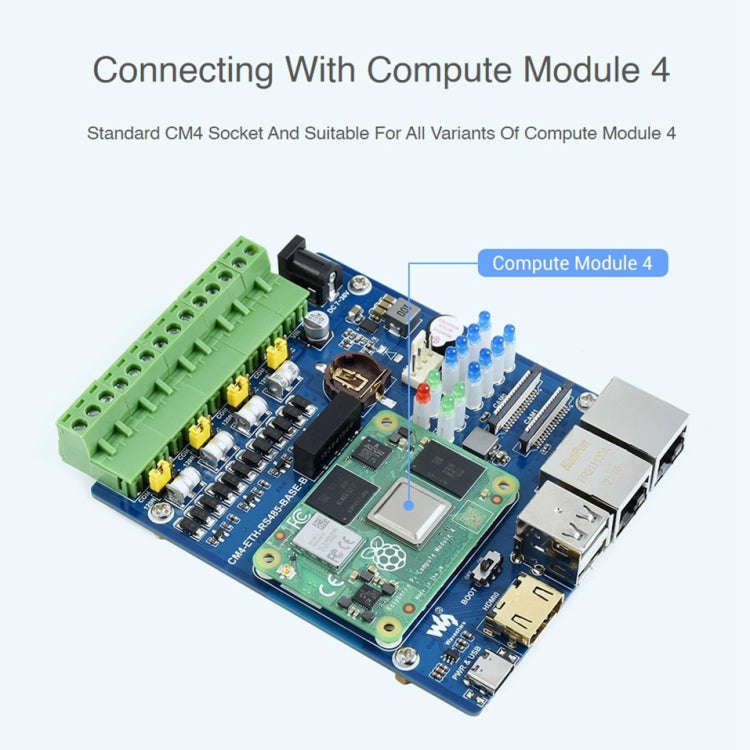

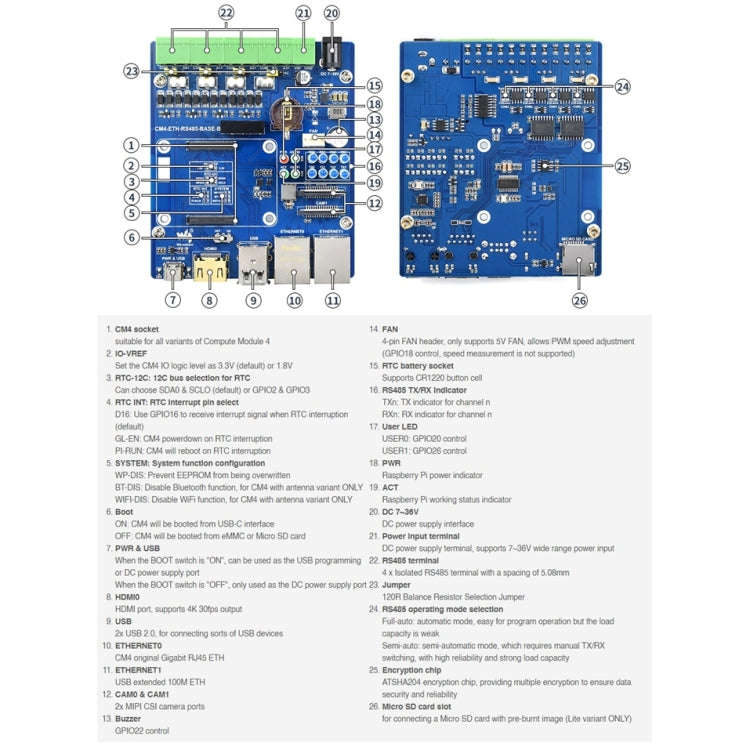

1. CM4 socket: Suitable for all variants of Compute Module 4

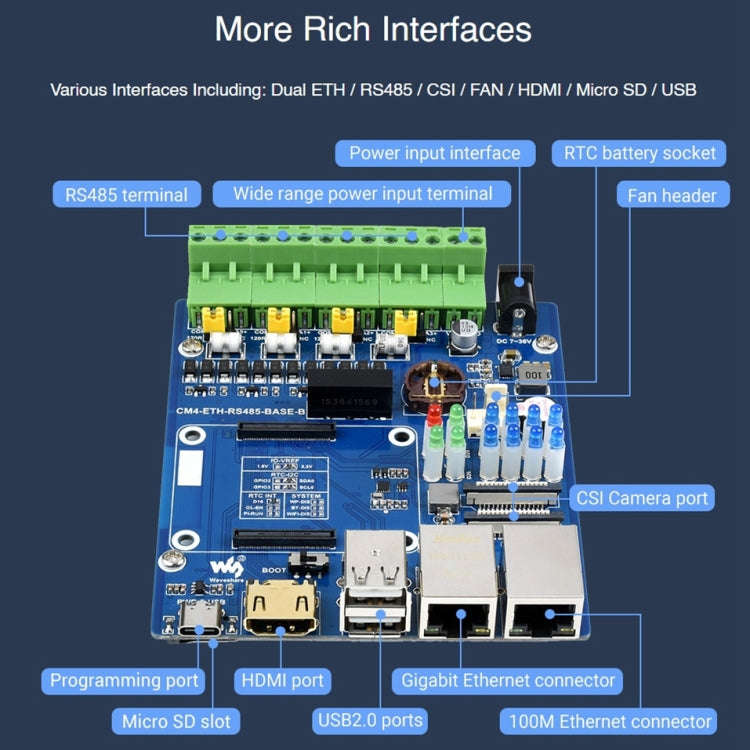

2. Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. Connetor: Isolated RS485 x 4, Power screw terminal x 1
4. USB: USB 2.0 Type A x 2
5. Cacmera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
6. Video: HDMI port x 1, supports 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: Allows speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V

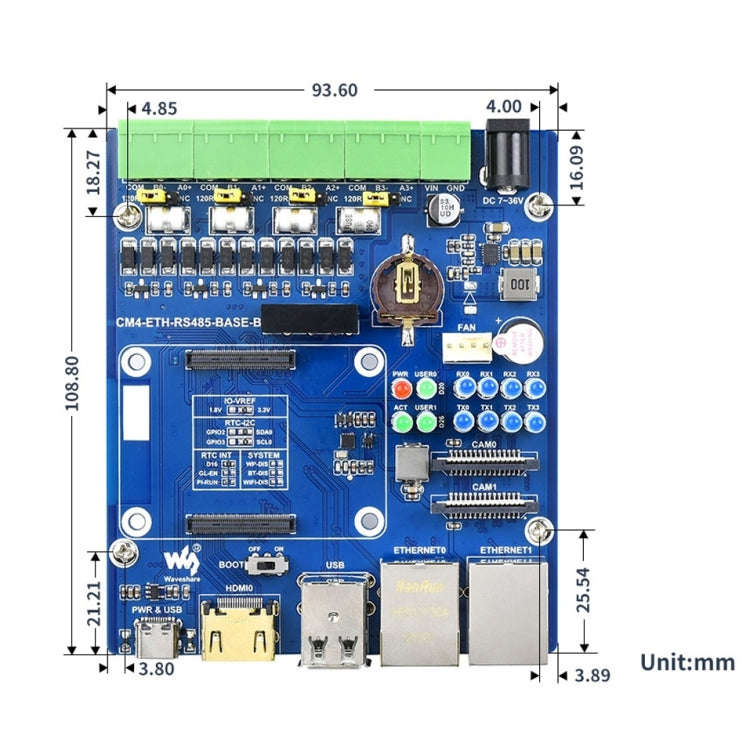

12. Dimension: 93.6 x 108.8mm
