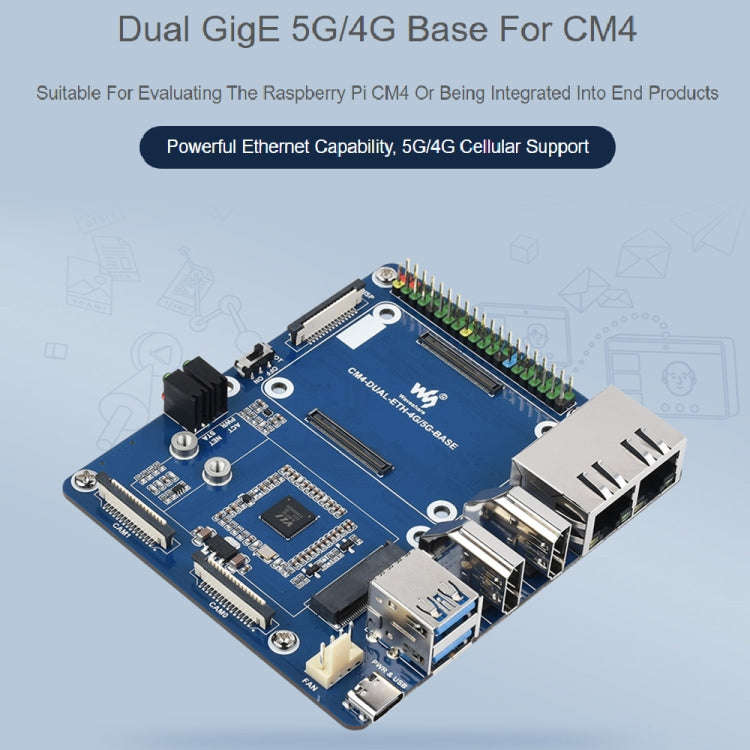

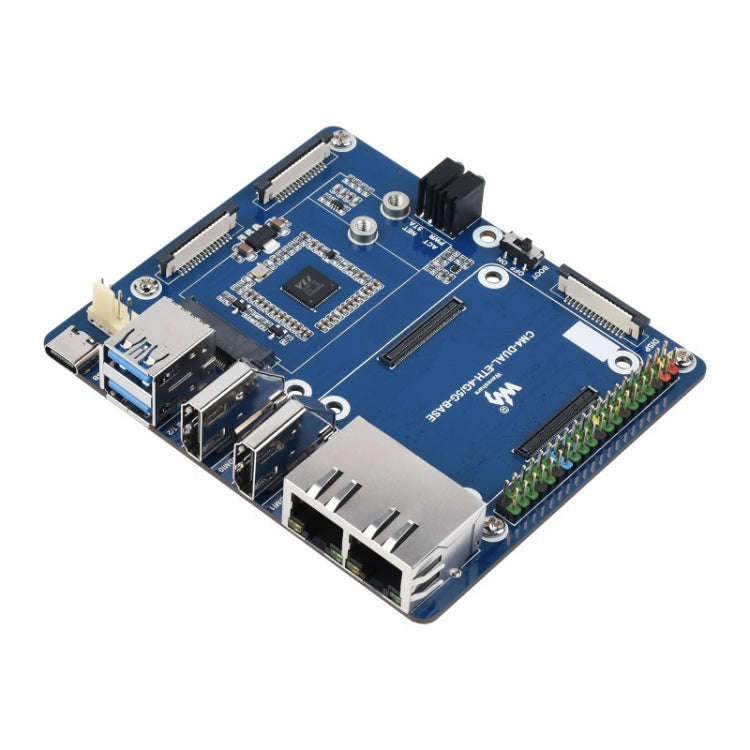

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4
+4

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4

10 available / new
R1,549.86
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0228
Bob Shop ID
636100919

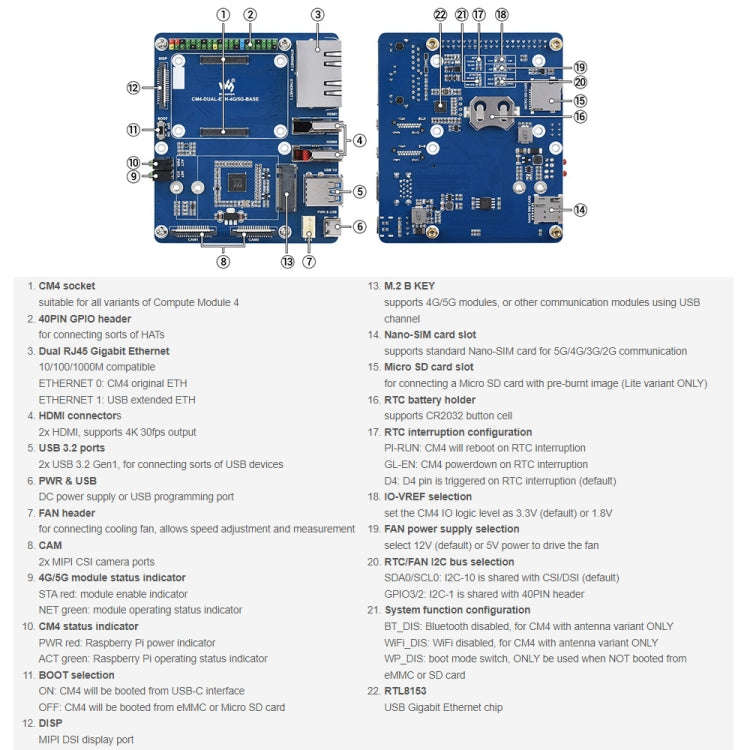

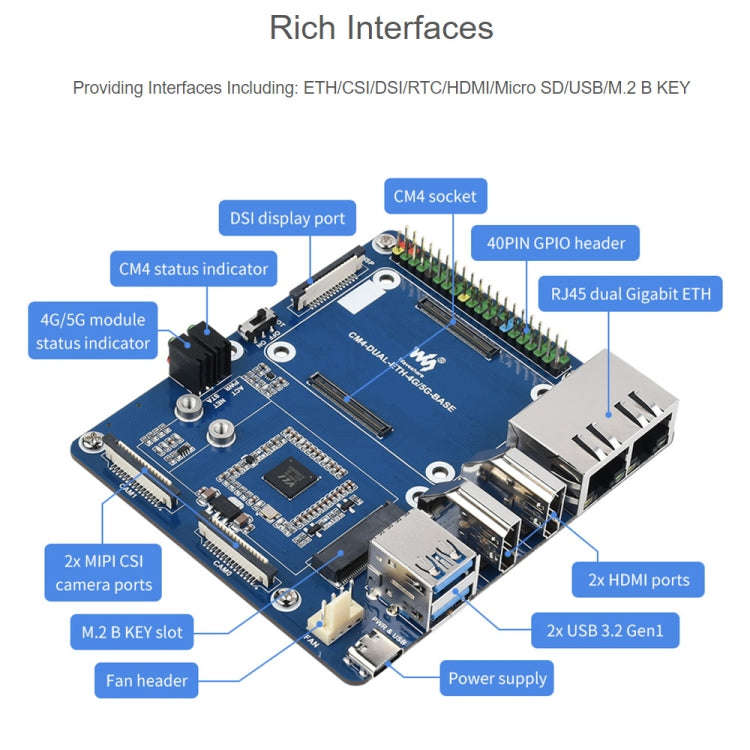

Specifications

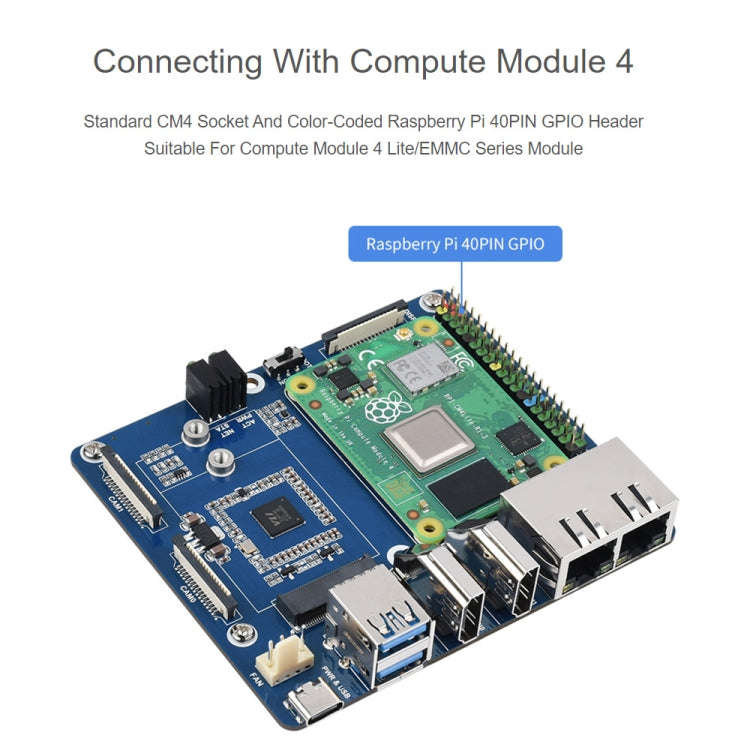

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Network:
- Ethernet: Dual Gigabit Ethernet RJ45

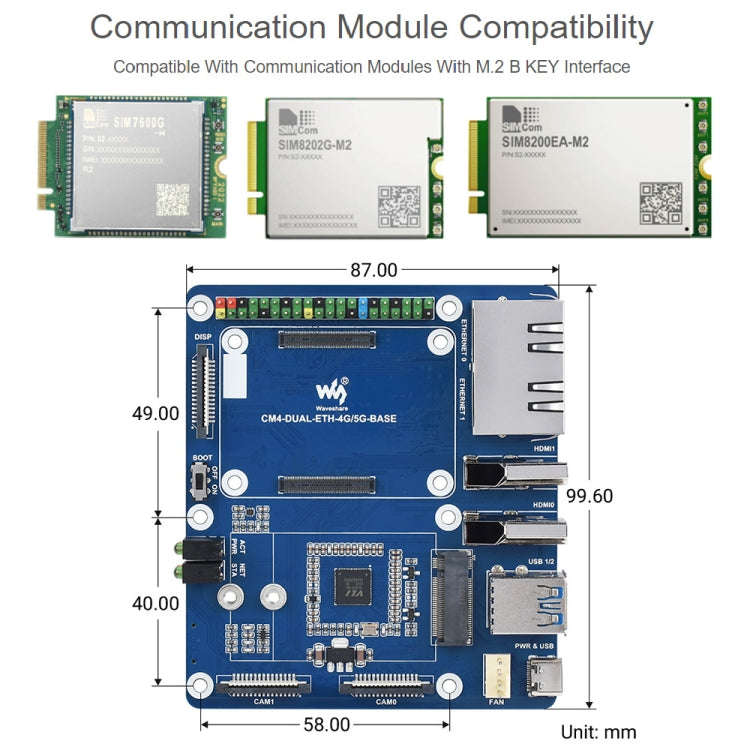

- M.2 B KEY, for connecting 5G / 4G module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO headerx 1
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output

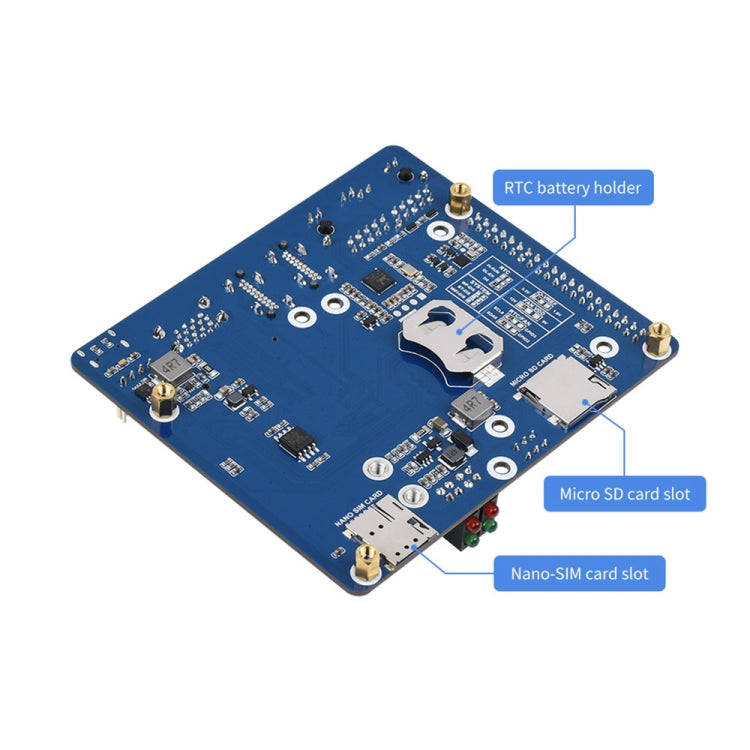

8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A
12. Size: 99.6 x 87.0mm
