Features

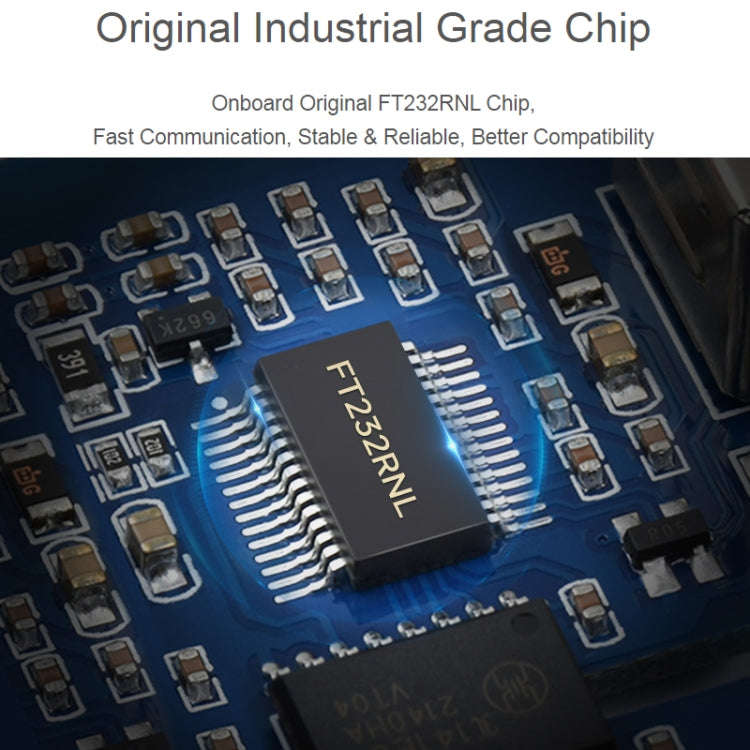

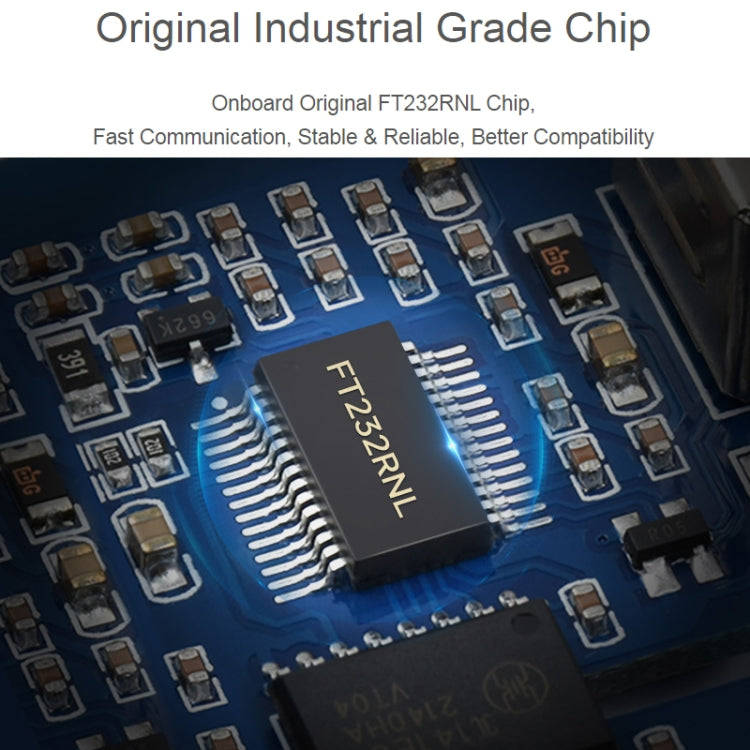

1. Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
2. Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL
3. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

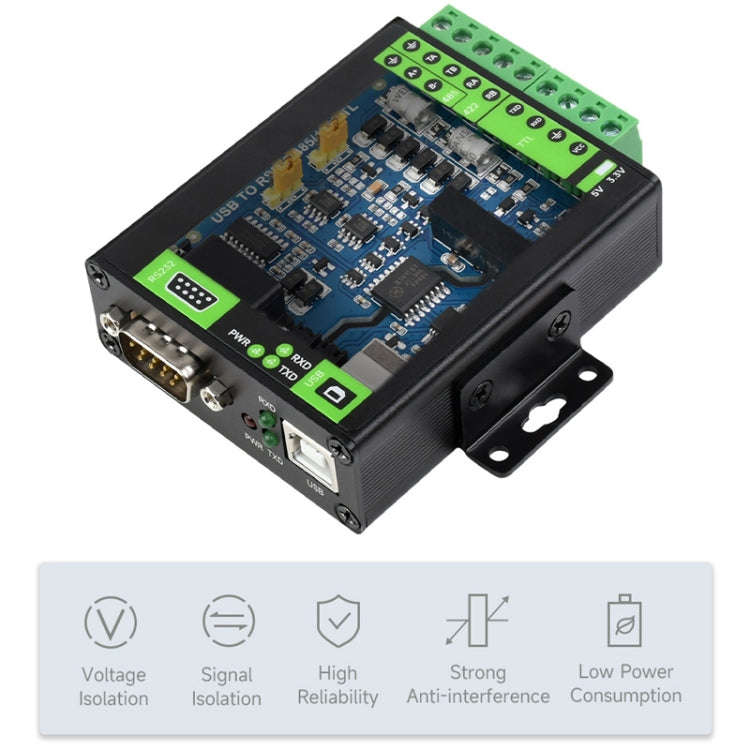

4. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection

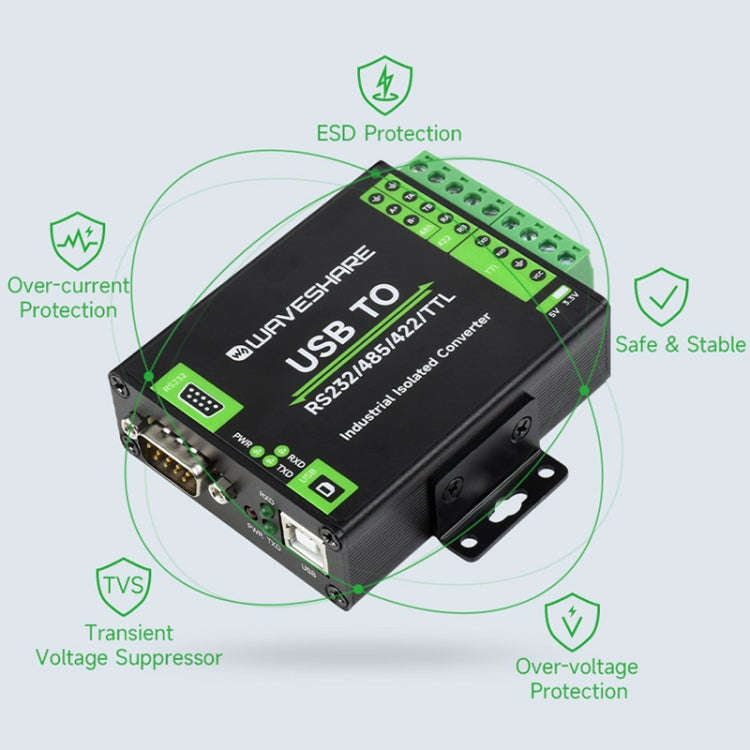

6. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
7. Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other
8. Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
9. 3 LEDs for indicating the power and transceiver status
10. High quality USB-B and RS232 connectors, smoothly plug/pull

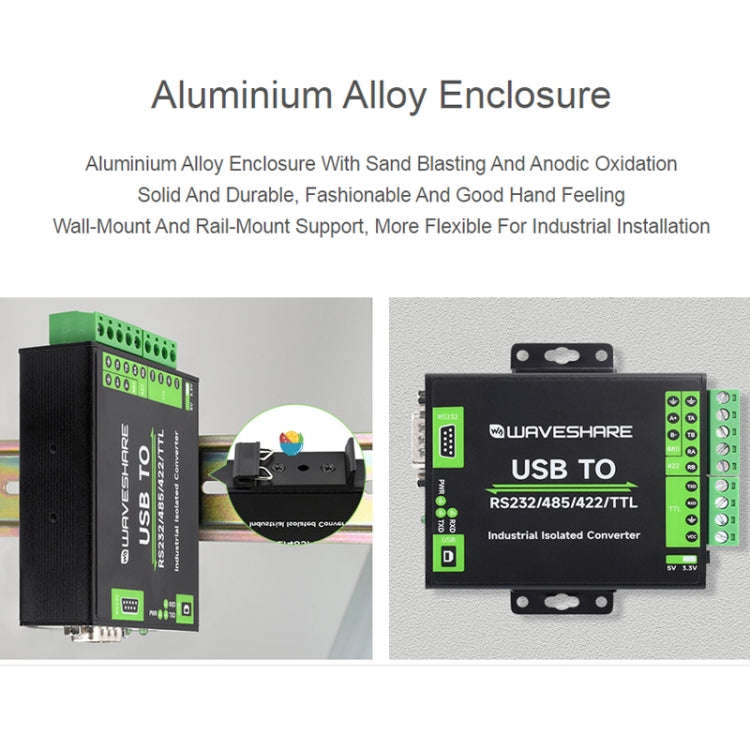

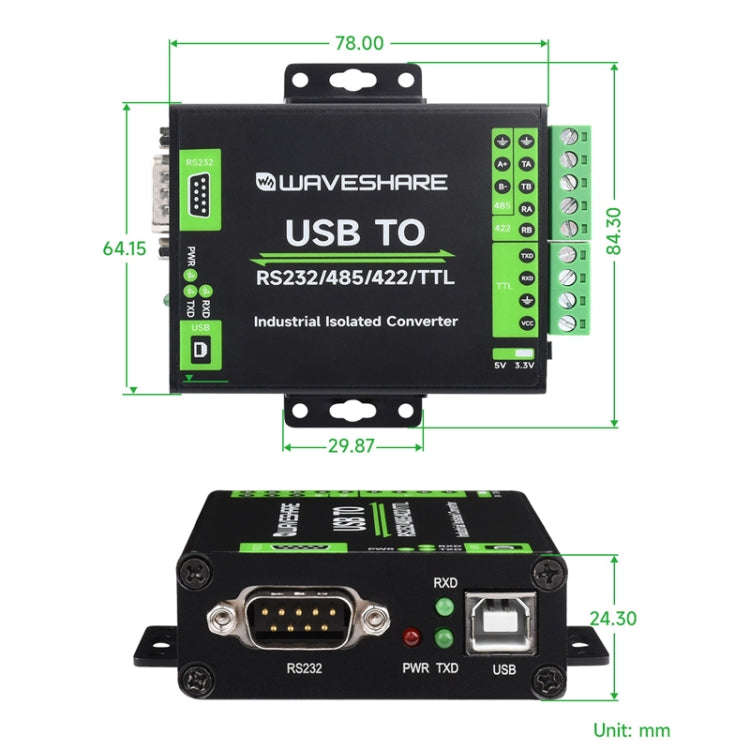

11. Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install
Specifications
1. Product type: Industrial grade digital isolated converter
2. Operating system: for Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
3. Operating temperature: -15 ~ 70

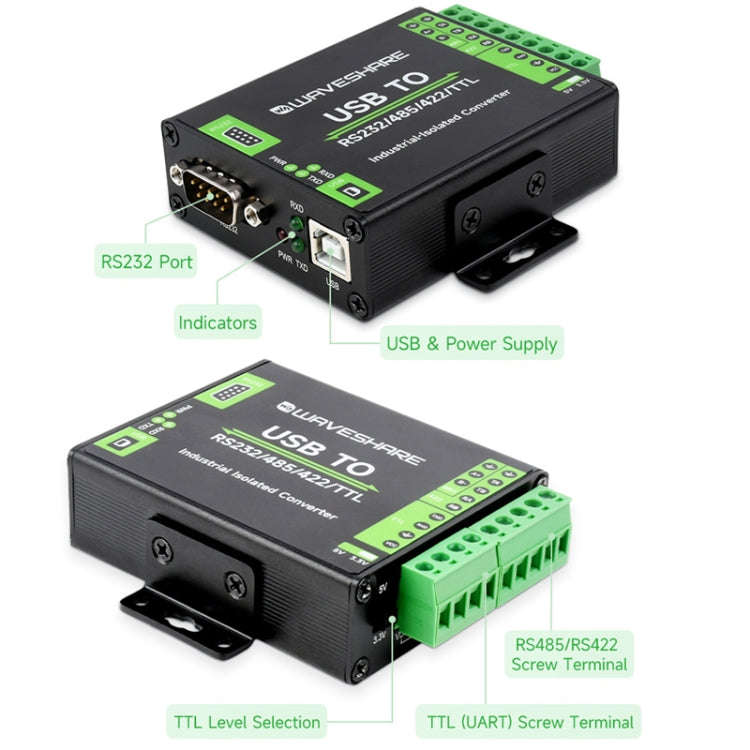

4. Device port: RS232/485/422/TTL
5. Host port: USB
6. USB:
- Operating voltage: 5V
- Connector: USB-B
- Protection: 200mA self-recovery fuse, isolated output
7. RS232:
- Connector: DB9 male
- Protection: TVS diode, surge protection & ESD protection
- Transmission mode: Point-to-point
- Baud rate: 300bps ~ 3Mbps
8. RS485/422:
- Connector: Screw terminal
- Direction control: Hardware automatic control
- Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
- Transmission mode: Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
- Baud rate: 300bps ~ 3Mbps
9. TTL (UART):
- Connector: Screw terminal

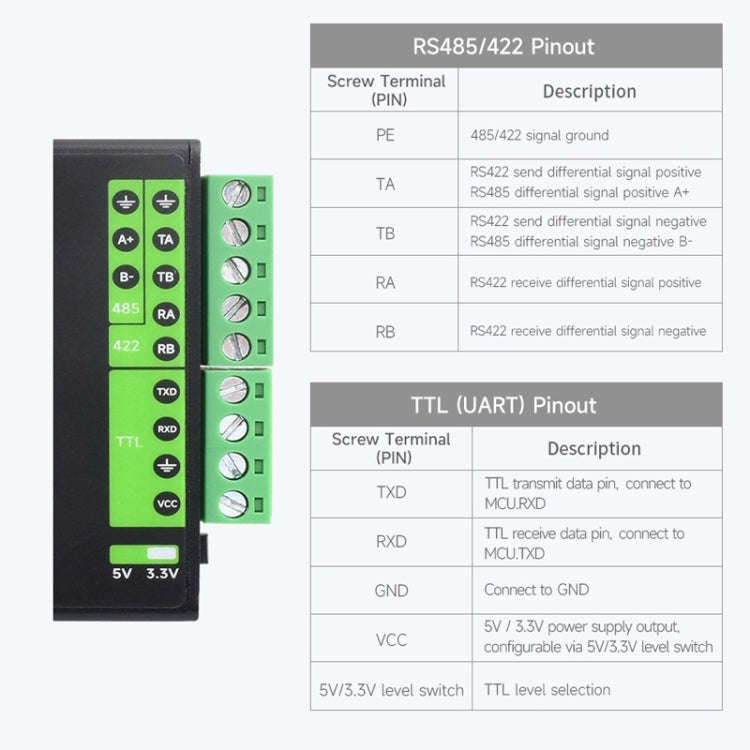

- Pins: TXD, RXD, GND, 5V/3.3V
- Protection: Clamp protection diode, over-voltage/negative-voltage proof, shock resistance
- Transmission mode: Point-to-point
- Baud rate: 300bps ~ 3Mbps
10. Indicators:
- PWR: Red power indicator, light up when there is USB connection and voltage is detected
- TXD: TX indicator, light up when the USB port sends data
- RXD: RX indicator, light up when the device ports send data back
11. Package contents:
- USB TO RS232/485/TTL x1
- USB cable x1
