Waveshare Gamepad module for micro:bit, Joystick and Button
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY17418076
Bob Shop ID
603965349
Overview

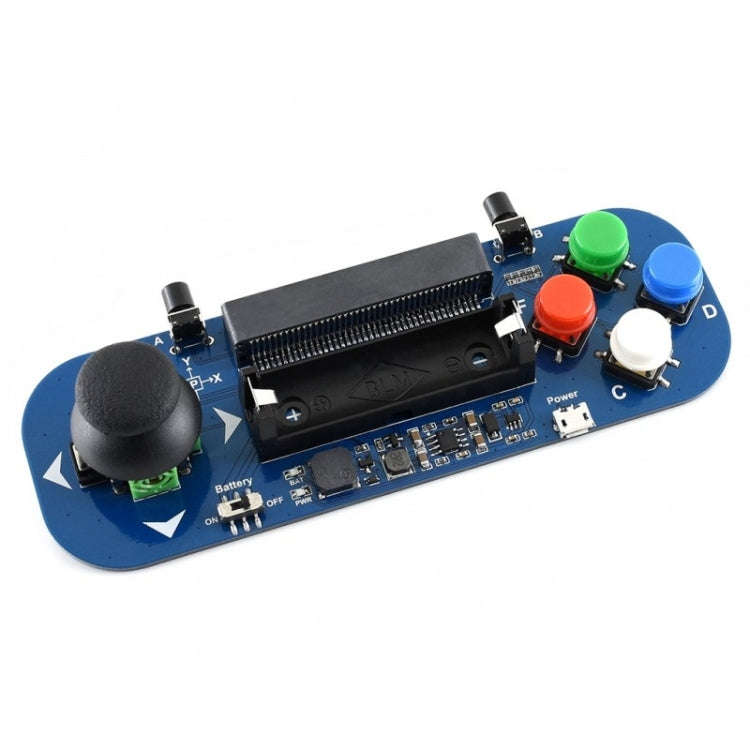

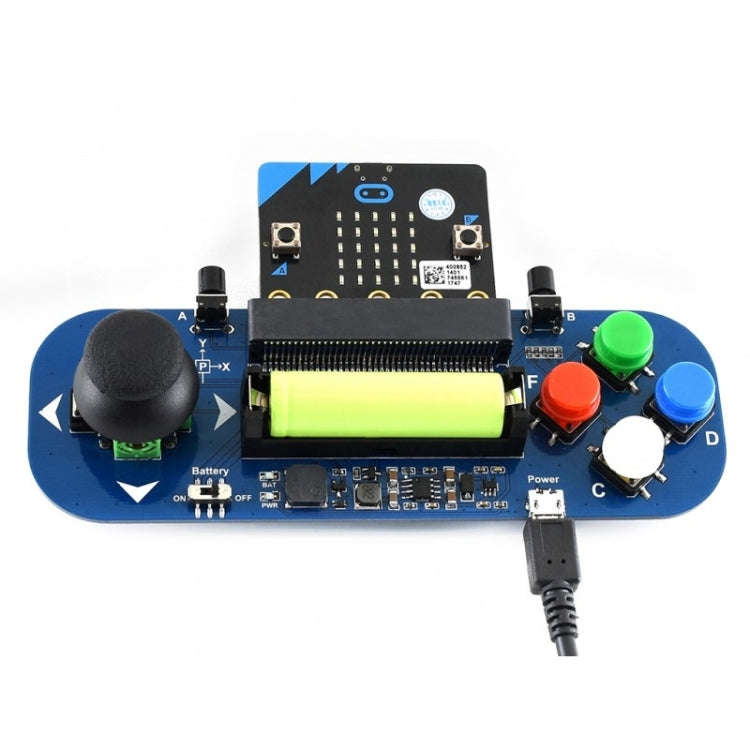

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features
1. micro:bit edge connector, directly pluggable
2. High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
3. Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
4. Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
5. 4x colorful buttons
6. 2x side buttons, related to the A/B buttons of micro:bit, easy to use
7. Buzzer for playing music and game background effect
8. Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
1. Operating voltage: 5V
2. Battery type: 14500 Li-ion
3. Dimension: 150mm x 50mm
This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features
1. micro:bit edge connector, directly pluggable
2. High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
3. Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
4. Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
5. 4x colorful buttons
6. 2x side buttons, related to the A/B buttons of micro:bit, easy to use
7. Buzzer for playing music and game background effect
8. Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
1. Operating voltage: 5V
2. Battery type: 14500 Li-ion
3. Dimension: 150mm x 50mm
