Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747
Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747 Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747
Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747
+2

Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module, 14747

New 100 available
R855.42
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
EveryTek Online30
83.33 % Positive ratings
Get it now, pay later

Product details

Condition
New
Location
International
Product code
10244594
Bob Shop ID
667244386
1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface

Overview
This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Features
1. 128x128 high resolution, 65K colors, clearly displays colorful images
2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications
1. Driver: SSD1351
2. Interface: 4-wire SPI, 3-wire SPI
3. Display color: RGB, 65K colors
4. Resolution: 128x128
5. Viewing angle: >160 degree
6. Operating voltage: 3.3V / 5V

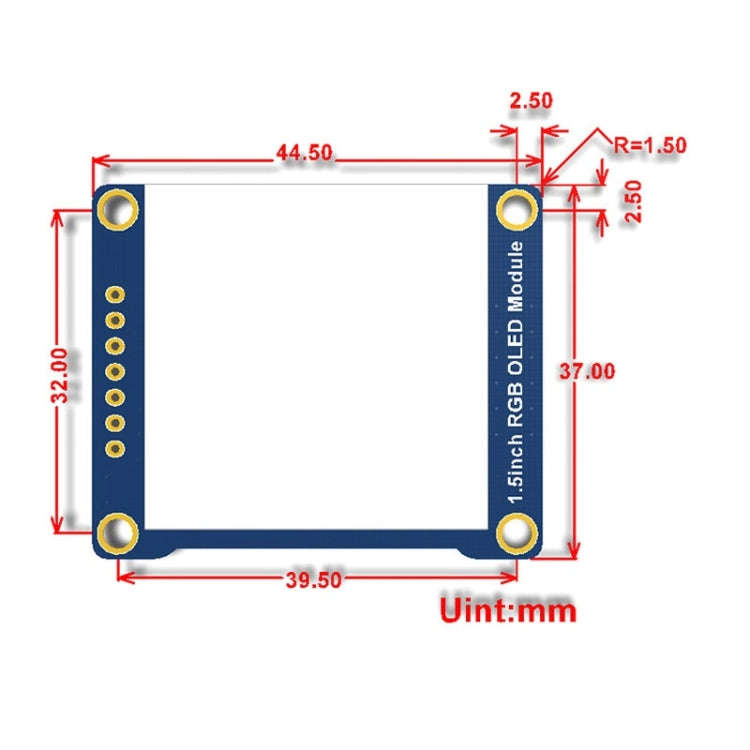

7. Dimension: 44.5 x 37 (mm)

Package Contents
1. 1.5 inch RGB OLED Module x1
2. PH2.0 7Pin x1
Specification:
Package Weight
One Package Weight0.03kgs / 0.07lb
One Package Size6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
Qty per Carton2000
Carton Weight15.00kgs / 33.07lb
Carton Size60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
