Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992
Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992 Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992
Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992
+2

Waveshare General 1.5 inch 128x128 OLED Display Module, SPI/I2C interface, 13992

New 100 available
R795.39
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
EveryTek Online29
82.61 % Positive ratings
Get it now, pay later

Product details

Condition
New
Location
International
Product code
10244596
Bob Shop ID
667244388
1.5inch OLED display Module, 128x128 pixels, 16 gray scale, SPI/I2C interface

Overview
This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

Features
1. 128x128 high resolution
2. 16 gray scale, better display effect
3. Support SPI or I2C interface, configured via onboard resistor
4. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications
1. Driver: SSD1327
2. Interface: SPI / I2C
3. Display color: White
4. Gray scale: 16
5. Resolution: 128x128 (most other competitive products are typically 128x64)
6. Viewing angle: >160 degree
7. Operating voltage: 3.3V / 5V

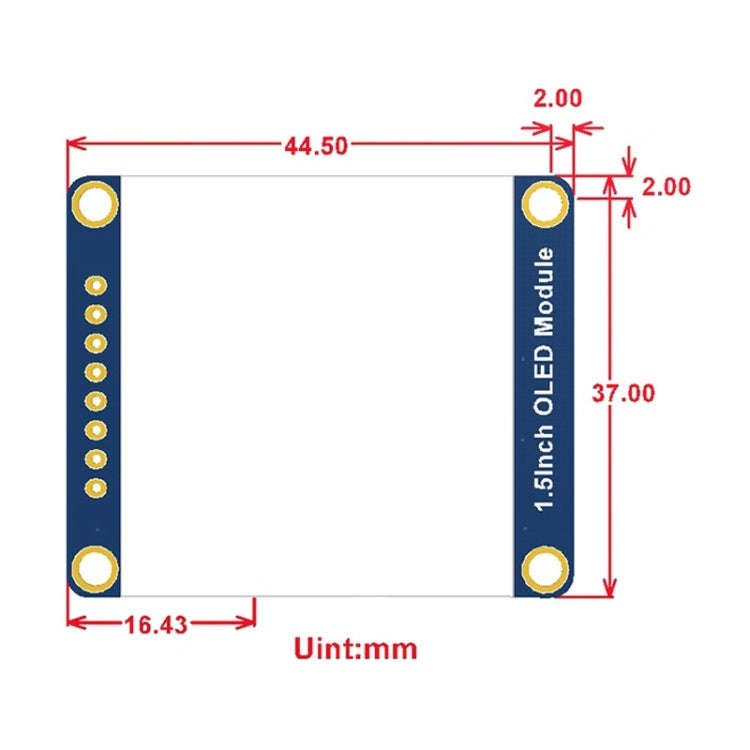

8. Dimension: 44.5 x 37 (mm)

Package Contents
1. 1.5 inch OLED Module x1
2. PH2.0 7Pin x1
Specification:
Package Weight
One Package Weight0.03kgs / 0.07lb
One Package Size6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
Qty per Carton2000
Carton Weight15.00kgs / 33.07lb
Carton Size60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
