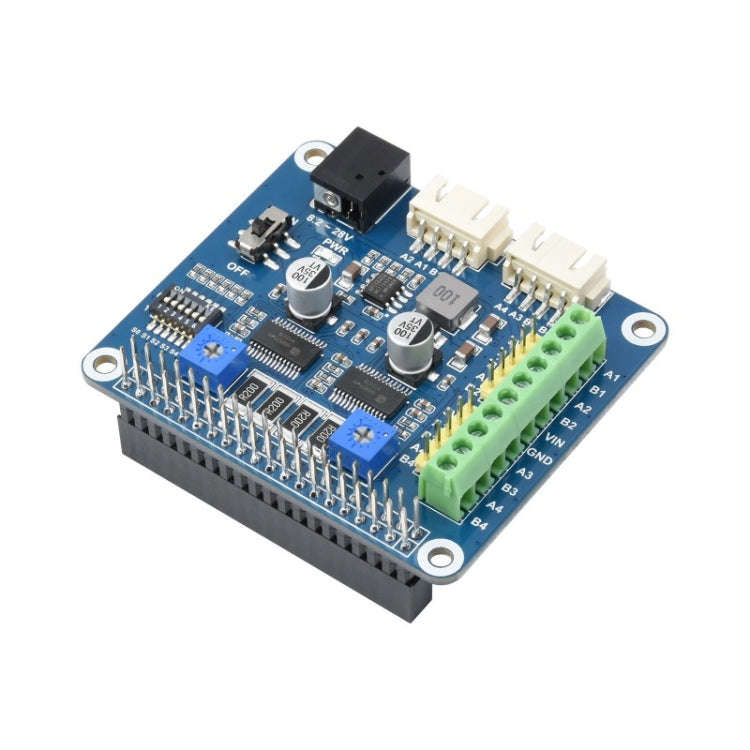

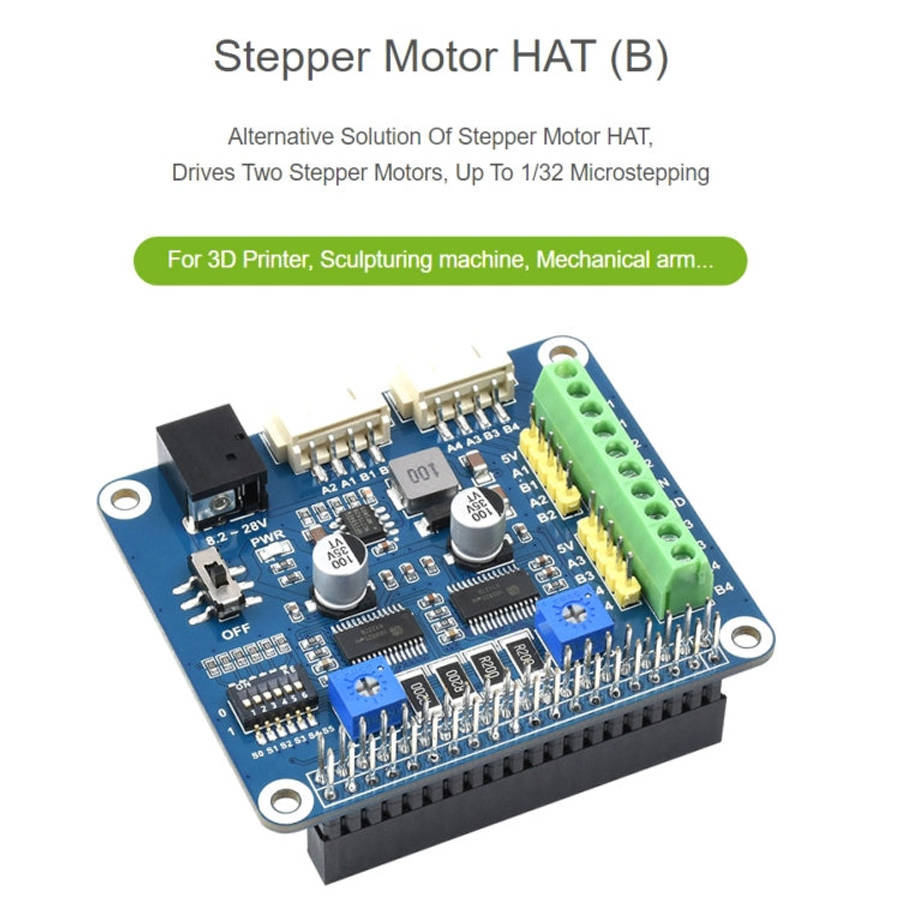

Waveshare HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two Stepper Motors, Up To 1/32 Micro...

New 10 available
R456.70
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Visit Maverick Store on Bob Shop
Maverick20599
94.15 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY0280
Bob Shop ID
636104926
Features

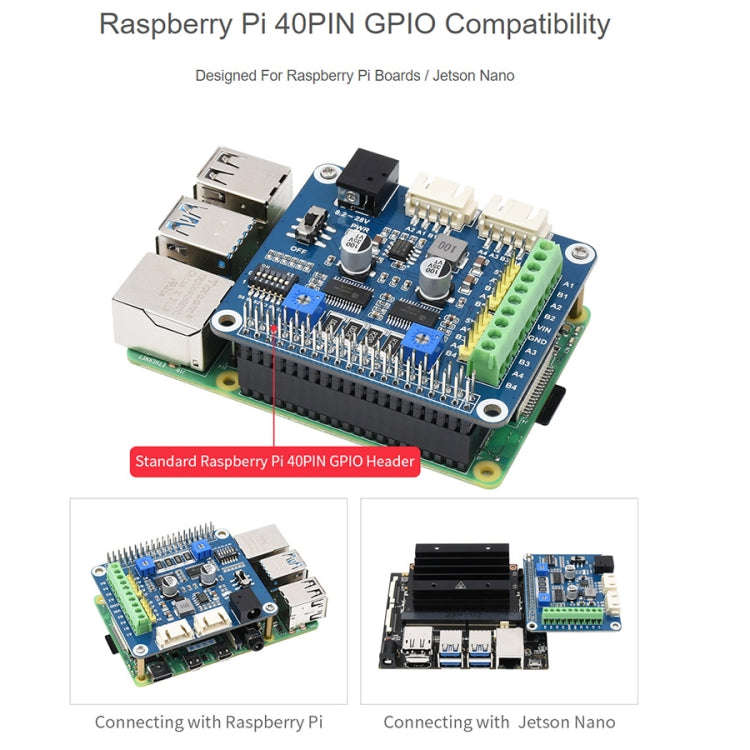

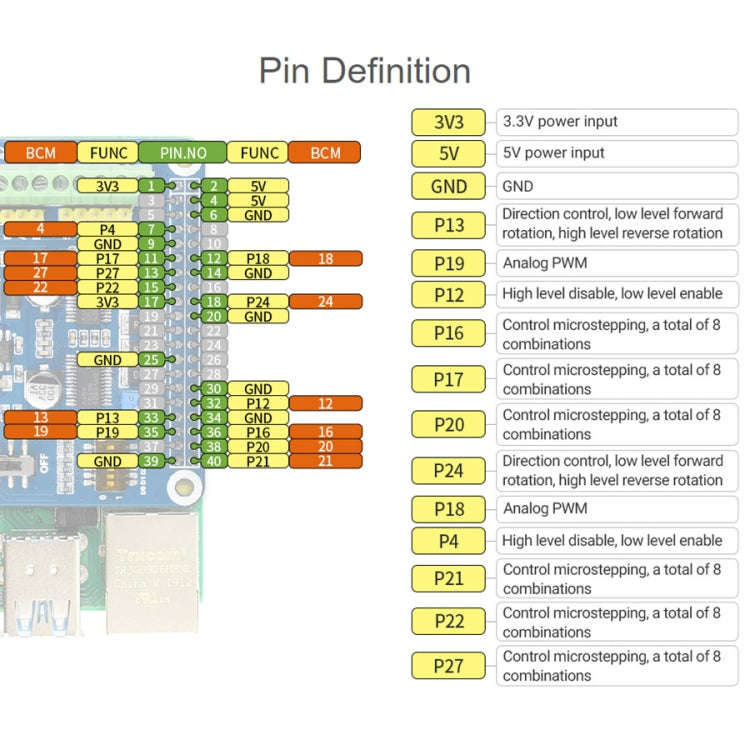

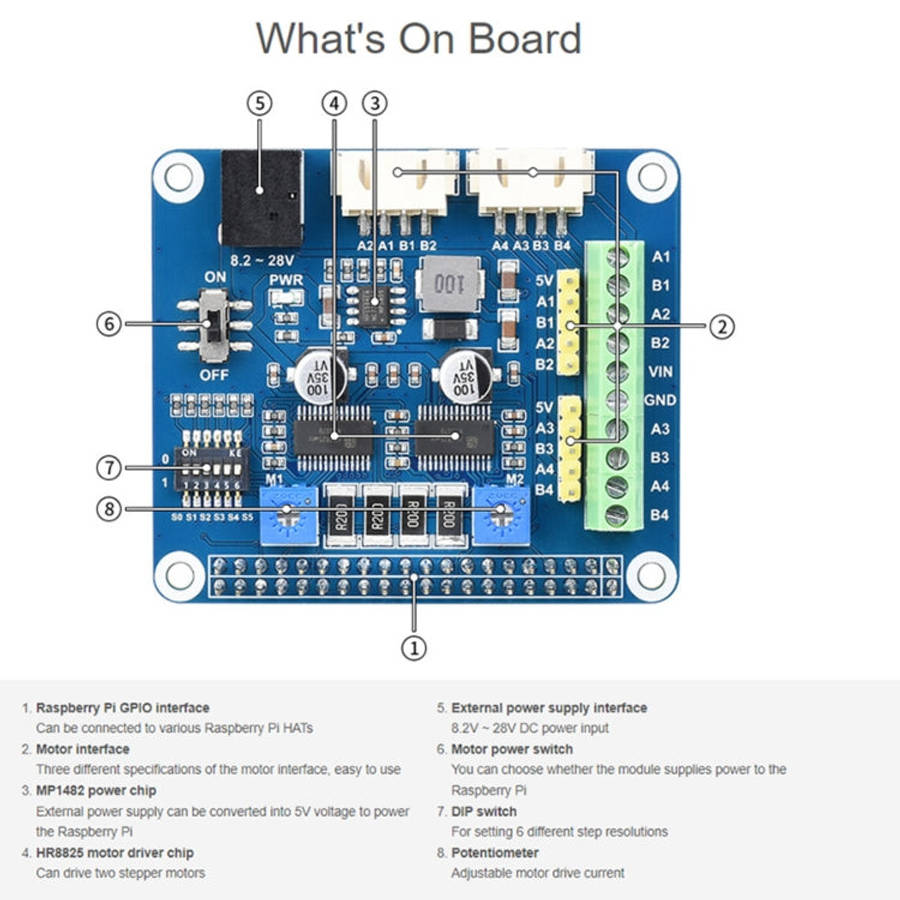

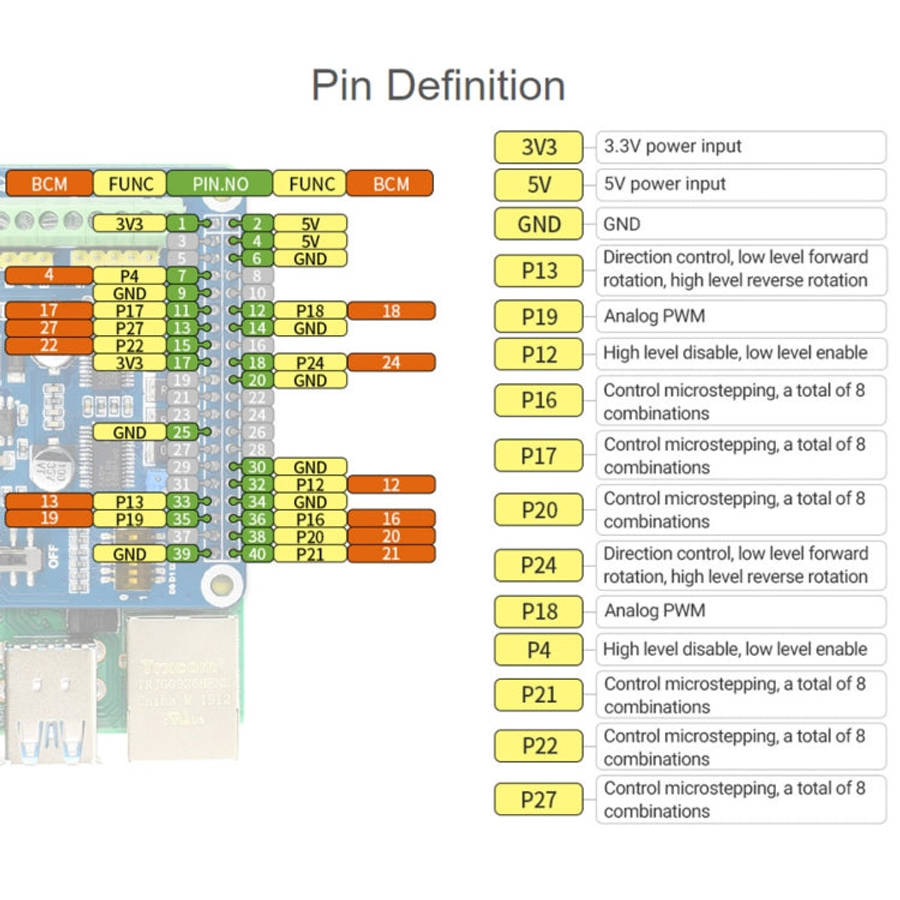

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

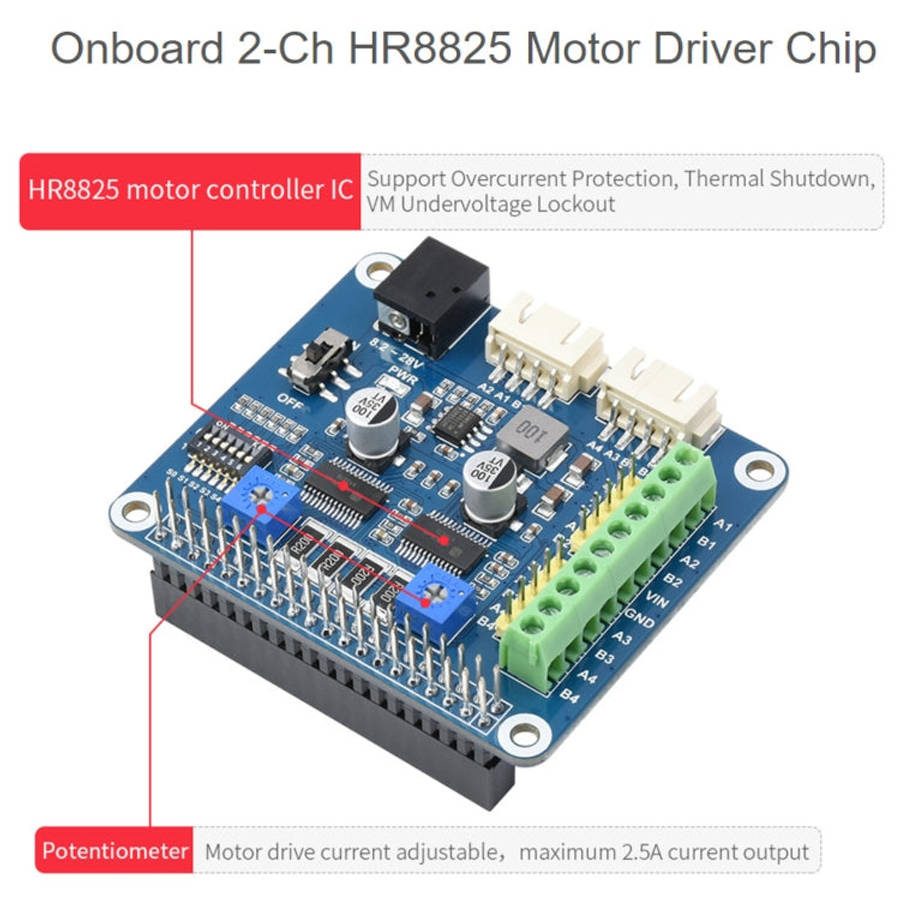

2. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use

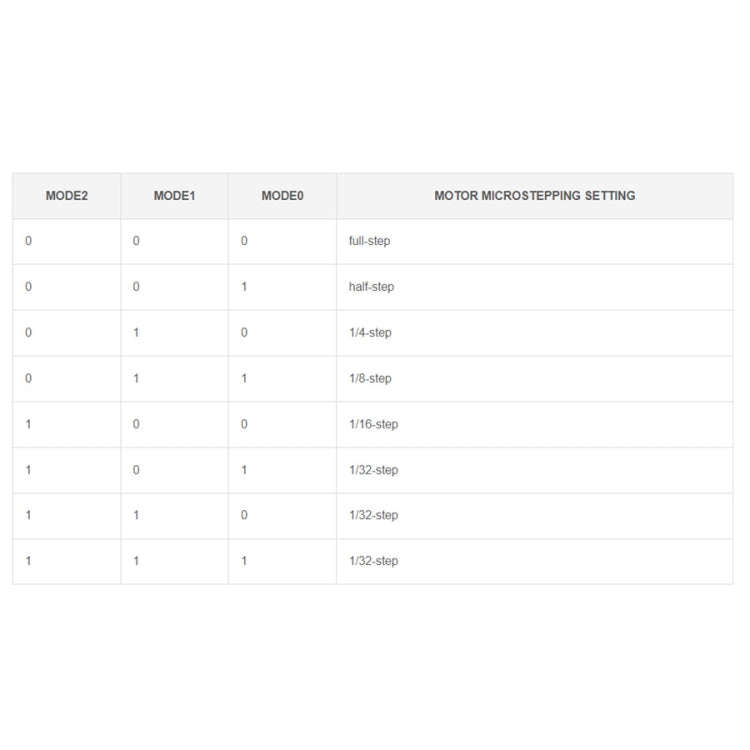

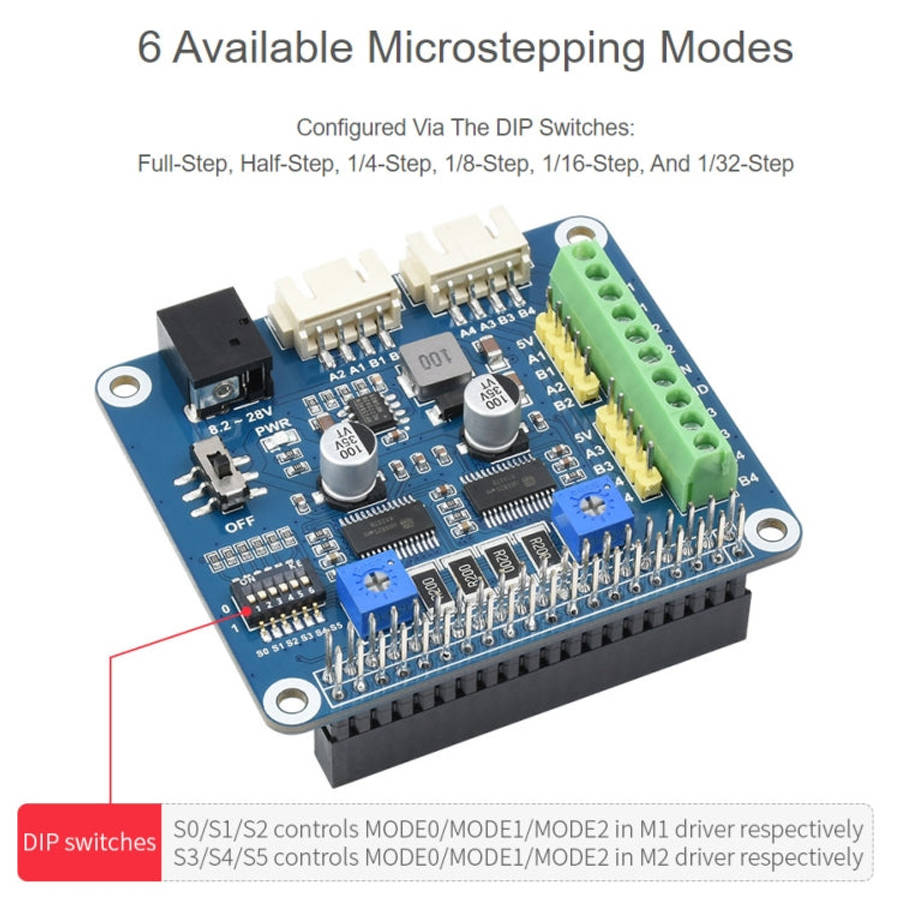

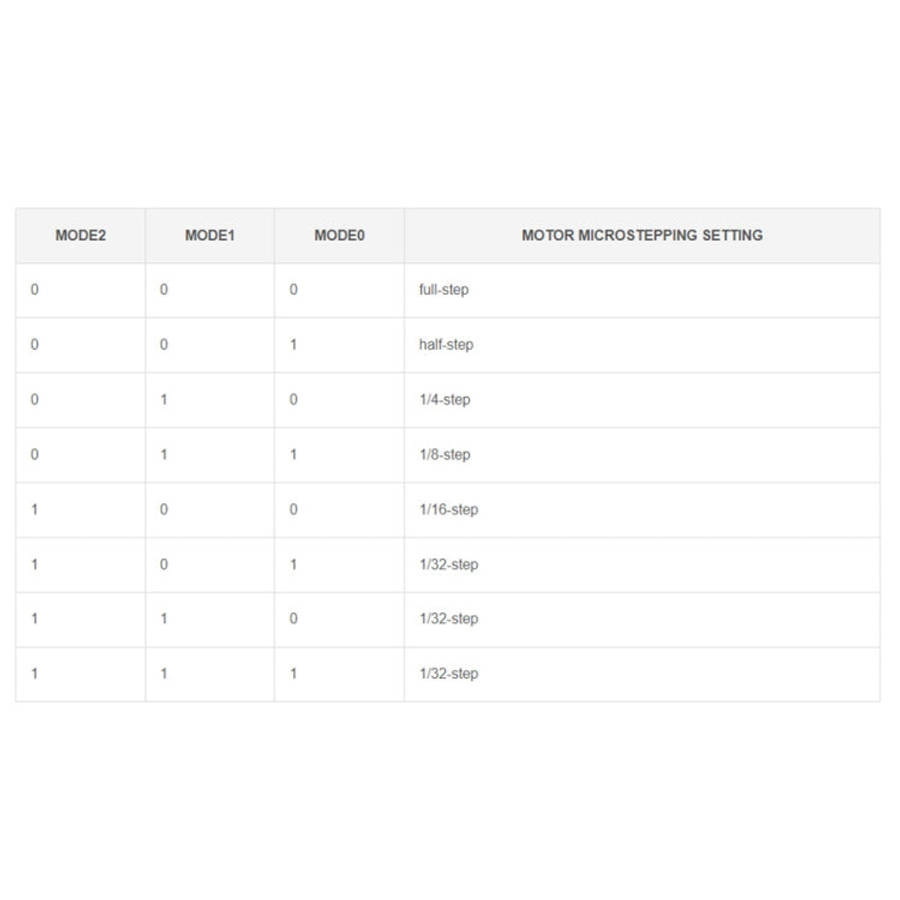

3. 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
4. Adjustable motor drive current via potentiometer, maximum 2.5A current output
5. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
6. Integrates 5V regulator, allows providing power to Raspberry Pi

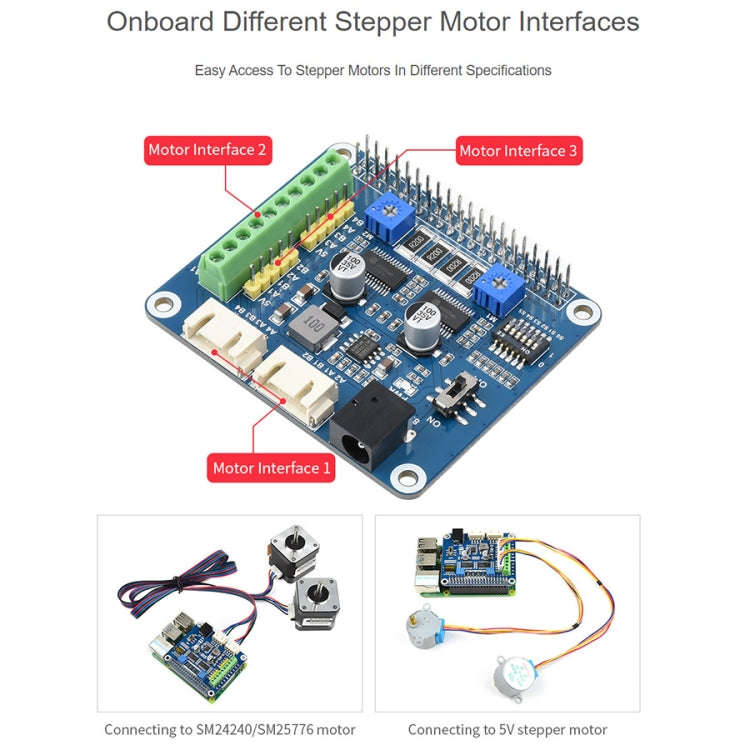

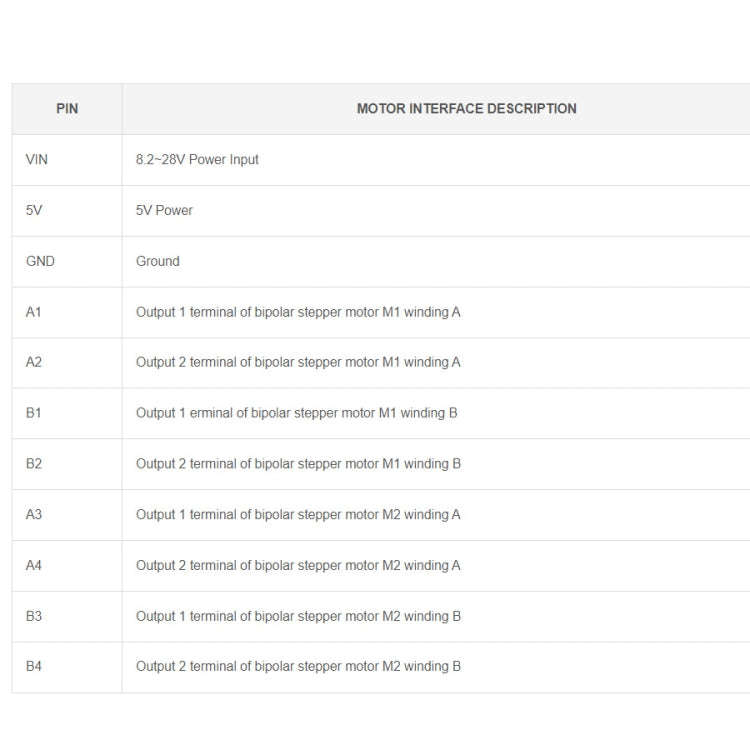

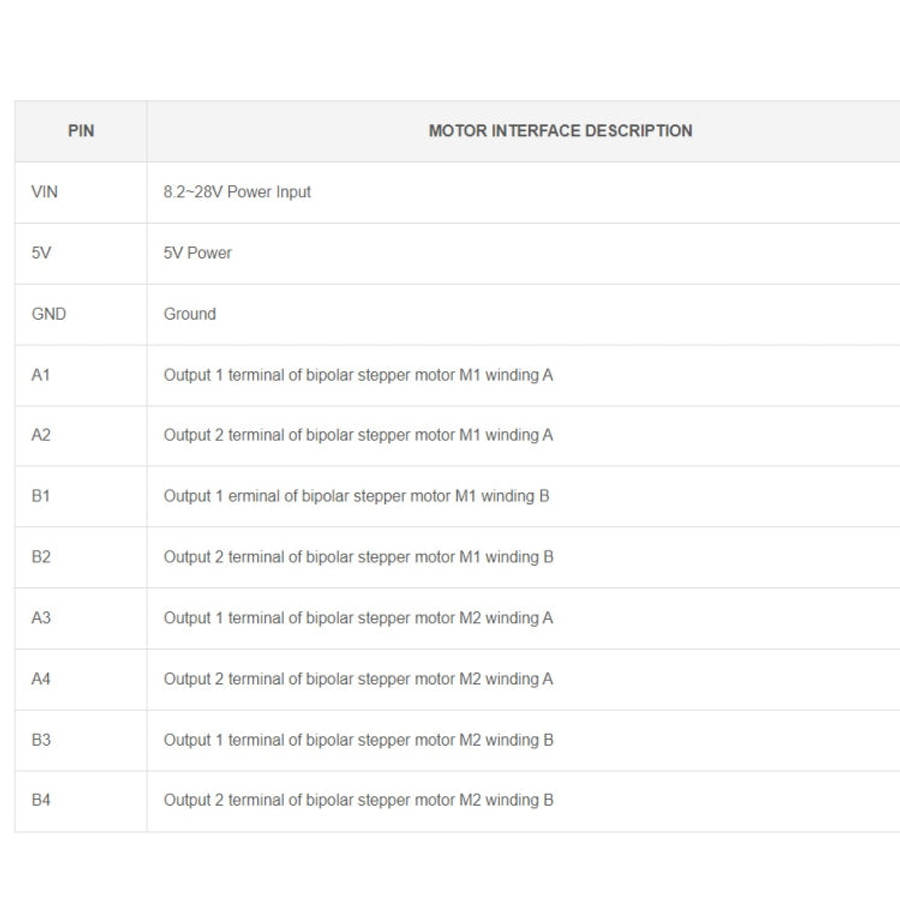

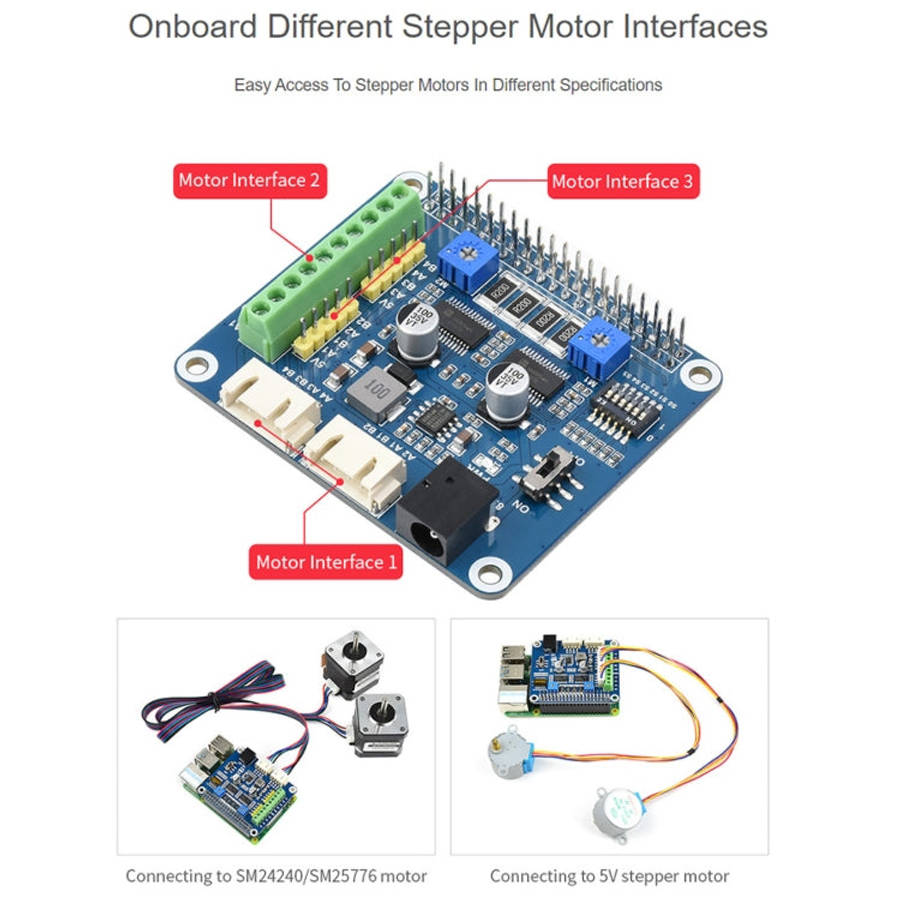

7. Onboard multi connector options for stepper motors in different specifications
8. Comes with development resources and manual (examples in BCM2835, wiringPi, and python)

Specifications
1. Motor controller: HR8825
2. Motor drive voltage: 8.2V~28V
3. Motor drive current: 2.5A
4. Logic voltage: 3.3V
5. Mounting hole size: 3.0mm

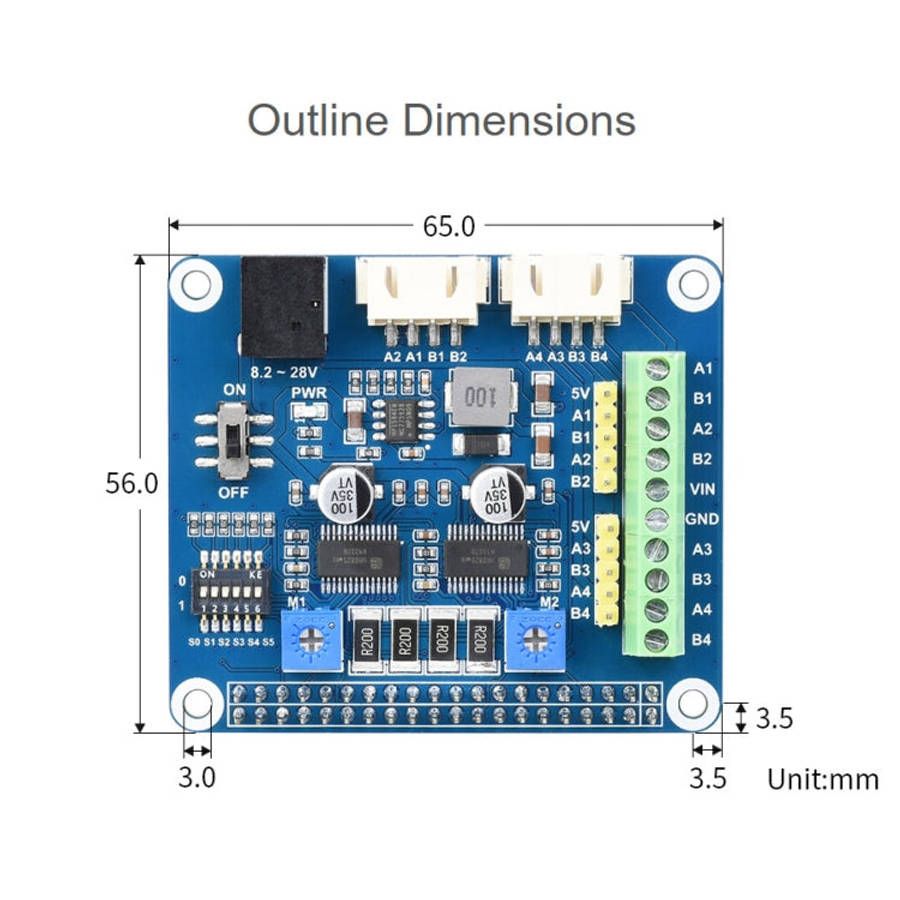

6. Size: 65 x 56mm

Package List
1. Stepper Motor HAT (B) x 1
2. RPi screws pack (2pcs) x 1
3. Aluminum heatsink x 1
