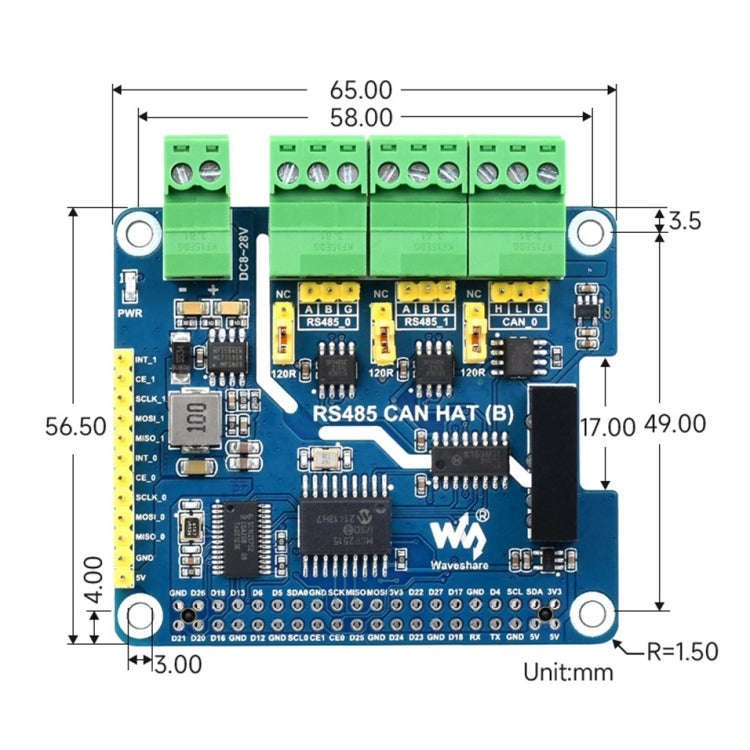

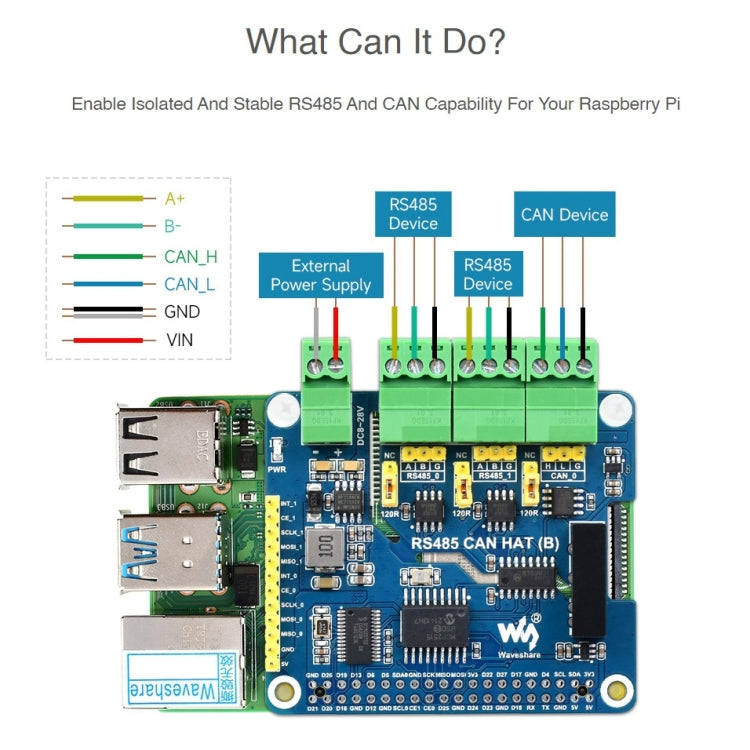

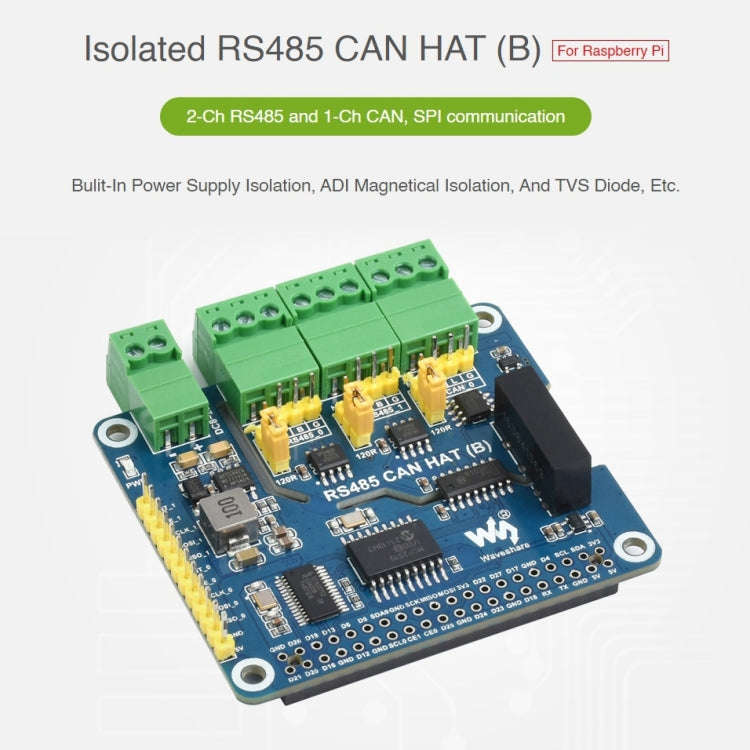

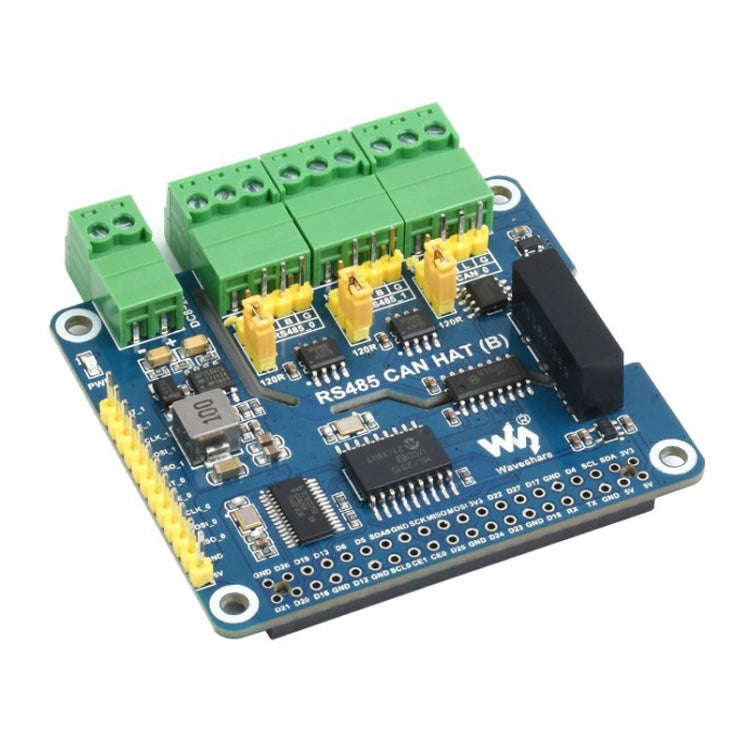

Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi
Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi Waveshare Isolated RS485 CAN HAT For Raspberry Pi
Waveshare Isolated RS485 CAN HAT For Raspberry Pi
+5

Waveshare Isolated RS485 CAN HAT For Raspberry Pi

New 5 available
Only 5 left – grab it before it’s gone!
R838.40
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
The Aesthetic Zone606
95.16 % Positive ratings
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EDA0039550
Bob Shop ID
663118226

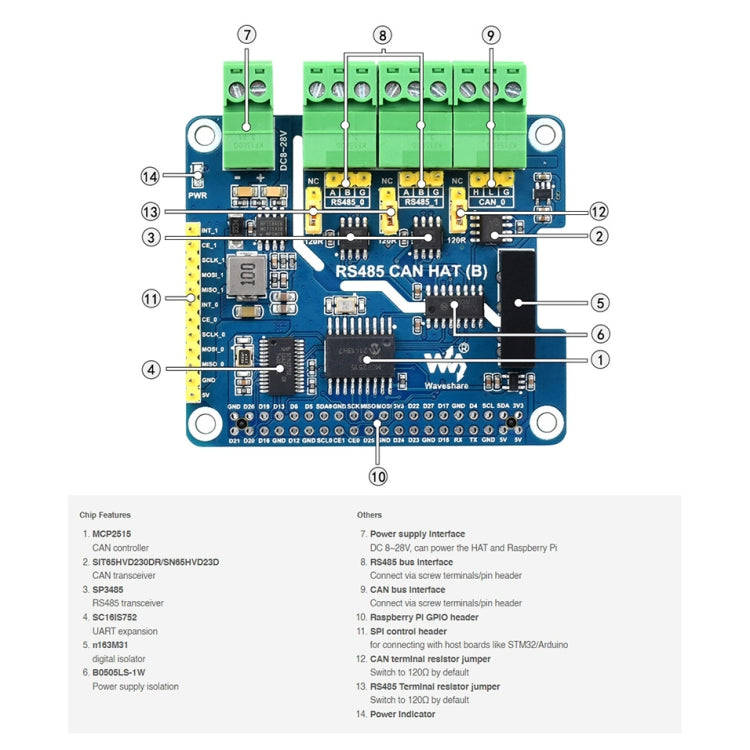

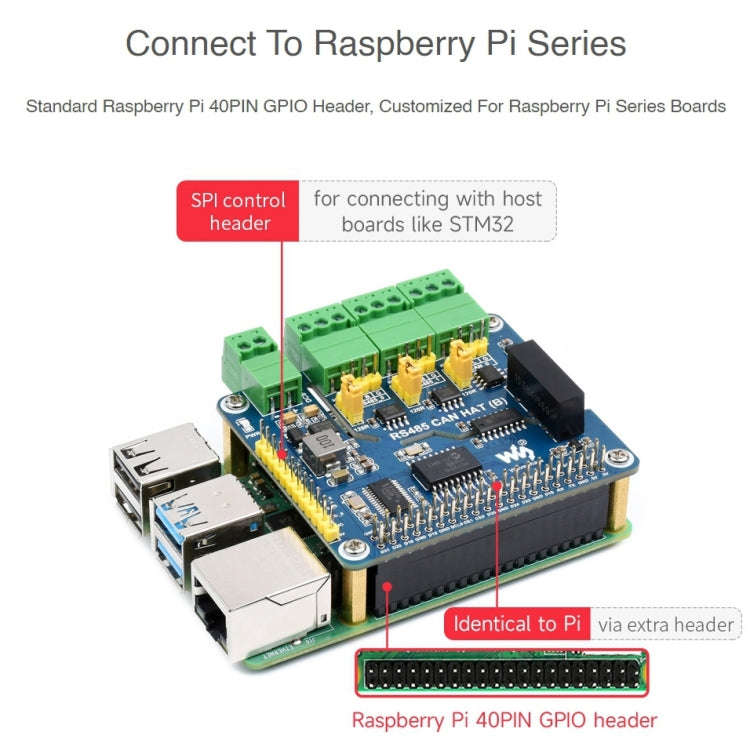

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

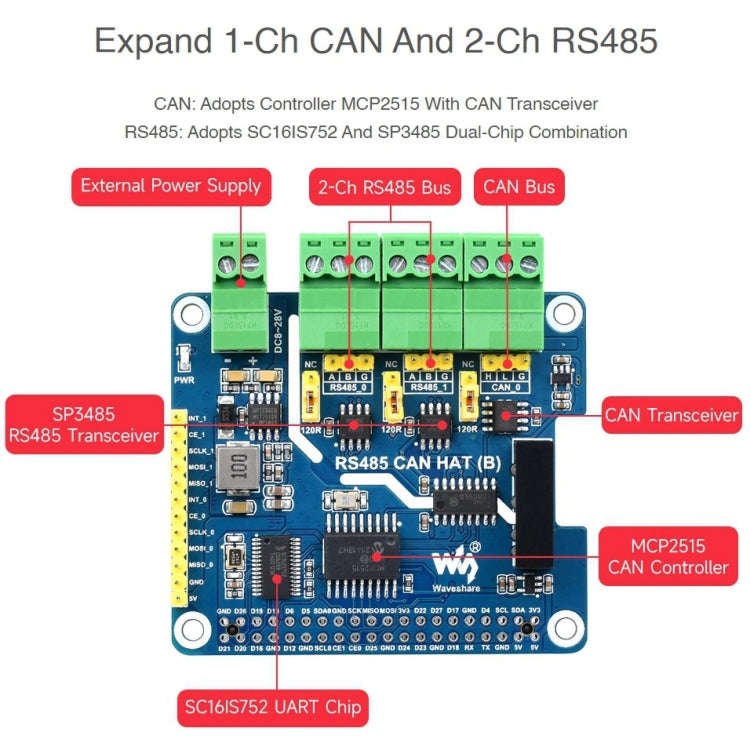

2. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN
3. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
4. Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time

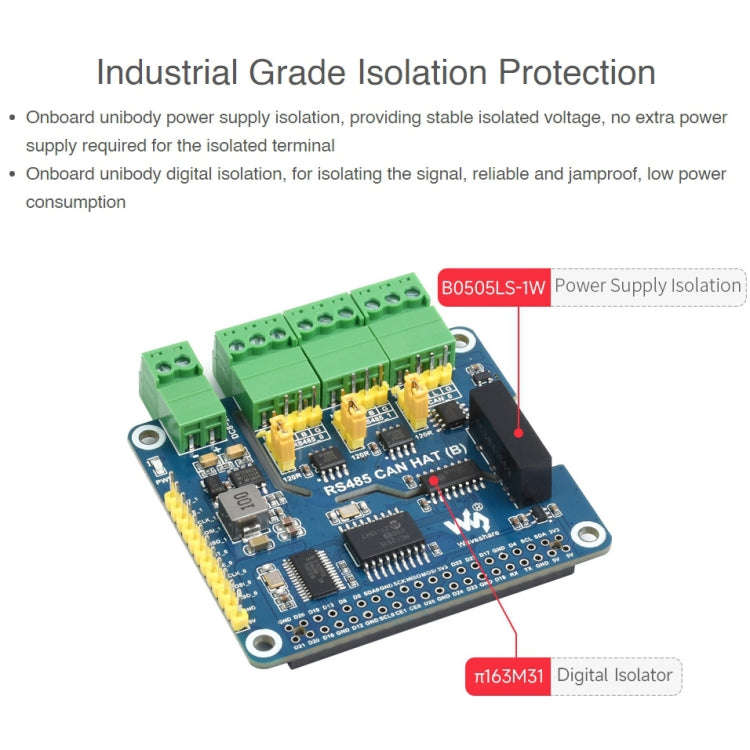

5. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
6. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
7. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
8. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
9. Onboard 120 terminal resistor, configured by jumper
10. Onboard terminals and pin headers, more convenient connection

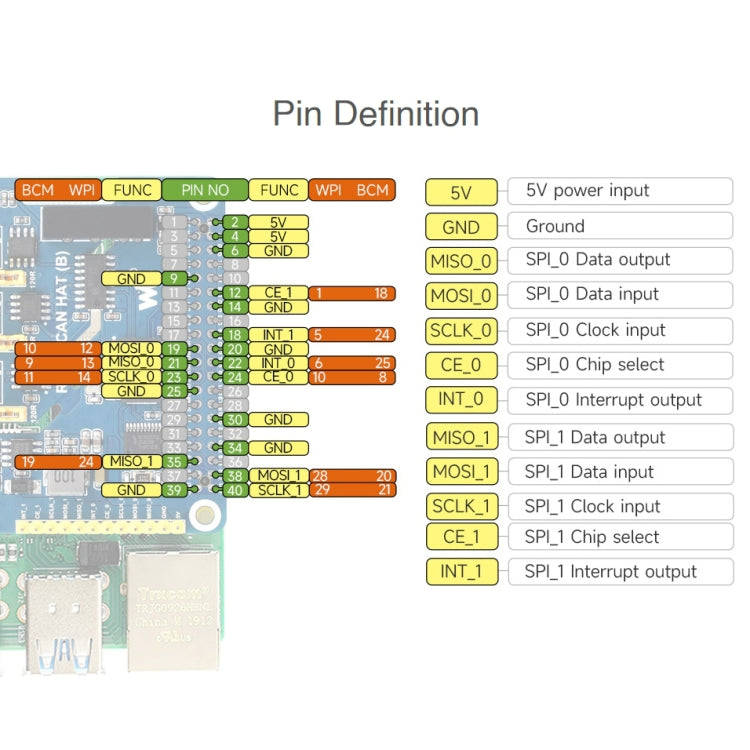

11. Breakout SPI control pins, for connecting with host control boards
