Waveshare Long-Wave IR Thermal Imaging Camera Module, 8062 Pixels, 45FOV(Type-C Port)

Features:
1. Using microbolometer and thermopile hybrid technology, 80x62 array pixels
2. Continuous operation and thermal video streaming due to shutterless design
3. Noise equivalent temperature difference (NETD) 150mK RMS@1Hz refresh rate
4. Up to 25FPS (maximum) thermal imaging video stream output
5. Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host and user manual, etc.)

main application:
1. High-precision long-term non-contact temperature online monitoring
2. Infrared thermal imaging equipment, infrared thermometer
3. Smart home, smart building, smart lighting
4. Industrial temperature control, security and safety, intrusion/motion detection
5. Small target thermal analysis, thermal trend analysis and solutions

Product parameters:
1. Power supply: 5V
2. Working current: 61mA@5V
3. Wavelength range: 8-14 microns
4. Working temperature: minus 20-85 degrees Celsius
5. Target temperature: minus 20-400 degrees Celsius
6. Refresh rate: 25 FPS
7. Field of view: 45 degrees (horizontal) 45 degrees (vertical)
8. Noise equivalent temperature difference: 150mK
9. Measurement accuracy: 2 degrees Celsius (ambient temperature 10-70 degrees Celsius)

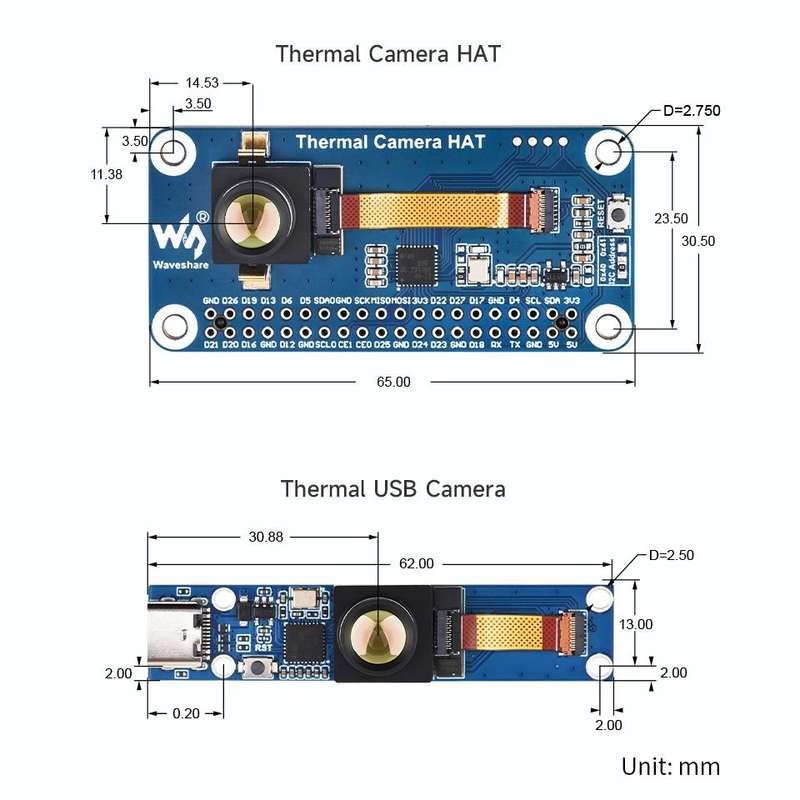

10. Product size: 40PIN GPIO Header: 6530.5mm, Type-C Port: 6213.2mm
11. Weight: 40PIN GPIO Header: 21 grams, Type-C Port: 33 grams

Packing list:
-40PIN GPIO Header/Type-C Port x1
-40PIN row seat x1
-FPC 15 PIN cable 0.3mm pitch 100mm x1
-Screw pack x1
