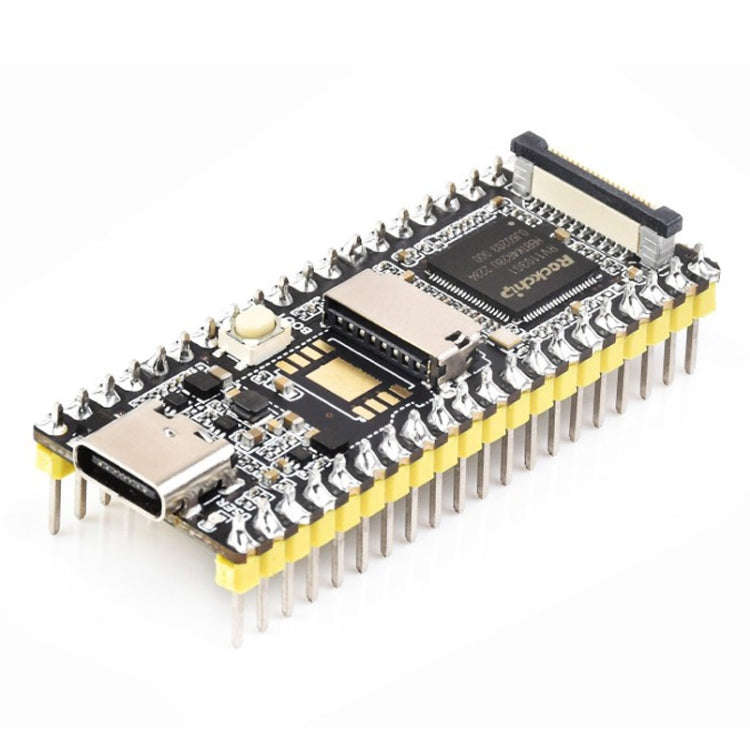

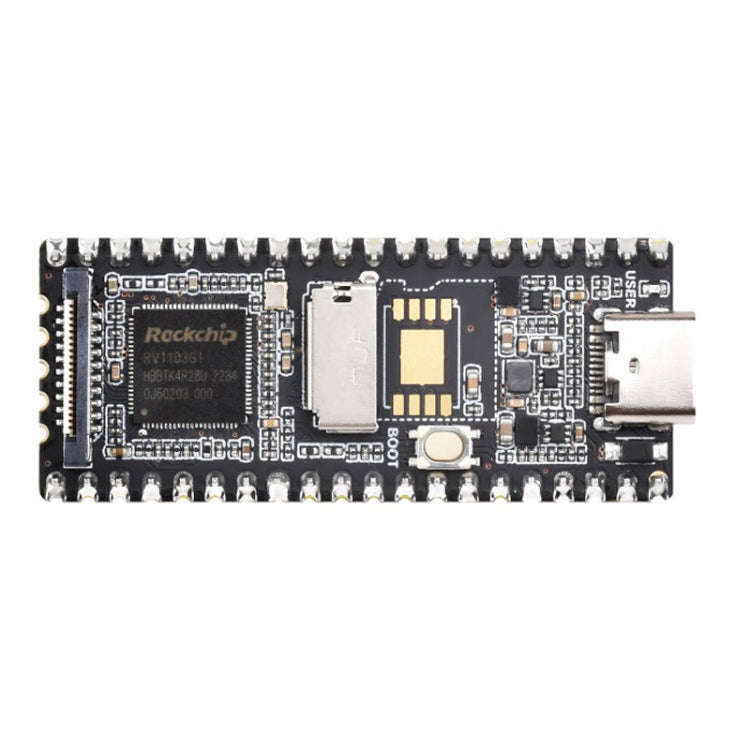

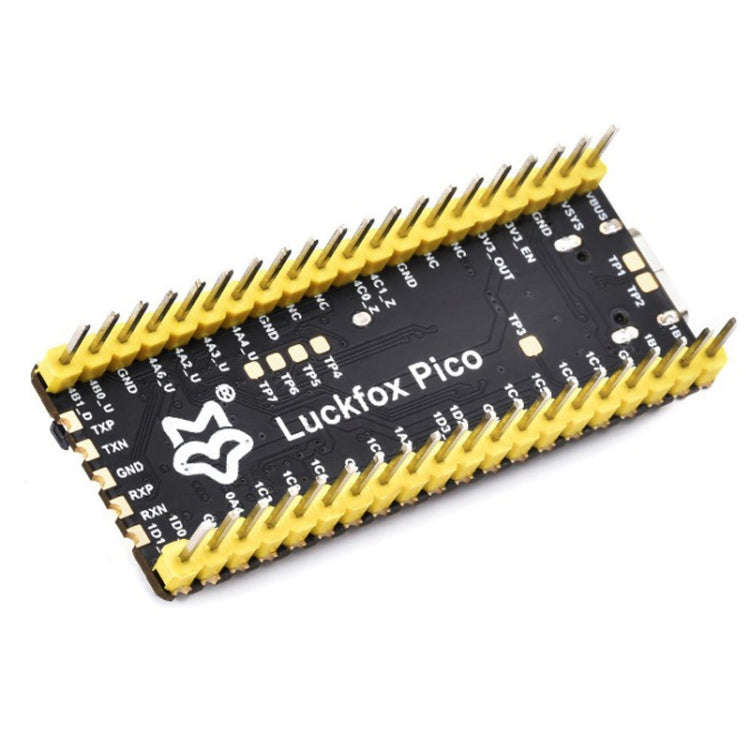

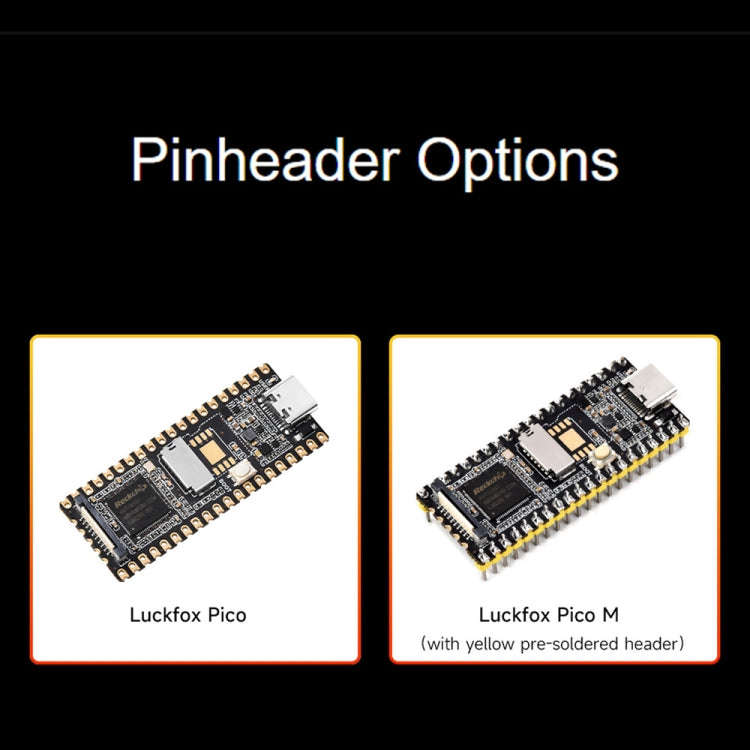

Waveshare LuckFox Pico RV1103 Linux Micro Development Board with Header
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
International
Product code:
TBD0600685802
Bob Shop ID:
607118271
Features:
1. Single-core ARM Cortex-A7 32-bit core, integrated NEON and FPU
2. Built-in Rockchip's self-developed fourth-generation NPU, with high calculation accuracy and support for int4, int8, and int16 mixed quantization. The computing power of int8 is 0.5 TOPS, and int4 can reach 1.0 TOPS
3. Built-in self-developed third-generation ISP3.2, supports 4 megapixels, and has various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction.
4. Powerful encoding performance, supports intelligent encoding mode and adaptive throttling according to the scene, saving more than 50% bit rate than conventional CBR mode, making camera images higher-definition, smaller in size, and doubling the storage space
5. The built-in RISC-V MCU supports low power consumption and fast startup, supports 250ms fast image capture and simultaneous loading of the AI model library, achieving "one second" face recognition
6. Built-in 16-bit DRAM DDR2, capable of meeting the required memory bandwidth
7. Integrated built-in POR, audio codec and MAC PHY
Product parameters:
1. Processor: Cortex A7@1.2GHz + RISC-V
2. NPU: 0.5TOPS, supports int4, int8, int16
3. ISP: Input 4M @30fps (maximum)
4. Memory: 64MB DDR2
5. USB: USB 2.0 host/device
6. Camera: MIPI CSI 2-lane

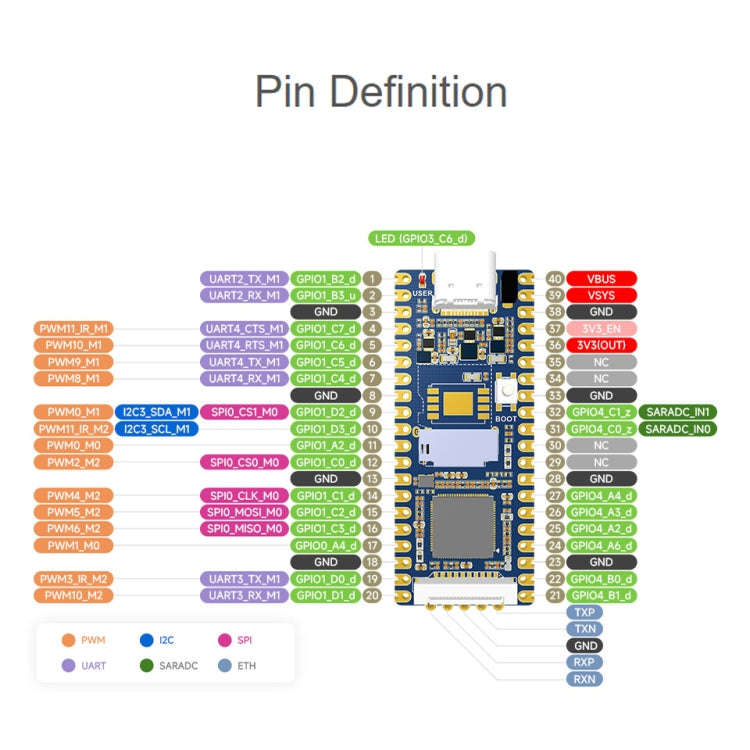

7. GPIO: 24GPIO pins
8. Ethernet port: 10/100M Ethernet controller and embedded PHY

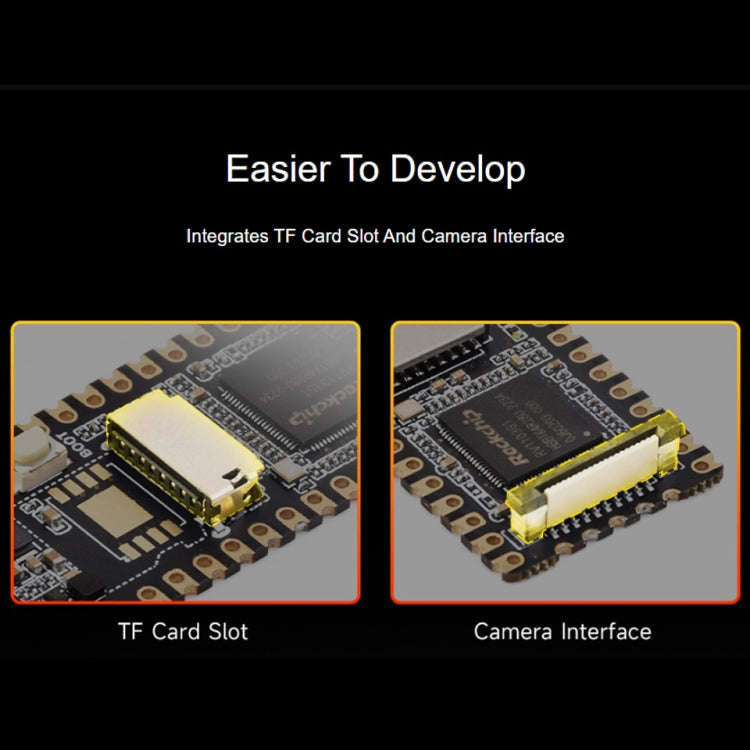

9. Default storage: TF card (not included in delivery)

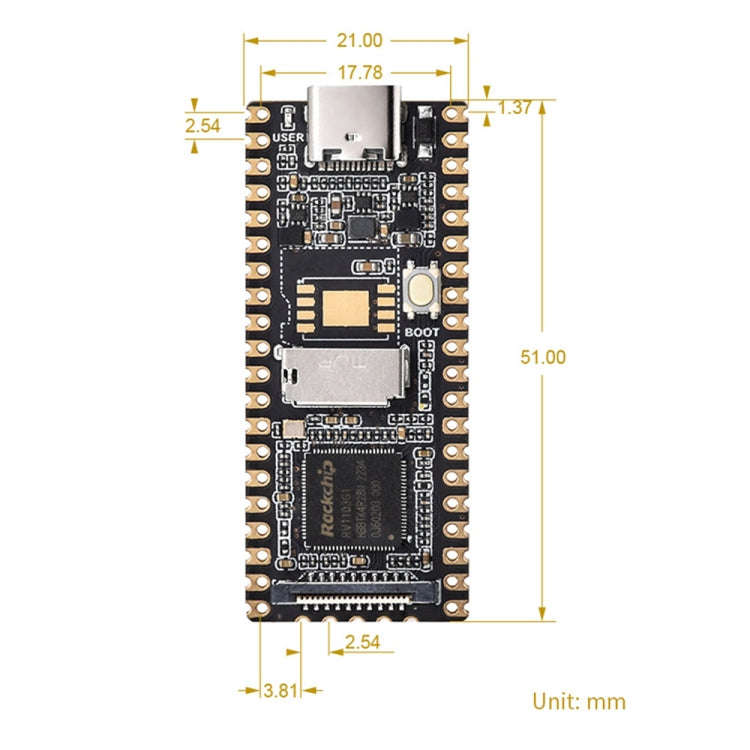

10. Product size: 51 x 21mm
11. Weight: 4g, 6g
