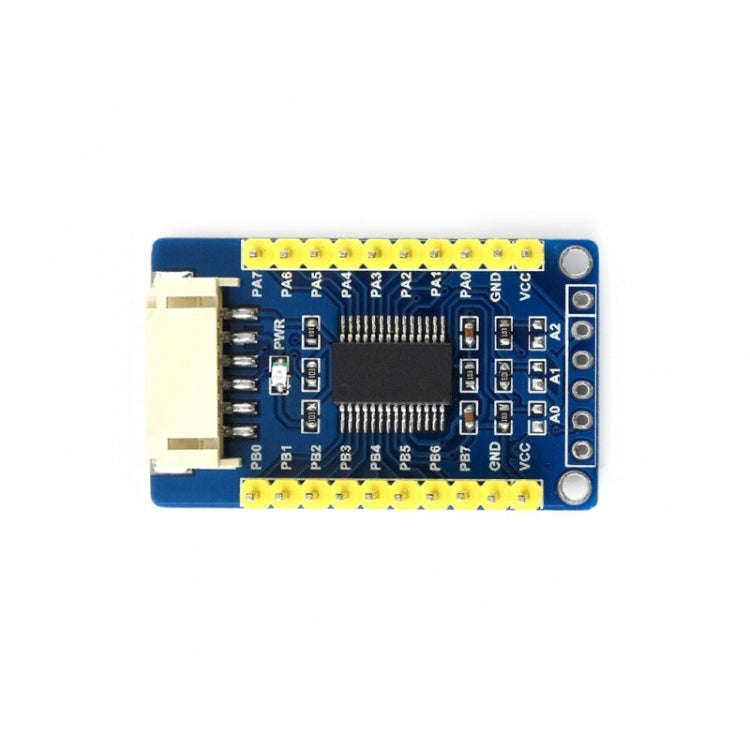

Waveshare MCP23017 IO Expansion Board, Expands 16 I/O Pins

New 10 available
R246.84
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY14280221
Bob Shop ID
636104347
Overview

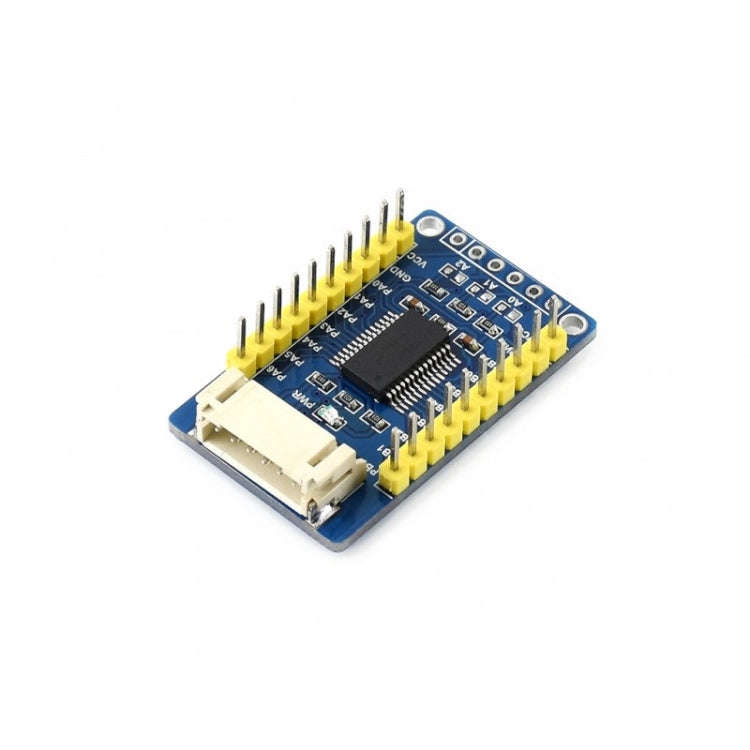

The MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

Features
1. I2C controlled, expands 2 signal pins as 16 I/O pins
2. I2C address configurable by shorting the A0/A1/A2 jumpers

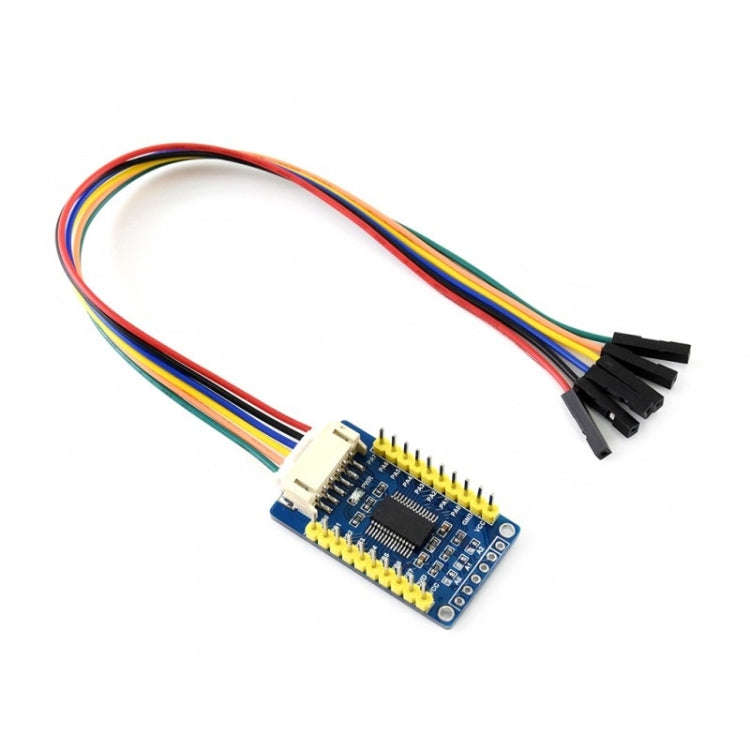

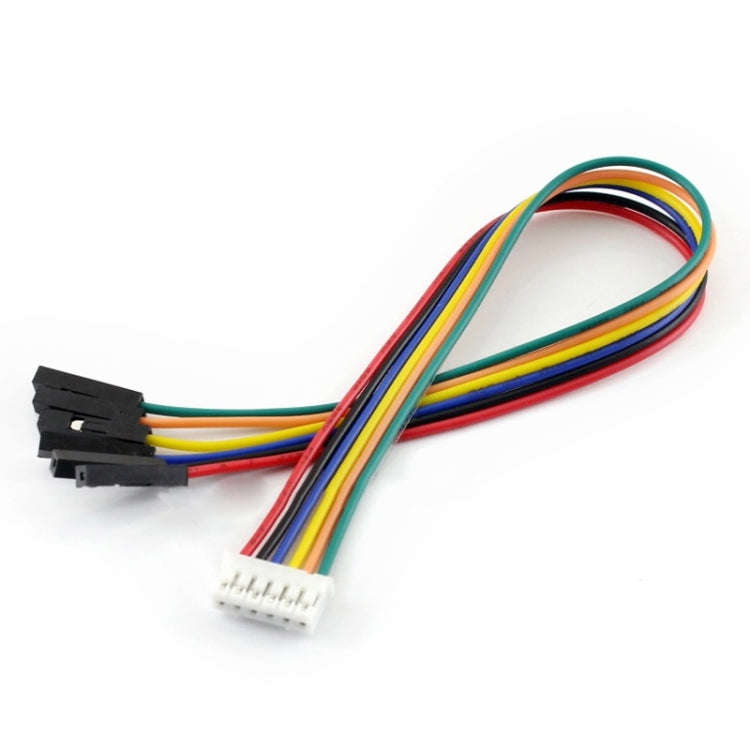

3. Provides two connector options: PH2.0 terminal and/or solder pads, allows multi I2C modules to be stacked
4. Onboard voltage translator, compatible with 3.3V/5V level
5. Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)

Specifications
1. Operating voltage: 5V/3.3V
2. Interface: I2C
3. Interrupt pins: INTA, INTB
4. Expansion I/Os: 16
5. Dimension: 38mm × 23mm
6. Mounting hole size: 2.0mm
