Waveshare Nano Base Board A for Raspberry Pi CM4, Nano Base Board A
+3

Waveshare Nano Base Board A for Raspberry Pi CM4, Nano Base Board A

New 100 available
R819.43
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
International
Product code
10244502
Bob Shop ID
667242306

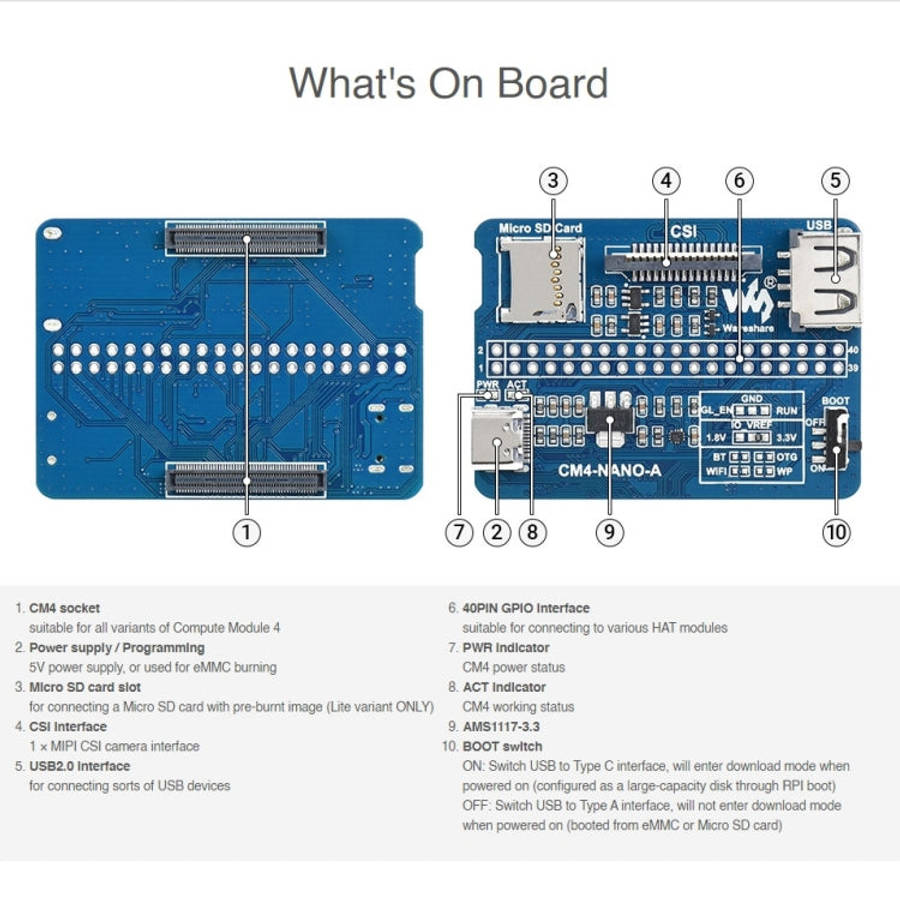

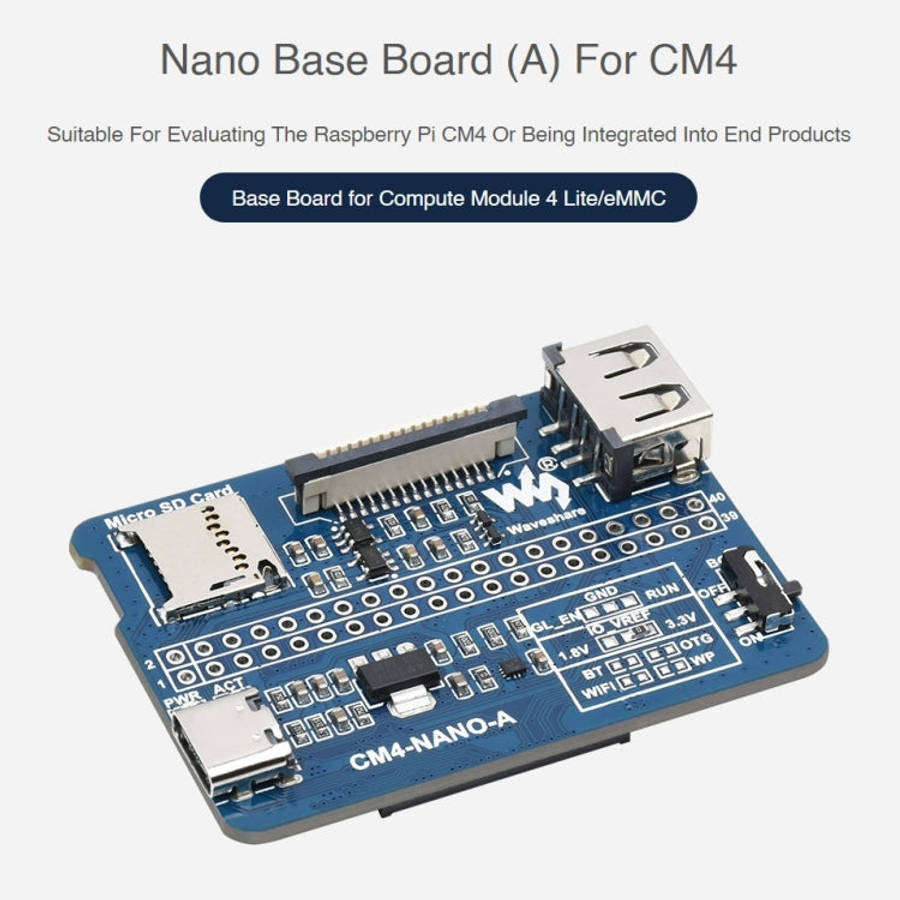

1. Base board for Compute Module 4 Lite / eMMC

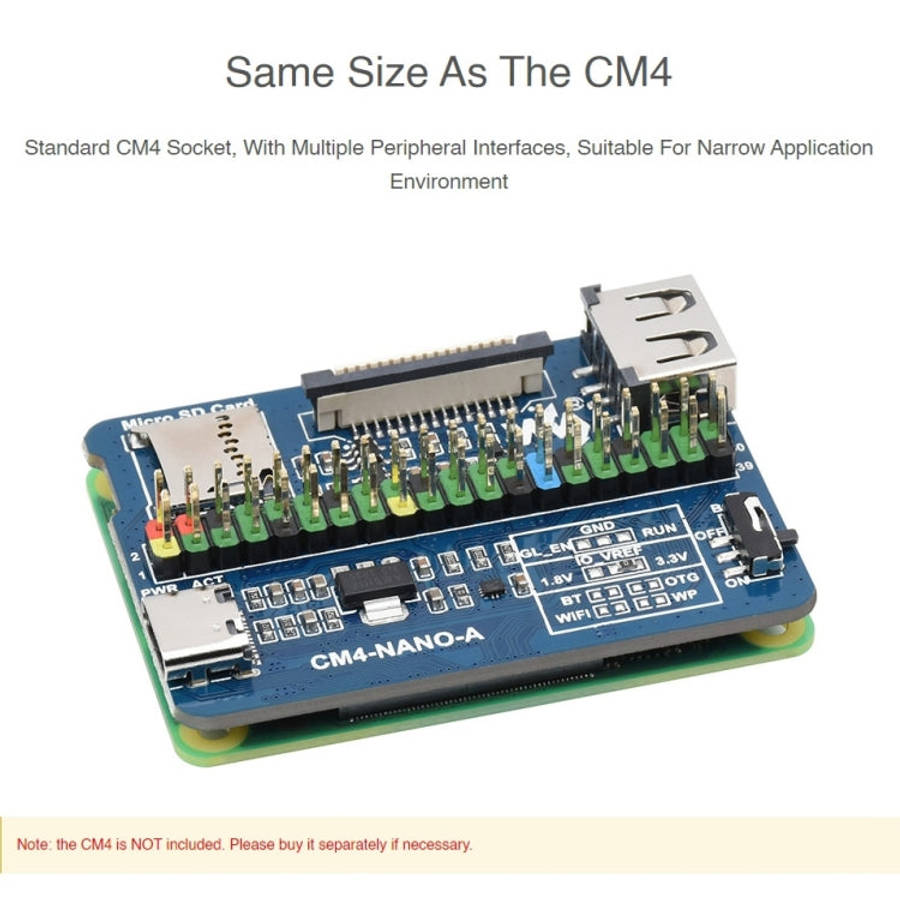

2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

Specifications:
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Connector: Raspberry Pi 40PIN GPIO interface x 1
3. USB: USB 2.0 Type A interface x 1
4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
6. Power: 5V

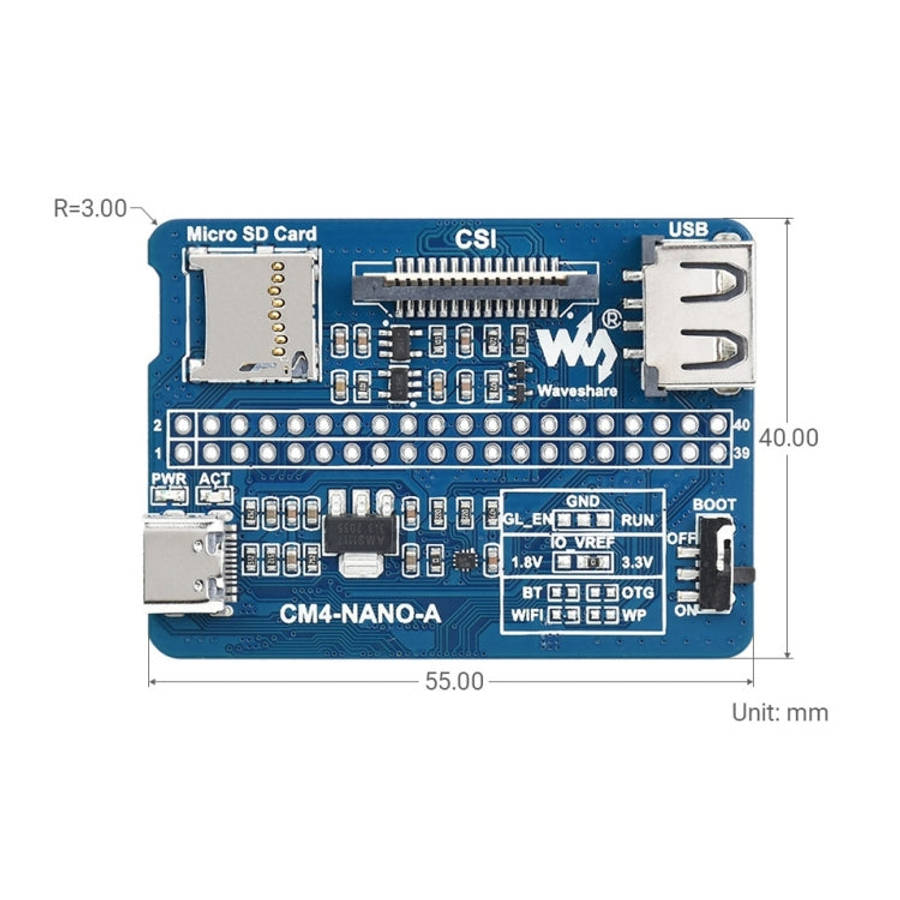

7. Size: 55 x 40mm

Package list
1. CM4-NANO-A x1
2. 2 x 20PIN color-coded straight pinheader x 2


Specification:
Package Weight
One Package Weight0.03kgs / 0.07lb
One Package Size15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch
Qty per Carton300
Carton Weight7.00kgs / 15.43lb
Carton Size42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
Loading Container20GP: 620 cartons * 300 pcs = 186000 pcs
40HQ: 1439 cartons * 300 pcs = 431700 pcs
