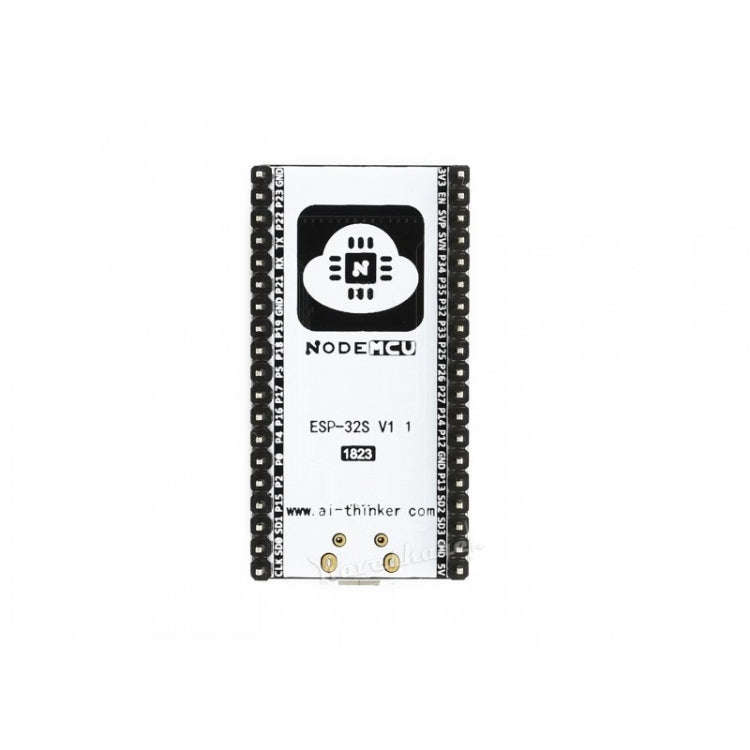

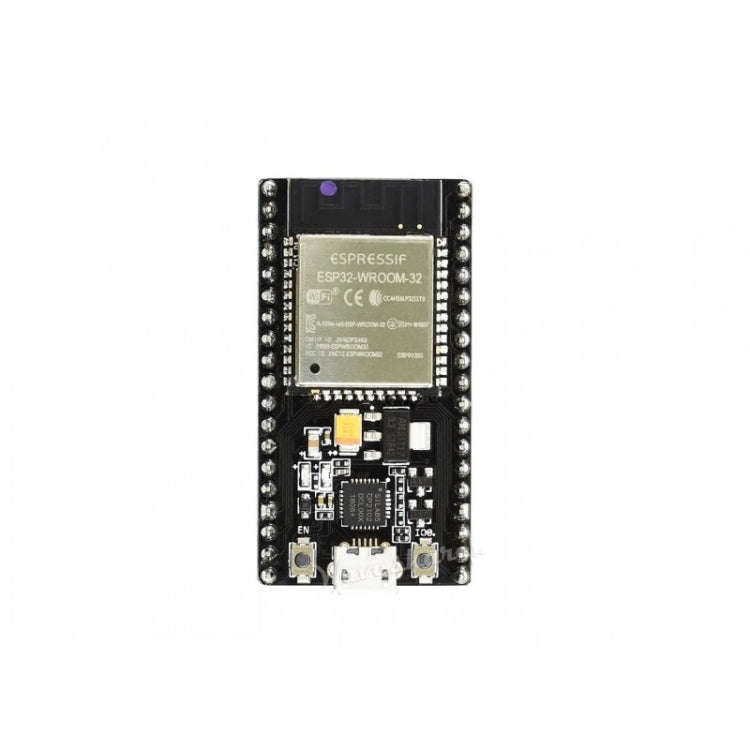

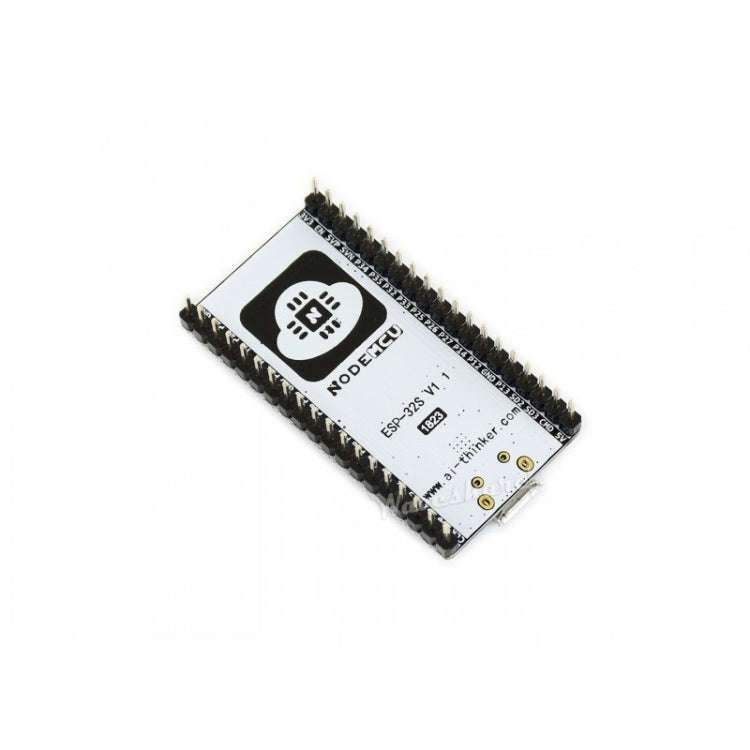

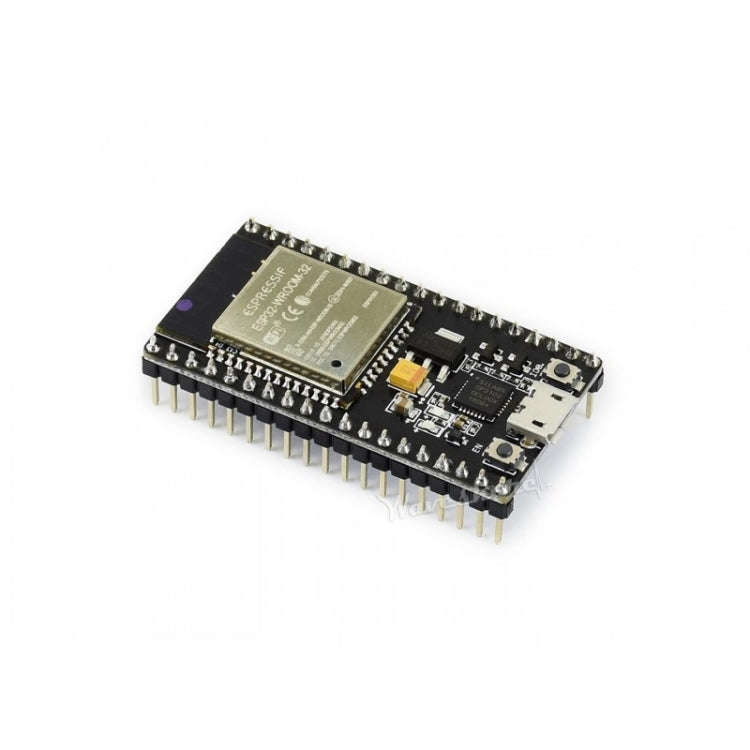

Waveshare NodeMCU-32S ESP32 WiFi+Bluetooth Development Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
ZY23070985
Bob Shop ID
603965358
Overview
1. This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What's more, all the I/O pins of ESP-WROOM-32 module are accessible via the extension headers.
2. Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.
Features
1. Onboard ESP-WROOM-32 module
2. Onboard CP2102, USB to UART converter
3. USB port for power input, firmware programming, or UART debugging
4. 2x19pin extension headers, breakout all the I/O pins of the module
5. 2x keys, used as reset or user-defined
Applications
The NodeMCU-32S suit for IOT applications such as:
1. Smart home
2. Intelligent building
3. Industrial automation
4. Wearable devices
5. IP camera
6. Intelligent agriculture
Specifications
1. WIFI module: ESP-WROOM-32
2. Processor: ESP32-D0WDQ6
3. Built-in Flash: 32Mbit
4. Antenna: Onboard PCB antenna
5. Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
6. WiFi protocol: IEEE 802.11 b/g/n
7. Bluetooth: Bluetooth 4.2
8. Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
9. WIFI mode: Station / SoftAP / SoftAP+Station
10. Power supply: 5V
11. Logic level: 3.3V
12. Dimensions: 48.26mm x 25.4mm
13. Weight: 10g
14. Packing List: NodeMCU-32S x1
