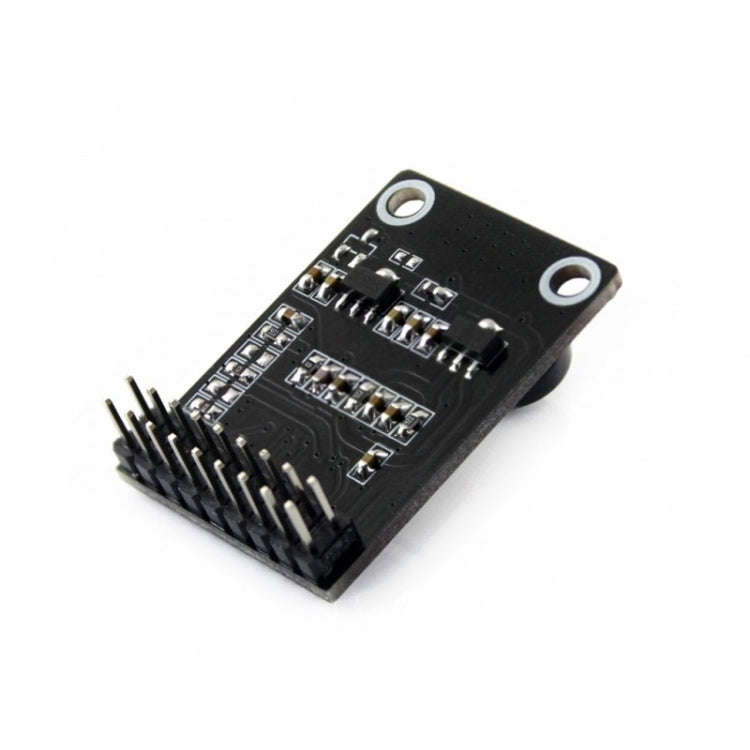

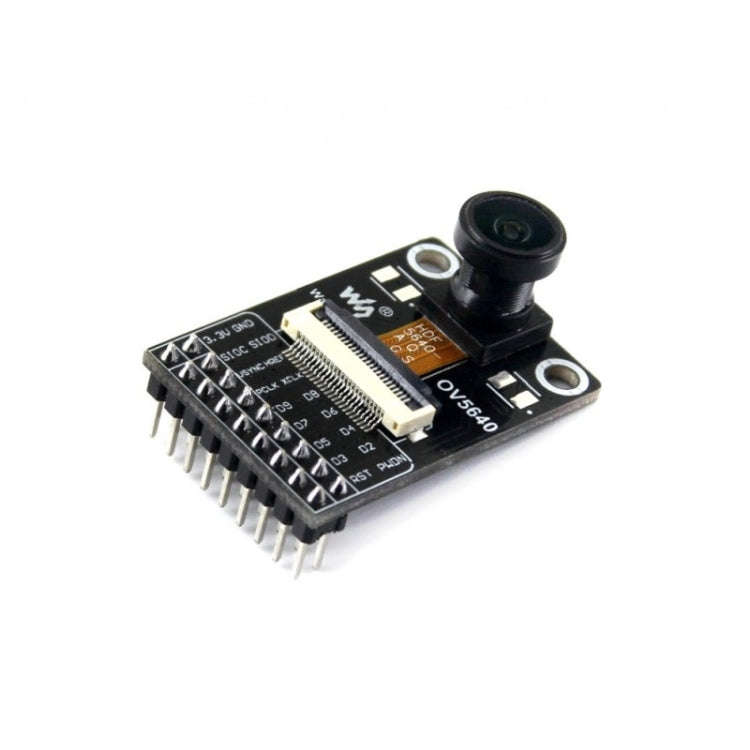

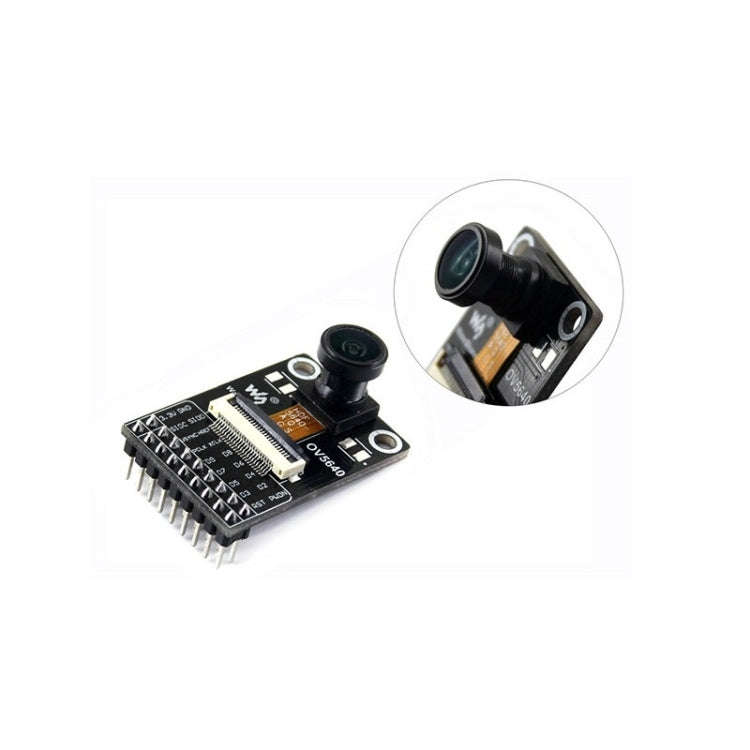

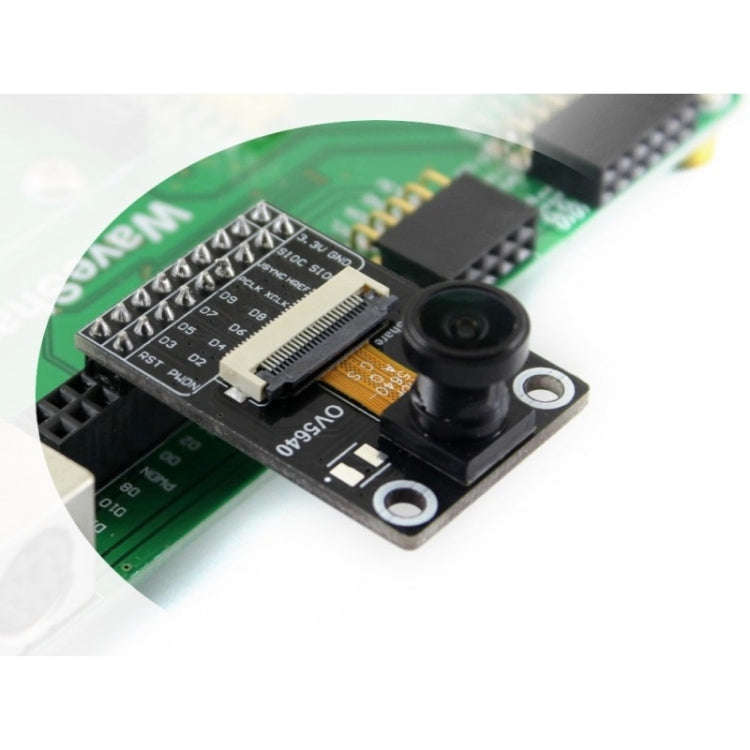

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

New 10 available
R591.74
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY15900084
Bob Shop ID
628965842
Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
4. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.5
- Focal Length: 2.0mm
- Diagonal: 170 degree (fisheye)
5. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
6. Operating Voltage: 3.3V
7. Control Interface: SCCB (I2C compatible)
8. Data Interface: DVP 8-bit
9. Dimension: 35.70mm x 23.90mm
