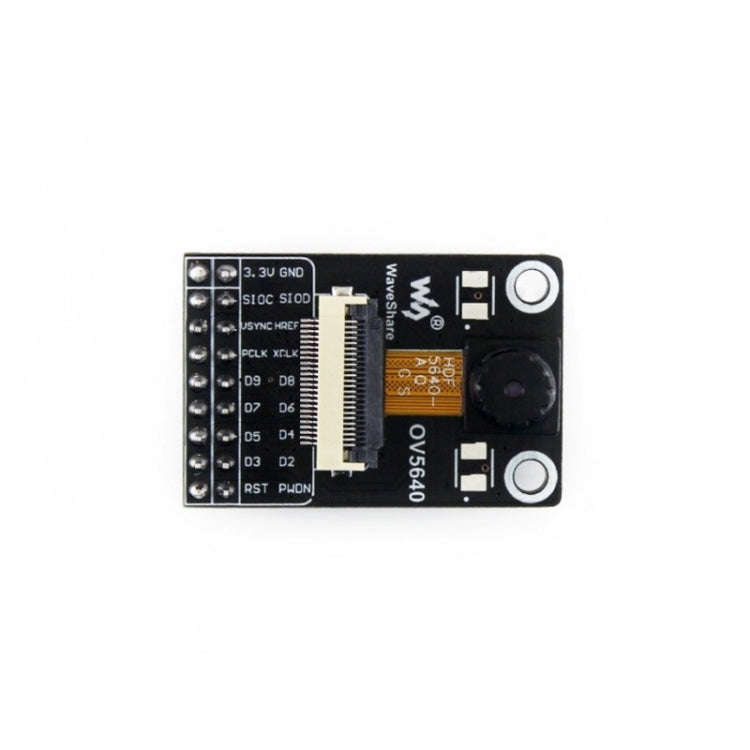

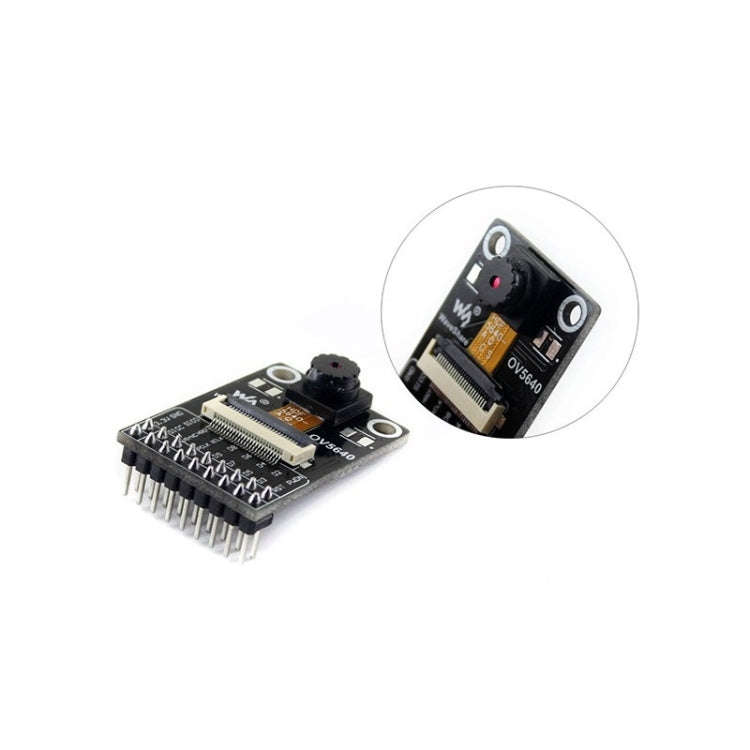

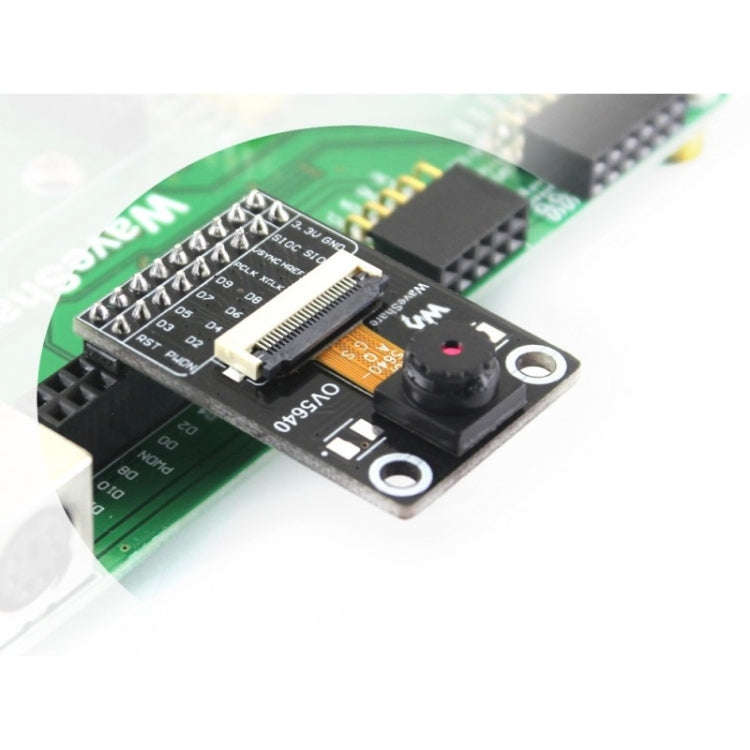

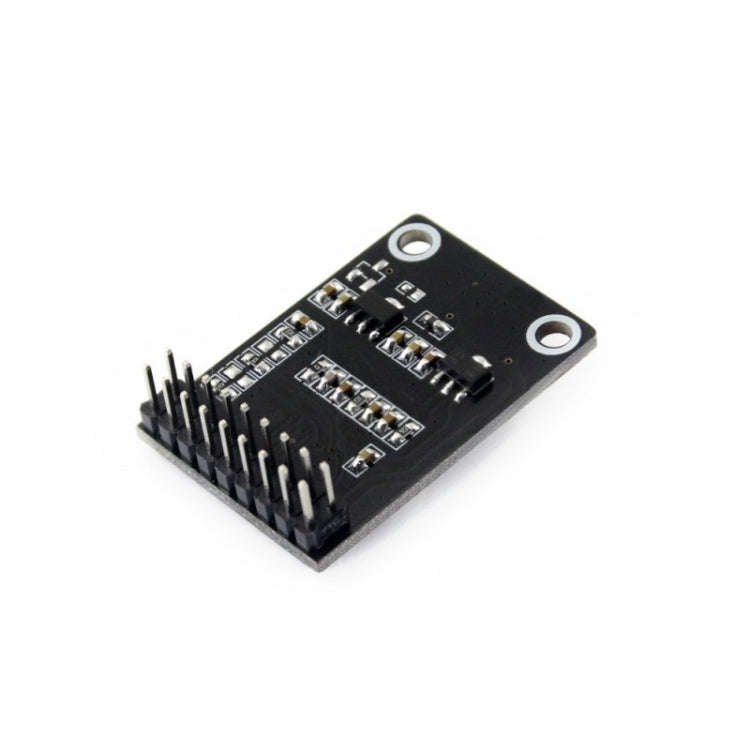

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor
Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor

New 100 available
R873.59
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
EveryTek Online29
82.61 % Positive ratings
Get it now, pay later

Product details

Condition
New
Location
International
Product code
ZY15900018
Bob Shop ID
667244413
Features
1.Pixels: 5 megapixel
2.Resolution: 2592x1944
3.Sensor: OV5640
3.1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
3.2 Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
3.3 Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
3.4 Supports image scaling, panning, windowing, etc.
4.Lens:
4.1 CCD size: 1/4inch
4.2 Aperture (F): 2.8
4.3 Focal Length: 2.8mm
4.4 Diagonal: 63 degree
5.Output Formats:
5.1 YUV(422/420)/YCbCr422
5.2 RGB565/555/444
5.3 CCIR656
5.4 RAW RGB
5.5 Compressed Data
6.Operating Voltage: 3.3V
7.Control Interface: SCCB (I2C compatible)
8.Data Interface: DVP 8-bit

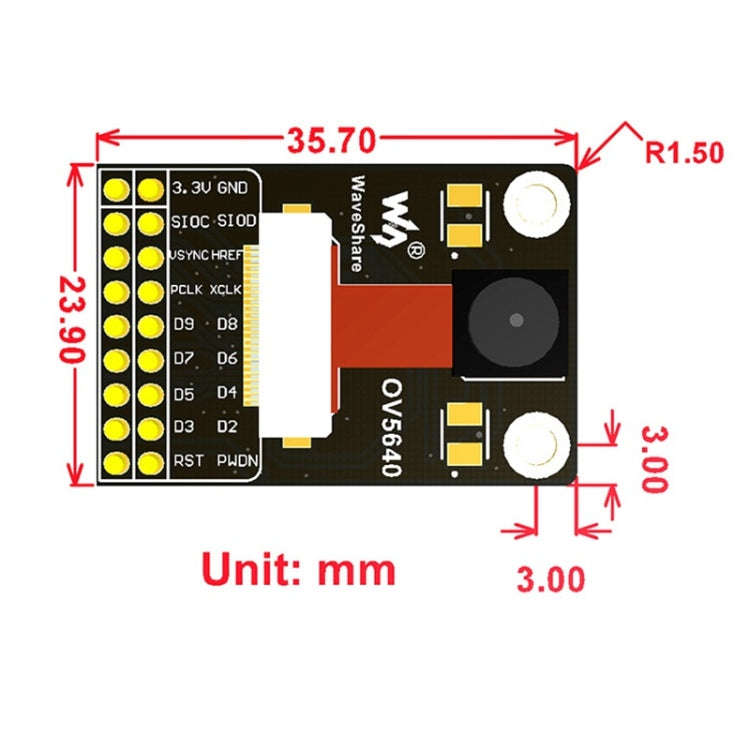

9.Dimension: 35.70mm × 23.90mm


Specification:
Package Weight
One Package Weight0.01kgs / 0.03lb
One Package Size6cm * 4cm * 1cm / 2.36inch * 1.57inch * 0.39inch
Qty per Carton4000
Carton Weight15.00kgs / 33.07lb
Carton Size60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container20GP: 277 cartons * 4000 pcs = 1108000 pcs
40HQ: 644 cartons * 4000 pcs = 2576000 pcs
