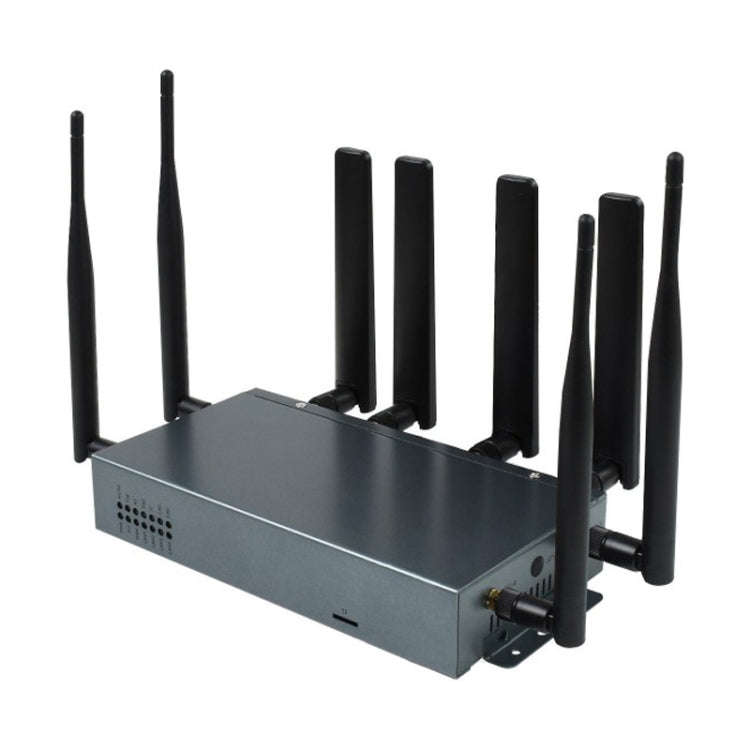

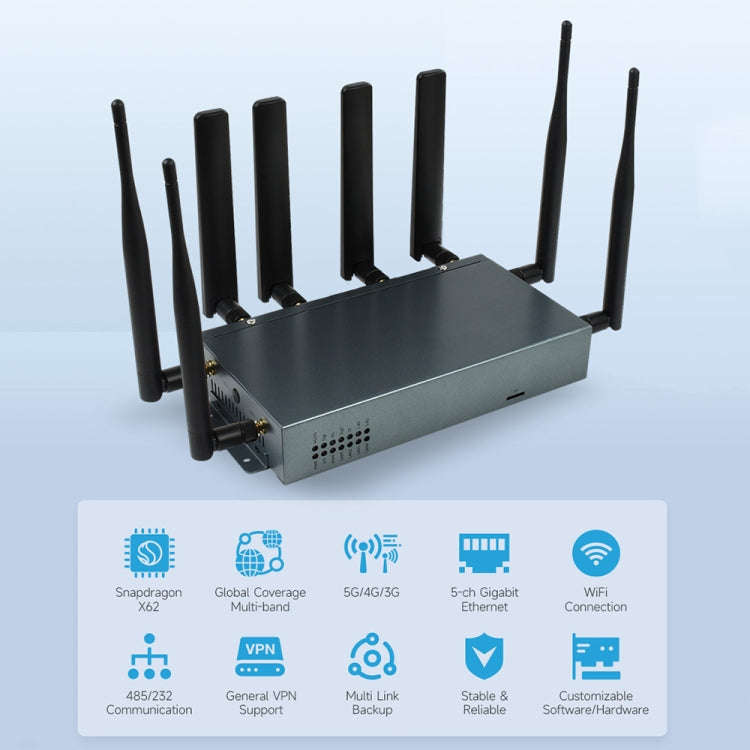

Waveshare RM520N-GL Wireless CPE Industrial 5G Router, Snapdragon X62 Onboard(UK Plug)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0576531301C
Bob Shop ID
611879908

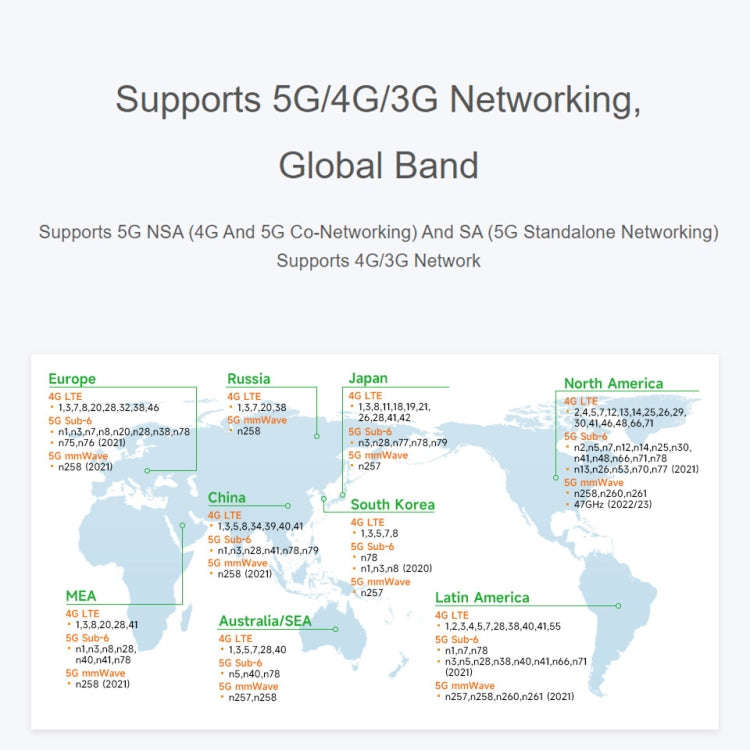

1. 5G wireless specifications
-5G Sub-6G:
SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
-4G:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
LAA:B46
-UMTS: B1, B2, B4, B5, B8, B19
-GNSS: GPS / GLONASS / Beidou (Beidou) / Galileo / QZSS (only supported by RM520N-GL)

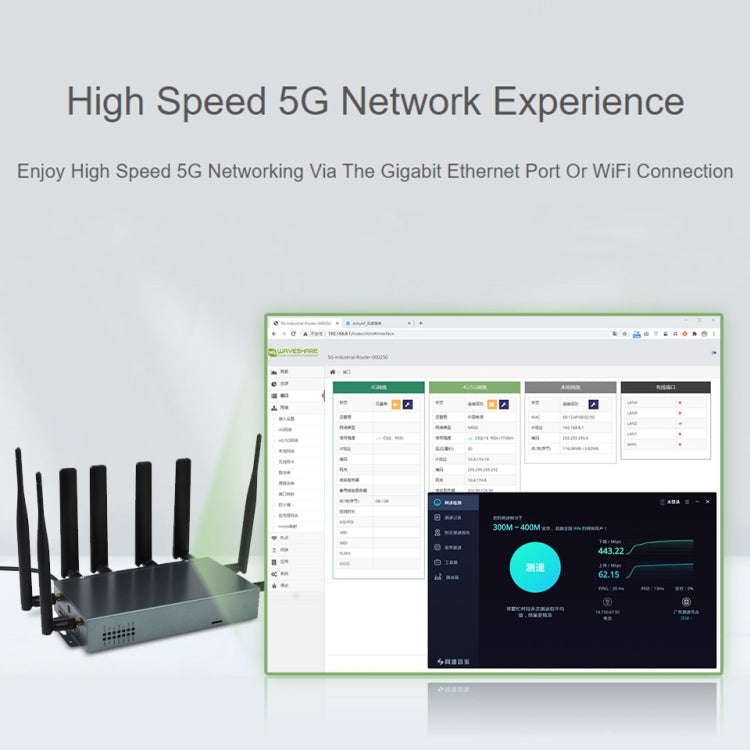

2. Data rate
-5G Sub-6G:
SA: 2.4 Gbps (DL) / 900 Mbps (UL)
NSA: 3.4 Gbps (DL)/550 Mbps (UL)
-LTE: 1.6 Gbps (DL)/200 Mbps (UL)
-HSPA+ 42 Mbps (DL)/5.76 Mbps (UL)
3. WIFI wireless specifications
-WiFi standards: IEEE802.11b/g/n, IEEE802.11Wi-Fi 5(a/b/g/n/ac) compatible, 2.4GHz, 5.8GHz, 2T2R, support AP mode
-Data rate: 2.4GHz: up to 300Mbps; 5.8GHz: up to 866Mbps
-Authentication: Supports WEP, WPA, WPA2 and other encryption methods

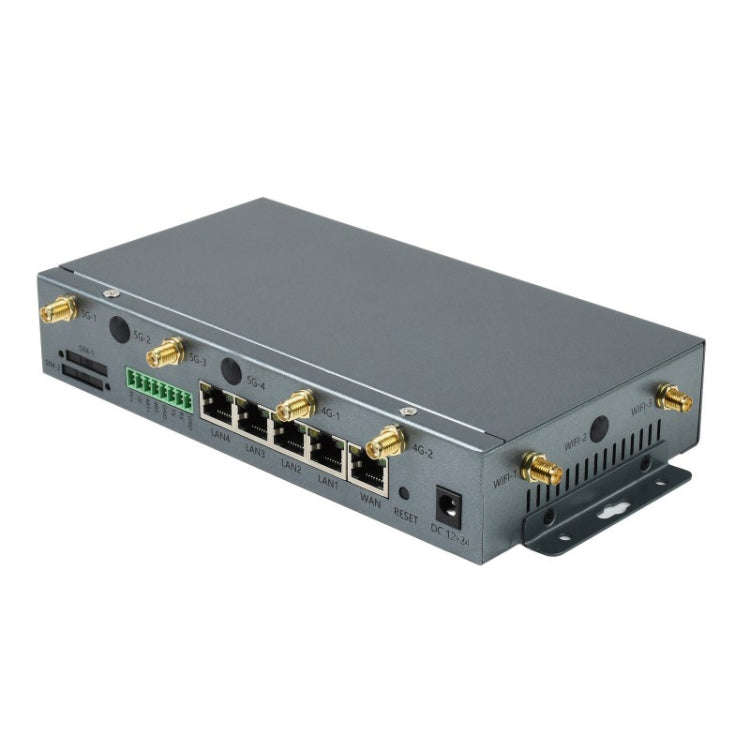

4. Interface

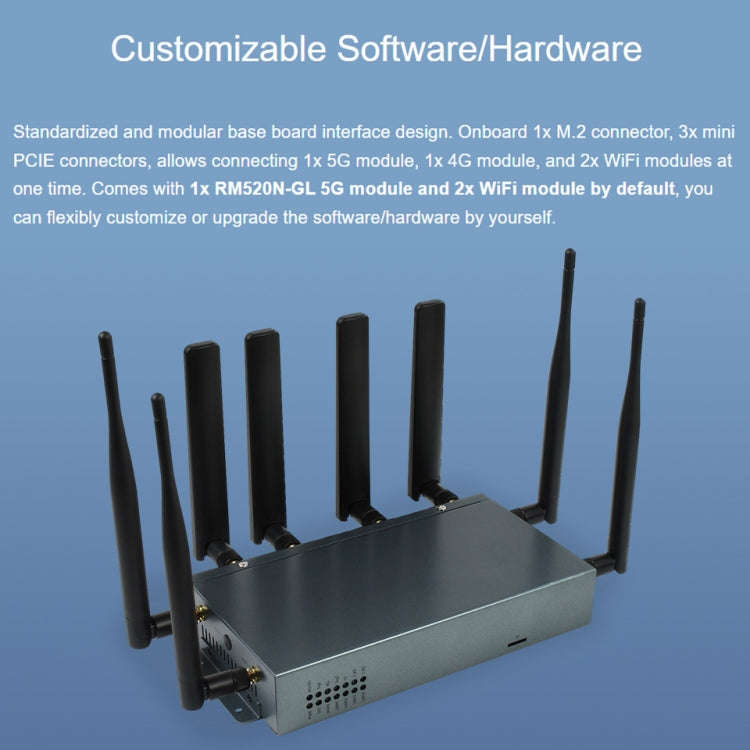

-M.2: 1 connector, comes with 1 RM520N-GL module by default, supports other 5G modules
-Mini PCIE: 3 connectors, equipped with 1 2.4GHz and 1 5.8GHz WiFi module, can connect more than 1 4G module
-WAN: 1x 10/100/1000M Ethernet, auto-negotiation MDI/MDIX, built-in 1.5KV electromagnetic isolation protection
(The WAN RJ45 can be used as a LAN RJ45 port, so there can be a total of 5 LAN RJ45 ports)
-LAN: 4x 10/100/1000M Ethernet, auto-negotiation MDI/MDIX, built-in 1.5KV electromagnetic isolation protection

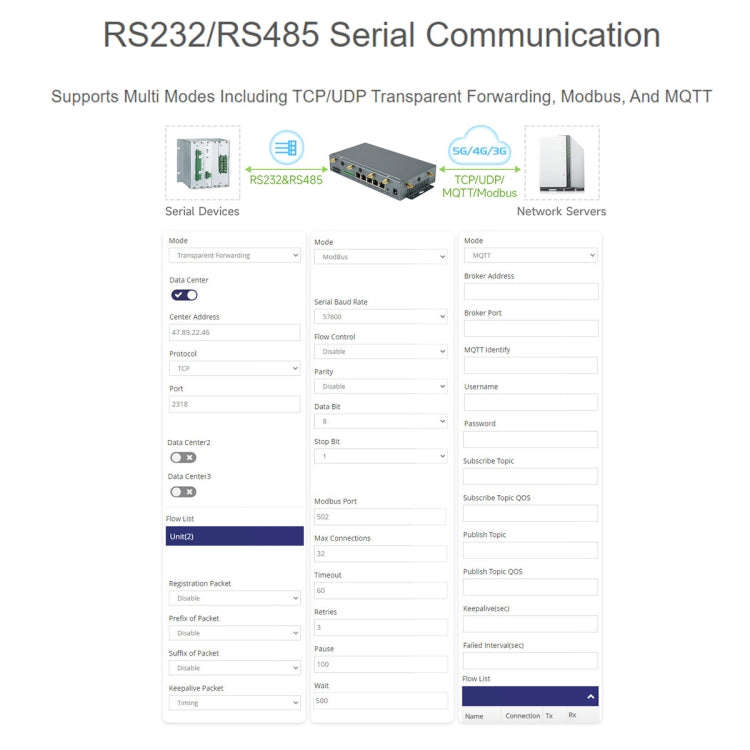

-Serial port: 1x RS232 + 1x RS485, built-in ESD protection
-SIM/UIM card slot: drawer-type SIM card slot to prevent the SIM card from falling off, with built-in 15KV ESD protection
-Antenna interface: SMA standard antenna interface, equipped with 4x 5G antenna and 4x WiFi antenna by default
-TF card slot: for external storage
-Power supply: standard power interface, providing 12~24V input, embedded power reverse protection and overvoltage protection
-RESET button: Press and hold for 5-10 seconds and release to restore the router to factory settings.
-Indicators: PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators
5. Power supply
-Power adapter: DC 12V/2A
-Power input range: 12-24V
-Power consumption: data mode: less than 1A@12V, idle mode: less than 500mA@l2V
6. Physical parameters

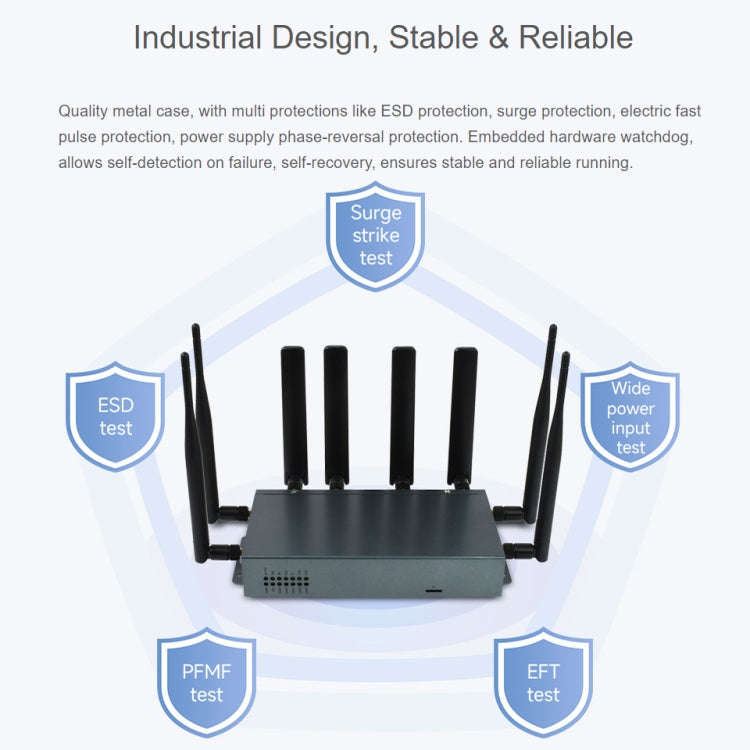

-Material: metal shell
-Protection level: IP30
-Operating temperature: -35 to 75 degrees Celsius
-Storage temperature: -40 to 85 degrees Celsius
-Relative humidity: 95 percent (non-condensing)

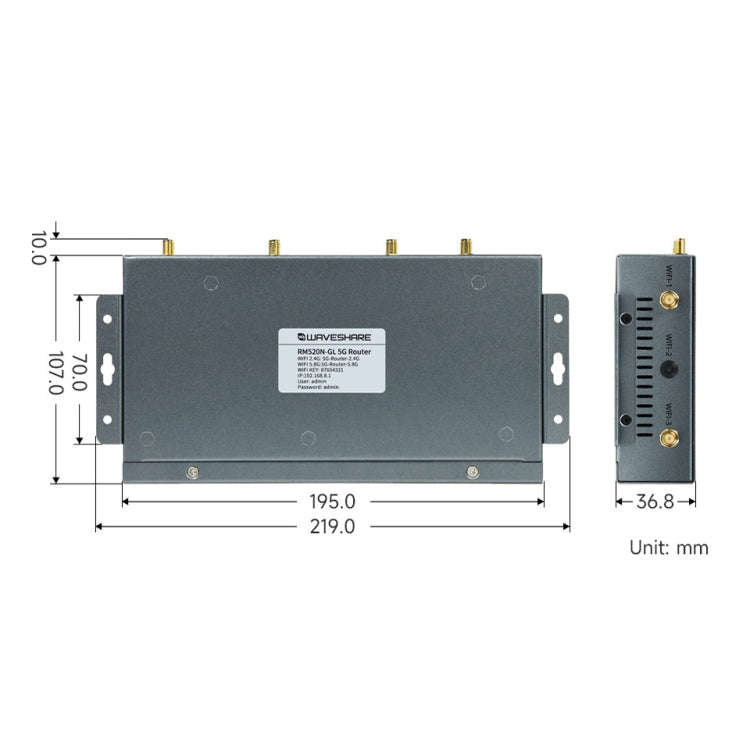

-Product size: 219 x 117 x 36.8mm
-Weight: 919 grams
Packing list:
-RM520N-GL 5G Router x 1
-5G antenna x 4
-WiFi antenna x 4
-12V power adapter x 1
