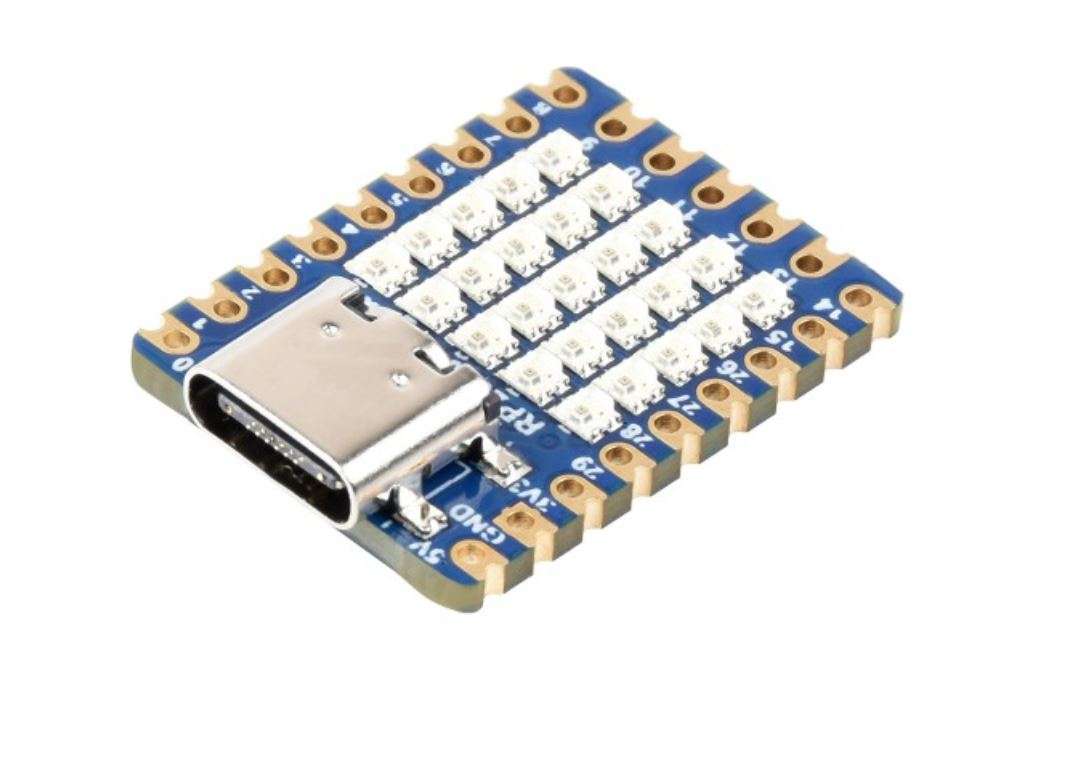

Waveshare RP2040-Matrix Development Board - Based On Official RP2040 Dual Core Processor

Waveshare RP2040-Matrix Development Board - Based On Official RP2040 Dual Core Processor

Product Description

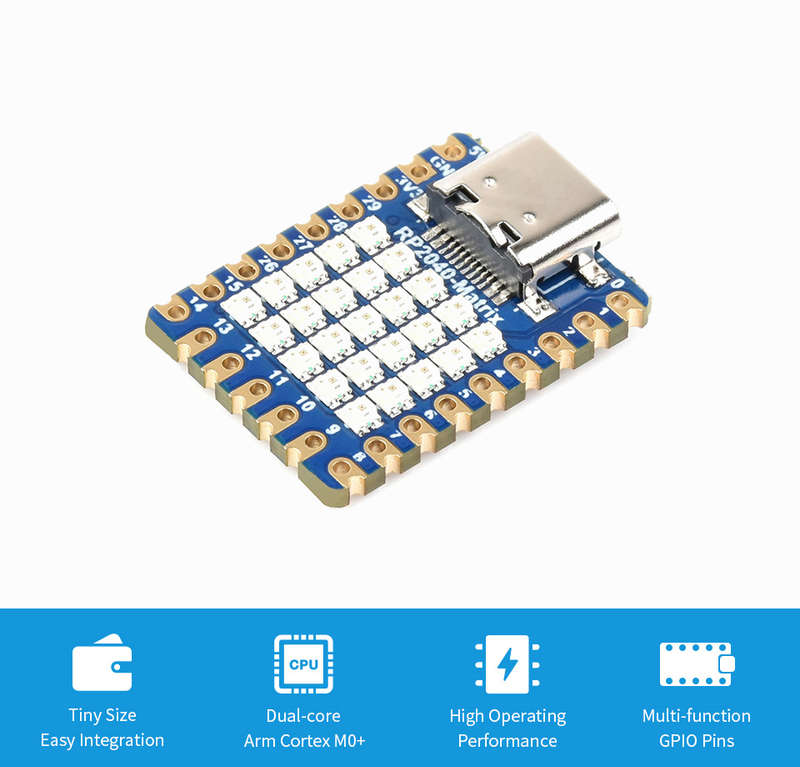

The RP2040 is a Pico-like MCU board based on Raspberry Pi RP2040. It is a castellated module, suitable for SMD applications.

Specifications

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Onboard 5 × 5 RGB LED matrix for colorful lighting display
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB

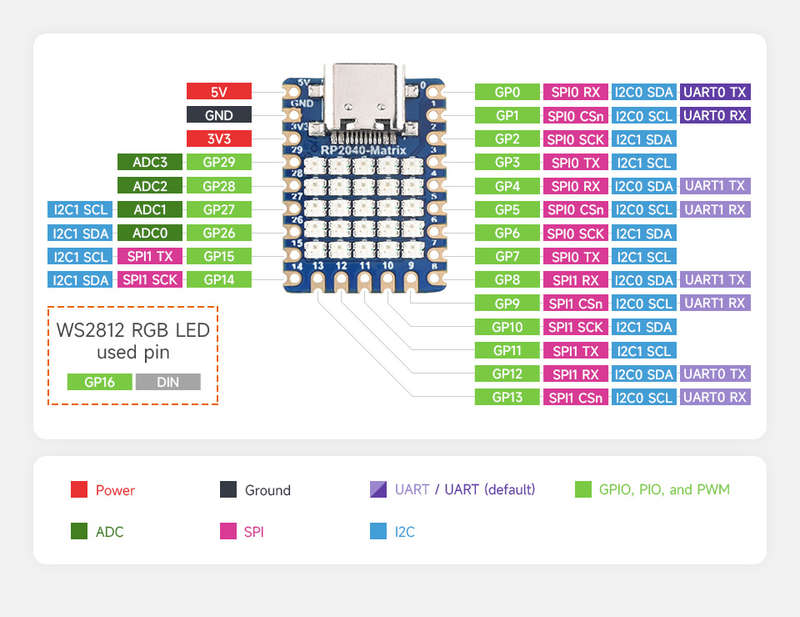

• 20 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
