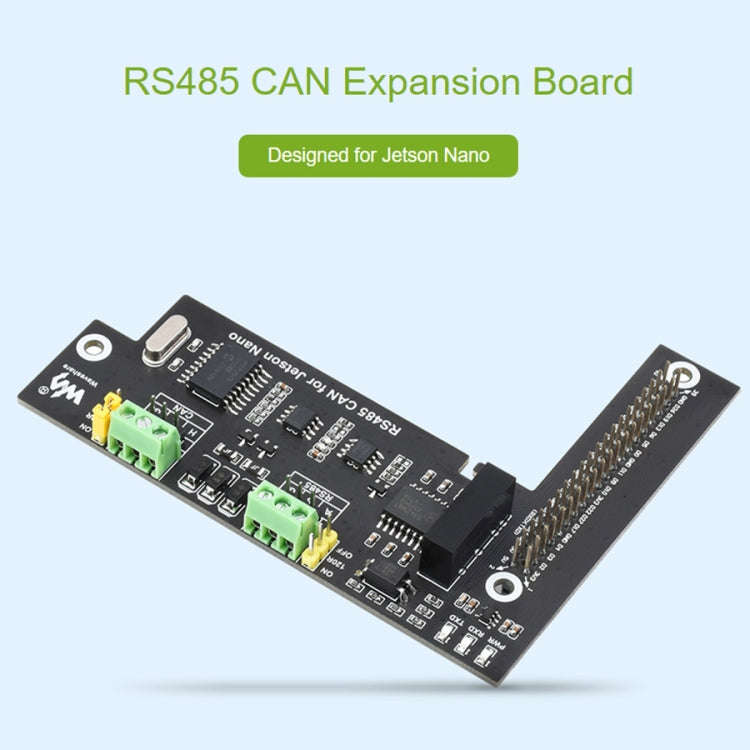

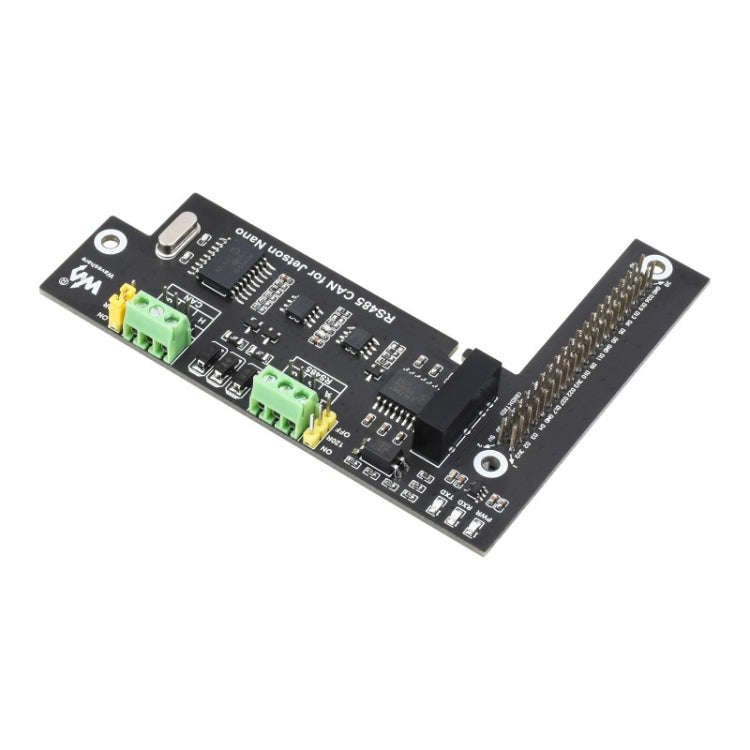

Waveshare RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit

10 available / new
R414.54
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DOP0498H
Bob Shop ID
636104305
1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

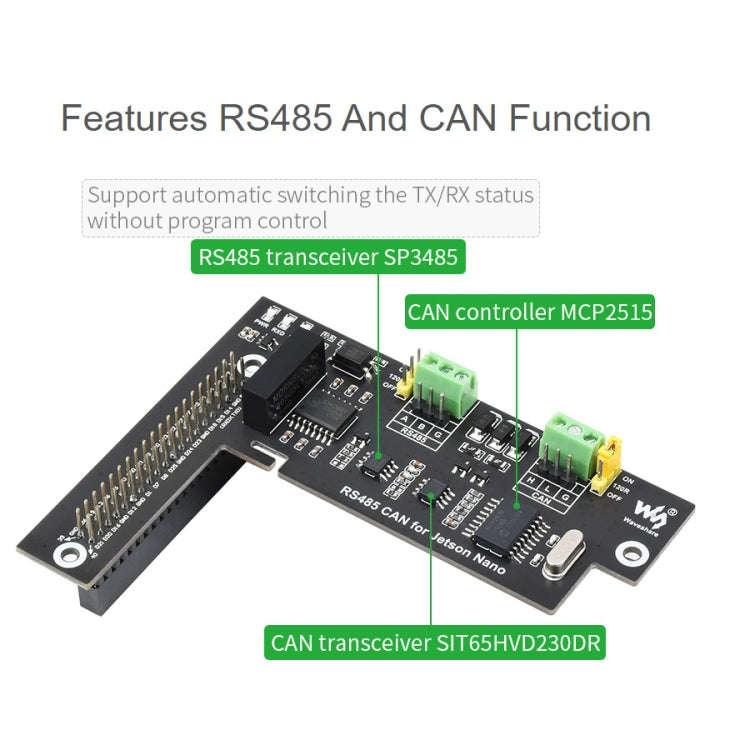

2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

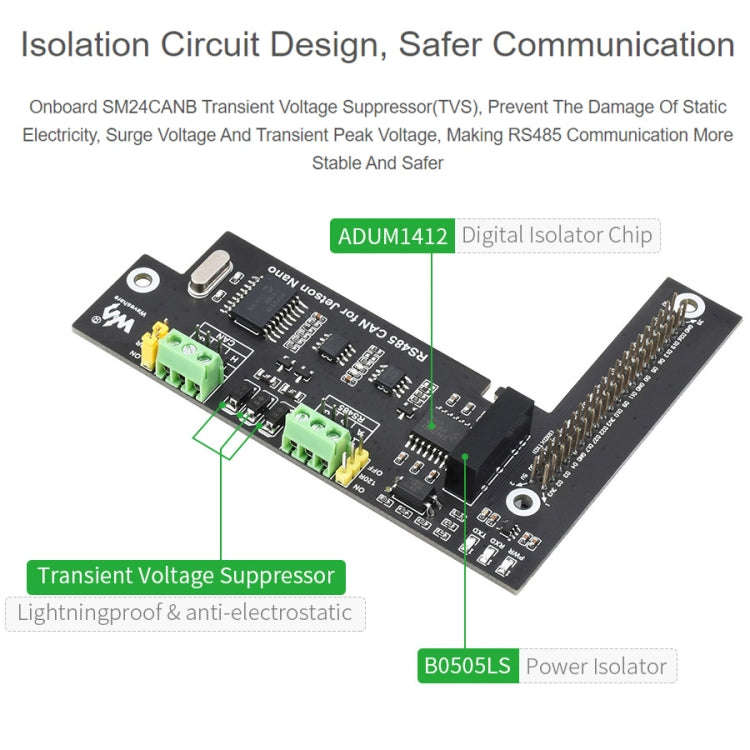

4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ningproof & anti-electrostatic
5. Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
6. Reserved control pins, allows to work with other control boards
7. Comes with development resources and manual (examples in python)

Specifications

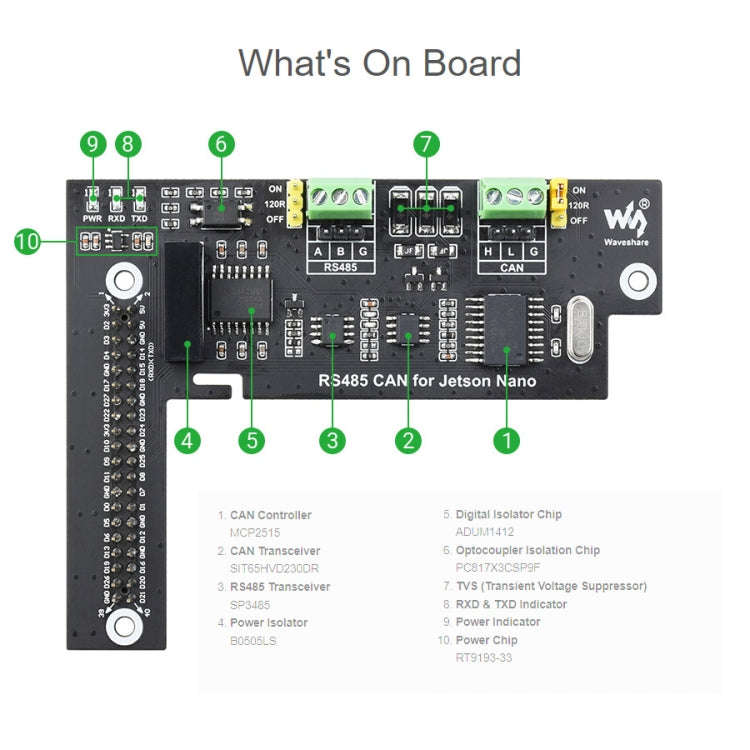

1. CAN Controller: MCP2515
2. CAN transceiver: SIT65HVD230DR
3. RS485 transceiver: SP3485
4. Working voltage: 3.3V

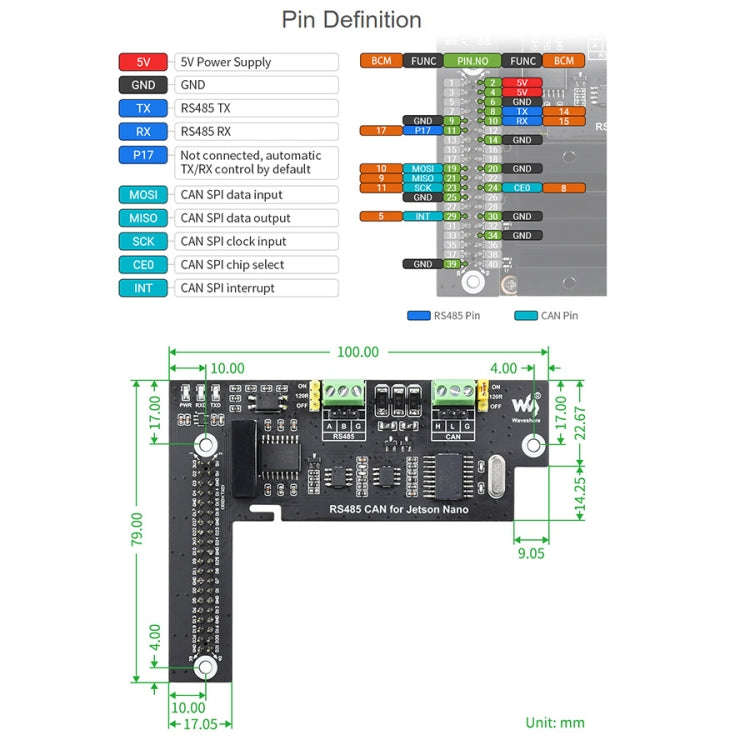

5. Mounting hole size: 3.0mm
6. Dimensions: 100 x 79 mm

Package List
1. RS485 CAN for Jetson Nano x1
2. Screws pack x1
