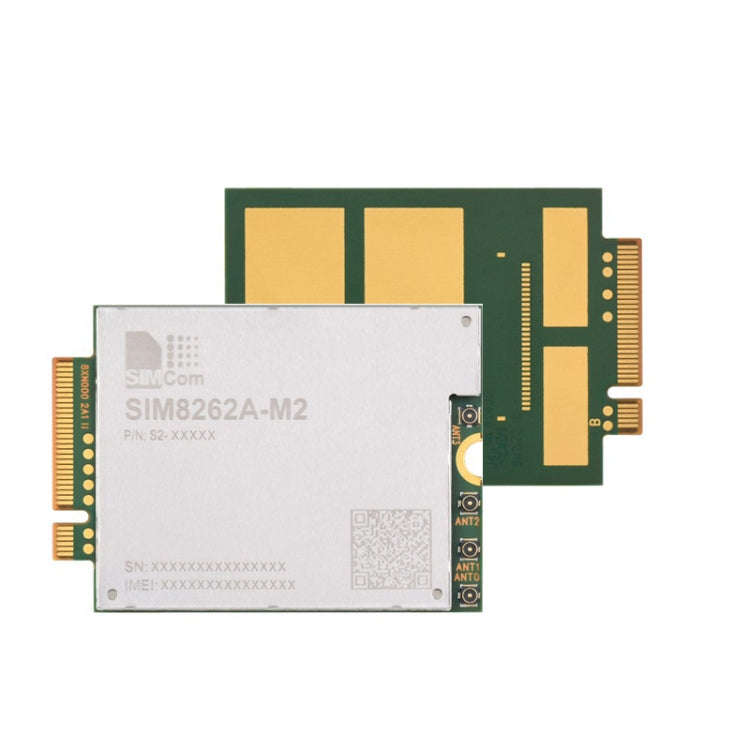

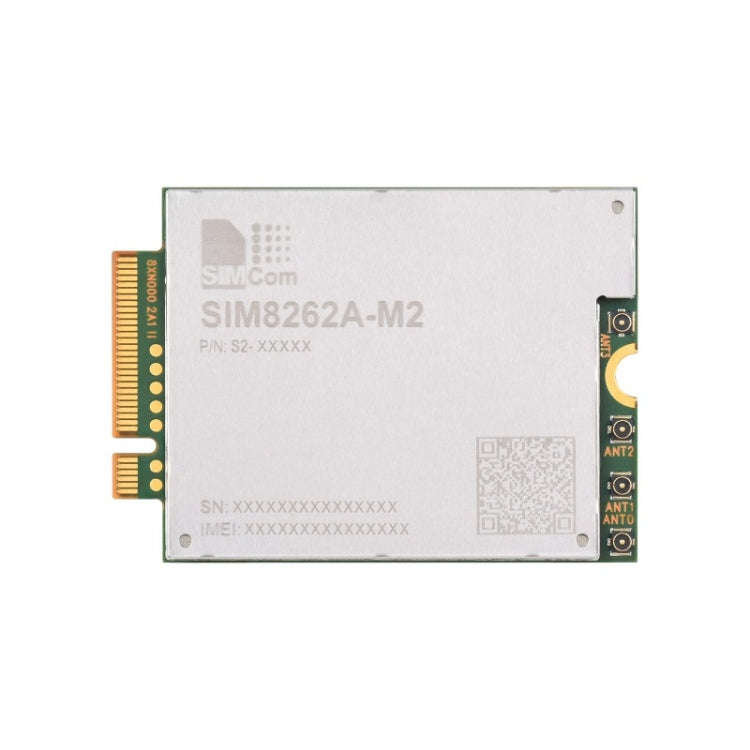

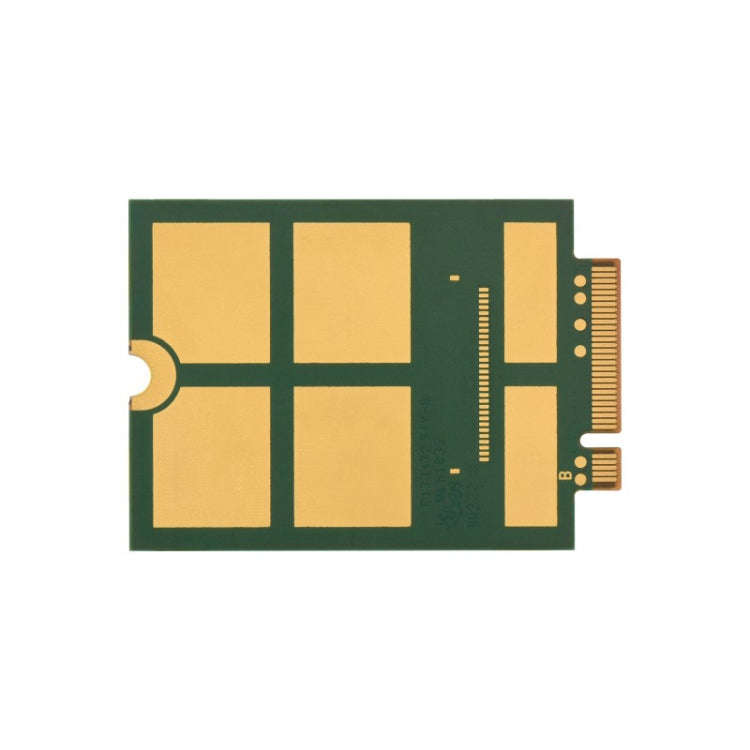

1. SIM8262A-M2 SIMCom 5G module Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, up to 2.4Gbps data transmission.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customers applications
4. SIM8262A-M2 adopts M.2 shape, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, safety and flexibility, this module is well suited for many applications
6. Standard M.2 interface
7. High throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules
Specification:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: 38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8v/2.95v
10. Antenna: for 3G / 4G / 5G / GNSS; 4 x IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.

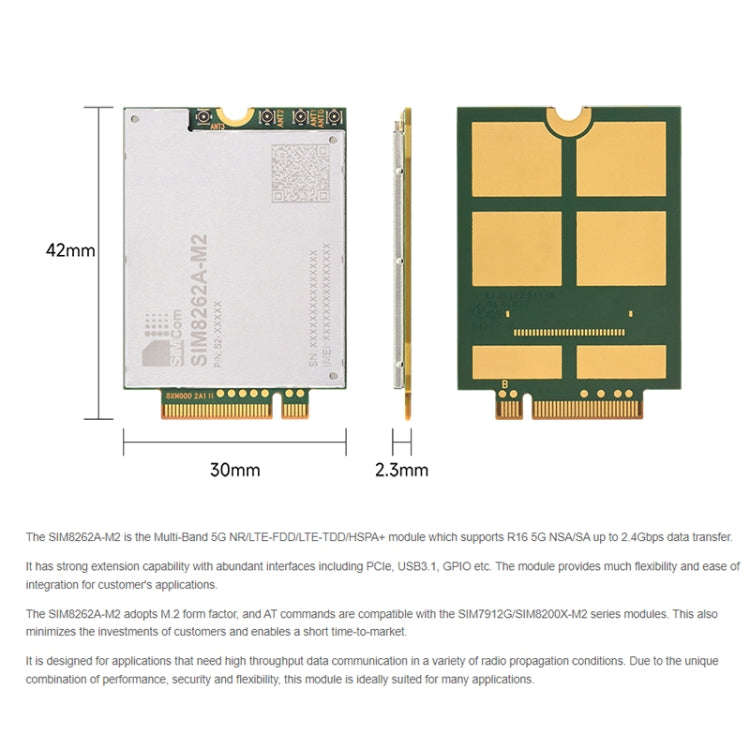

14. Dimensions: 42 x 30 x 2.3mm
Data rate:
1. Sub-6G: 2.4 Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
Software features:
1. Operating system: Windows / Linux / Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Dialing: RNDIS, NDIS, PPP, MBIM
4. SMS support: MT, MO, CB, Text, PDU
5. Firmware upgrade: support firmware upgrade via USB port
